Leading Earth Auger Manufacturer in China Since 2002

1. Original Manufacturer with Competitive Price
2. OEM/ODM Services
3. 36 Months Warranty

Earth Auger Parts

Earth Auger

Can't Find Ideal Earth Auger For Your Industries?

We provide custom solutions to all our customers and offer earth auger that you can take advantage of.

About RAY Attachments: Your Expert Earth Auger Supplier

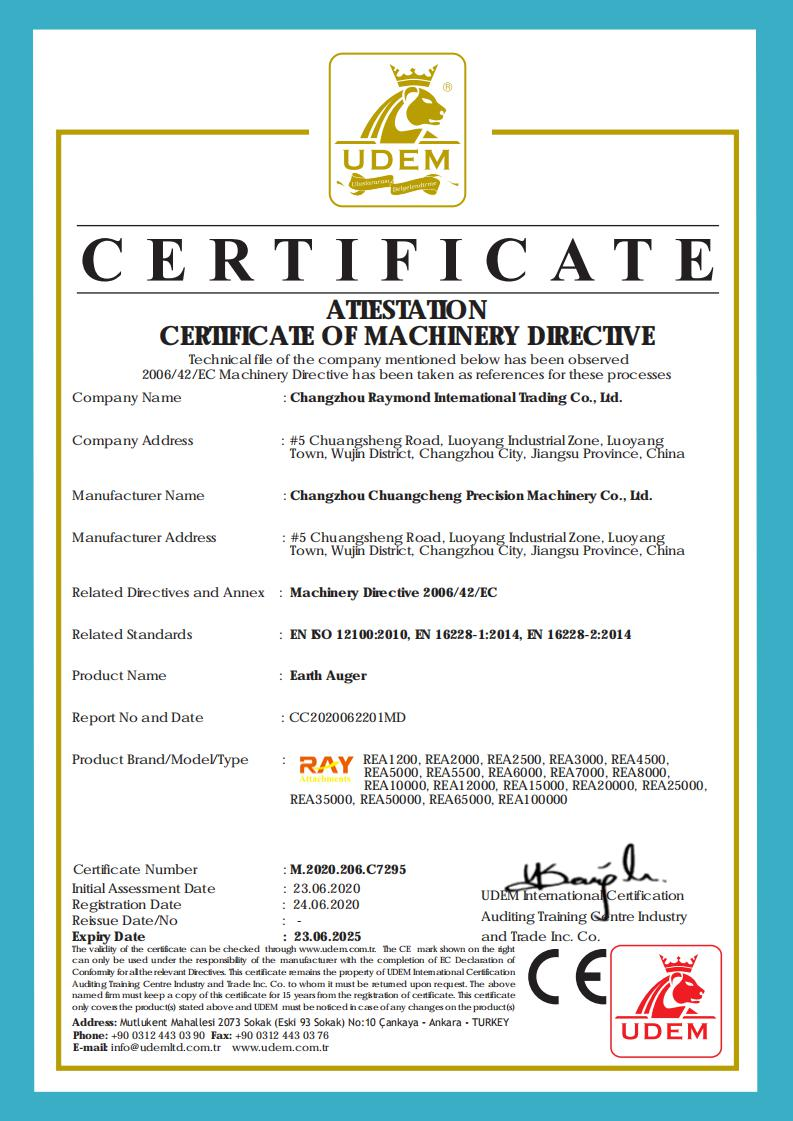

RAY Attachments is a leading manufacturer of Earth Auger in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Earth Auger Technical Parameters

 Earth Auger Products

 Earth Auger Specifictaion

Model Unit REA2000 REA2500 REA3000 REA3500 REA4500 REA5000 REA5500 REA6000 REA7000 REA8000
Carrier T 1~2.5 1.5~3 2~3.5 2.5~4.5 3~5 4.5~7 5~7 6~8 7~10 8~12
Torque N.m ≤1871 ≤2432 ≤2877 ≤3614 ≤4499 ≤5056 ≤5910 ≤6150 ≤6931 ≤8152
Pressure Bar 205 205 240 240 240 240 240 240 240 240
Oil Flow Range l/min 23~53 30~61 30~61 30~68 38~76 38~76 45~83 45~106 61~121 61~136
Rotary Speed rpm 40~92 40~82 40~81 32~72 32~64 29~58 28~50 34~80 37~72 29~64
Hydraulic Hose Inch  1/2  1/2  1/2  1/2  1/2  1/2  1/2  3/4  3/4  3/4
Output Shaft mm Ф65  Ф65  Ф65  Ф65  Ф65  □75  □75  □75  □75  □75
Unit Weight Kg 54 54 71 71 71 108 108 110 112 115
Unit  Height mm 595 595 700 700 700 780 780 850 850 850
Unit Max.Dia. mm 200 200 244 244 244 269 269 269 269 269
Auger Series mm S4 S4 S4 S4 S4 S5 S5 S5 S5 S5
Auger Length mm 1200 1200 1200 1200 1200 1500 1500 1500 1500 1500
Auger dia. Range mm 100~400 100~500 100~600 100~750 100~900 150~600 150~750 150~900 150~900 150~900
Model Unit REA10000 REA12000 REA15000 REA20000 REA25000 REA35000 REA42000 REA50000 REA65000 REA100000
Carrier T 10~13 13~17 13~17 13~20 15~23 20~45 20~45 20~45 20~50 20~50
Torque N.m ≤10778 ≤11976 ≤15046 ≤19560 ≤24949 ≤35265 ≤42318 ≤47389 ≤62197 ≤103509
Pressure Bar 240 240 240 240 240 310 310 320 350 350
Oil Flow Range l/min 70~136 70~150 80~170 80~170 80~170 80~170 80~170 100-280 100-280 100-280
Rotary Speed rpm 26~45 22~48 20~43 16~33 12~26 9~24 9~20 11~30 9~25 5~13
Hydraulic Hose Inch  3/4 1     1     1     1     1     1     1 1/4 1 1/4 1 1/2
Output Shaft mm □75  □75  □75  □75  □75  □110  □110  □110 □110     Hex 150
□130
Unit Weight Kg 167 167 167 270 270 440 440 470 490 1350
Unit  Height mm 930 930 930 1150 1150 1410 1410 1410 1450 2010
Unit Max.Dia. mm 290 290 290 345 345 406 406 406 406 675
Auger Series mm S6 S6 S6 S6 S6 PA PA PA PA PA
Auger Length mm 1750 1750 1750 1750 1750 2300 2300 2300 2300 2300
Auger dia. Range mm 150~900 150~900 150~1200 150~1200 150~1200 300~1500 300~1500 300-1800 300-1800 300-1800

 Earth Auger Advantages

 We use Danfoss or Parker motor and offer an 36-month warranty to protect the entire drive head.
 High precision gear box with less nopisy, longer service life.
 Each parts with serial number, it is conducive to the control of prouduct quality.
 Low deformation rate of drill pipe with longer service life.
 Shot blasting craft: this process not only ensures surface finish, but also prevents rust and prolongs life.
 Good packing to protect machine well when it arrive at customers warehouse. Less after-sales problems.

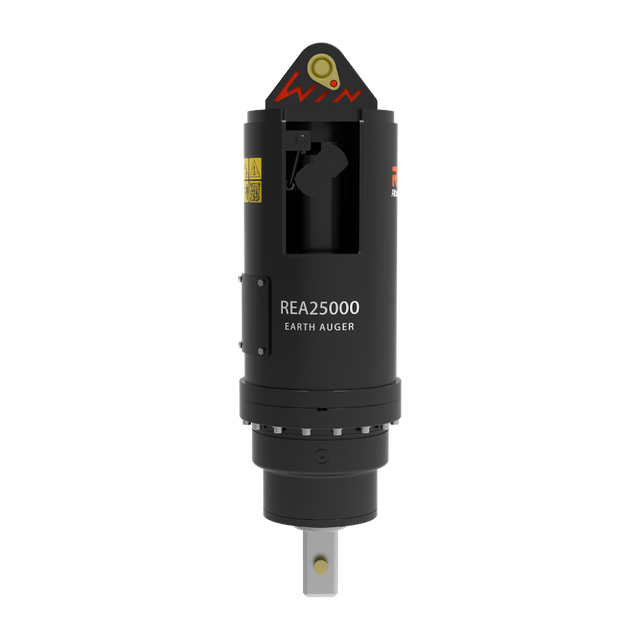

Auger Drive

 FORGED HOOD EARS

Standard with all Auger Drives in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch

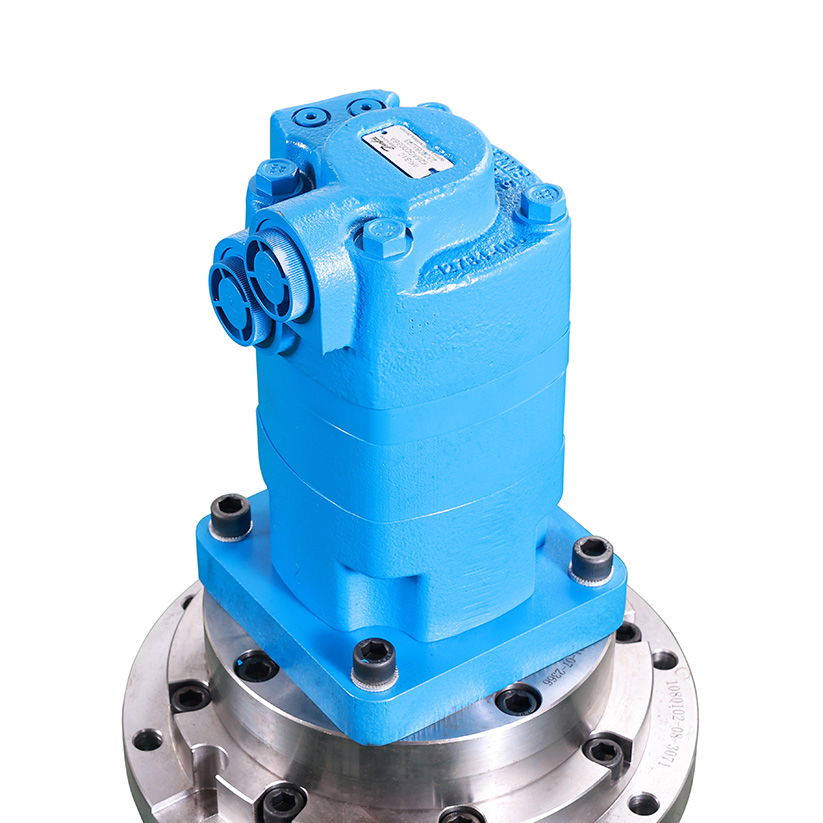

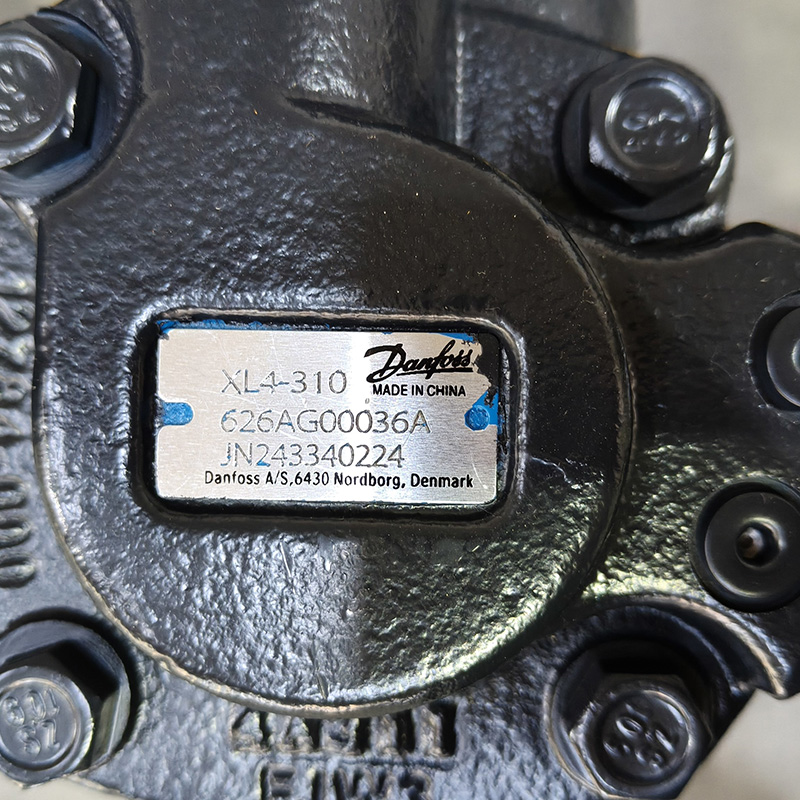

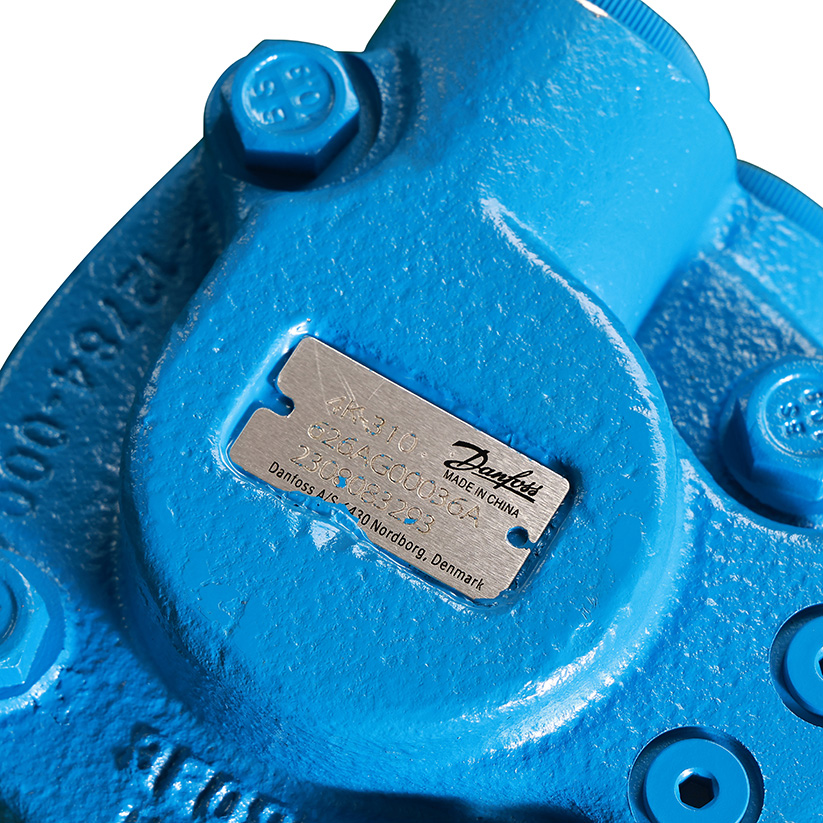

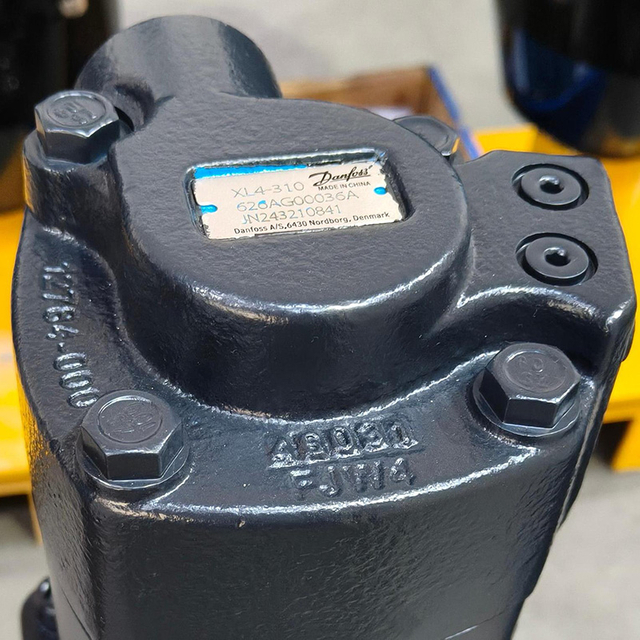

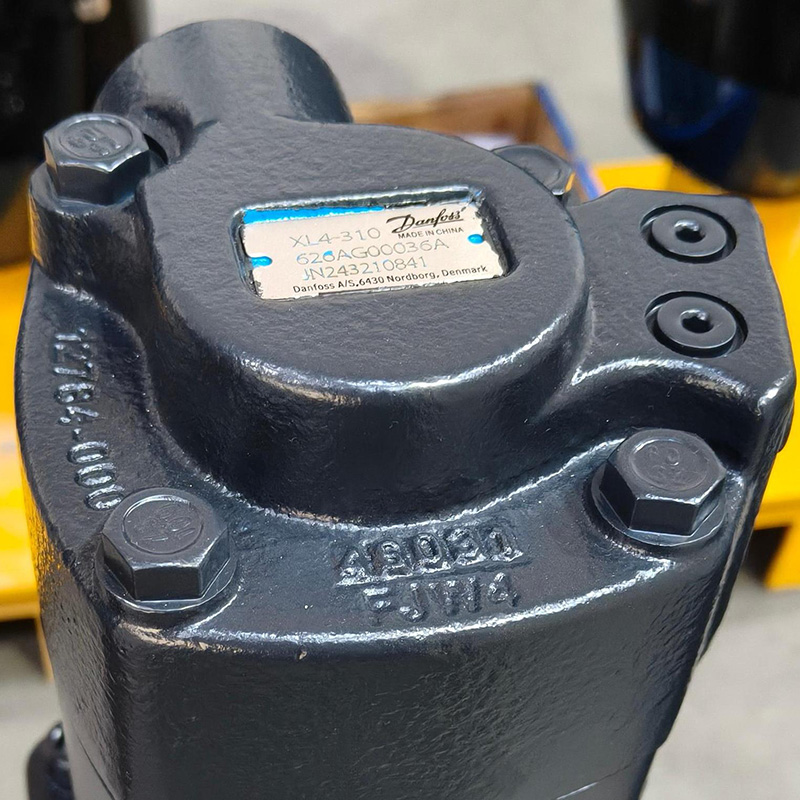

 HIGH QUALITY HYDRAULIC MOTORS
Danfoss or Parker Motor provide stable and high torque power output. The failure rate is only 0.2%

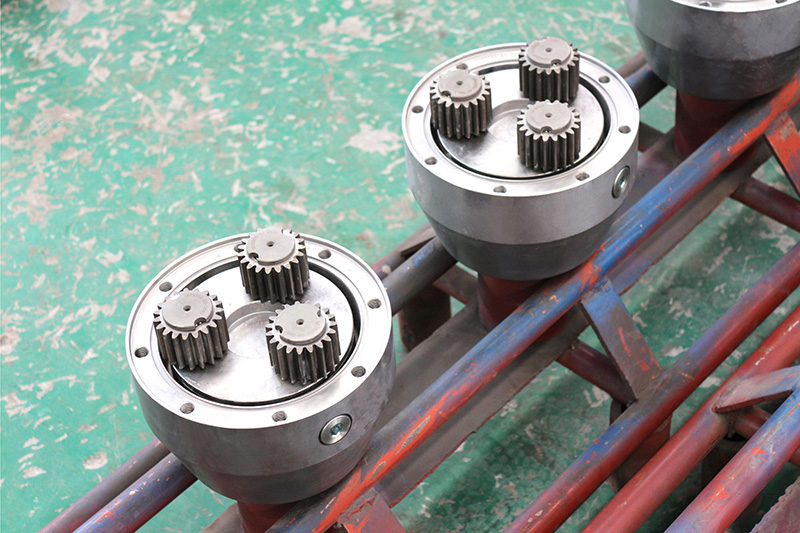

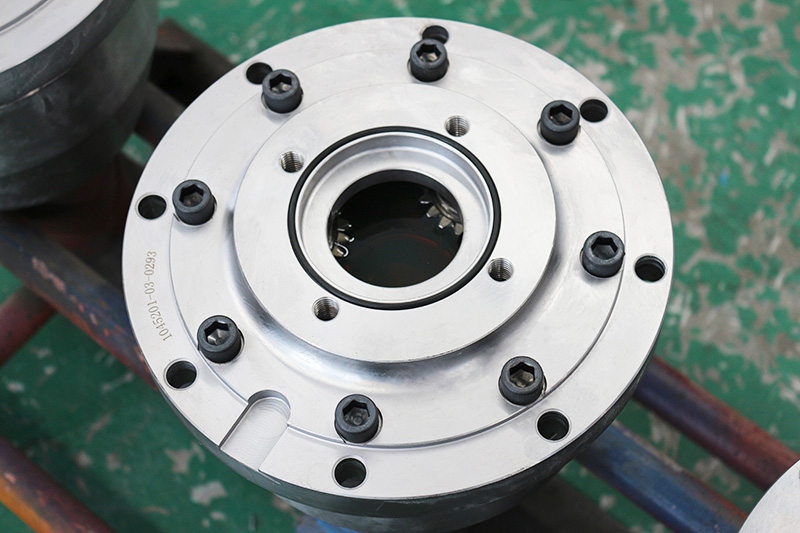

 EPICYCLIC GEARBOX
Torque is amplified by using the unique planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
 NON-DISLODGEMENT SHAFT
The Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.
 HOSES AND ADAPTORS
All Auger drives come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).

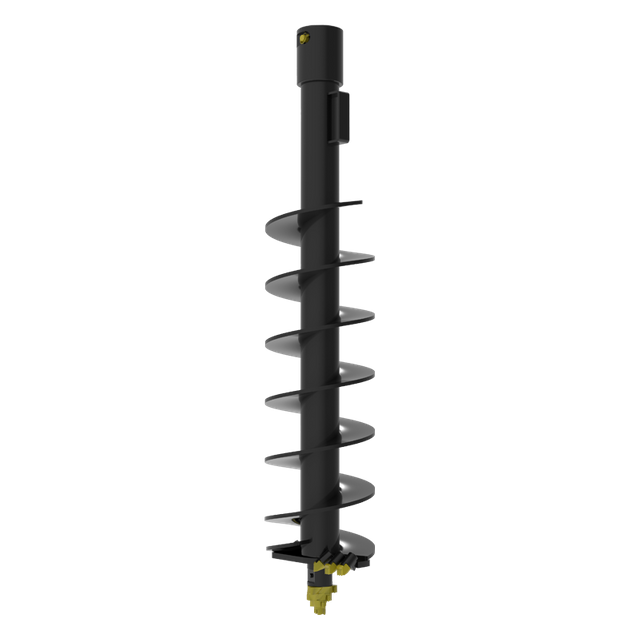

Auger Drill

Tungsten auger drill: It fit to clay, snady land or a little gravel. Digging the soil land very easily.
 Rock auger drill: It fit to rock, pitch or a lot of gravel land.
Sharp auger drill: It fit to rock, concrete, cement, asphalt and so on.
Auger drill can be flexibly selected, S4, S5, S6, PA, four types are available.
 Auger drill have different lengths of extension rods and the length of the auger drill can be set according to customer requirements (size within a certain range).
