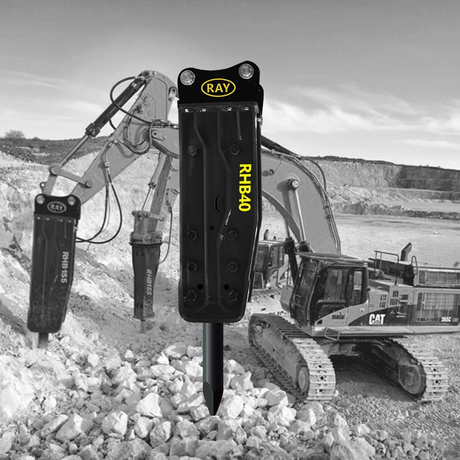

RHB40 Hydraulic Breaker Excavator 0.7-1.3 Ton
Product Description
| Body Weight | Total weight (Kg) | Length(mm) | Width(mm) | Operating pressure | Oil Flow | ||
| kg | Side | Top | Box | Top | Top | kg/cm2 | l/min |
| 53 | 70 | 73 | 102 | 972 | 162 | 90-120 | 15-30 |
| Impact frequency | Dia.of hose | Dia.of Tool (M/W/B/C) | Length of Tool | Suitable Carrier bucket Volume | Suiteable Carrier Weight | Accumulat or Pressure | Backhead N2 pressure |
| bpm | mm inch | mm | mm | m3 | ton | kg/cm2 | kg/cm2 |
| 800-1400 | 12.7 1/2 | 40 | 430 | <0.07 | 0.8-2.5 | N/A | 16.5 |
RHB40 Hydraulic Breaker Advange
1. Using special material for piston: durable and longer service life.(20Cr2Ni4A)
2. The precision of Front Head/Cylinder/Back Head are less than 0.05mm; The precision of seal groove is 0.03mm , to increase the piston's life.
3. Our cylinder(More than 20T), subzero treatment after heat treatment . It is will be lower deformation and less scratch.
4. We have Vertical grinding machine ( used for more than 30T) to ensure the precision of piston , straightness accuracy. To improve performance and stability.
RHB40 Hydraulic Breaker Applications
1. Mining---Mining, Second-time breaking;
2. Metallurgy---Clearing slag, Demolition of furnace and foundation;
3. Road---Repairing,Breaking,Foundation work;
4. Railway---Tunneling, Demolition of bridge;
5. Construction---Demolition of building and reinforced concrete;
6. Ship repairing---Clearing clam and rust from the hull;
7. Others---Breaking frozen mud.
RHB40 Hydraulic Breaker Parts
Standard package include two chisels, two hoses, one set of N2 charging kit with N2 bottle and pressure gauage, one set of spare seal kit, one tool box with necessary maintenance tools and operation manual as well.
RHB40 Hydraulic Breaker Package
1. Inner is stretch film, outside is export wooden case or as customer’s request
2.The standard free spare parts: two pcs of Chisel, two pcs of oil tube, one pc of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge and a pair of gloves.
RHB40 Hydraulic Breaker Transport
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
