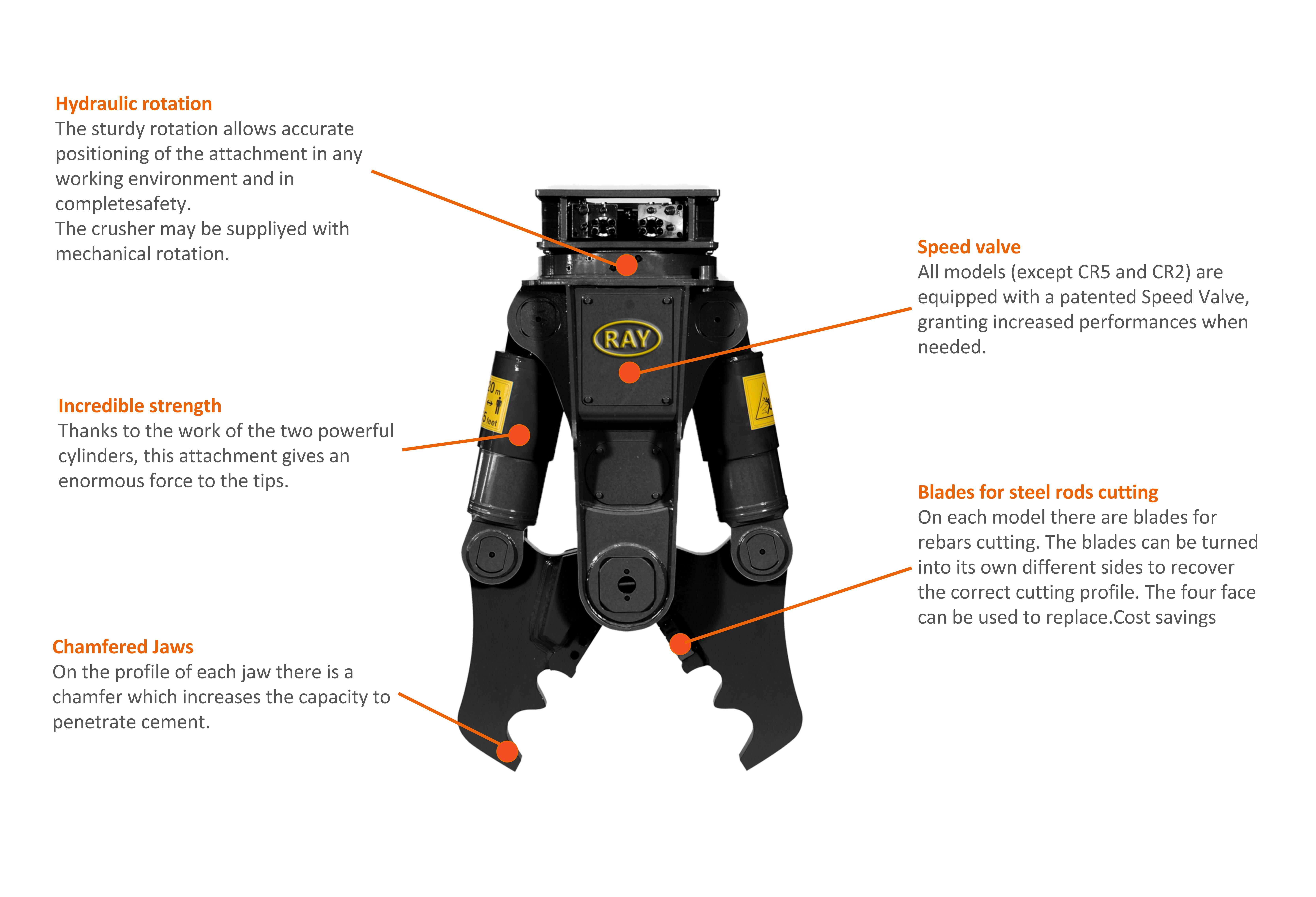

Item | Unit | CR5R | CR15R | CR20R | CR26R |
Excavator weight | t | 5-14 | 14-18 | 18-24 | 24-35 |
Tool weight | kg | 530 | 1600 | 2100 | 2800 |
Cyline force | t | 50 | 100 | 132 | 157 |
Force at upper tips F1 (front teeth) | t | 34 | 64 | 84 | 92 |
Force in the middle F2 (middle of blade) | t | 51 | 99 | 127 | 142 |
Cutting force F3 | t | 141 | 284 | 329 | 392 |
Hydraulic working pressure | bar | 200-250 | 280-320 | 280-320 | 280-320 |
Oil flow | l/min | 50-90 | 130-150 | 180-320 | 220-250 |
Rotation type | / | 360°H | 360° H | 360° H | 360° H |
Hydraulic motor max oil pressure | bar | 90-100 | 90-100 | 90-100 | 90-100 |
Hydraulic motor oil flow | l/min | 30-40 | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | s | 3.79 | 2,5 | 2,2 | 2,3 |
Time of opening at max oil flow | s | 2.31 | 2,5 | 3,7 | 4 |
N° of cycles per minute at max oil flow | cycles/min | 9.8 | 12 | 10 | 9,4 |
N° of revs per minute at max oil flow | revs/min | 9.8 | 12 | 11 | 11 |
Hyd.ports size cylinder | / | ½" SAE | ¾" SAE | 1" SAE | 1" SAE |
6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | ||
Hyd.ports size rotation | / | ½" GAS | ½" GAS | ½" GAS | ½" GAS |
Hyd.port size drain line | / | N,N | N,N | N,N | N,N |
Speed valve | / | NO | YES | YES | YES |
Max diameter to be cut** | mm | 36 | 50 | 58 | 63 |
Blade length | mm | 140 | 200 | 200 | 250 |
Interchangeable wear parts | / | NO | NO | NO | NO |
Automatic grease system | / | NO | NO | NO | NO |

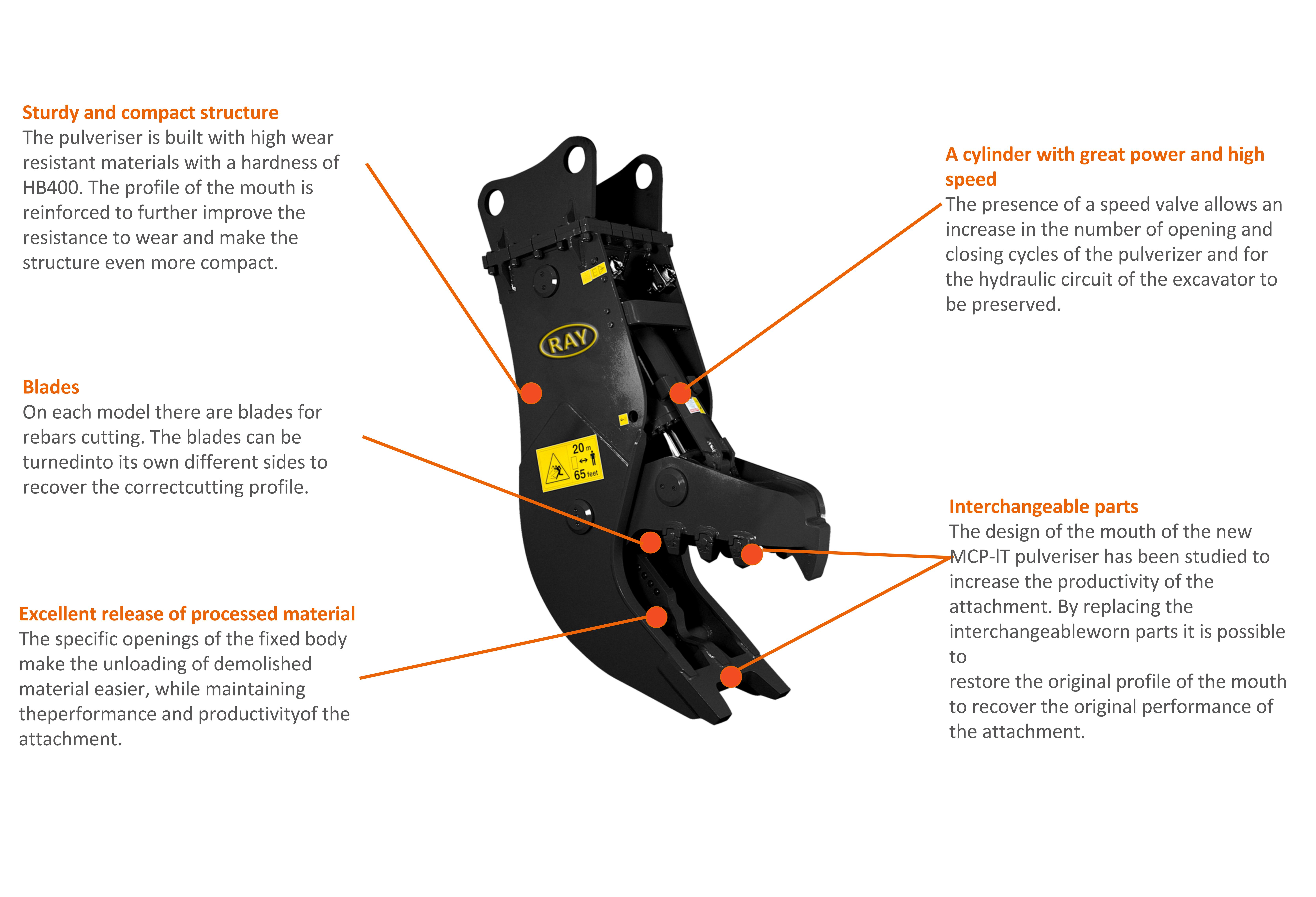

Item | Unit | MCP480 | MCP600 | MCP700 | MCP800 | MCP910 |
Excavator weight | t | 4-10 | 10-18 | 16-22 | 18-25 | 25-35 |
Tool weight | kg | 450 | 1000 | 1650 | 2050 | 2850 |
Cylinder force | t | 71 | 100 | 120 | 145 | 157 |
Jaw opening | mm | 480 | 530 | 820 | 850 | 1000 |
Force at upper tips F1 (front teeth) | t | 39 | 54 | 66 | 73 | 99 |
Force in the middle F2 (middle of blade) | t | 60 | 79 | 93 | 115 | 153 |
Cutting force F3 | t | 130 | 155 | 222 | 196 | 276 |
Hydraulic working pressure | bar | 220-280 | 280-320 | 280-320 | 280-320 | 280-320 |
Oil flow | l/min | 80-100 | 100-180 | 100-180 | 180-220 | 220-280 |
Rotation type | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | |
Time of closing at max oil flow | s. | 3,4 | 3,09 | 2.28 | 2,28 | 2,94 |
Time of opening at max oil flow | s. | 2,4 | 1,88 | 2.25 | 2,26 | 2,74 |
N°of cycles per minute at max oil flow | cycles/min | 10,4 | 12,1 | 15 | 13,2 | 10,6 |
Hyd. ports size cylinder | / | 1/2''SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1''1/4 SAE 6000 p.s.i. |
Speed valve | / | NO | Optional | Yes | Yes | Yes |
Max diameter to be cut | mm | 25 | 50 | 50 | 55 | 60 |
Blade length | mm | 120 | 122 | 200 | 180 | 180 |
Interchangeable wear parts | / | NO | NO | NO | Yes | Yes |
Automatic grease system | / | NO | NO | NO | NO | NO |

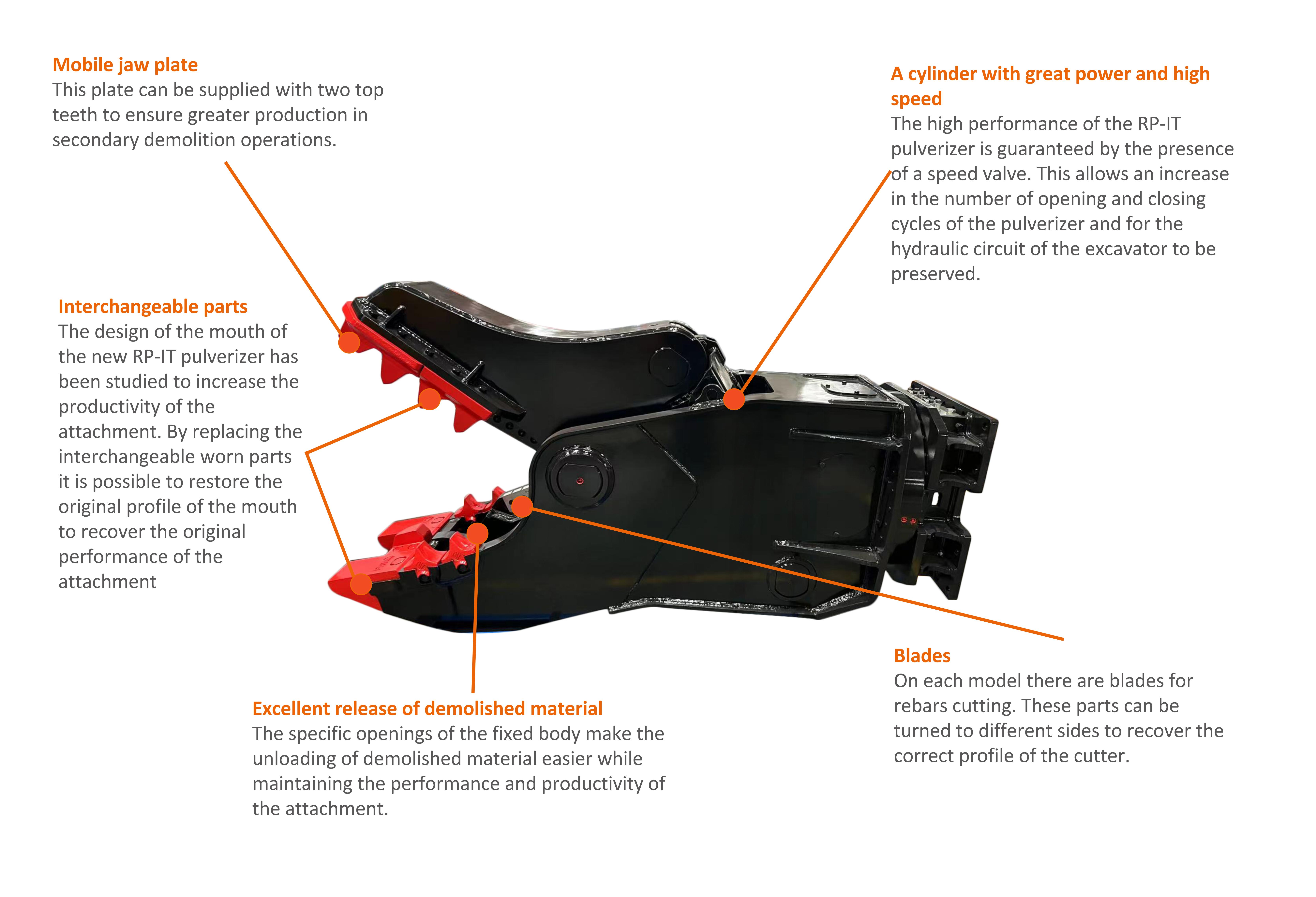

Item | Unit | RP16 | RP18 | RP25 |
Excavator weight | t | 16-23 | 18-26 | 26-32 |
Tool weight | kg | 1720 | 2000 | 2750 |
Cyline force | t | 100 | 145 | 158 |
Force at upper tips F1 (front teeth) | t | 55 | 71 | 83 |
Force in the middle F2 (middle of blade) | t | 85 | 112 | 129 |
Cutting force F3 | t | 207 | 230 | 271 |
Hydraulic working pressure | bar | 300-350 | 300-350 | 300-350 |
Oil flow | l/min | 180-200 | 180-200 | 200-220 |
Rotation type | 360° hydraulic | |||
Hydraulic motor max oil pressure | bar | 90-100 | 90-100 | 90-100 |
Hydraulic motor oil flow | l/min | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | s | 2,78 | 1,36 | 2,28 |
Time of opening at max oil flow | s | 1,69 | 2,31 | 2,26 |
N° of cycles per minute at max oil flow | cycles/min | 13,4 | 16,3 | 13,2 |
N° of revs per minute at max oil flow | revs/min | 11,5 | 11,5 | 8,1 |
Hyd.ports size cylinder | / | 1’’ SAE | 1’’ SAE | 1’’ SAE |
6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | ||
Hyd.ports size rotation | / | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS |
Hyd.port size drain line | / | N.N. | N.N. | N.N. |
Speed valve | / | NO | Yes | Yes |
Max diameter to be cut | mm | 50 | 55 | 61 |
Blade length | mm | 180 | 220 | 300 |
Interchangeable wear parts | / | Yes | Yes | Yes |
Automatic grease system | / | NO | NO | NO |
