Full-pile Hydraulic Driving & Extraction System. Achieves one-step construction for 6-10m deep piles

Vibro Hammer/Pile Driver

Why Choose Us

A well-functioning hydraulic system ensures striking force
Under normal hydraulic system pressure and flow, it generates greater impact force, adapts to different geological conditions.
Combined with high-frequency hydraulic vibration technology, it ensures smooth construction of 6–10-meter-deep piles and shortens the construction period.
Fully adaptable structure for all pile types

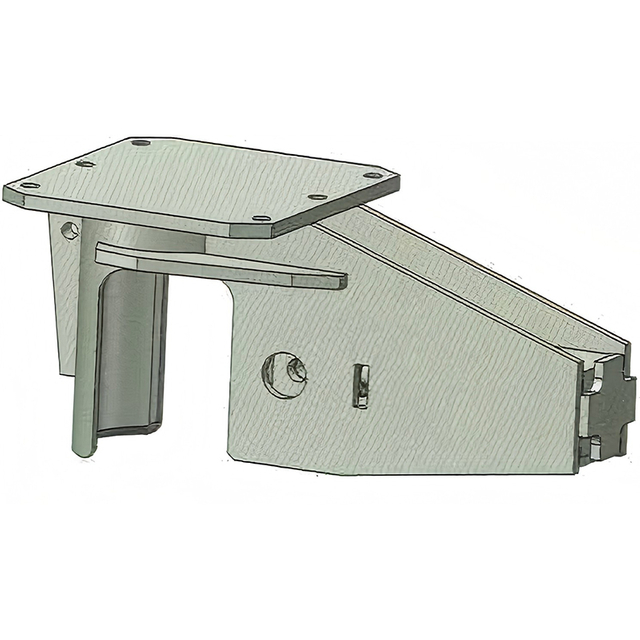

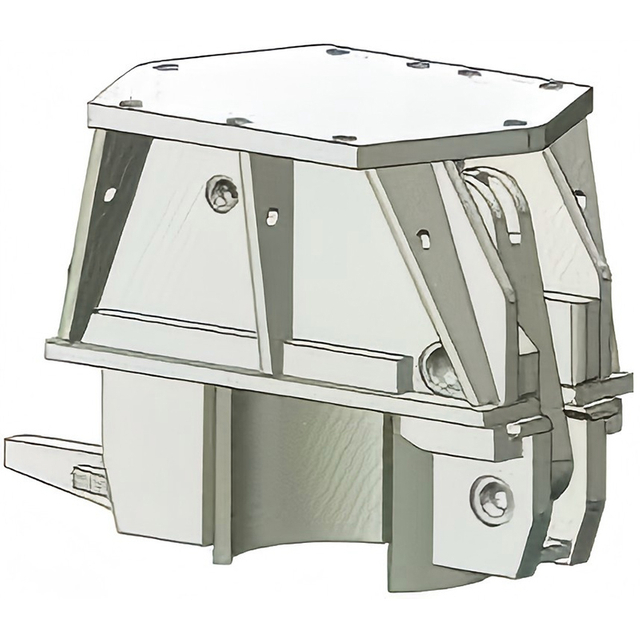

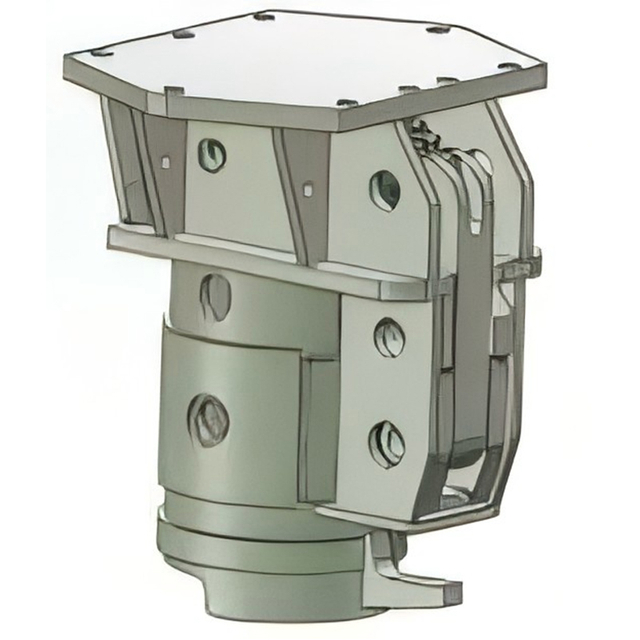

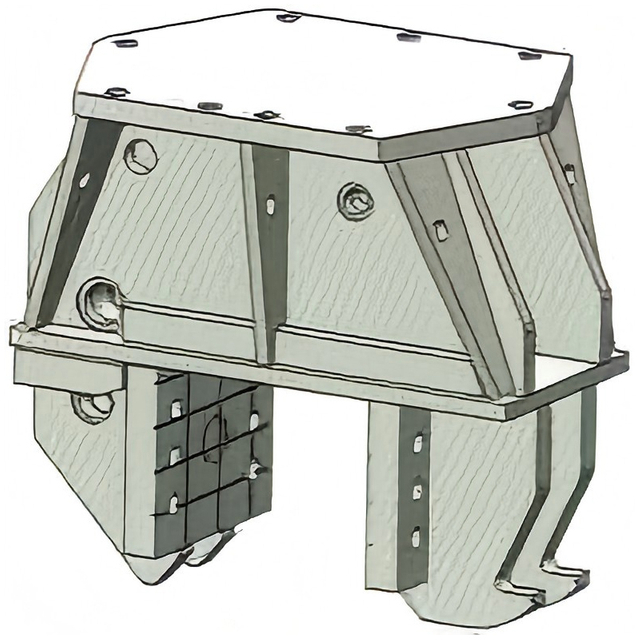

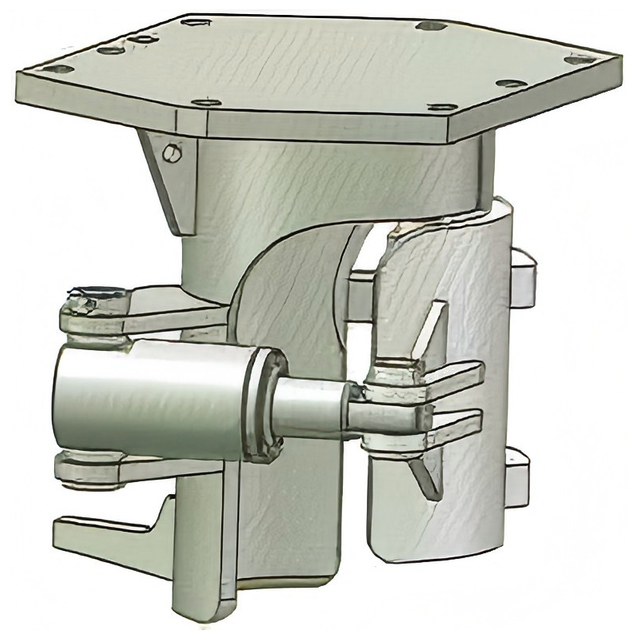

The detachable clamp jaw accommodates different cement/steel plate/cylinder pile types (ranging from 10–300 mm) and applies to more working conditions.
 Simple maintenance—time-saving and worry-free

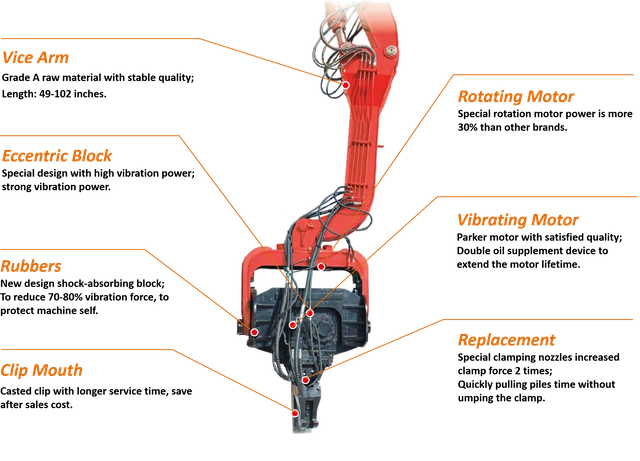

Pile Driver Structure

Vice Arm
Grade A raw material with stable quality；
Length: 49-102 inches.

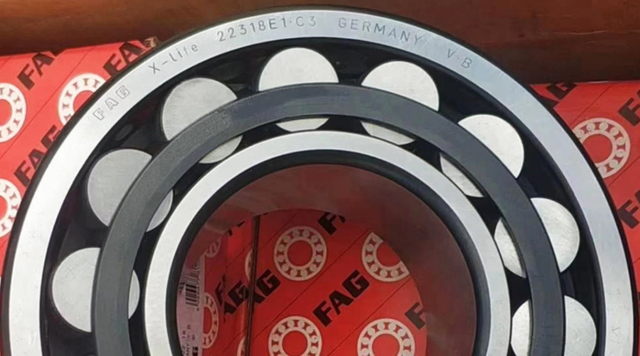

Eccentric Block
Special design with high vibration power; strong vibration power.

Rubbers
New design shock-absorbing block;
To reduce 70-80% vibration force, to protect machine self.

Clip Mouth
Casted clip with longer service time, save after sales cost.

Rotating Motor
Special rotation motor power is more 30% than other brands.

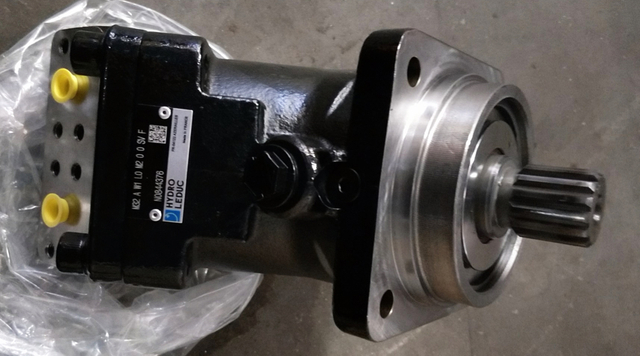

Vibrating Motor
Parker motor with satisfied quality;
Double oil supplement device to extend the motor lifetime.

Replacement
Special clamping nozzles increased clamp force 2 times;
Quickly pulling piles time without umping the clamp.

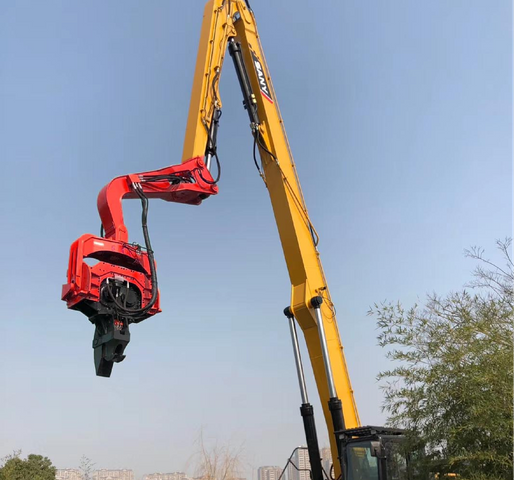

Operational Applications

Customer Witness

  • Driver, No Downtime

Leading Pile Driver/ Vibro Hammer

Manufacturer in China

Since 2002

1. Original Manufacturer with Competitive Price
2. OEM/ODM Services
3. 12 Months Warranty

Pile Driver/ Vibro Hammer

Hydraulic Vibrating Pile Driver RV-100 for 7-12 Ton Excavator
Hydraulic Vibrating Pile Driver RV-100 for 7-12 Ton Excavator
A pile driver is a device used to drive piles (poles) into soil to provide foundation support for buildings or other structures. It is mainly used for excavators. The excavator pile driver is mainly used for piling.
0
0
Hydraulic Vibro Hammer RV-150 for 12-17 Ton Excavator
Hydraulic Vibro Hammer RV-150 for 12-17 Ton Excavator
A pile driver is a device used to drive piles (poles) into soil to provide foundation support for buildings or other structures. It is mainly used for excavators. The excavator pile driver is mainly used for piling.
0
0
Sheet Pile Vibratory Hammer RV-250 for 20-25 Ton Excavator
Sheet Pile Vibratory Hammer RV-250 for 20-25 Ton Excavator
A pile driver is a device used to drive piles (poles) into soil to provide foundation support for buildings or other structures. It is mainly used for excavators. The excavator pile driver is mainly used for piling.
0
0
RV-300 30-33 Ton Excavator Vibro Hammer for Piling
RV-300 30-33 Ton Excavator Vibro Hammer for Piling
Hydraulic vibrating pile drivers take the advantage of high-frequency vibration generated by the motor and transmit the vibration force to the hydraulic vibrating pile driver. Lead to changes in soil around pile structure for vibration and strength decrease.
0
0
25-30 Ton Excavator Vibro Hammer for Pile Driving RV-280
25-30 Ton Excavator Vibro Hammer for Pile Driving RV-280
A pile driver is a device used to drive piles (poles) into soil to provide foundation support for buildings or other structures. It is mainly used for excavators. The excavator pile driver is mainly used for piling.
0
0
Hydraulic Vibrating Pile Hammer Driver RV-330 for 33-38 Ton Excavator
Hydraulic Vibrating Pile Hammer Driver RV-330 for 33-38 Ton Excavator
Liquefaction of soil around the pile body, reducing pile side friction and soil resistance, and under excavator pressure, vibration pile hammer and pile weight sank to the soil.
0
0
Hydraulic Vibrating Pile Driver Manufacturer Supplier RV-350 for 38-45 Ton Excavator
Hydraulic Vibrating Pile Driver Manufacturer Supplier RV-350 for 38-45 Ton Excavator
Liquefaction of soil around the pile body, reducing pile side friction and soil resistance, and under excavator pressure, vibration pile hammer and pile weight sank to the soil.
0
0
Hydraulic Vibrating Hammer RV-400 for 45-52 Ton Excavator
Hydraulic Vibrating Hammer RV-400 for 45-52 Ton Excavator
Liquefaction of soil around the pile body, reducing pile side friction and soil resistance, and under excavator pressure, vibration pile hammer and pile weight sank to the soil.
0
0

Can't Find Ideal Pile Driver/ Vibro Hammer for Your Industries?

We provide custom solutions to all our customers and offer vibro hammer that you can take advantage of.

About RAY Attachments: Your Expert Pile Driver/ Vibro Hammer Supplier

RAY Attachments is a leading manufacturer of Pile Driver/ Vibro Hammer in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Pile Driver/ Vibro Hammer Technical Parameters

Pile Driver/ Vibro Hammer Types

Vibro Hammer
Vibro Hammer

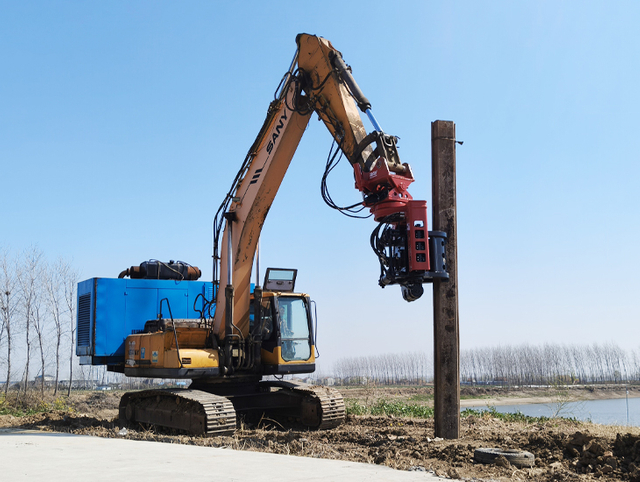

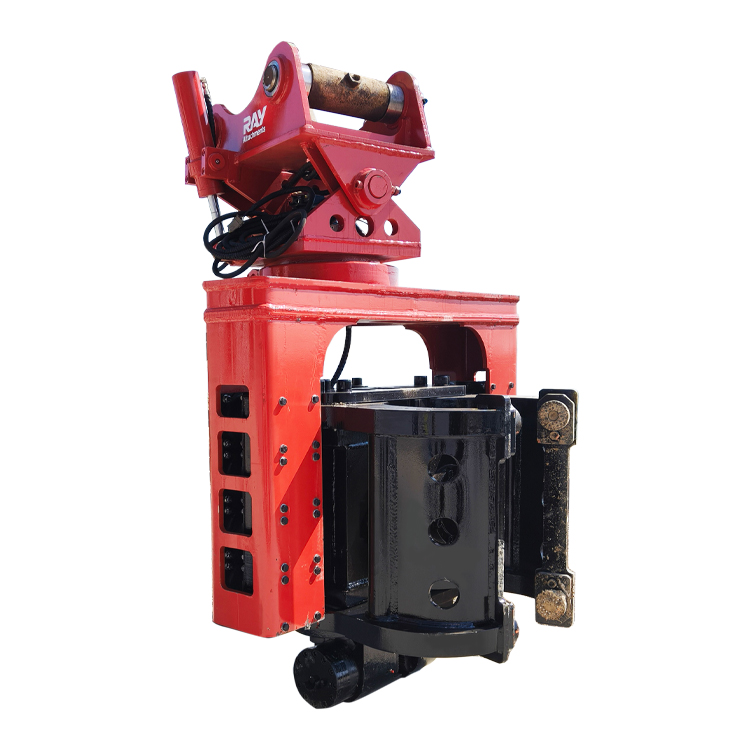

Side Grip Vibro Hammer
Side Grip Vibro Hammer

 Pile Driver/ Vibro Hammer Specifictaion

RAY VIBRO HAMMER

Model Unit RV-100 RV-150 RV-250 RV-280 RV-300 RV-330 RV-350 RV-400
Vibration Frequency rpm 2500 2500 2800 3200 3200 3200 3200 3200
Operation Pressure Mpa 30 30 32 32 32 32 32 32
Centrifugal Force kn 117 172 265 335 350 372 455 485
Max. Pile Length Standard(m) 4 5 7 7 7 8 8 8
Cylinder down(m) 6 8 9 9 9 10 10 10
Extension arm(m) / / 12 12 13 15 18 18
Arm Weight kg 160 260 500 500 670 670 750 750
Arm Size mm 1242*300*710 1800*300*750 2600*500*900 2600*500*900 2650*600*900 2650*600*900 2700*500*940 2700*500*940
Hammer Size mm 1160*960*1003 1210*1050*1120 1500*1110*1400 1500*1300*1500 1750*1450*1350 1750*1450*1350 1850*1600*1550 1850*1600*1550
Hammer Weight kg 850 1100 1700 1900 2100 2300 2600 2700
Excavator T 7-12 12-17 20-25 25-30 30-33 33-38 38-45 45-52
RAY SIDE GRIP VIBRO HAMMER
Model Unit SV30 SV40 SV50 SV60 SV70
Eccentric Moment kg·m 3.0 4.0 5.1 6.3 7.3
Centrifugal Force KN 206-297 275-396 350-505 433-624 502-723
Frequency rpm 2500-3000 2500-3000 2500-3000 2500-3000 2500-3000
Total Weight T 1.80  2.63  2.76  3.21  3.24
lbs/pounds 3968.32  5798.16  6084.76  7076.84  7142.98
Swing/tilt Angle degree 360/+25 360/+25 360/+25 360/+25 360/+25
   Oil Flow Lpm 80  110  165  221  256
gpm 21  29  44  58  68
Amplitude mm 3.3 5 6 6 7
inch 0.13  0.20  0.24  0.24  0.28
Side Gripping Force ton 50 50 50 60 60
lbs/pounds 110231 110231 110231 132277 132277
  Clamping Force T 43 43 43 62 62
lbs/pounds 94799 94799 94799 136686 136686
  Arm  Stroke mm 250 250 250 250 250
inch 9.84  9.84  9.84  9.84  9.84
Dimensions(L*W*H) mm 1030x1485x2042  1350x1050x2410 1350x1050x2410 1600x1280x2610 1600x1280x2610
inch 40.55∗58.46∗80.39 53.15∗41.34∗94.88 53.15∗41.34∗94.88 62.99∗50.39∗102.76 62.99∗50.39∗102.76
Excavator T 13-18 20-23 24-27 28-33 34-40
lbs/pounds 28660−39683 44092−50706 52911−59525 61729−72752 74957−88185
Sheet Piles Width mm 400-800 350-800 400-1000
inch 15.75−31.50 13.78−31.50 15.75−39.37
H-Beams mm H100- H400 H200-H500 H250-H500
inch H3.94−H15.75 H7.87−H19.69 H9.84−H19.69
 Timber Piles mm φ220-325 φ120-400 φ160-600
inch φ8.66−12.80 φ4.72−15.75 φ6.30−23.62
Tube Piles mm φ90-350 φ120-400 φ160-600
inch φ3.54−13.78 φ4.72−15.75 φ6.30−23.62
Max Pile Length(common soil ) m 12 12 12 18 18
inch 472.44  472.44  472.44  708.66  708.66
Max Clamping Pile Weight kg 600 1000 1000 1500 1500
lbs/pounds 1322.77 2204.22 2204.22 3306.93 3306.93

 Pile Driver/ Vibro Hammer Advantages

RAY VIBRO HAMMER
 The hydraulic swing motor and gear are built in, which can effectively avoid oil pollution and collision, easy gear replacement, tight fit, stable and durable.
The box body adopts an open structure to ensure the pressure balance inside the box and stabilize the heat removal.
The use of high-performance imported damping rubber blocks, stable quality and long life.
The original imported hydraulic motor, stable performance, superior quality.
The nozzle cylinder is strong in thrust and pressure-maintaining, stable and reliable, ensuring that the pile body is not loose and ensuring construction safety.
The material of the nozzle is made of imported wear plate, which has stable performance and long service life.
RAY SIDE GRIP VIBRO HAMMER
 Elastomer: Imported and customized, ensures its service life.
Gearbox: High precision gearbox ensures long-term and stable operation.
Main Clamp: The clamp is made of a solid block, with a solid structure and small size.
Side Grip: Easily changeable jaws, depending on the working condition.
Jaws: CNC one-time forming, vacuum heat treatment, high-temperature quenching and hardening, excellent material, strong and wear-resistant.

 Pile Driver/ Vibro Hammer Packing & Shipping

 Pile Driver/ Vibro Hammer Videos

 Pile Driver/ Vibro Hammer Catalogue

Related Excavator Attachments

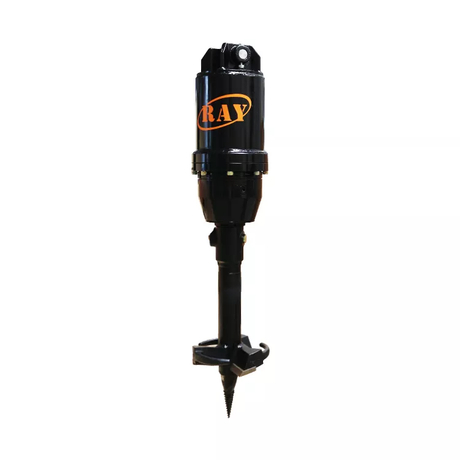

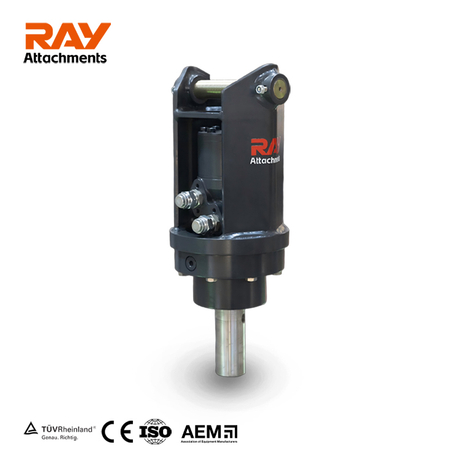

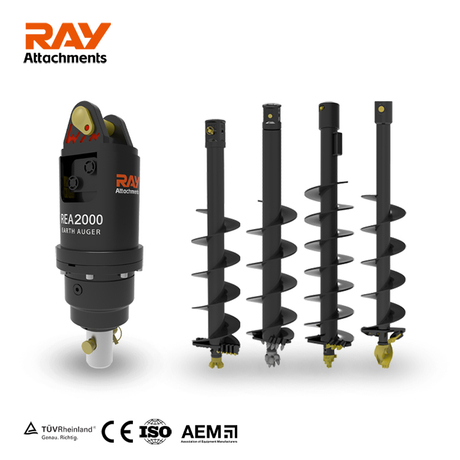

Earth Auger
Hydraulic Breaker

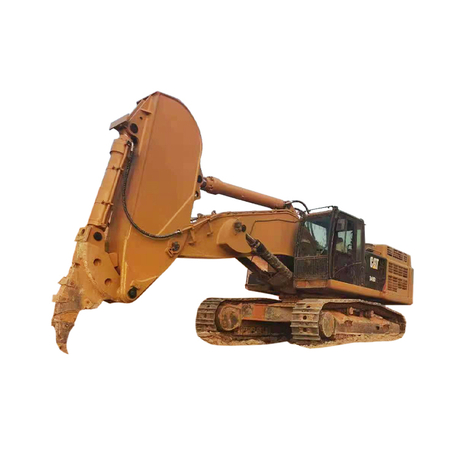

Long Boom&Arm

Cooperation Process

Step.1
Send your inquiry
Step.2
Quote price
Step.3
Negotiate price and lead time
Step.4
Sign the contract
Step.5
Payment and production
Step.6
Inspection
Step.7
Shipment

Pile Driver/ Vibro Hammer FAQ

  • What type of Elastomers do your Vibratory hammers use? as far as I have known, it's very important when driving and extracting a vibratory hammer.

    You are right! Elastomeric rubber plays a very important role, in absorbing shocks transmitted to the base robot boom, and when driving or mining. We use two different sizes of elastomeric rubber, each with a maximum shear load of over 2 tons. Additionally, a small safety bar is housed inside the suppressor to prevent the elastomer from being dropped by the crane being over-pulled or pulled back.

  • What are the advantages of installing a vibratory hammer on an excavator?

    A wide variety of products, Fast, reliable and simple shovel connection, Ergonomic design provides convenient use, move around the link yoke with complete safety, high performance and towing/extraction capabilities, minimal vibrations are transmitted to the environment, Double or single clamped steel pipe piles can be driven easily and powerfully, Robust, reliable and long lasting.

  • What is the working principle of excavator mounted vibration drive?

    Connect the pressure and return hoses to the flow meter from the excavator. Make sure the hose is properly connected to the correct port on the flow meter. Adjust the pressure of the flow meter with the restrictor to the pressure required by the vibrator, and at the adjusted pressure, set the required flow with the regulating valve of the main pump of the excavator.

  • How does the vibro hammer work?

    RAY Vibro Hammer machines, also known as vibratory drivers and vibratory hammers, work to reduce the resistance of the ground to vibrations and change the formation of the ground. The vibratory pile driver transmits vertical vibration to the pile through hydraulic clamps. This, in turn, transmits vibrations to the ground, reducing the friction between the pile and the ground, allowing the pile to be driven in or out with less force. The pile is driven into the ground by a combination of the weight of the vibrator and the centrifugal force it generates.

  • What are the advantages of a vibratory hammer?

    A vibratory hammer saves time and money as it drives into the pile faster, They can be used to strike and pull piles out of the ground, They can be used underwater It's simple and easy to use, They can be used for crane and excavator dependencies. Crane hammers are used in projects that require high impact/demolition performance, and they provide the required energy through a power pack. It has eco-friendly technology (especially for protecting animals). They are powered by hydraulic or electrical lines, but hydraulic lines are becoming more popular because they are lighter and stronger. They are small and easy to transport and maintain. Vibratory hammers are much less expensive than traditional hammer drives.

  • How does a pile driver work?

    A pile is a machine that drives piles into the ground to form the foundation of a structure. It works by twisting the weight on a pile surrounded by a guide frame. The weights will then be released to fall and hit the piles against the ground below.

  • How do I choose a vibro hammer?

    To select the right vibratory hammer for a given job, some general rules are recommended, such as ground conditions, power of the vibratory hammer, weight of the pile, weight of the hammer and type of pile.

  • What is vibrating hammer?

    A vibratory hammer is a tool used to drive piles into the ground when constructing foundations for objects such as bridges, buildings, roads, marine piers, walls or railways

Factory FAQ

  • Are you a factory or trading company?

    We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.

  • Where is your factory located?

    Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China
    It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.

  • How many days for production delivery?

    Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.

  • What are your terms of payment?

    Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.

  • How about quality control in your factory?

    Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.

  • How about guarantee?

    We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.

  • Purchase notes

    (1) As the manufacturing factory, RAY Attachments works in international trade and can handle wholesale orders with containers' capacity.
    (2) We aim to find our business partner as our international dealers.
