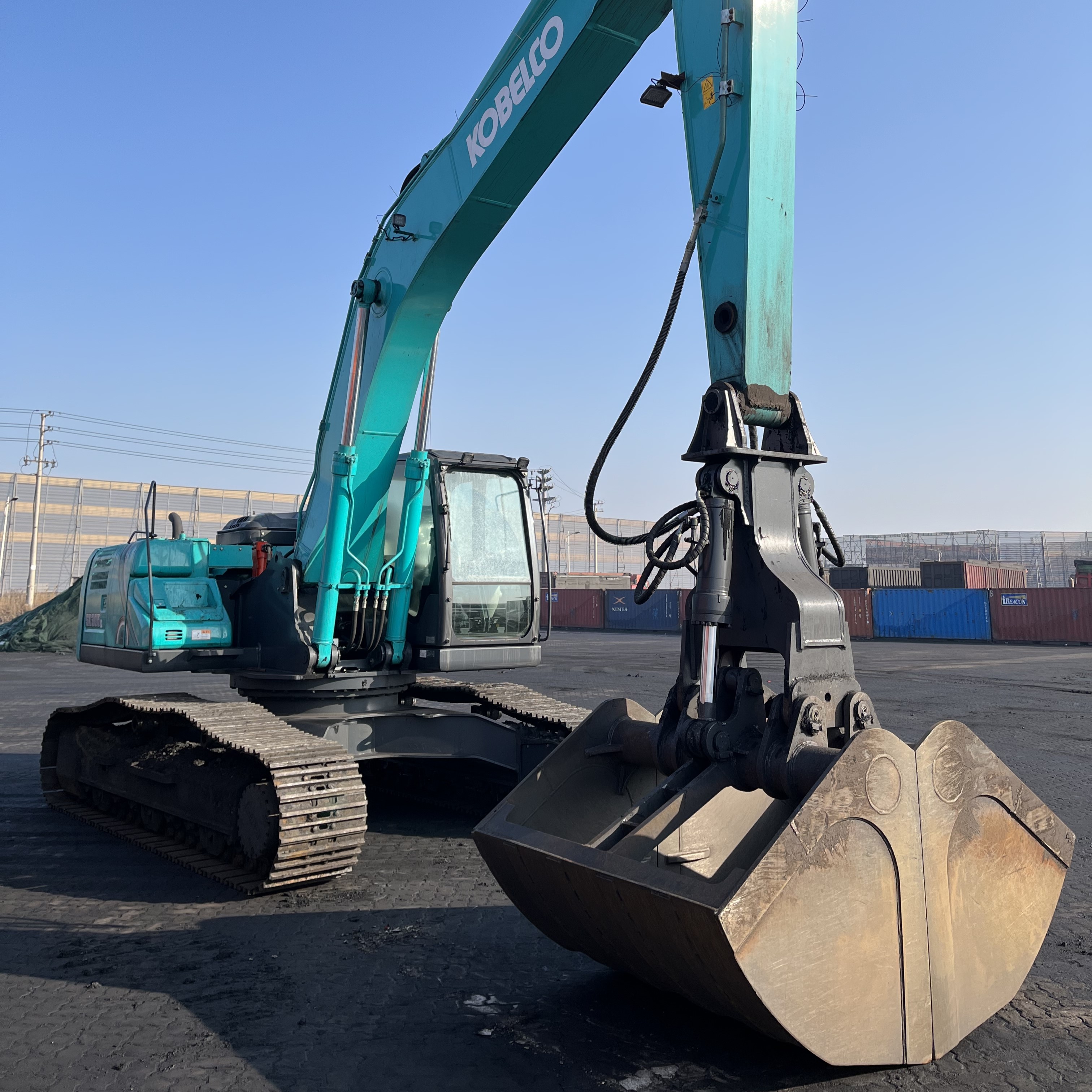

Clamshell Grab Bucket Excavator Hydraulic Shell Bucket

  • RAY ATTACHMENTS

Availability:

Products Description

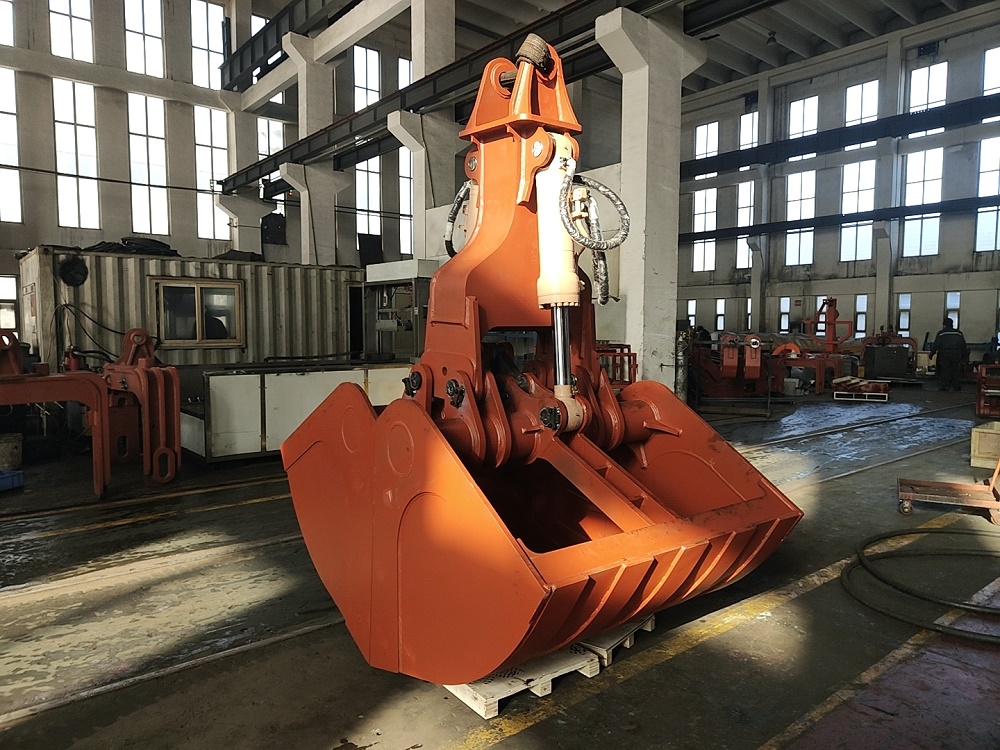

Clamshell Bucket: Ideal for earth moving, groundworks, and road construction we have a range of shells available for different applications. Applications: Apply to groove, Such as the foundation ditch limited, space ming and mud, sand, coal, gravel loaded, and can also be used to ship, train, automobile loading and under loading the above material.


Model R-08 R-14
Excavator 19-22T 36-40T
Weight 1500kgs 2400kgs
Opening and closing pressure(MPa) 24-26 25-28
Opening and closing oil flow rate(L/Min) 120-150 180-200
Opening size 2000mm 2357mm
Bucket Length 1850mm 1883mm
Bucket width 1076mm 1500mm
Bucket height 2976mm 3228mm
Capactiy 1 cbm 2 cbm
Package size 2m*2.3m*2.3m 2m*3m*2m

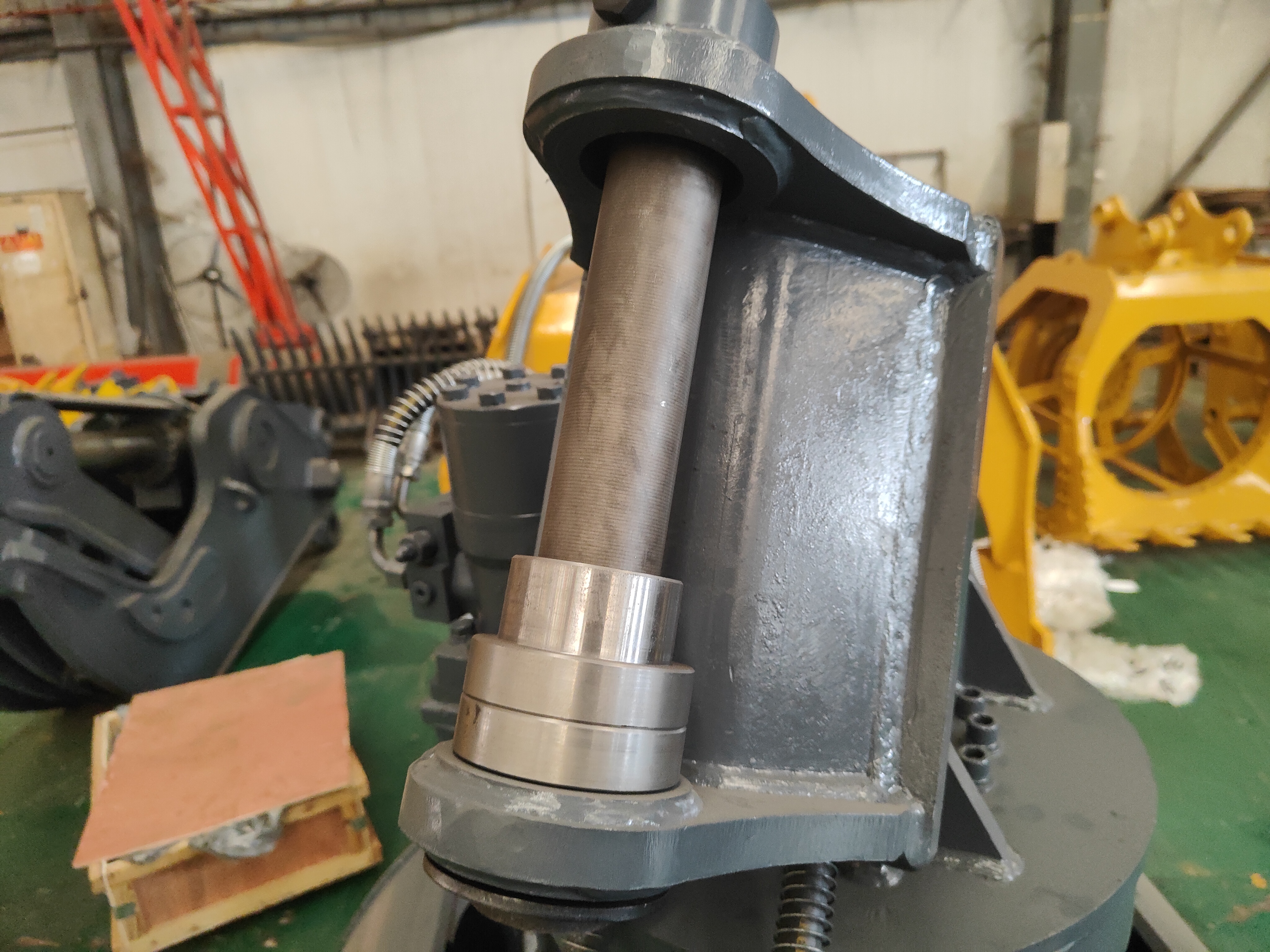

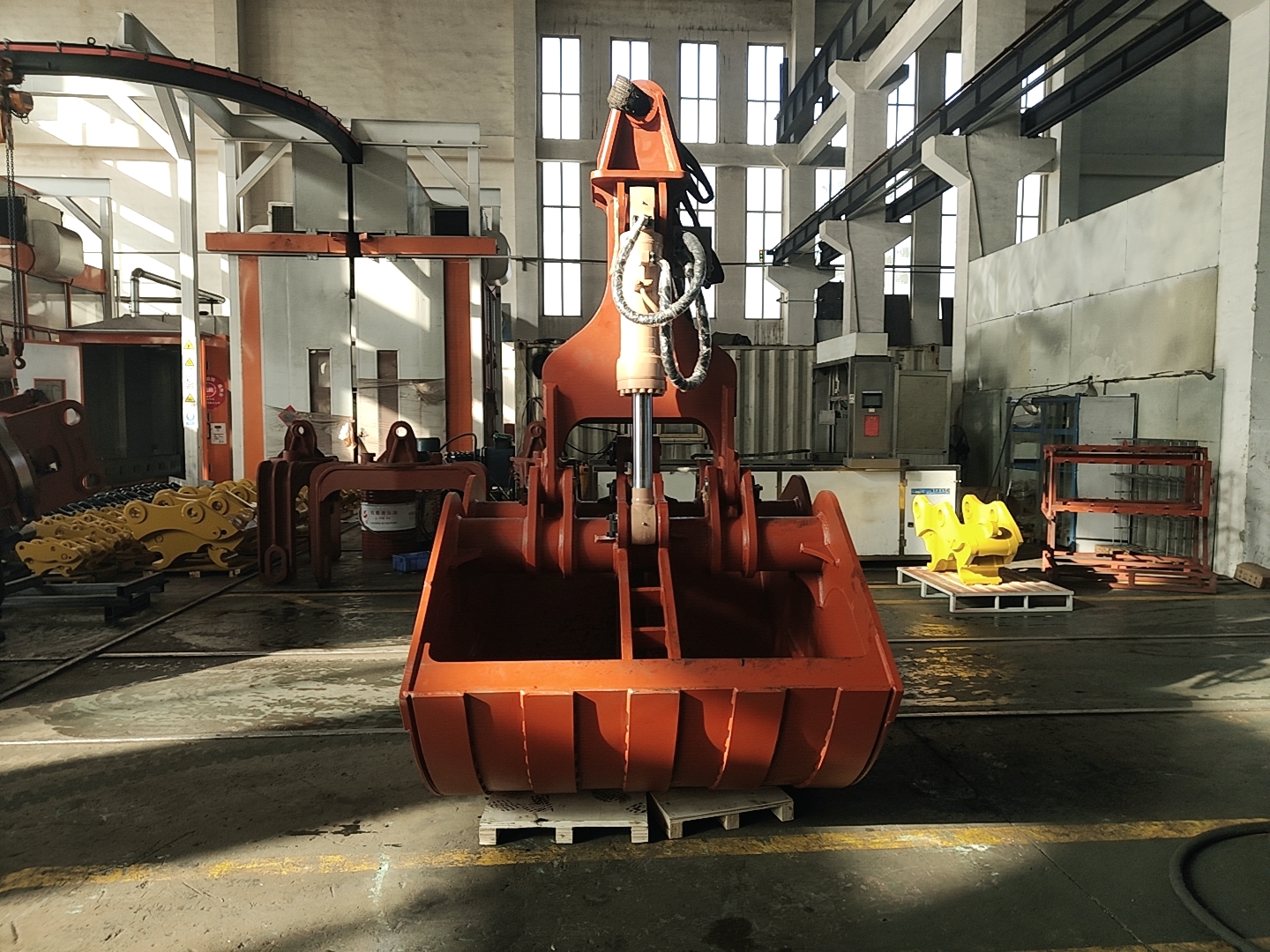

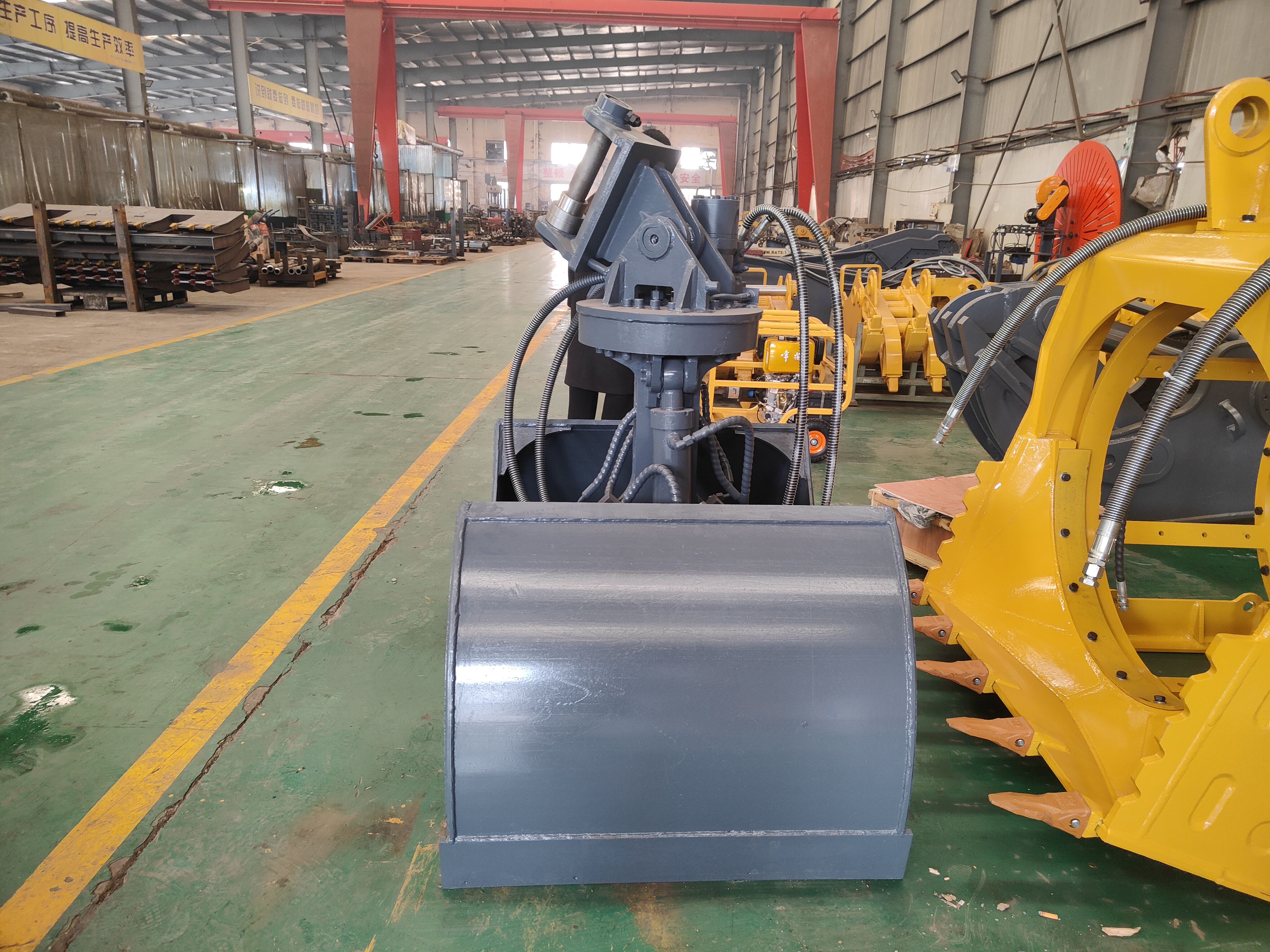

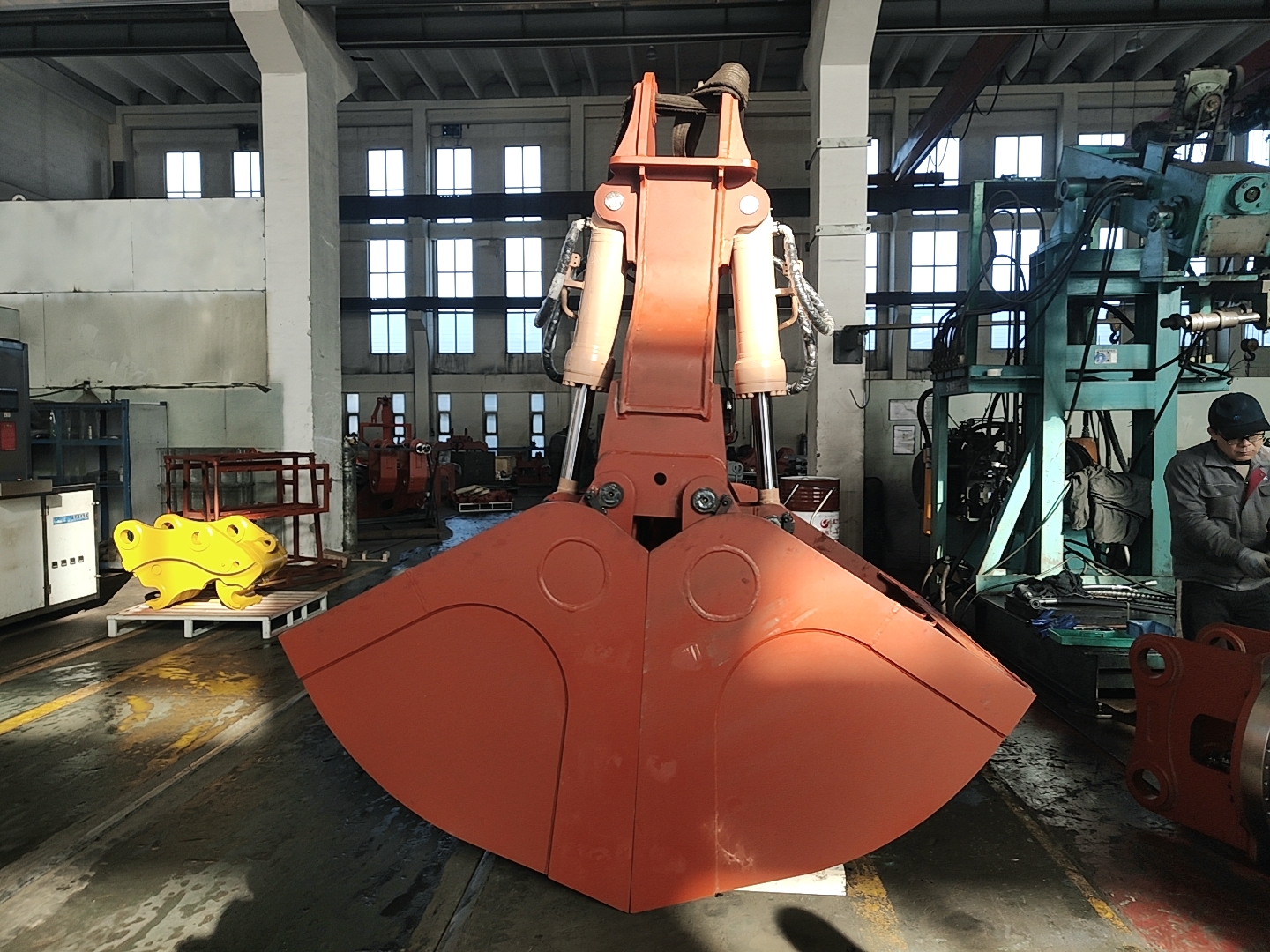

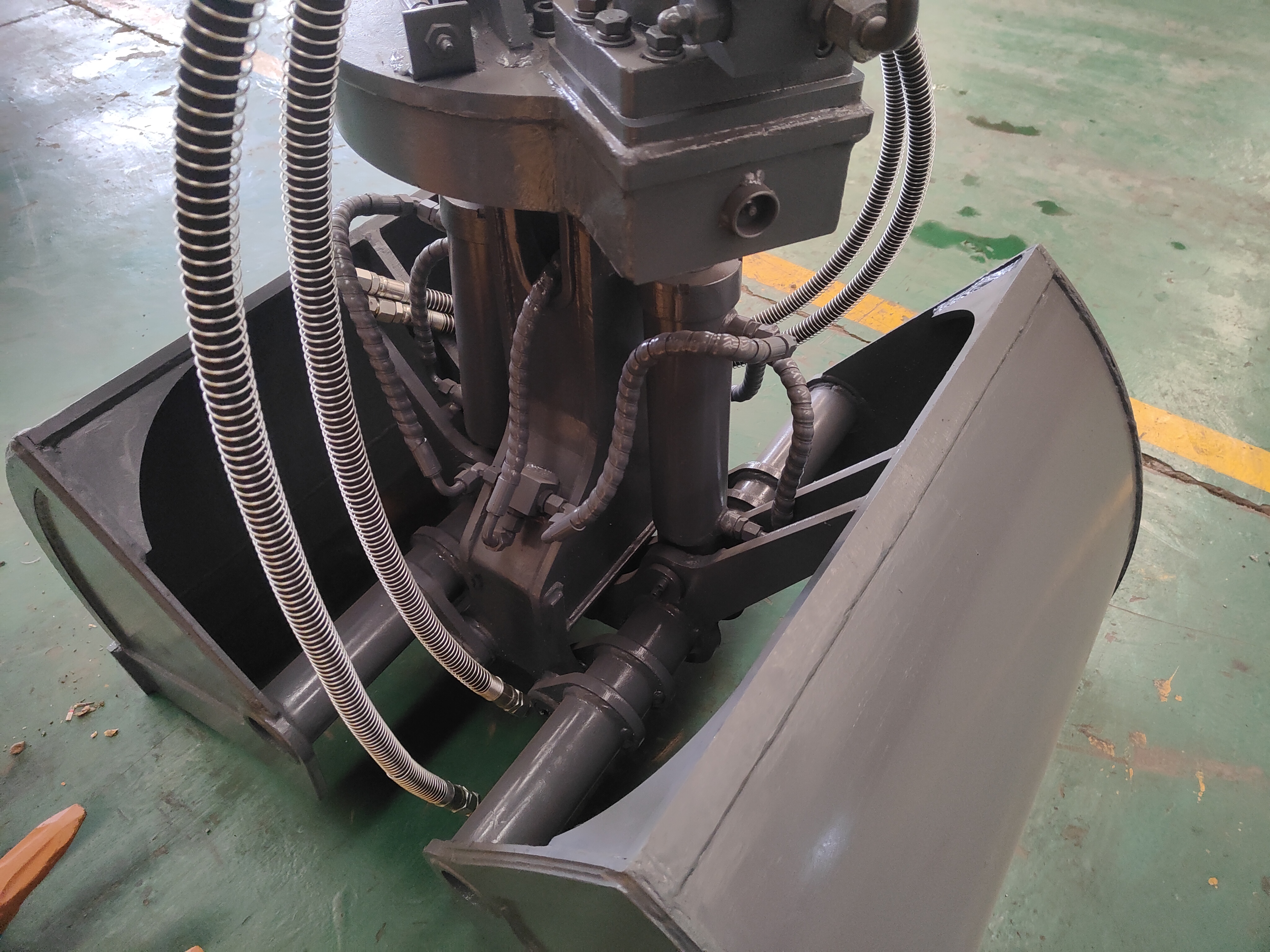

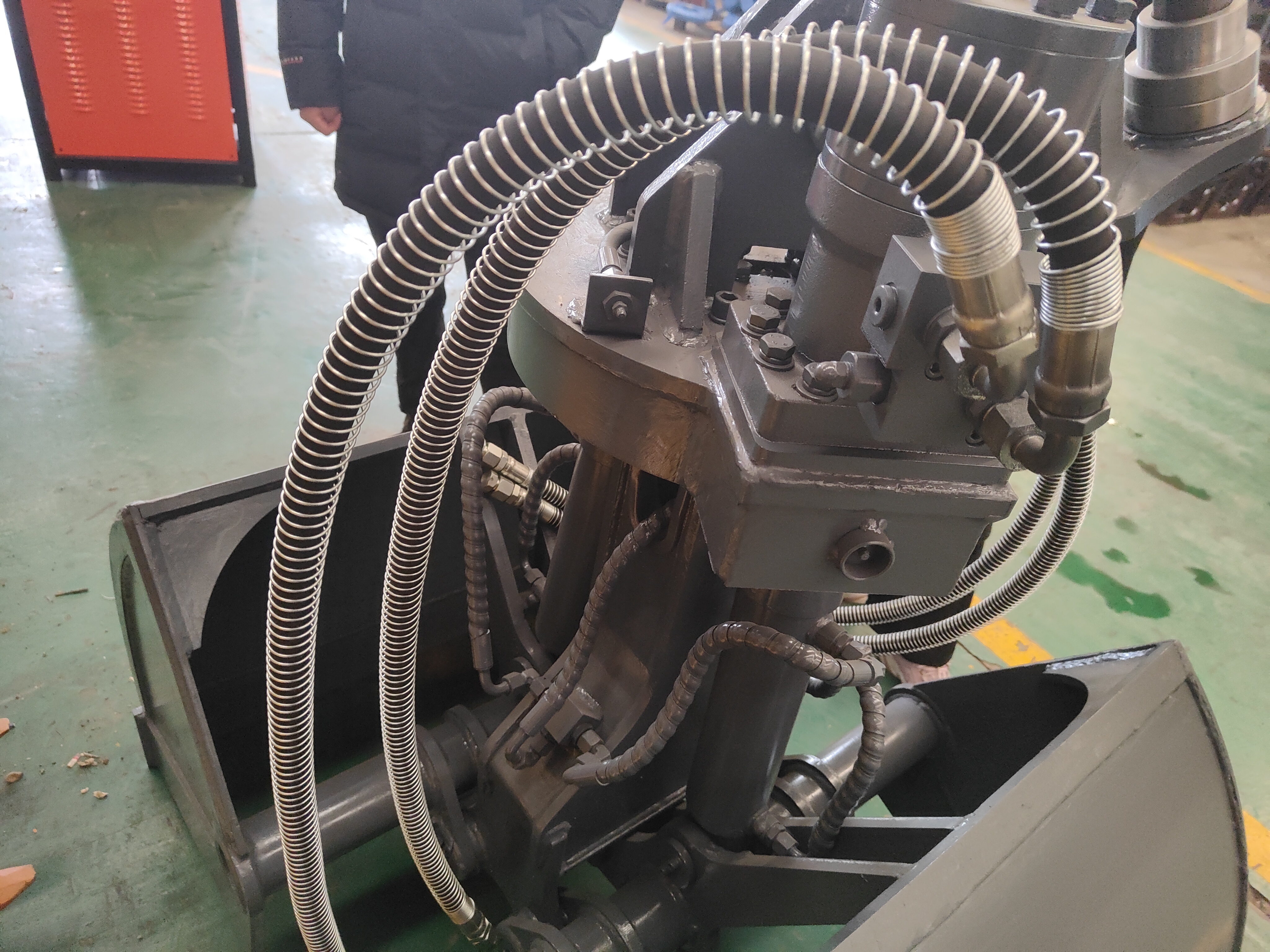

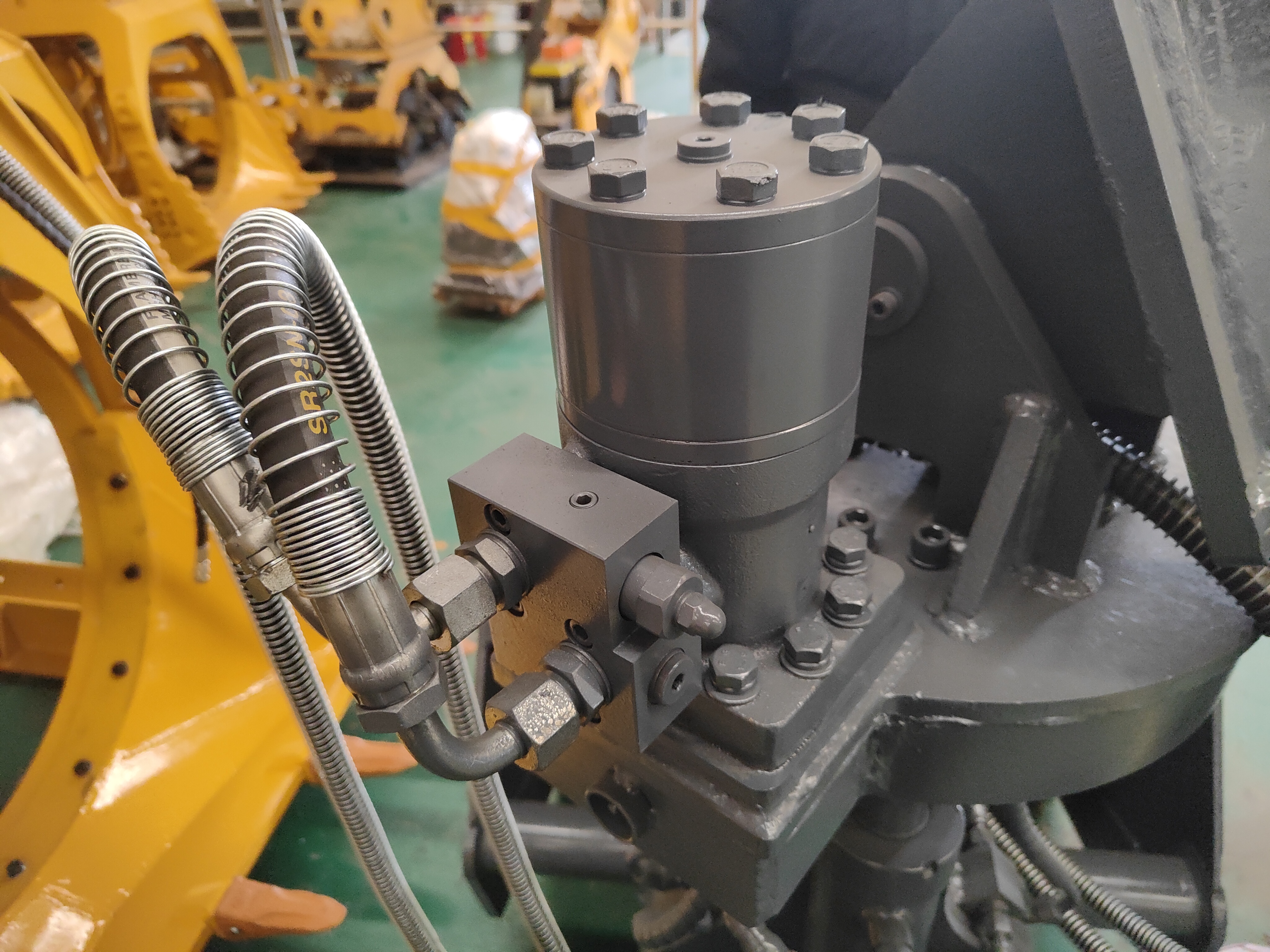

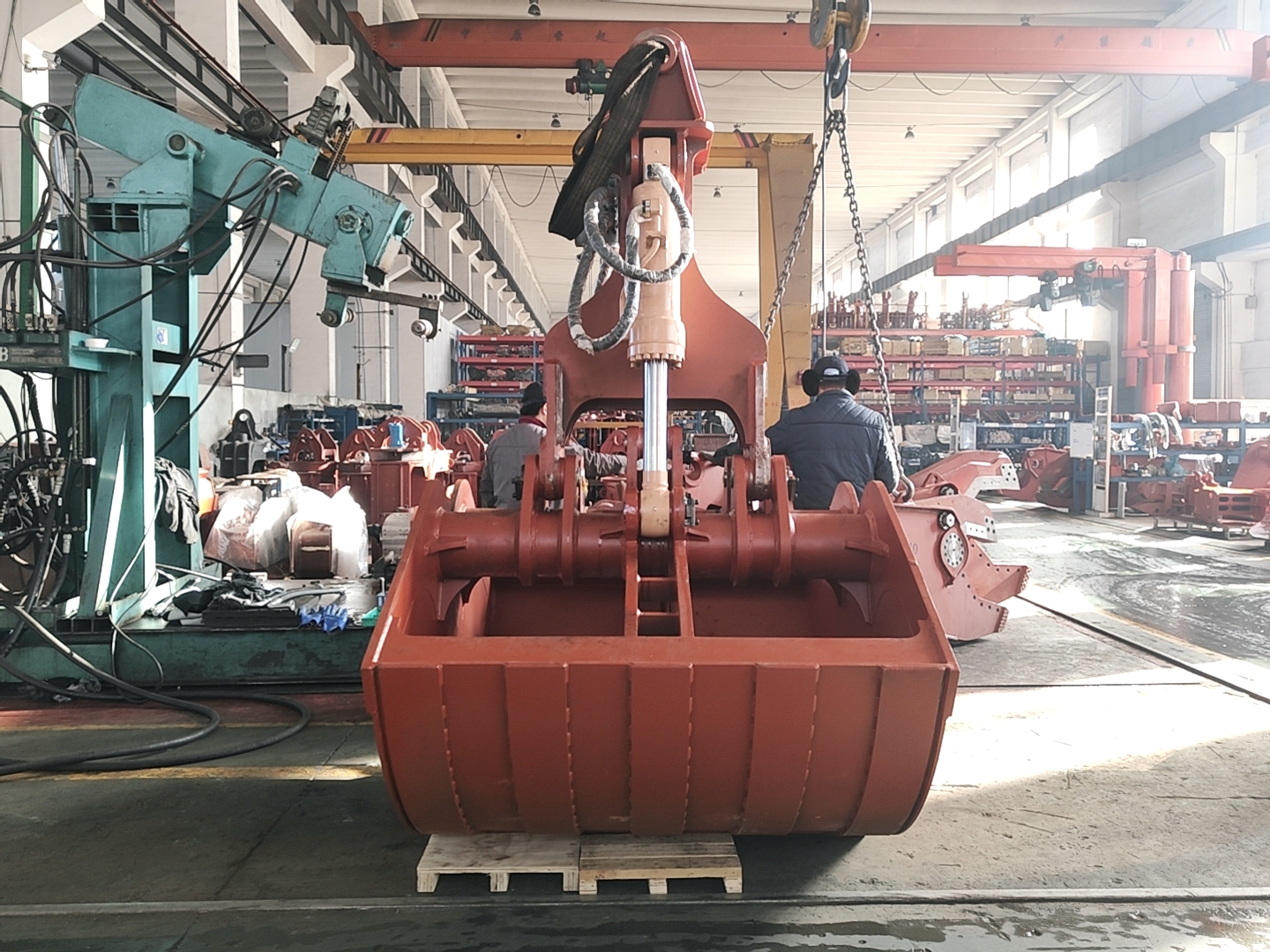

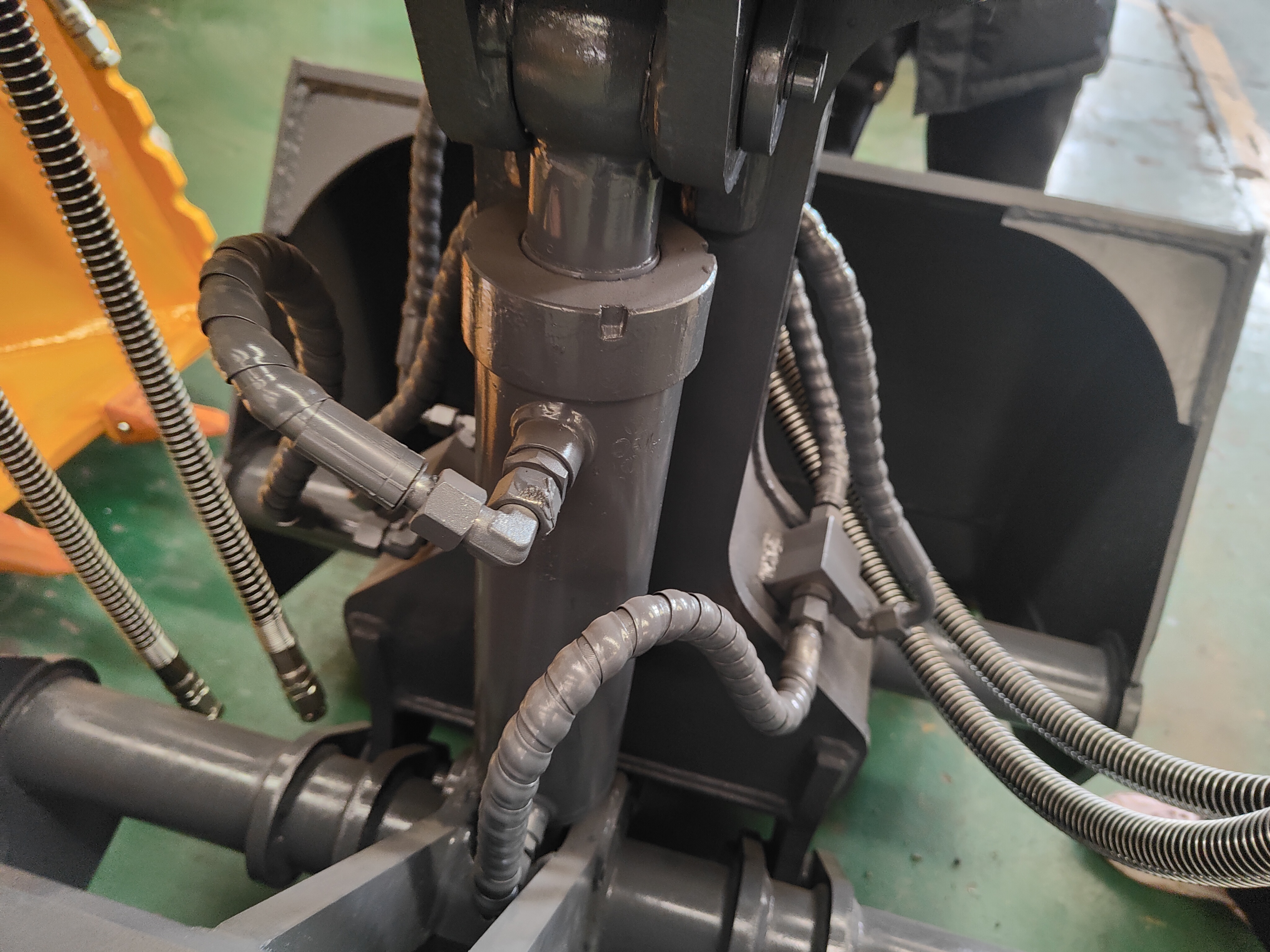

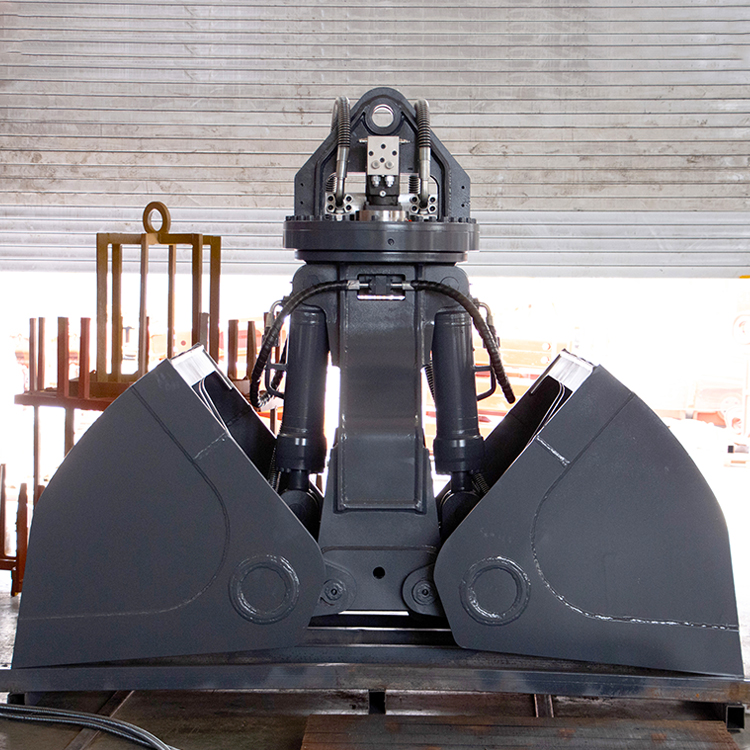

Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket
Clamshell Grab Bucket

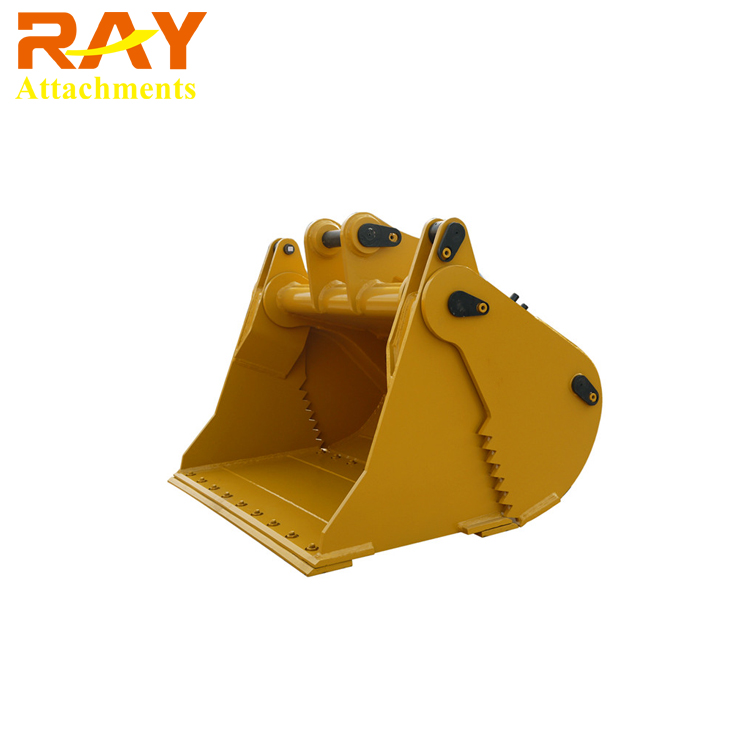

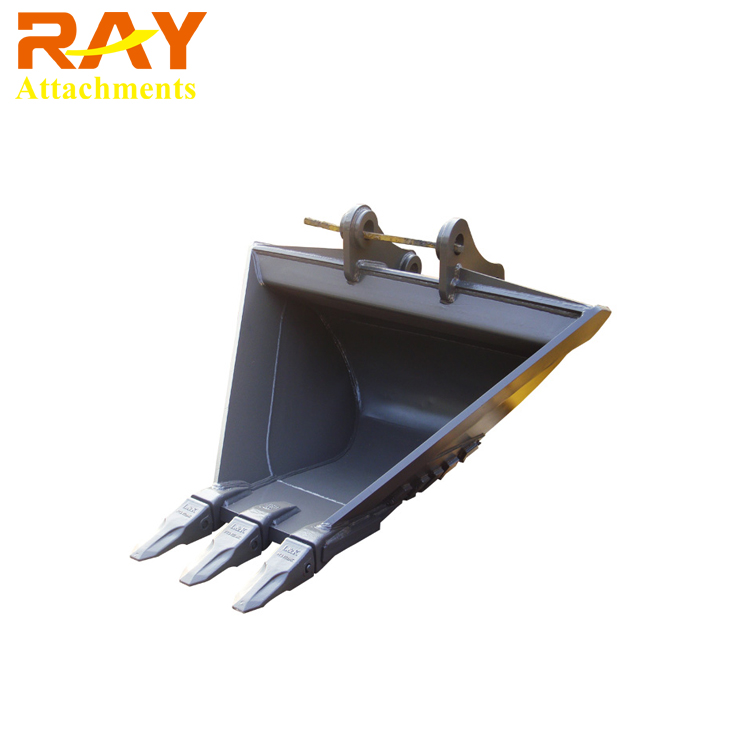

Recommend Products

TYPE
MATERIAL
APPLACATION

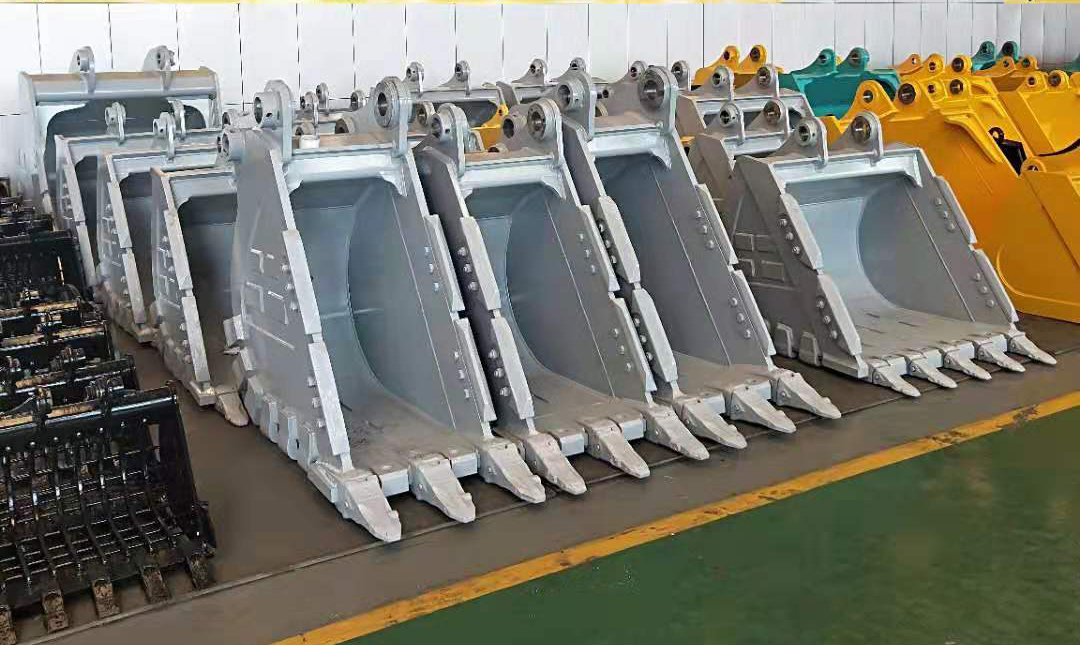

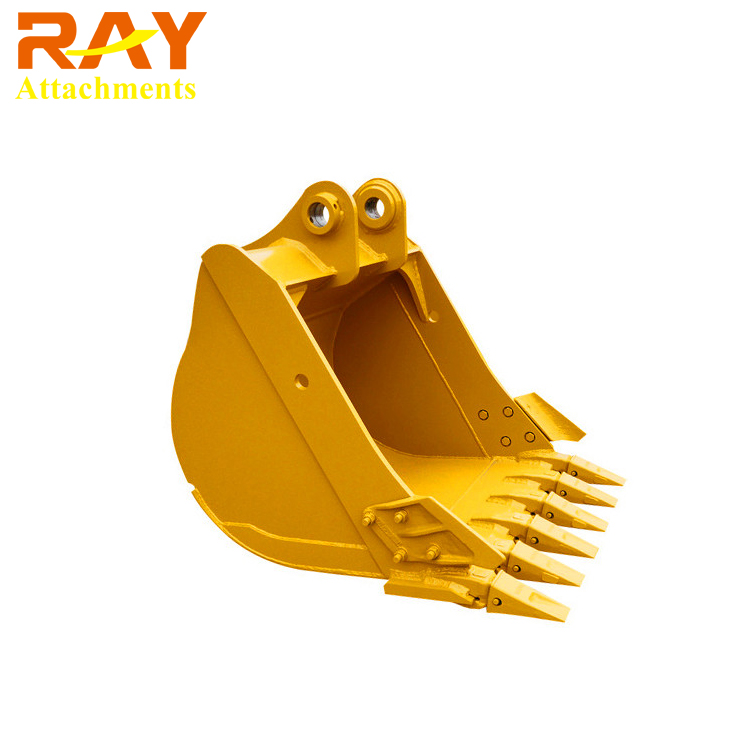

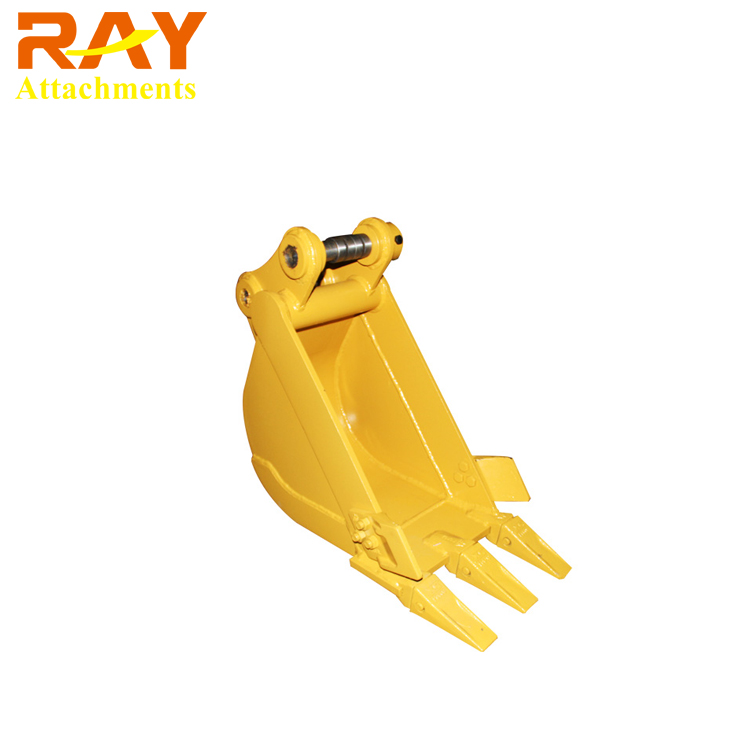

Bucket(GP)
Q345B
Mainly used for excavation and sand, gravel and soil and other light load operating environment.
Bucket(HD)
Q345+NM400
Mainly used for digging hard soil, mixed with a relative soft stone and clay, softer stones and other light load operating
environment.

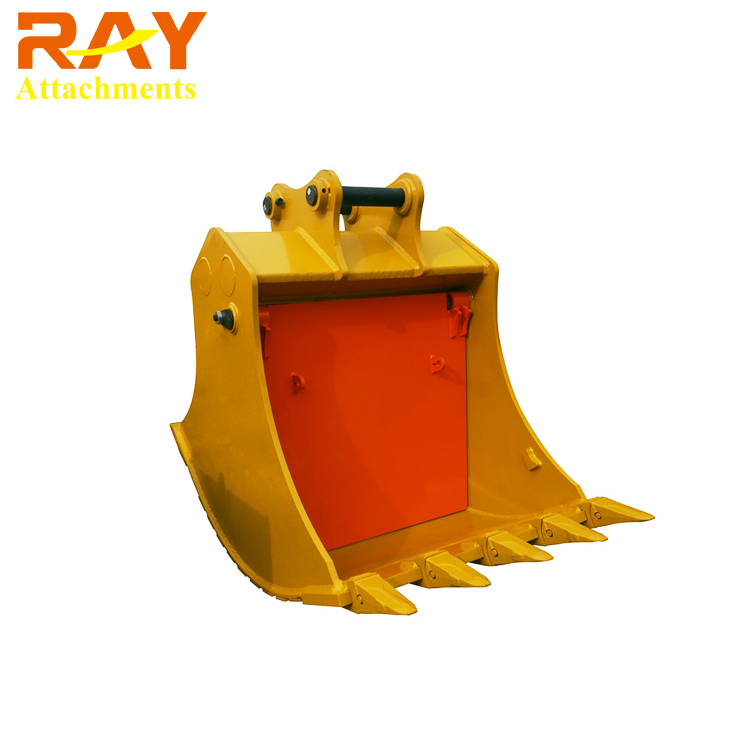

Bucket(HDX)
Q345+NM400/HARDOX400
Used for mining hard gravel mixed with hard soil, sub-hard stone or flint, after blasting or loading, and heavy-loading.
