Double ball joint cylinders, hydraulic damping. Main frame in special fine grain steel. Geometry with long levers, designed to obtain maximum power and closing speed. Extra-large pivot points and oversized pins for maximum reliability. Precise construction, solid stops both in opening and closing. Total ram protection, sealed by O-rings HARDOX 400 anti-wear steel teeth and tips State-of-the-art built-in hydraulic rotator
-
Europe, America, Asia.etc
-

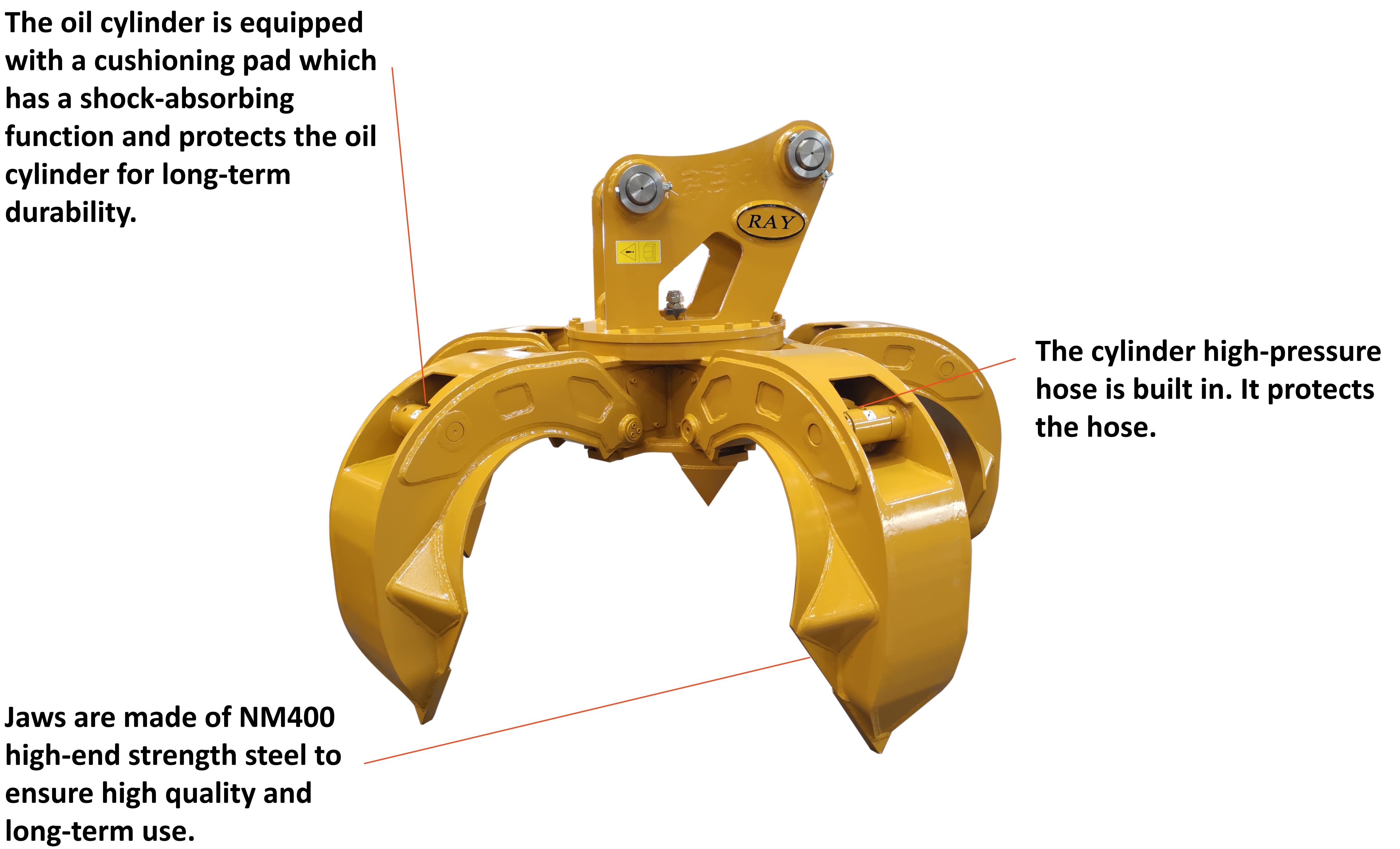

Orange peel grapples are gripping devices made up of a central frame on which 3 to 6 teeth are hinged. Each tine is moved by an independent hydraulic cylinder. All cylinders are connected to a single hydraulic circuit, which coordinates the opening and closing of the tines. Thanks to this conformation, when closing, all the teeth work with the same pressure force, although each of them can stop in a different position. For this reason, polyp grapples provide a firm grip on irregularly shaped objects, making them the most effective tool for handling loose materials such as scrap metal, municipal solid waste, industrial waste, production waste, paper, cardboard, plastic, firewood and tyres. Scrap grabs are also suitable for collecting scrap cars, large stones and boulders. The teeth, or jaws, come in three different shapes, depending on the width: closed, semi-closed (standard), and open. Standard tines are the most versatile, open tines are used for loading loose material and closed tines are for handling fine grained material. The geometry of the grapple derives from years of experience and is designed to guarantee maximum penetration into stacked materials and maximum load capacity.
-
Orange peel grapples, such as grab buckets, log grapples, kerbstone grapples and hydraulic forks, should be mounted to the running machine by a universal joint that allows oscillation in the longitudinal and lateral direction ("pendulum" style). This differentiates them from sorting and demolition grapples, which are instead mounted to the excavator arm via a rigid connection system.
-
According to excavator weight
-

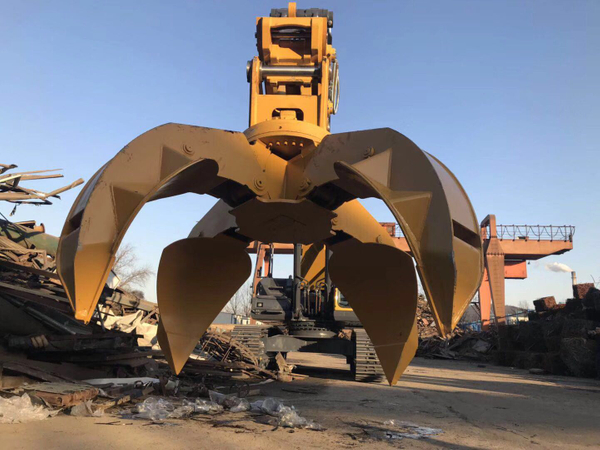

Orange Peel Grapple is the perfect solution for material handlers in scrap yards, recycling plants and transfer stations. A 360° rotation system and 4- or 5-tine configuration efficiently and safely handle shredded scrap, waste, long structural beams, car bodies and many other materials.
-
Orange peel grapples are gripping devices formed by a central frame to which are hinged from 3 to 6 tines. Each tine is set in motion by an independent hydraulic cylinder. All cylinders are connected to a single hydraulic circuit, which coordinates the opening and closing of the tines.
-
Orange peel grapples are gripping devices formed by a central frame to which are hinged from 3 to 6 tines. Each tine is set in motion by an independent hydraulic cylinder. All cylinders are connected to a single hydraulic circuit, which coordinates the opening and closing of the tines.
