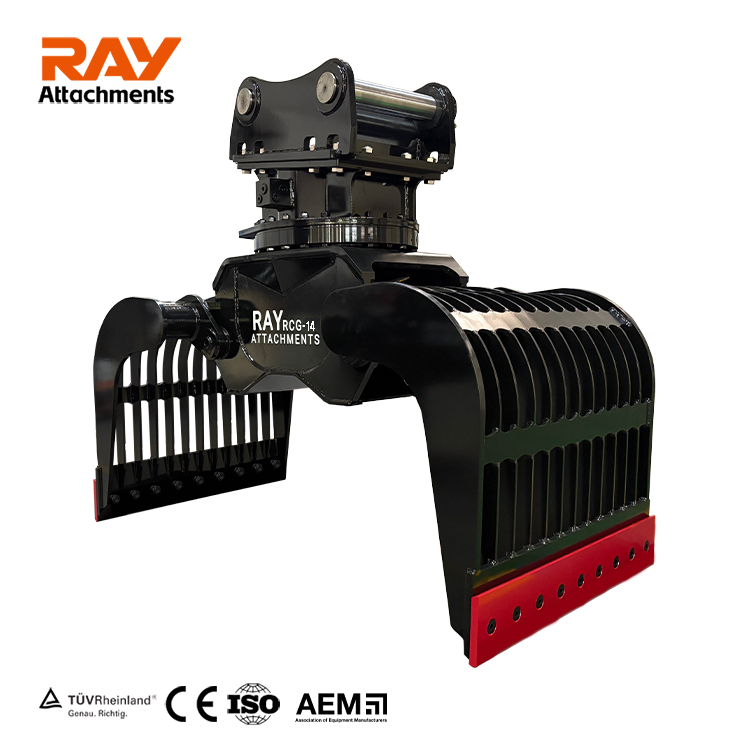

27-30 Ton Excavator Demolition Sorting Grapple RCG-14

RCG-14 can be applied to some lighter demolition tasks, such as the demolition of brick and wood structures.
  • RCG-14

  • RAY ATTACHMENTS

Availability:

Demolition Grapple RCG-14 Products Description

Demolition grabs are a versatile tool for the selective demolition sorting and reclamation of varied materials. They are widely used in the demolition industry for primary stripping works and then subsequent clearance of sites, they are also a useful partner for the sorting and selection of skip and green waste and are used extensively at waste transfer and sorting yards.


Why choose us

Advantages

* Unlimited 360° Hydraulic Rotation Motor from Parker.

* Reversible and changeable wear blades to extend service life.

* The use of wear-resistant material makes it durable - HARDOX 450/NM400.

* Several sets of shells are available, customizable on request (recycling, demolition, handling).

* Fully guarded, high-pressure cylinders.

* Opening/Closing lock valve optional.

* Bolt-On Mounting Bracket, multi-option - MS/CW series.


Demolition Grapple RCG-14 Product Structure

Model
RCG-mini
RCG-01
RCG-02
RCG-04
RCG-06
RCG-08
RCG-10
RCG-14
RCG-17
Carrier (Ton)
1.2-3
2.5-4.5
4-6
6-10
10-15
16-22
23-26
27-30
31-37
Cylinder (Bar)
200
250
300
350
350
350
350
350
350
Cylinder (Liters/min)
25-30
8-15
10-20
15-30
30-65
40-80
55-110
55-110
95-165
Cylinder (Safety valve)
N
N
N
N
Y
Y
Y
Y
Y
360° Rotation (Bar)
100
100
100
100
140
140
140
140
140
360° Rotation (Liters/min)
5-10
6-9
8-12
8-12
12-20
12-20
14-20
14-20
28-40
360° Rotation (Tr/min)
10/15
10/15
10/15
10/15
10/15
10/15
10/15
10/15
10/15
Force (N)
15000
12000
19000
25000
40000
50000
60000
62000
93000
A (mm)
750
1090
1180
1290
1710
1845
2000
2100
2270
B (mm)
/
770
850
960
1245
1375
1440
1465
1630
C (mm)
650
770
840
910
905
1000
1050
1190
1275
D (mm)
670
760
850
930
1080
1100
1290
1375
1425
L (mm)
450
400
460
550
800
900
1010
1130
1210
Volume (L)
50
77
105
147
395
470
700
820
1080
Weight (Kg)
180
210
260
370
745
950
1230
1500
2100


Demolition Grapple RCG-10 Products Description

Demolition grab are a versatile tool for the selective demolition sorting and reclamation of varied materials. They are widely used in the demolition industry for primary stripping works and then subsequent clearance of sites, they are also a useful partner for the sorting and selection of skip and green waste and are used extensively at waste transfer and sorting yards.

Demolition Grapple RCG-10 Specification

Model Unit RCG-mini RCG-02 RCG-04 RCG-06A RCG-06B RCG-08 RCG-10 RCG-14
Carrier Ton 2.5-4.5 4-6 6-8 10-15 15-18 18-21 22-27 28-37
Cylinder Bar 250 300 350 350 350 350 350 350
Liters/min 8-15 10-20 15-30 30-65 40-80 55-110 55-110 95-165
360° Rotation Bar 100 100 100 140 140 140 140 140
Liters/min 6-9 8-12 8-12 12-20 12-20 14-20 14-20 28-40
Tr/min 10/15 10/15 10/15 10/15 10/15 10/15 10/15 10/15
Force N 12000 19000 25000 40000 50000 60000 62000 93000
A mm 1090 1180 1290 1710 1845 2000 2100 2270
B mm 770 850 960 1245 1375 1440 1465 1630
C mm 770 840 910 905 1000 1050 1190 1275
D mm 760 850 930 1080 1100 1290 1375 1425
L mm 400 460 550 800 900 1010 1130 1210
Volume L 77 105 147 395 470 700 820 1080
Weight Kg 210 260 370 745 950 1230 1500 2100

Demolition Grapple RCG-10 Details Images

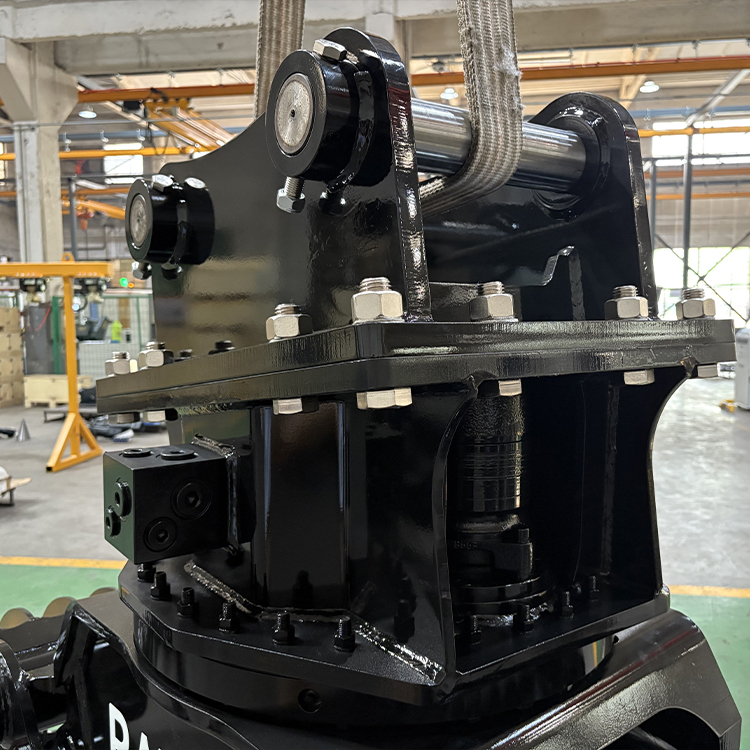

1) Parker motor.

2) Interchangeability of machines is easy due to bolt-on adaptation plate.

3) Hydraulic rotation 360° in 2 directions to ease precise and fast positioning of the tool, with pressure control valve.

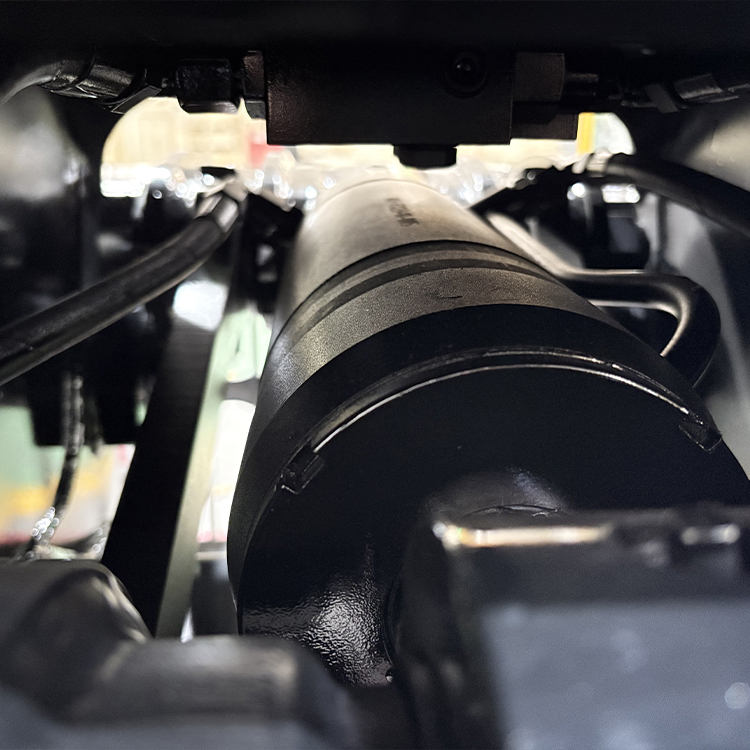

4) 1 or 2 cylinders give strong power on cutting edges for demolition.

5) Sturdy housing made of steel – high elastic with bolts.

6) Large capacity.

7) Cutting edges and Shell of Hardox for long life. Opening up to 90°.
