1. Dig horizontal foundation without leveling machine track. 2. Reduce waste and manual labor when filling gravel around pipes and manholes. 3. Circuit breakers on the sides of deep trenches that cannot be reached by standard couplers. 4. Extend the working range of the machine when cutting hedges or brushes. 5. Ability to reverse the bucket to allow the operator to dig under walls and pipes.
-
1. It can tilt any bucket or attachment up to 180 degrees 2. No exposed gas cylinder, very safe and stable. 3. Our tilt couplers have double safety locks (front and rear) 4. Powerful spring-loaded safety lock can work in very harsh working environment. Don't worry about maintenance. 5. Made of ultra-high strength steel, which increases durability (while optimizing weight) and improves shovel performance. 6. Variable spindle center design allows you to easily access the widest range of accessories. As with this model, you can install accessories with different pin center distances from 230 to 310 mm.
-
The RAY Excavator Tilt Hook provides instant tilting capability for your excavator attachment with a full 90-degree tilt in both directions for 0.8 ton to 25 ton excavators. When digging gets tough and manual digging isn't possible, a tilt hitch gives your excavator maximum versatility: when faced with difficult angles, there's no need to constantly reposition the excavator or risk tipping over the machine. RAY Tilt Quick Couplers are a great way to convert existing buckets to tilt excavator buckets.
-
In an actuator tilt hitch, the hydraulic actuator is the pivot point and propulsion for the tilt motion; this allows the hitch to tilt as far as the motor allows, or until something gets in the way.
-
The role of the tilt motor hitch is to perform a more tilted hitch than the double plunger hitch. It can reach 90 degrees in any direction. Although it is named after a hydraulic actuator, it is not limited by the machine's plunger cylinder.
-
The interface allows you to put the bucket in normal standing digging mode and reverse it and put it in front bucket mode. In front shovel mode, you can dig under pipes.
-
Toggle quick couplers are more than just ordinary couplers. It is an advanced type that allows for seamless changeover of configurations and quick installation on the excavator. 180 degree rotation by rotating left and right allows machine operators to position machine accessories more precisely.
-
Close the quick-connect release button. This will release the front pin and unlock the bucket. You can now include the next attachment if desired.
-
-
1. Open the cylinder, and ensure slide is fully extended with front jaw safety lock open. 2. Line up attachments and engage front attachments pin. 3. Close the cylinder. This will retract the slide mechanism and this will visibly lock the front jaw safety latch around front attachment pin. 4. Open the cylinder again. The sliding mechanism will extend and engage the rear slide hook onto the rear attachment pin. 5. Proceed with connection test.
-
Two mechanical locking jaws are operated by a hydraulic system. They are locked when the cab's controls are activated.This is usually (but not always) accomplished by the crowd action function of the excavator which pressurises the hitch driving the locking function.
-
1) 12 months warranty service. Other brands have only 6 months warranty, our brand warranty is one year 2) 24-hour after-sales team service. Whenever you need us, we will be the first to deal with your problem and ensure repair and use
-

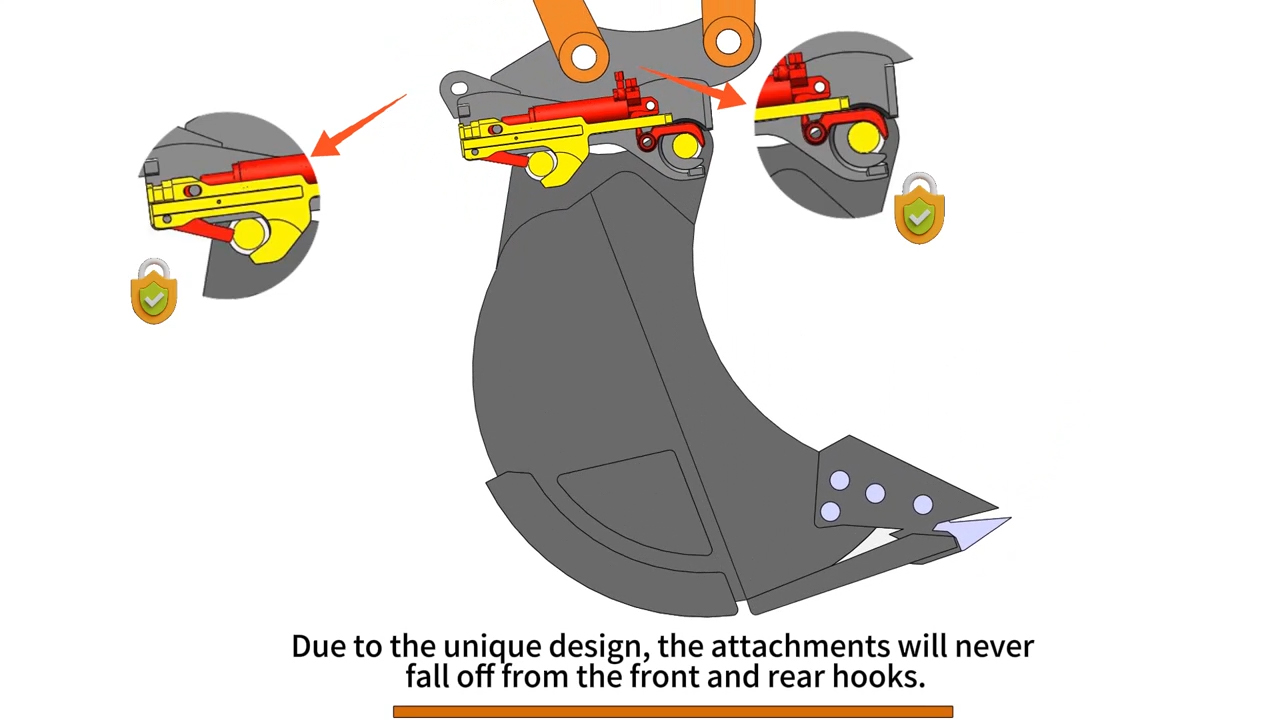

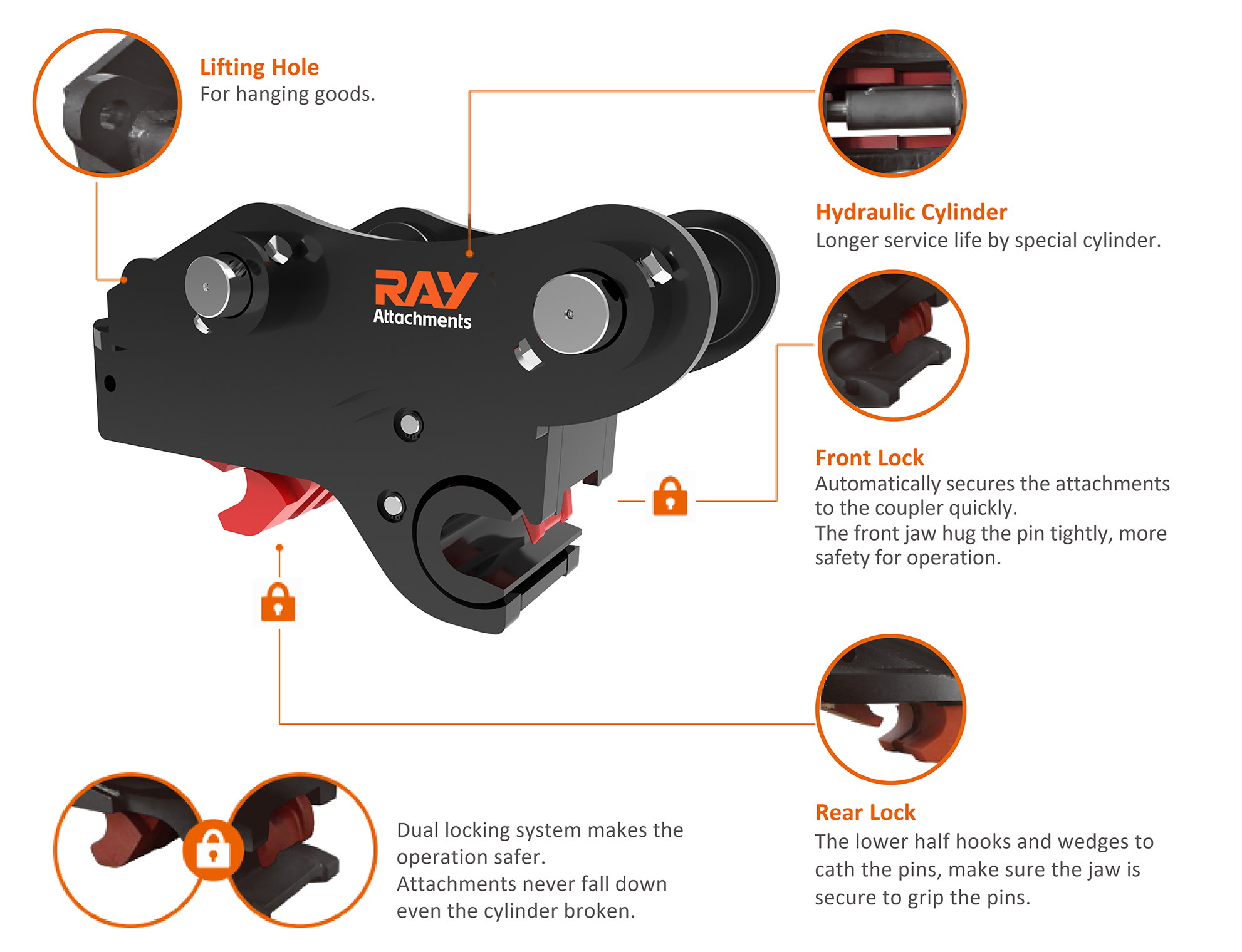

Double locking design with independent hydraulic system. Although in the event of a side leak, the front lock still does not interfere with the work of the front lock. Even when the cylinder breaks, the front lock locks the pin and ensures that it does not fall out.
-

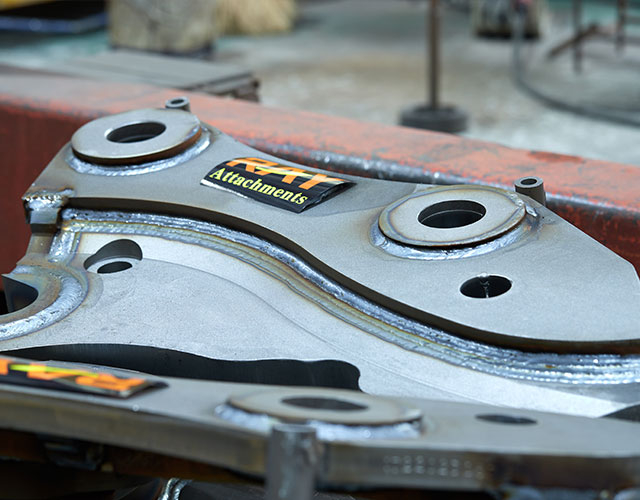

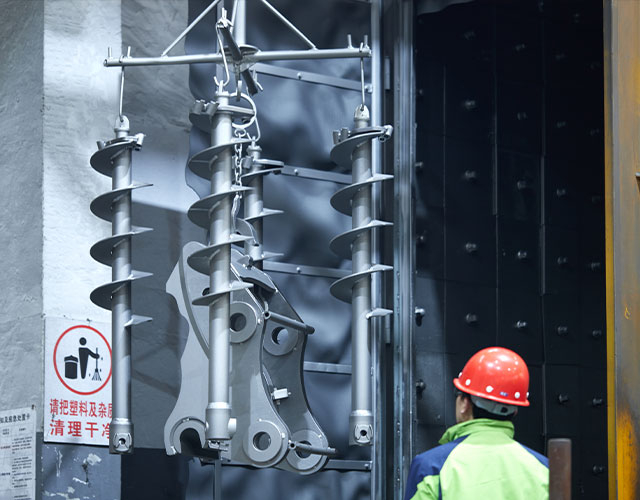

1.Super long warranty. 12 months warranty period, other brands warranty period is 6 months. Secondly, we have a 24-hour after-sales service team to help you solve problems at the first time. 2. Brand guarantee. One-way valve from Taiwan famous brand. 3. Quality assurance. The welding seam is firm and the product will not be cracked. 4. Technical guarantee. Adopt shot blasting technology: make the product surface smooth and more beautiful after painting. The most important thing is to eliminate the internal stress and increase the strength.
-
1. High security factor. Double lock design, no need to worry about the lock falling off, safe and secure. 2. Wider range of use. The safety range reaches 60mm, there is more use range. 3. Convenience. No need to use the safety pin manually.
-

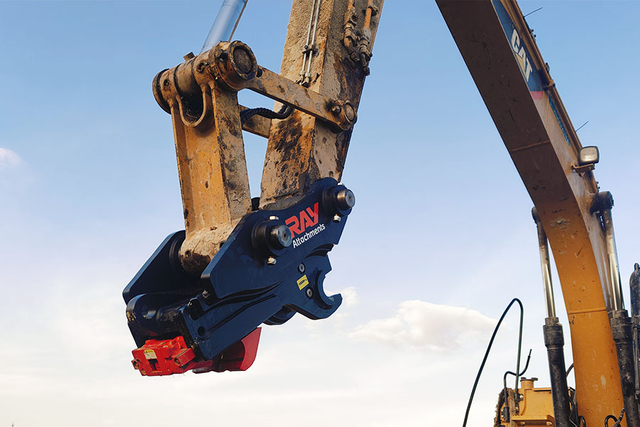

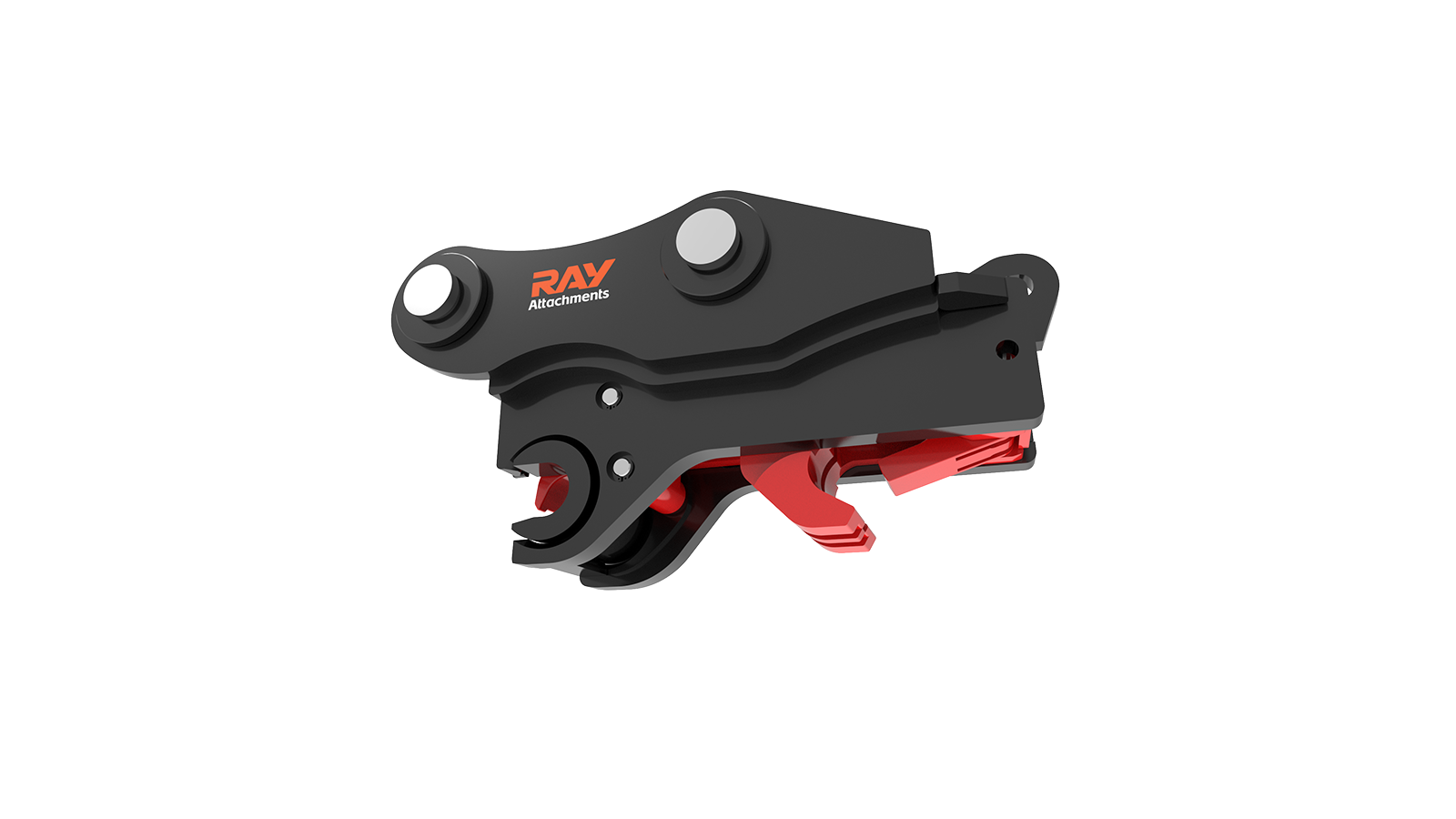

What is the difference between the Multi Quick Hitch and the Normal One?
-
-
Generally speaking, it is always assumed that quick coupler are used when attachments are frequently switched. But in fact, it can also be used for quick changes between two excavator attachments of the same type.
-
Once the installation is complete, you need to take care of two things. Firstly make sure that all the nuts and bolts are in a solid condition. Secondly if your machine has a filtration system, make sure it is in working order
-
A quick connector is an accessory used to connect excavators and other mechanical parts, it is usually connected to the hydraulic cylinder of the power output shaft to achieve speed and quickness by quickly changing the type of connector
