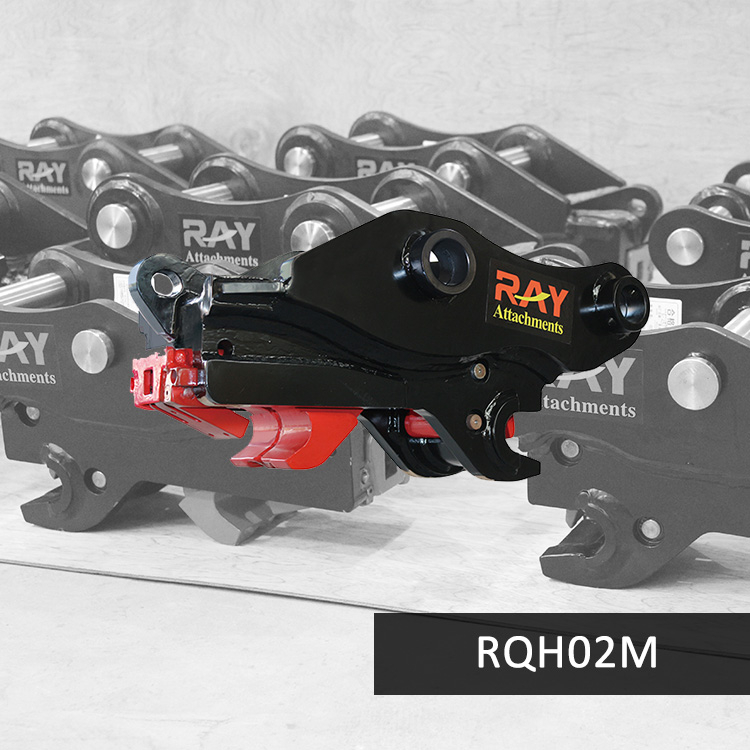

RQH02M
RAY Attachments
Availability: | |
---|---|
Model | Unit | RQH01M | RQH01D | RQH02M | RQH02D | RQH04M | RQH04D | RQH06M | RQH06D | RQH08M | RQH08D | RQH10M | RQH10D |
Carrier | T | 1~2 | 2~4 | 2.5~4 | 4~6 | 4~6 | 6~8 | 10~15 | 10~15 | 15~27 | 15~27 | 25~30 | 25~30 |
Pin diameter | mm | 30 | 35/40 | 40/45 | 40/45 | 45/50 | 50/55 | 60/65 | 65 | 70/80 | 80/90 | 90/100 | 90/100 |
C-to-C distance | mm | 115~140 | 160-200 | 185~220 | 215~250 | 255~290 | 262~320 | 340~400 | 355~420 | 380~435 | 425~485 | 460~550 | 480~550 |
Arm width | mm | 100~125 | 110~125 | 125~140 | 145~180 | 150~180 | 185~220 | 215~250 | 250~270 | 300~340 | 305~340 | 350-390 | 390~420 |
Oil pressure | Bar | 40~248 | 40~248 | 40~248 | 40~248 | 40~248 | 40~205 | 40~205 | 40~205 | 40~205 | 40~205 | 40~205 | 40~205 |
Oil flow | L/min | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
Hose | Inch | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Unit weight | Kg | 21 | 31 | 47 | 60 | 70 | 97 | 160 | 170 | 275 | 310 | 430 | 490 |
Length | mm | 370 | 400 | 570 | 570 | 585 | 655 | 745 | 876 | 940 | 985 | 1065 | 1080 |
Width | mm | 200 | 220 | 280 | 280 | 290 | 312 | 390 | 390 | 475 | 475 | 510 | 590 |
Height | mm | 210 | 225 | 305 | 305 | 305 | 335 | 420 | 420 | 505 | 505 | 565 | 580 |
Excavator Brand | Model |
CATPERRILAR (CAT) | 301.5, 301.8, 302.5, MM30 |
Doosan | S015, S018, S030 |
KOMATSU | PC18MR/20/25/28/30/35 |
HITACHI | EX15/12/15/18/20/22/25/27u/30UR/35/40 AX15u/15/17u-4/18/20u/22/25/27/30/35/40 ZX8U-2/10U-2/15UR/17U-2/15/27U/27U-2/30UR |
HYUNDAI | R15, R16-7 |
KOBELCO | SK007/09SR/SK13SR/15SR/015/20SR-1/25SR/30SR |
Kubota | KX41/61/91/101, K-022, KH90, U35 |
Takeuchi | TB014/016/15/650/125/25FR/20/25/30 |
Yanmar | VIO15/18/20/27/30/35, B27/37 |
Yuchai | YC18-2, YC15, YC35-7 |
Thomas | T15S, T25S |
Model | Unit | RQH01M | RQH01D | RQH02M | RQH02D | RQH04M | RQH04D | RQH06M | RQH06D | RQH08M | RQH08D | RQH10M | RQH10D |
Carrier | T | 1~2 | 2~4 | 2.5~4 | 4~6 | 4~6 | 6~8 | 10~15 | 10~15 | 15~27 | 15~27 | 25~30 | 25~30 |
Pin diameter | mm | 30 | 35/40 | 40/45 | 40/45 | 45/50 | 50/55 | 60/65 | 65 | 70/80 | 80/90 | 90/100 | 90/100 |
C-to-C distance | mm | 115~140 | 160-200 | 185~220 | 215~250 | 255~290 | 262~320 | 340~400 | 355~420 | 380~435 | 425~485 | 460~550 | 480~550 |
Arm width | mm | 100~125 | 110~125 | 125~140 | 145~180 | 150~180 | 185~220 | 215~250 | 250~270 | 300~340 | 305~340 | 350-390 | 390~420 |
Oil pressure | Bar | 40~248 | 40~248 | 40~248 | 40~248 | 40~248 | 40~205 | 40~205 | 40~205 | 40~205 | 40~205 | 40~205 | 40~205 |
Oil flow | L/min | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
Hose | Inch | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Unit weight | Kg | 21 | 31 | 47 | 60 | 70 | 97 | 160 | 170 | 275 | 310 | 430 | 490 |
Length | mm | 370 | 400 | 570 | 570 | 585 | 655 | 745 | 876 | 940 | 985 | 1065 | 1080 |
Width | mm | 200 | 220 | 280 | 280 | 290 | 312 | 390 | 390 | 475 | 475 | 510 | 590 |
Height | mm | 210 | 225 | 305 | 305 | 305 | 335 | 420 | 420 | 505 | 505 | 565 | 580 |
Excavator Brand | Model |
CATPERRILAR (CAT) | 301.5, 301.8, 302.5, MM30 |
Doosan | S015, S018, S030 |
KOMATSU | PC18MR/20/25/28/30/35 |
HITACHI | EX15/12/15/18/20/22/25/27u/30UR/35/40 AX15u/15/17u-4/18/20u/22/25/27/30/35/40 ZX8U-2/10U-2/15UR/17U-2/15/27U/27U-2/30UR |
HYUNDAI | R15, R16-7 |
KOBELCO | SK007/09SR/SK13SR/15SR/015/20SR-1/25SR/30SR |
Kubota | KX41/61/91/101, K-022, KH90, U35 |
Takeuchi | TB014/016/15/650/125/25FR/20/25/30 |
Yanmar | VIO15/18/20/27/30/35, B27/37 |
Yuchai | YC18-2, YC15, YC35-7 |
Thomas | T15S, T25S |
RAY Multi Coupler Specification | |||||||
Model | Unit | RQH01D (a) | RQH01D (b) | RQH02D | RQH04D (a) | RQH04D (b) | |
Carrier | T | 1~2 | 2~4 | 4~6 | 4~6 | 6~8 | |
Pin diameter (C&D) | mm | 30 | 35/40 | 45 | 45 | 50/55 | |
C-to-C distance (E) | 105~140 | 170-210 | 215~250 | 255~290 | 262~320 | ||
Arm width (A&B ) | 110~125 | 145~180 | 185~220 | ||||
Oil pressure | Bar | 40~248 | 40~248 | 40~248 | 40~248 | 40~205 | |
Oil flow | L/min | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | |
Hose | Inch | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | |
Height | 210 | 200 | 295 | 300 | 335 | ||
lifting eye | T | 1 | 2 | 3 | 3 | 4 | |
Rating | |||||||
Safty: | RAY Multi Coupler Auto Dual-Lock Mechanism meets Australian and New Zealand Standard AS4772-2008. | ||||||
Lifting eye: | Lifting mechanism is closed and arranged so that addidental unhooking for | ||||||
load cannot occur. |
