Efficient power transmission, wear-resistant and corrosion-resistant design, stable handling of high-viscosity mud and complex geology, low maintenance and long life

Excavator Dredging Pump

REQUEST A QUICK QUOTE

Why Choose Us

It adopts hydraulic drive system, and the flow parts are made of high-chromium wear-resistant alloy material, which is wear-resistant and corrosion-resistant, and has a long service life.

It is equipped with a stirring device, which can handle media of different viscosities, suitable for sludge treatment and river dredging.

Daily maintenance is simple and the after-sales cost is low.

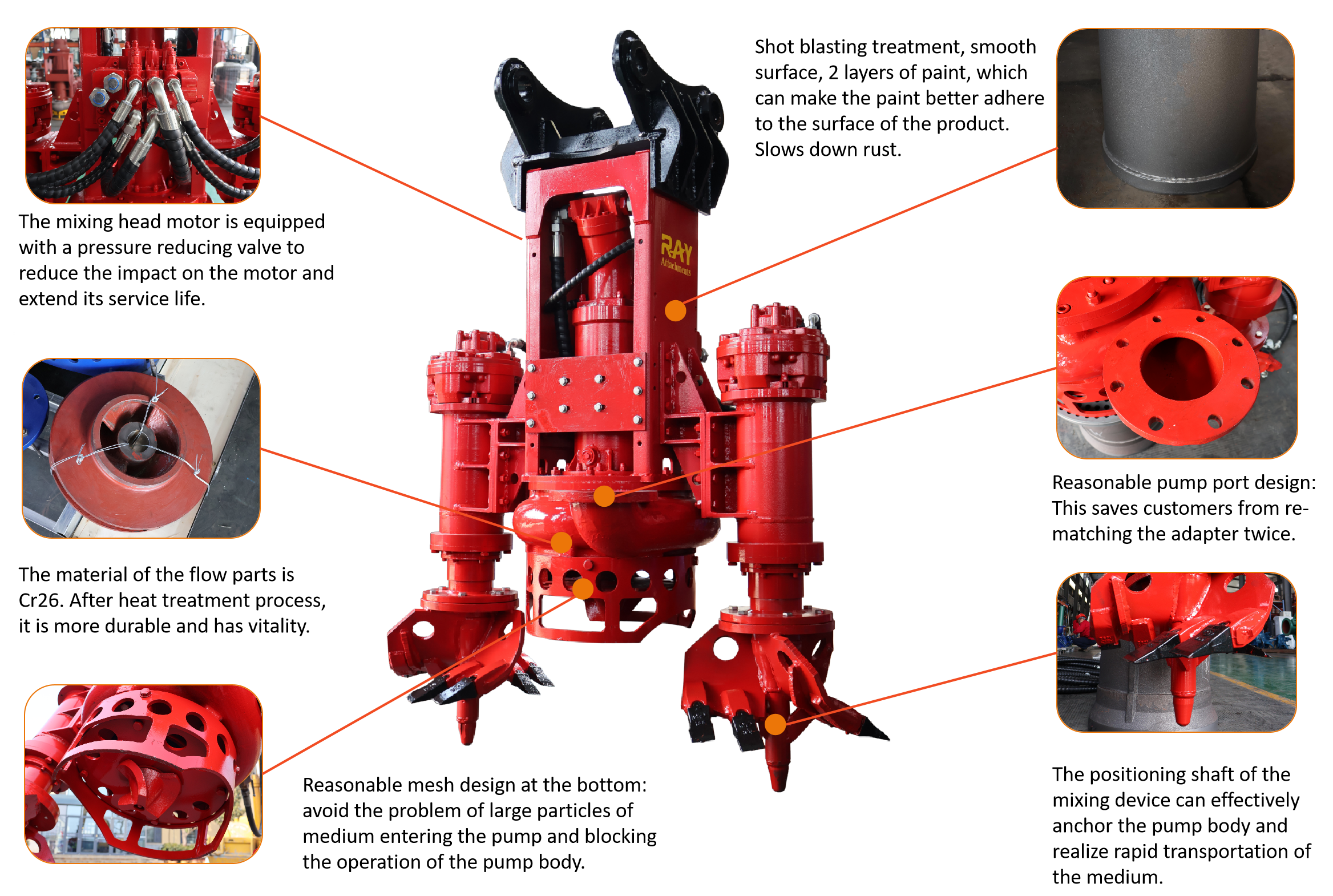

Dredging Pump Structure

The mixing head motor is equipped with a pressure reducing valve to reduce the impact on the motor and extend its service life.

The material of the flow parts is Cr26. After heat treatment process, it is more durable and has vitality.

Reasonable mesh design at the bottom: avoid the problem of large particles of medium entering the pump and blocking the operation of the pump body.

Shot blasting treatment, smooth surface, 2 layers of paint, which can make the paint better adhere to the surface of the product. Slows down rust.

Reasonable pump port design: This saves customers from re-matching the adapter twice.

The positioning shaft of the mixing device can effectively anchor the pump body and realize rapid transportation of the medium.

REQUEST A QUOTE

Customer Witness

Defying Sri Lanka's Coastal Challenges

Ayubowan! Our engineering team has been working along Sri Lanka's coast for years, where traditional slurry pumps often fail due to monsoon silt and saltwater corrosion. Last year, during the Colombo South Port Expansion Project, we tested the RAY hydraulic dredging pump—and the results exceeded all expectations!

Its hydraulic drive system maintained stable discharge even in 30-meter-deep silt (density 1.6t/m³), with 40% lower energy consumption than diesel pumps, significantly easing cost pressures from CEB power shortages. What amazed us most was the salt-corrosion-resistant coating—the pump operated flawlessly for 6 months in saline conditions without rusting, unlike other brands that required seal replacements every 2 months!

Maintenance became effortless: local technicians can now replace wear parts in 30 minutes using a toolkit, eliminating delays from overseas spare parts shipments. We’ve already ordered a second batch for the Jaffna Salt Lake Development, proving its reliability across diverse projects.

Bohoma istuti! RAY’s equipment isn’t just machinery—it’s a steadfast partner in Sri Lanka’s infrastructure, enabling us to deliver projects on schedule through monsoons and salt spray!

REQUEST A QUOTE

Leading Excavator Dredge Pump Manufacturer in China Since 2002

1. Original Manufacturer with Competitive Price
2. OEM/ODM Services
3. 12 Months Warranty

Request a Quick Quote

Excavator Dredge Pump

Our company's hydraulic wear-resistant dredging pump and heavy-duty submersible dredging pump are designed for excavators of various sizes, ideal for efficient extraction in water-rich, sludge, and sediment conditions. By replacing the digging bucket with our hydraulic mortar pump, supports long-distance mud transmission, enhancing work efficiency. Suitable for hydraulic stations, these pumps ensure effective operation in difficult environments, offering a broad application range for challenging excavation scenarios.

Can't Find Ideal Excavator Dredge Pump For Your Industries?

We provide custom solutions to all our customers and offer pile breaker that you can take advantage of.

Contact RAY Attachments Expert

About RAY Attachments: Your Expert Excavator Dredge Pump Supplier

RAY Attachments is a leading manufacturer of excavator mounted dredge pumps in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Contact Our Support Team

Excavator Dredge Pump Technical Parameters

Excavator Dredge Pump Specifictaion

Hydraulic Wear-resistant Sluppy Pump Specification											Mixer Specification
Hydraulic pump	Discharge piping		Capacity max*	Lift*	Excavator*	Power	Pump speed approx	Motor displacement	Oli flow	Pressure	Power	Oli flow	Pressure	Motor displacement
Model	mm	inch	m³/h	m	T	kw	rpm	cc	L/min	Mpa	kw	L/min	Mpa	cc
YNS300-10	DN200	8	300	10	10-20	22	1000	80	80	17	7.5	30	25	630
YNS300-15	DN200	8	300	15	10-20	30	1000	80	80	23
YNS400-15	DN200	8	400	15	20	37	1000	107	107	21
YNS300-25	DN200	8	300	25	20-30	45	1000	125	125	22
YNS600-15	DN200	8	600	15	20-30	55	1000	125	125	27
YNS300-30	DN200	8	300	30	30-40	75	1000	160	160	28
YNS450-30	DN200	8	450	30	30-40	90	1000	200	200	27
YNS700-25	DN250	10	700	25	50	110	1000	250	250	27
YNS1000-2	DN300	12	1000	22	50	132	1100	250	280	28

Excavator Dredge Pump Advantages

This pump can handle solid matter with a maximum particle size of 150mm, and the solid-liquid extraction concentration can reach more than 70%. Due to different working conditions, the output of the pump may also vary depending on the medium being processed, on-site operations, transportation distance, and other factors.

This device is mainly installed on the excavator. The power is provided by the hydraulic station of the excavator, which can realize free transition. The power source is a diesel engine, which can solve the problem of inconvenient power during construction in remote areas.

Flow parts: pump casing, impeller, guard plate, and stirring impeller are all made of high chromium alloy. Other materials can be customized.

Use a unique sealing device to avoid frequent replacement of mechanical seals and improve work efficiency.

Consult Your Ray Expert

Excavator Dredge Pump Packing & Shipping

Excavator Dredge Pump Videos

Send Us Your Inquiry Today

Excavator Dredge Pump Catalogue

Related Excavator Attachments

Excavator Bucket

Long Boom&Arm

Demolition Grapple

Cooperation Process

Step.1
Send your inquiry

Step.2
Quote price

Step.3
Negotiate price and lead time

Step.4
Sign the contract

Step.5
Payment and production

Step.6
Inspection

Step.7
Shipment

Excavator Dredge Pump FAQ

What are the precautions for using hydraulic dredging pumps?

1. Ensure that the system hydraulic oil is pure, less impurities, and has good lubricity, compatibility and stability.

2. According to the existing hydraulic system pressure, displacement, efficiency, etc., the silt pump should be reasonably equipped so that the system can operate normally and the system should not be overloaded for a long time.

3. When used with an excavator, the excavator arm should move lightly and slowly. It is strictly forbidden to knock or smash it hard under harder working conditions to avoid damaging the pump body.

4. Select hydraulic oil pipes of standard specifications, use the specified bolts and tighten them with the specified torque. Unqualified installation will cause malfunctions, damage or oil leakage.

5. When the equipment is transferred, the hydraulic oil port should be kept clean to prevent impurities from entering, etc., which will affect the normal service life of the motor.

6. It is prohibited to modify or disassemble the equipment without permission, otherwise it will not operate normally or abnormally.
Compared with electric submersible sand pumps, what are the advantages of hydraulic dredging pumps?

1. Hydraulic drive offers low motion inertia and rapid response, enabling stepless speed regulation across a wide range.

2. It provides automatic overload protection, eliminating the risk of motor burnout.

3. It can handle media with high solid concentrations (up to 70%+), such as mortar, sediment, and slag.

4. When connected to hydraulic-powered equipment like excavators, it allows for flexible site relocation—a distinct advantage in remote areas with insufficient power supply.

5. As an attachment for excavators, it can suction and transport materials over long distances in scenarios where direct excavation is challenging, enhancing the excavator’s operational versatility.
How to choose the right model?

1. What is the tonnage of your excavator?

2. What is the medium, concentration and particle size that you need for dredging pump?

3. What is the horizontal distance and height of the medium transported by the dredging pump?
How does a Hydraulic Dredging Pump work?

Powered by a hydraulic system, the pump uses a motor to convert hydraulic energy into mechanical motion. Mixing devices on both sides agitate settled sludge, while blades direct solids toward the suction inlet. A unique sealing design ensures reliable mechanical seals and a longer lifespan, with hydraulic drive enabling stable operation in harsh conditions.
What is a Hydraulic Dredging Pump?

A hydraulic dredging pump is a hydraulic machine with mixing functions that features high-quality materials, advanced design, and strong particle-handling capability. It conveys media with solid particles (sediment, coal cinder, tailings, etc.) and is ideal for dredging in mining, power plants, water treatment, ports, and rivers, as well as hydraulic filling in beach/coastal construction. It replaces traditional mud pumps, working flexibly with excavators/loaders for easy relocation, especially in remote areas without power constraints.

Factory FAQ

Are you a factory or trading company?

We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.
Where is your factory located?

Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China

It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.
How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
What are your terms of payment?

Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
How about quality control in your factory?

Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.
How about guarantee?

We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
Purchase notes

(1) As the manufacturing factory, RAY Attachments works in international trade and can handle wholesale orders with containers' capacity.

(2) We aim to find our business partner as our international dealers.
