Leading Drum Cutter

Manufacturer in China Since 2002

1. Original Manufacturer with Competitive Price
2. OEM/ODM Services
3. 12 Months Warranty

Drum Cutter

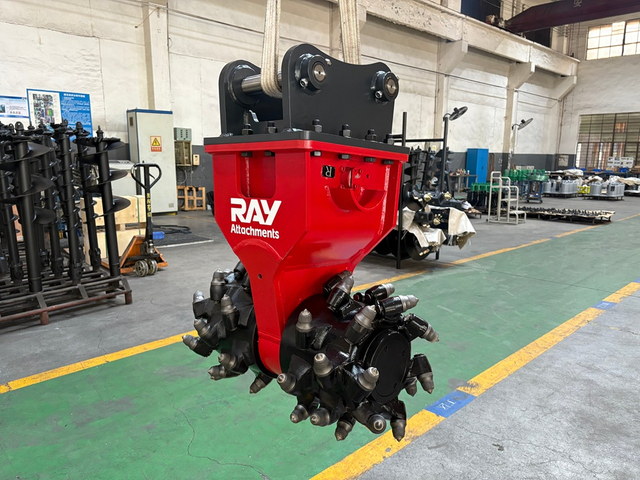

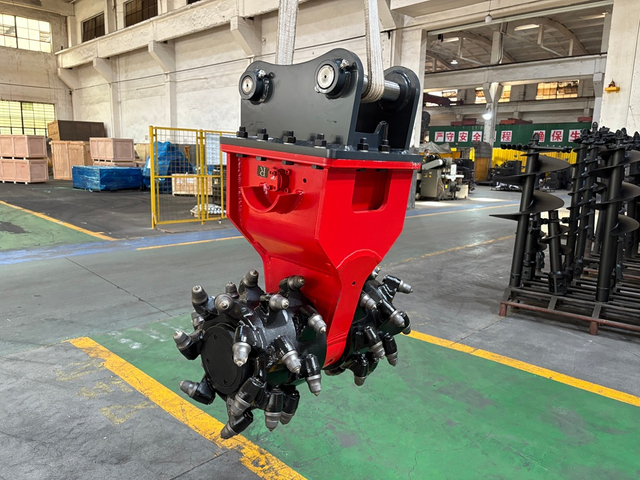

  • Rock Drum Cutting Machine Rotary Drum Cutters for Excavator
    RAY drum cutter is an attachment are rotated by a hydraulic motor at several hundred revolutions per minute to cut rock, concrete or frozen ground.
  • RDC100 Excavator Drum Cutter
    RDC100 drum cutter is an attachment are rotated by a hydraulic motor at several hundred revolutions per minute to cut rock, concrete or frozen ground. Suitable for 8-12t excavator.
  • RDC150 Drum Cutter Attachment for Excavator
    RDC150 drum cutter is an attachment are rotated by a hydraulic motor at several hundred revolutions per minute to cut rock, concrete or frozen ground. Suitable for 12-18t excavator.
  • RDC200 Drum Cutter for Excavator
    RDC200 drum cutter is an attachment are rotated by a hydraulic motor at several hundred revolutions per minute to cut rock, concrete or frozen ground. Suitable for 18-25t excavator.
  • RDC300 Drum Cutter for Sale
    RDC300 drum cutter is an attachment are rotated by a hydraulic motor at several hundred revolutions per minute to cut rock, concrete or frozen ground. Suitable for 26-38t excavator.

Can't Find Ideal Drum Cutter For Your Industries?

We provide custom solutions to all our customers and offer drum cutter that you can take advantage of.

About RAY Attachments: Your Expert Drum Cutter Supplier

RAY Attachments is a leading manufacturer of drum Cutter in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Drum Cutter Technical Parameters

 Drum Cutter Types
double drum cutter

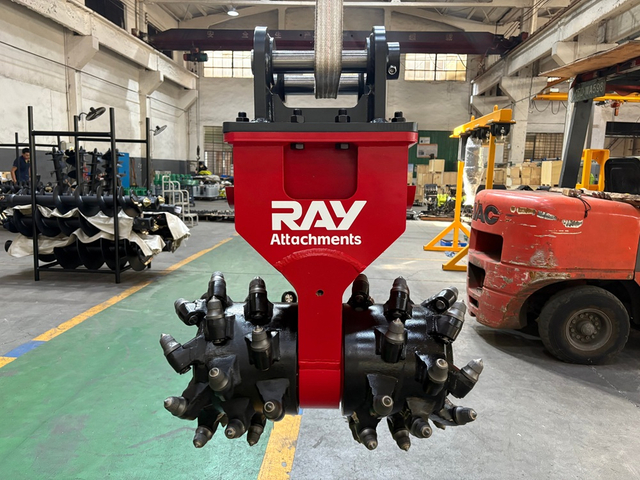

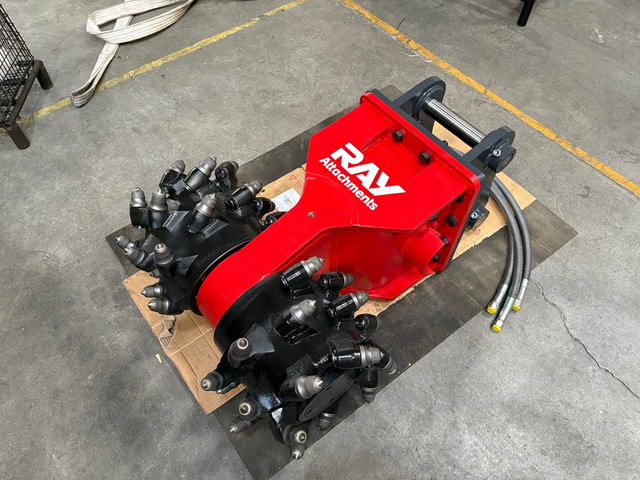

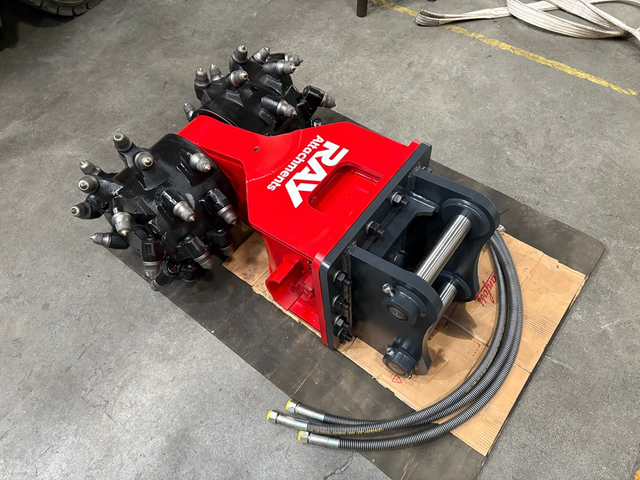

Double Drum Cutter

Single Drum Cutter



Single Drum Cutter

 Drum Cutter Specifictaion
Model Unit RDC100 RDC150 RDC200 RDC300
Carrier T 8-12 12-18 18-25 26-38
Max Power KW 29 41 70 110
Rotary Speed Rpm 75-85 80-95 70-80 65-75
Oil Flow Range LPM 60-80 100-120 200-220 300-320
Torque N.m 3570 6320 14272 21376
Max Cutting Force Kn 17 26.6 44.2 63.2
Teeth diameter mm 20 20 25 38/30
Cutting Teeth Pcs 56 64 64 60
Max Pressure Bar 350 350 350 350
Weight Kg 411 580 1155 1429
H*W*D mm 585*744*423 700*931*474 832*1058*646 832*1161*678
Model Unit RDC100V RDC150V RDC200V RDC300V
Carrier T 3-7 8-15 15-25 26-38
Max Power KW 29 41 70 110
Rotary Speed Rpm 90-110 70-90 60-80 60-80
Oil Flow Range LPM 52-62 56-84 150-200 260-320
Torque N.m 3120 5205 11700 21376
Max Cutting Force Kn 16.9 23.4 52 63.2
Teeth diameter mm 20 22 22 30
Cutting Teeth Pcs 32 44 30 30
Max Pressure Bar 350 350 350 350
Weight Kg 250 500 700 953
H*W*D mm 810*310*370 1130*355*400 1230*450*390 1382*494*678
 Drum Cutter Advantages
RAY drum cutter are ideal for trenching, profiling rock and concrete walls, tunneling, quarrying, demolition, dredging, finishing operations and underwater works. They are highly effective where conventional excavation systems are too weak and percussion systems have little effect. Their quiet operation allows them to be put to work near sensitive areas (residential zones, hospitals, schools, bridges and infrastructures)
 Precise cut
 Low vibrations
 High performance
 Low noise level
 Milled material reused on site
 Deep and narrow trenches
 Underwater works
 Maintenance-free
DRUMS available:
 HP (Standard) Penetrates deep, even into hard materials.
 GP (Optional) Recommended for wall profiling and various types of jobs.
 WB (Optional) Special drum for finishing and profiling.
Advantages:
Milling work at a depth of 50 meters underwater
River slab milling, dredging works
Underwater milling in ports

✱ Milling material can be reused on site
✱ Milling waste is shredded, no need for secondary crushing
✱ Precise milling and low vibration construction to protect the structural stability of the rock
✱ Low construction noise level (less than 87 db)
✱ Ability to work near sensitive areas
✱ High milling efficiency compared to crushing for soft materials

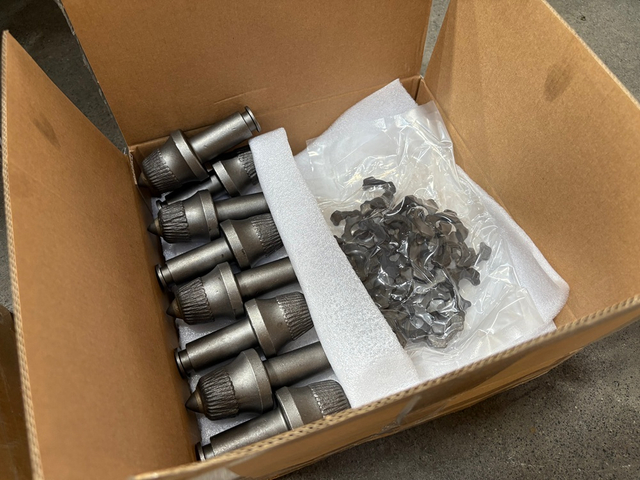

 Drum Cutter Packing & Shipping
 Drum Cutter Videos
 Drum Cutter Catalogue
download

2023-05-0411.02MB

2023 RAY Drum Cutter Catalogue.pdf

Related Excavator Attachments

Cooperation Process

Step.1
Send your inquiry
Step.2
Quote price
Step.3
Negotiate price and lead time
Step.4
Sign the contract
Step.5
Payment and production
Step.6
Inspection
Step.7
Shipment

Drum Cutter FAQ

  • What about the features?

    Features High displacement motors with high torque for extra productivity and cutting force. Gear box manufactured from thicker steel plate. Stronger output shaft fixing to the gear box housing. Thicker wear plates.
  • What production rate can I expect from a drum cutter?

    The Productivity Table in the downloads below is an indicator of the productivity rates that can be achieved within the operating range of rock hardness suitable for rotary drum cutters Size of hydraulic motor. Cutting direction (wall, floor, trench, etc). Operator experience. Ground conditions e.g. layers, fissures, weathering, etc.
  • Operating limits in terms of rock hardness for drum cutters.

    Power is needed to fracture materials such as concrete or rock. As the compressive strength of the material increases, more power is needed to fracture it. The available power of the drum cutter is limited by the hydraulic motor and the available power of the excavator. As drum cutters increase in size, they have larger hydraulic motors, draw more power from the excavator, and are able to cut harder rock. Please see the Compressive Strength Chart for Common Rock Types in the box below to see the operating limits for each size of drum cutter. This table is intended as a guide and under certain conditions these limits may vary.
  • How choose the drum cutter?

    It is important to match the correct size rock cutter with the excavator. The rock cutter must be strong enough to support the weight of the shovel and the shovel must be strong enough to take up the energy transmitted to the machine by the drum cutter. The weight of the rock cutter must not destabilize the shovel. Rock cutters get their power from hydraulic flow and pressure from the excavator. The best cutting performance is achieved when the drum cutter's hydraulic motor matches the hydraulic output of the excavator's pumps.
  • Where project can use drum cutter?

    Drum cutter attachments for excavator can be used for rock excavation, demolition, underground scaling, tunnel profiling, trenching and other applications.
  • Drum cutter can use in water?

    Drum cutter attachments for excavators can also be used underwater without modification at depths of up to 30m.
  • What is a rotary drum cutter?

    Rotary drum cutters or rock cutters are hydraulic excavator attachments. Designed to increase the range of work available to excavators and increase their return on investment. Tunnelling. Trenching. Demolition.
  • How does a drum cutter work?

    A drum cutter is an attachment where rotating drums equipped with picks, strategically positioned around the outer diameter, are rotated by a hydraulic motor at several hundred revolutions per minute to cut rock, concrete or frozen ground.

Factory FAQ

  • Are you a factory or trading company?

    We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.
  • Where is your factory located?

    Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China
    It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.
  • How many days for production delivery?

    Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
  • What are your terms of payment?

    Payment≤20000USD,100% in advance. Payment>20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
  • How about quality control in your factory?

    Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.
  • How about guarantee?

    We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
  • Purchase notes

    (1) As the manufacturing factory, RAY Attachments works in international trade and can handle wholesale orders with containers' capacity.
    (2) We aim to find our business partner as our international dealers.
