Leading Long Boom Arm

Manufacturer in China Since 2002

1. Original Manufacturer with Competitive Price
2. OEM/ODM Services
3. 12 Months Warranty

Long Boom Arm

Can't Find Ideal Drum Cutter For Your Industries?

We provide custom solutions to all our customers and offer drum cutter that you can take advantage of.

About RAY Attachments: Your Expert Long Boom Arm Supplier

RAY Attachments is a leading manufacturer of Long Boom Arm in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Long Boom Arm Technical Parameters

 Long Boom Arm
Long Boom Arm(1)
Long Boom and Arm
Demolition Boom and Arm(1)
Demolition Boom and Arm
Rock Arm(2)
Rock Arm
 Long Boom and Arm Specifictaion
Excavator Unit 12T 20T 22T 30T 35T 40T 45T

Length of the boom arm

m

13

15.38

15.38

18

20

22

24
Working weight KG

3000

4000

4200

5200

6000

6500

7000
Bucket capacity

0.3

0.4

0.4

0.4

0.5

0.6

0.6
Max digging height mm 11300 12510 12610 13720 14920 16100 17300
Max reaching depth mm 12500 15100 15100 17600 19600 21600 23600
Max digging depth mm 9000 11340 11370 13000 15000 16500 18000
Total height mm 2900 2980 3040 3040 3210 3400 3400
Counter weight KG

/

/

/

/

2000 2500 3000
 Demolition Boom and Arm Specifictaion
Excavator Unit 12T 20T 22T 30T 35T 40T 45T

Length of the boom arm

m

12

14

16

18

20

22

24
Working weight KG

3000

4500

5000

6000

7000

8000

9000
Limited weight of shear KG <800 <1500 <2000 <2000 <2000 <2000 <2000
Total height mm 3000 3100 3160 3290 3290 3420 3420
Max working height mm 13400 15600 17800 20000 22000 24000 26000
Counter weight KG

1000

2000

2500

3000

4000 5000 6000
 Rock Arm Specifictaion
Excavator Unit 12T 20T 24T 50T 65T 80T

Length of the boom arm

m

82

85

85

87

88.5

91.5

Working weight KG

12000

15000

17000

20000

73000

8000

Max digging height KG 1350 <1500 <2000 <2000 <2000 <2000
Max digging depth mm 3200 3250 3100 3220 3290 3420
Max reaching range mm 7550 7890 7890 8110 8410 8690
Height of rock ripper mm 1350 1350 1400 1500 1650 1650
 Excavator Long Boom Arm Advantages

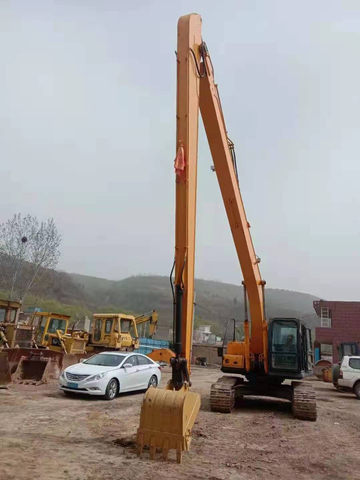

RAY Long Boom and Arm can greatly improve theoperating range without changing the installation method and erformance of the original excavator. Mainly used for earthwork, deep cut excavation and river dredging.
 Boom and Arm Manufacture
 Fit on all models excavator
 Standard/long reach/rock boom and arm
 Super high quality with 1 year warranty
RAY Demolition Boom Arm is usually equipped with a breaker or hydraulic shear for work, which is easy to install and has high work efficiency. Applicable to high-rise building demolition works.
RAY Demolition Boom Arm is usually equipped with a breaker or hydraulic shear for work, which is easy to install and has high work efficiency. Applicable to high-rise building demolition works.
