Leading Demolition and Sorting Grapple Manufacturer in China Since 2002

1. Original Manufacturer with Competitive Price
2. OEM/ODM Services
3. 12 Months Warranty

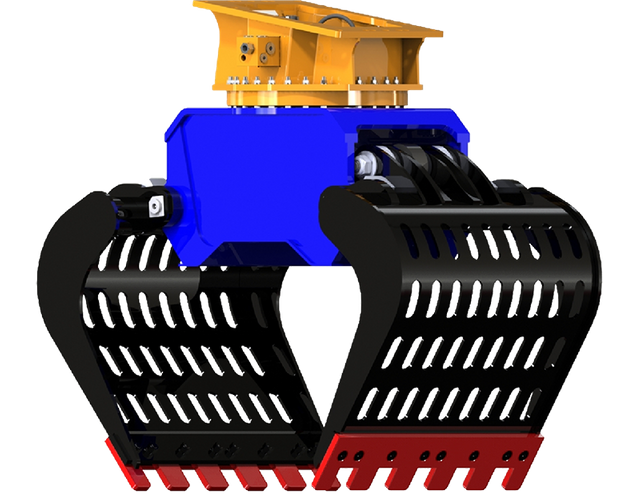

Demolition Grab 5 in 1

Several sets of shells available, customizable on request (recycling, demolition, handling)
Add bucket teeth  Dismantle cars or grab stones

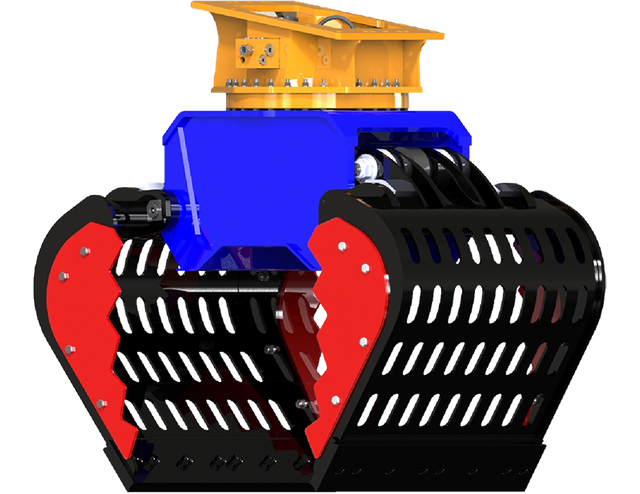

Add Serrated blade  Smash piles or grab stones

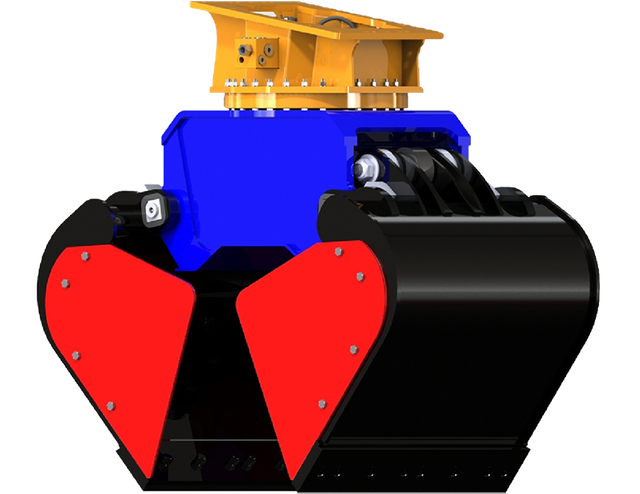

Install closed blade  Shell bucket can grab broken waste or load and unload

Can't Find Ideal Demolition and Sorting Grapple For Your Industries?

We provide custom solutions to all our customers and offer hydraulic grapple series that you can take advantage of.

About RAY Attachments: Your Expert Demolition Grapple Supplier

RAY Attachments is a leading manufacturer of Demolition and Sorting Grapple in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Demolition and Sorting Grapple Technical Parameters

 Demolition and Sorting Grapple Products

 Demolition and Sorting Grapple Specifictaion

Model Unit RCG-mini RCG-02 RCG-04 RCG-06A RCG-06B RCG-08 RCG-10 RCG-14
Carrier Ton 2.5-4.5 4-6 6-8 10-15 15-18 18-21 22-27 28-37
Cylinder Bar 250 300 350 350 350 350 350 350
Liters/min 8-15 10-20 15-30 30-65 40-80 55-110 55-110 95-165
360° Rotation Bar 100 100 100 140 140 140 140 140
Liters/min 6-9 8-12 8-12 12-20 12-20 14-20 14-20 28-40
Tr/min 10/15 10/15 10/15 10/15 10/15 10/15 10/15 10/15
Force N 12000 19000 25000 40000 50000 60000 62000 93000
Volume L 77 105 147 395 470 700 820 1080
Weight Kg 210 260 370 745 950 1230 1500 2100

 Demolition and Sorting Grapple Advantages

  1. Available for excavators from 2.5 to 37T.

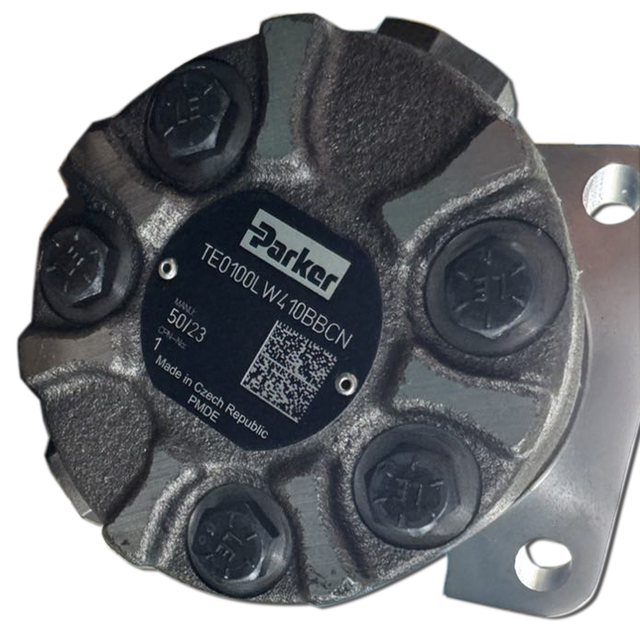

  2. Unlimited 360° Hydraulic Rotation Motor from Parker.
  3. Reversible and changeable wear blades to extend service life.

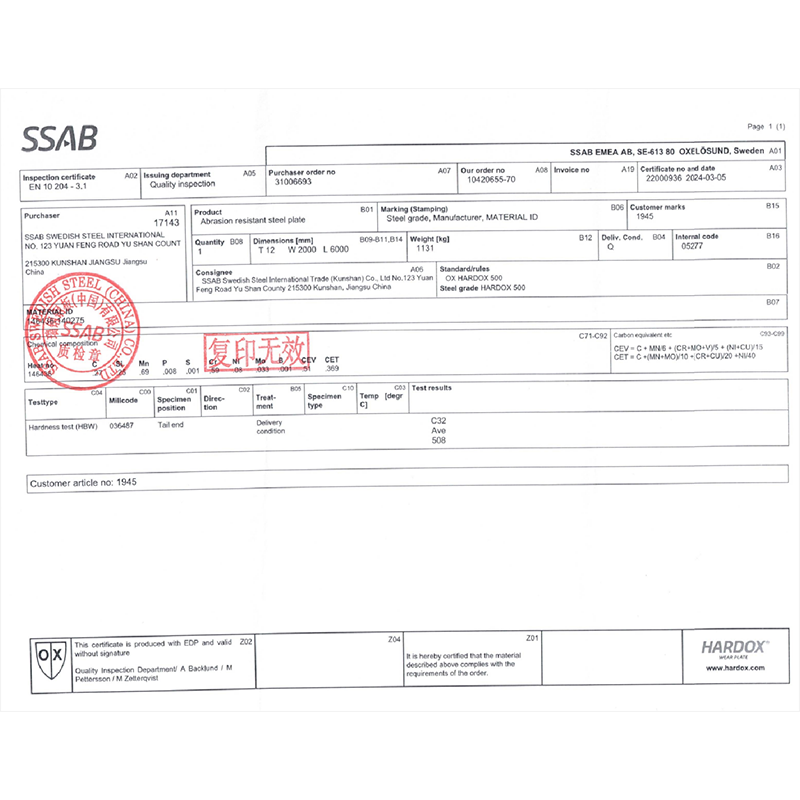

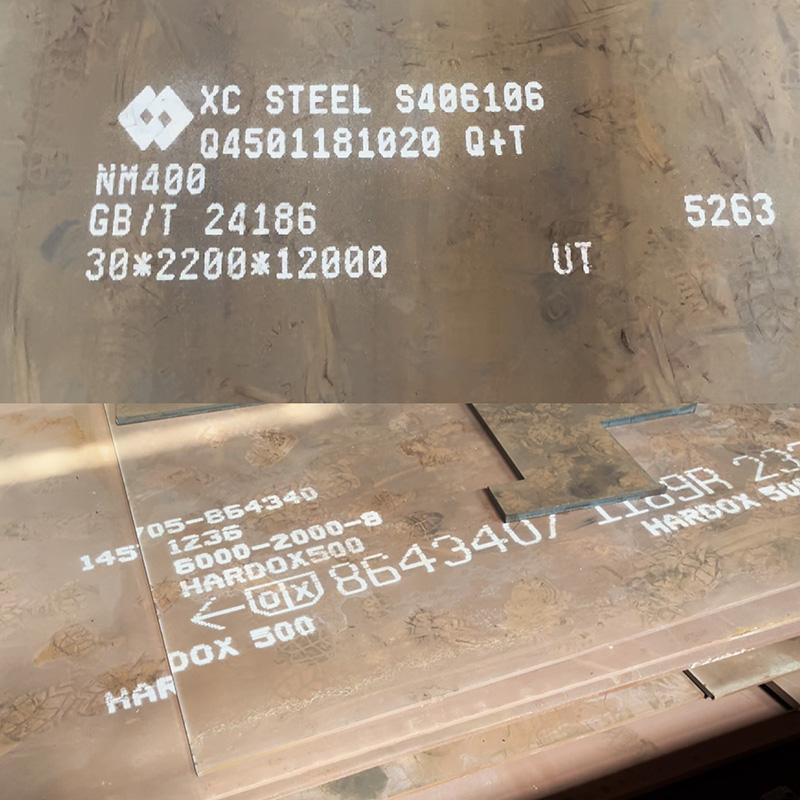

  4. The use of wear-resistant material makes it durable - HARDOX 450/NM400.
  5. Several sets of shells are available, customizable on request (recycling, demolition, handling).
  6. Fully guarded, high-pressure cylinders.
  7. Opening/Closing lock valve optional.
  8. Bolt-On Mounting Bracket, multi-option - MS/CW series.

 Demolition and Sorting Grapple Packing & Shipping

 Demolition and Sorting Grapple Videos

 Demolition and Sorting Grapple Catalogue

download

Excavator Attachments

download

Excavator Attachments

download

Excavator Grapple

Related Excavator Attachments

Cooperation Process

Step.1
Send your inquiry
Step.2
Quote price
Step.3
Negotiate price and lead time
Step.4
Sign the contract
Step.5
Payment and production
Step.6
Inspection
Step.7
Shipment

Demolition and Sorting Grapple FAQ

  • What about the S jaws advantage about Demolition Grapple?

    S-jaws for sorting. Demolition and sorting grapples with plate-reinforced S-jaws are designed for recycling applications. Loose material does not stick so easily between the ribs. The jaws are very strong and are also suitable for demolition applications.
  • Which country have you been exported?

    Europe, America, Asia.etc
  • How many weight excavator can use our Demolition Grapple?

    Demolition Grapples are heavy-duty grapples designed for the demands of demolition - all sizes available to suit machines as small as 3 tonnes, up to 45 tonnes, various jaws/teeth available with replaceable bolt-on teeth .
  • What is our grapple advantage?

    High-performance strength meets state-of-the-art agility with the Extractor from RAY Attachments - the versatile demolition and sorting grapple capable of demolishing buildings, moving large volumes of material and picking up fine recyclables. Designed for tough jobs, the puller is made with Hardox Wear Plates and Strenx steel and moves higher volumes of material using less fuel - cycle after cycle The puller rotates 360 degrees and features flexible operation of the jaw with edge-to-edge contact, reversible cutting edges and zero clearance design for maximum productivity.
  • How does demolition grapple work?

    A demolition grapple does just what its name says: it grabs hold of scrap and debris and moves it out of the way, deftly handling a myriad of materials, from rebar to insulation.
  • What is Demolition Grapple?

    A demolition grapple does just what its name says: it grabs hold of scrap and debris and moves it out of the way, deftly handling a myriad of materials, from rebar to insulation.

Factory FAQ

  • Are you a factory or trading company?

    We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.
  • Where is your factory located?

    Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China
    It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.
  • How many days for production delivery?

    Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
  • What are your terms of payment?

    Payment≤20000USD,100% in advance. Payment>20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
  • How about quality control in your factory?

    Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.
  • How about guarantee?

    We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
  • Purchase notes

    (1) As the manufacturing factory, RAY Attachments works in international trade and can handle wholesale orders with containers' capacity.
    (2) We aim to find our business partner as our international dealers.
