High grabbing power
Super wear-resistant log grapple

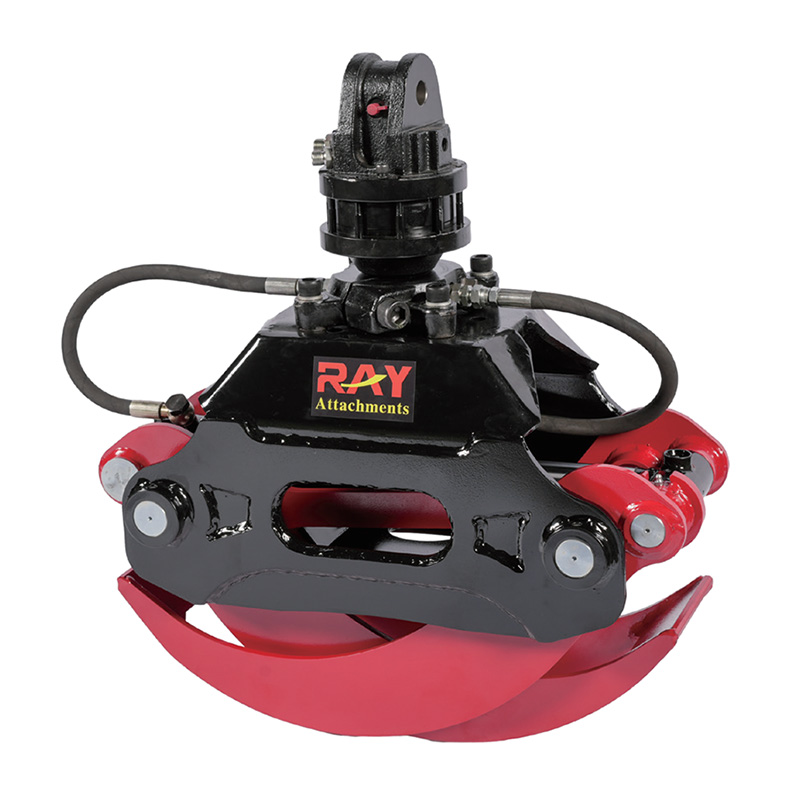

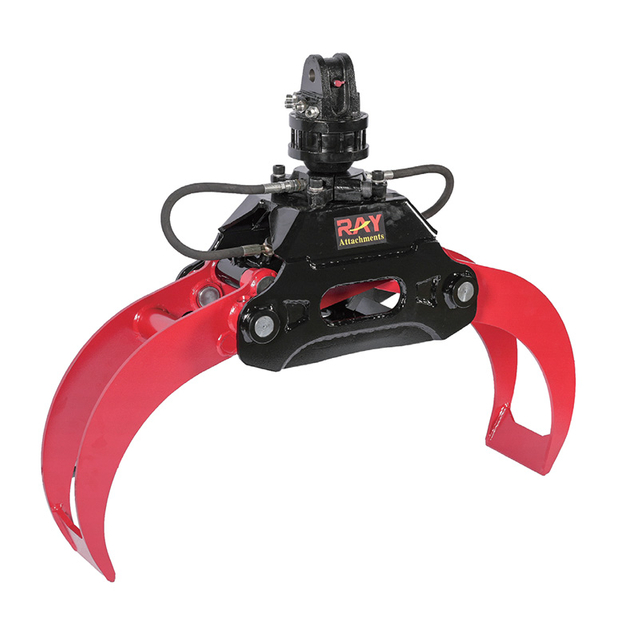

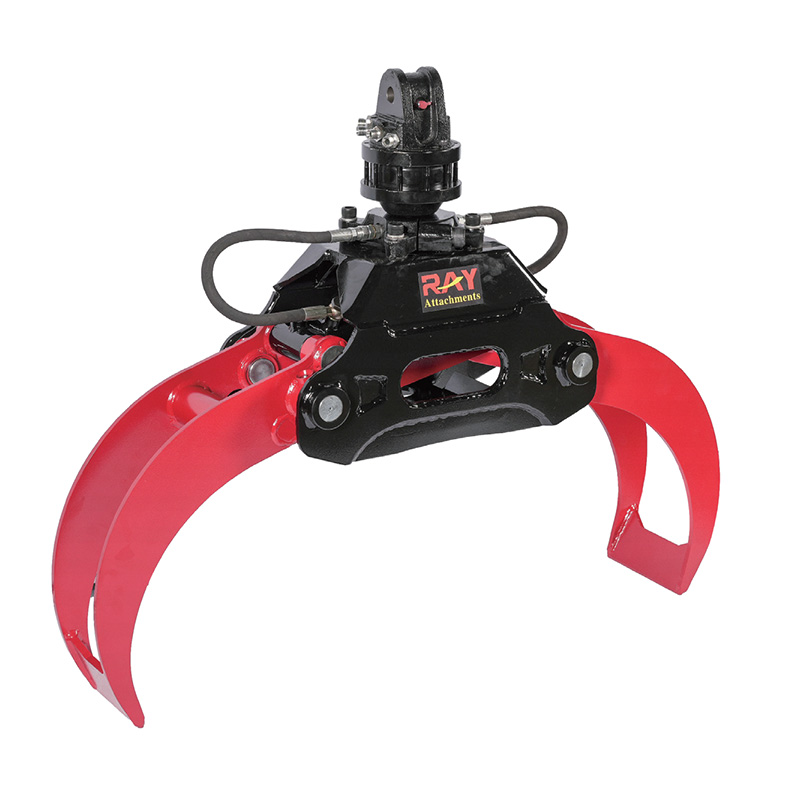

Log Grapple

360° view

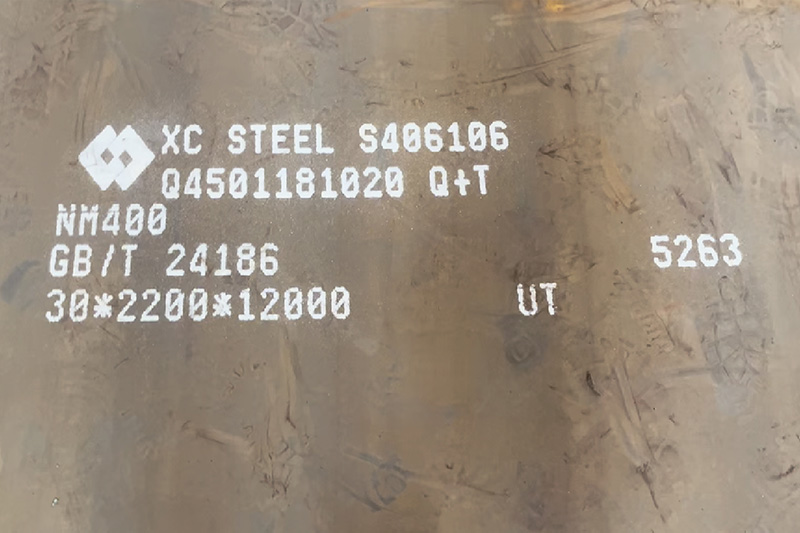

 NM400 wear-resistant steel material for a longer service life.
 Unique shell kinematics.
 Modular fashion with all highly stressed components.

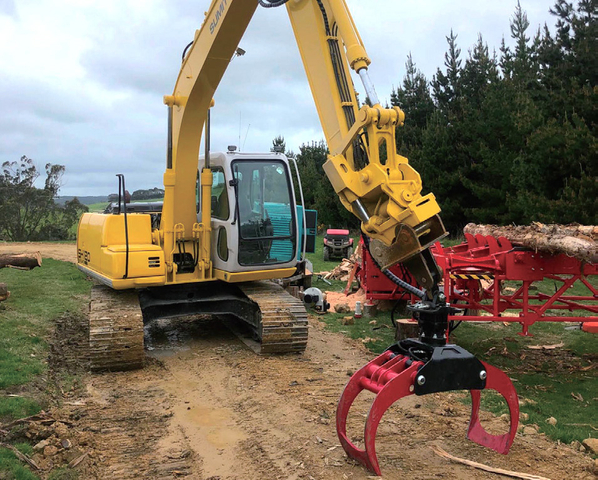

CUSTOMER WITNESS
TECHNICAL PARAMETERS
Model Unit RLG1000 RLG1200 RLG1400 RLG1700 RLG2000
Excavator weight Ton 1-3 1-5 5-7 12-16 17-24
Lbs/Pounds 2000 - 6000 2000 - 10000 10000 - 14000 24000 - 32000 34000 - 48000
Weight
(Without motor)
Kg 69 82 139 260 365
Lbs/Pounds 152 181 306 573 805
Weight
(With motor)
Kg 89 107 169 312 435
Lbs/Pounds 196 236 373 688 959
Working pressure Bar 210 210 210 210 210
Max load Kg 1500 2000 2000 3000 5000
Lbs/Pounds 3307 4409 4409 6614 11023
Max clamp power KN 9.5 12 14 17 21
Materia Material  NM400 NM400  NM400 NM400 NM400
Rotation motor Model 30F 40F 50F 60F 100F
Oil hose inch 3/8 3/8 3/8 1/2 1/2
