Rotary screening bucket manufacturers & factory

Soil, sand, stone, coal, mine multi-scenario operation, strong power, strong sealing

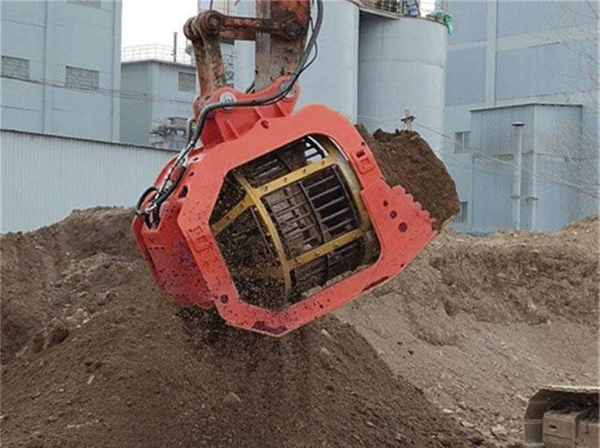

Rotary Screen Bucket

REQUEST A QUICK QUOTE

Why Choose Us

Core Component Advantages

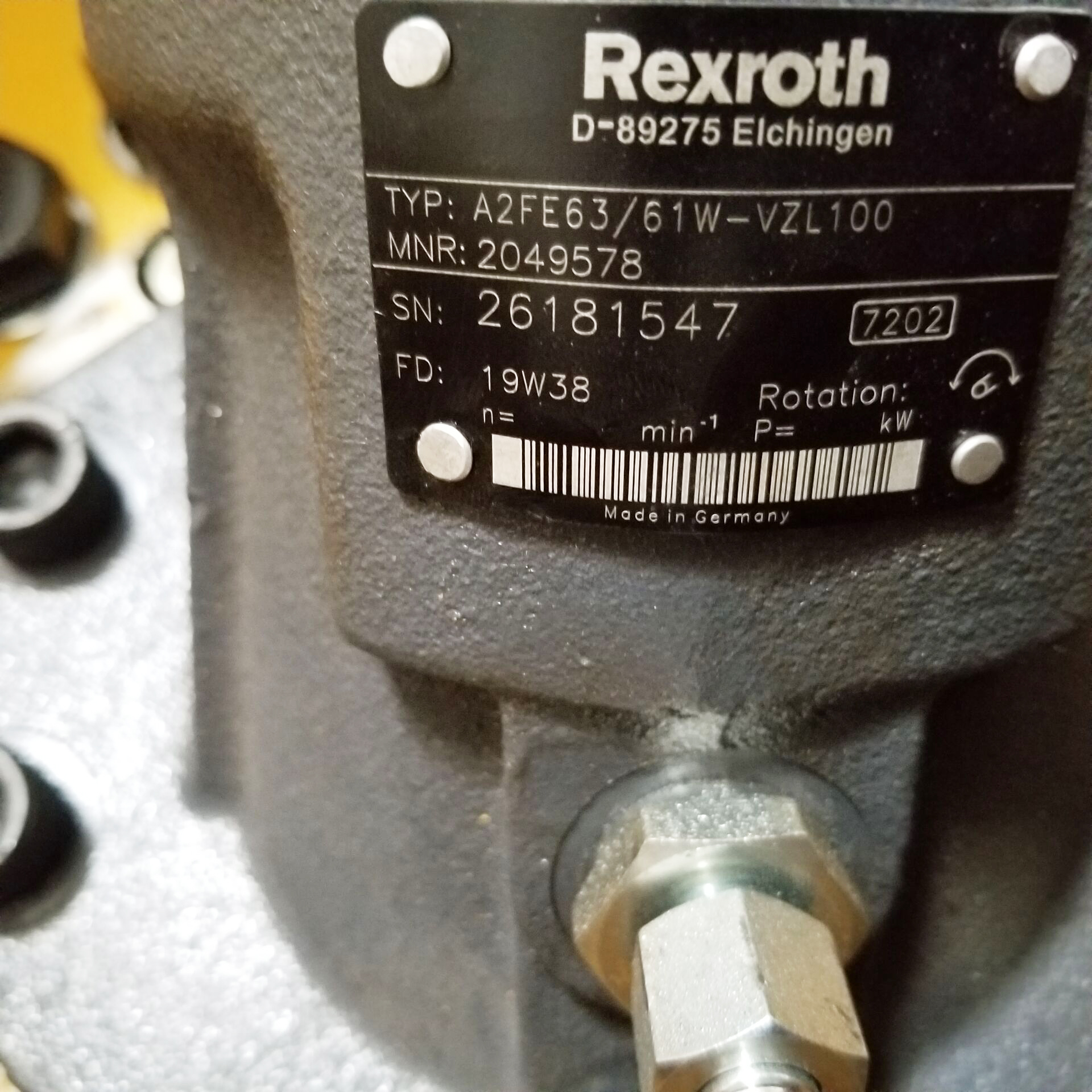

Imported high-torque motor for robust power delivery + specially engineered seals.

Multi-Environment Capability

Efficient operation in soil, sand, gravel, coal, mineral and other bulk materials.

Modular Screening System

Interchangeable mesh configurations allow a single bucket to adapt to multiple screening needs, maximizing productivity.

Rotary Screen Bucket Structure

Special design with reliable protective covers
All hydraulic parts are protected by a closed structure, and process holes are opened at the corresponding positions to ensure the convenience of maintenance.

High wear resistance steel with good performance
Lower after-sales service. 12 months warranty.

Work underwater
Imported motor, better sealing, can make the machine work stably even under water. Longer service time.

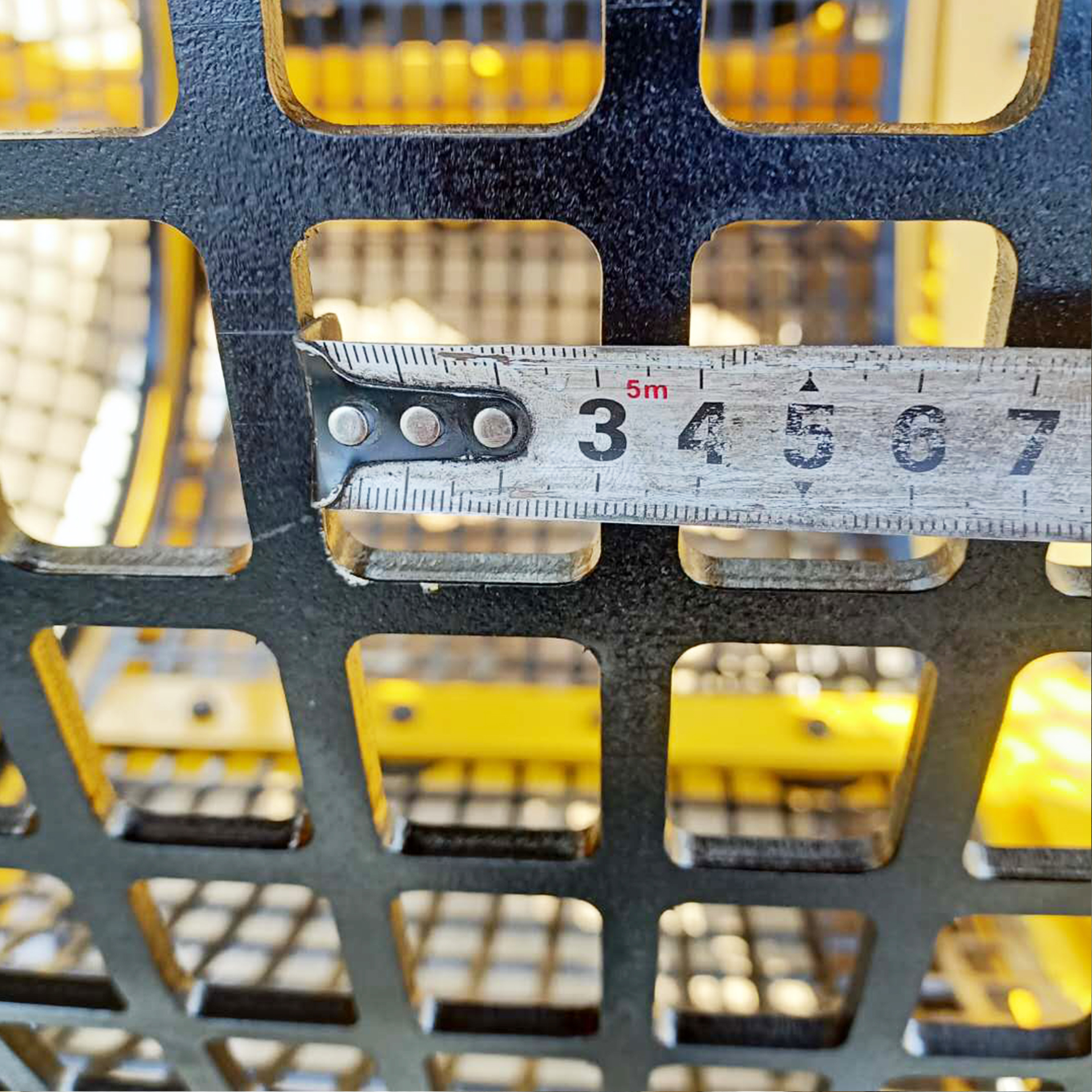

Customized sizes meet different requirements. Screens can be customized
Sieve stones 10-50 mm; Sand washing 2-10 mm; 80-100 mm for mines.

REQUEST A QUOTE

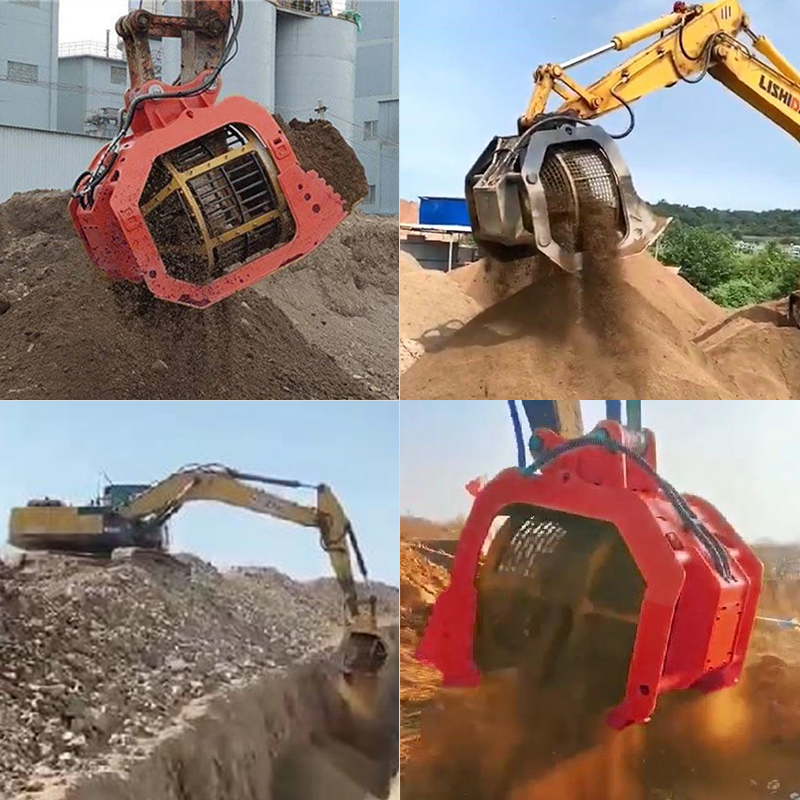

Operational Applications

REQUEST A QUOTE

Customer Witness

Cost King

A Sydney-based firm struggled with slow, costly screening (operators earn $60+/hour) and strict OHS rules at a Perth mine.

RAY hydraulic rotating screening bucket solved it: quickly adapted to Caterpillar excavators, its 360° drum boosted throughput by 40%. Adjustable 10–150mm screens handled varying materials.

Over three months, we finished 2 weeks early with 30% labor savings. The bucket performed reliably in WA’s harsh conditions, requiring 25% less maintenance than imports. In Australia’s "fair go" culture, this cost-effective tool enhances our reputation for compliance and efficiency.

REQUEST A QUOTE

Specifictaion

Model	Unit	RSB-06	RSB-08	RSB-10	RSB-14
Excavator weight	Tons	6-10	11-18	19-29	30-40
Excavator weight	lbs/pounds	13228-22046	24251-39683	41888-63934	66139-88185
Net weight	Kgs	460	1400	2000	3200
Working oil flow	L/min	60-80	100-120	140-160	200-220
Working oil flow	Gpm	16-21	26-32	37-42	53-58
Working pressure	Mpa	8-12	12-14	16-23	24-28
	Psi	1160-1750	1750-2030	2320-3335	3480-4061
	Bar	80-120	120-140	160-230	240-280
Basket volume	CBM	0.4	0.8	1.3	2.2
Screen bucket mesh size (Recommend)	Cobblestone (cm)	1-5	1-5	1-5	1-5
	Wash sand (cm)	0.2-1	0.2-2	0.2-3	0.2-4
	For mining (cm)	8-10	8-10	8-10	8-10

Can't Find Ideal Rotary Screen Bucket for Your Industries?

We provide custom solutions to all our customers and offer Rotary Screening Bucket that you can take advantage of.

Contact RAY Attachments Expert

Related Excavator Attachments

Earth Auger

Hydraulic Grapple Series

Excavator Bucket

Cooperation Process

Step.1
Send your inquiry

Step.2
Quote price

Step.3
Negotiate price and lead time

Step.4
Sign the contract

Step.5
Payment and production

Step.6
Inspection

Step.7
Shipment

Excavator Bucket FAQ

What is Ditch Cleaning Bucket?

Ditch cleaning bucket is designed for jobs such as landscaping, ditch cleaning, grading, finishing and back filling. It often includes draining holes on the bucket body to reduce the body weight, and release the material easily during operation.
What is skeleton bucket?

Excavator skeleton bucket is mainly used to remove rocks and debris without the soil. Furthermore, it is used in other applications that involve sorting rocks of different sizes, such as agriculture, forestry, water conservation, and earthworks.
What is the Working Environment for standard bucket?

It is suitable for digging and loading clay, sand, or other soft materials with little or no debris or large rocks. The optimal shape ensures excellent digging properties and a large digging capacity.
What's the features about rock bucket?

Rock Bucket is suitable for comparatively heaviest working conditions in rocky types of soil and demolition work. The material is wear-resistant, except when used in extreme construction environments. In addition to its optimal shape, it is made of extremely durable steel, which makes it very robust when it comes to picking up large rocks.
What is the Heavy-duty bucket quality like?

The bucket is made of wear-resistant material for added protection and strength when digging in loose rock or pits and quarries. The side knife of the bucket, shell bottom, side wear plate and welding wear cover is composed of wear-resistant materials.
How do I choose an excavator bucket?

The size of a bucket is the first thing to consider. In case of trench digging, the bucket width will depend on the width of the trench. Within the excavator bucket size recommendations, bigger is generally better when digging a foundation or backfilling an excavation.
How to get a price?

In order to offer you the price, please confirm:
1. The model of your excavator;
2. The type of bucket you need;
3. The width you need.
What are the different types of excavator buckets?

1.Standard Bucket
2.Rock Bucket
3.Cleaning Bucket
4. Tilt Bucket
5.Grid Bucket
6.Loosening Bucket
7.Ditch bucket
8.Bucket clamp

Factory FAQ

Are you a factory or trading company?

We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.
Where is your factory located?

Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China

It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.
How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
What are your terms of payment?

Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
How about quality control in your factory?

Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.
How about guarantee?

We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
Purchase notes

(1) As the manufacturing factory, RAY Attachments works in international trade and can handle wholesale orders with containers' capacity.

(2) We aim to find our business partner as our international dealers.
