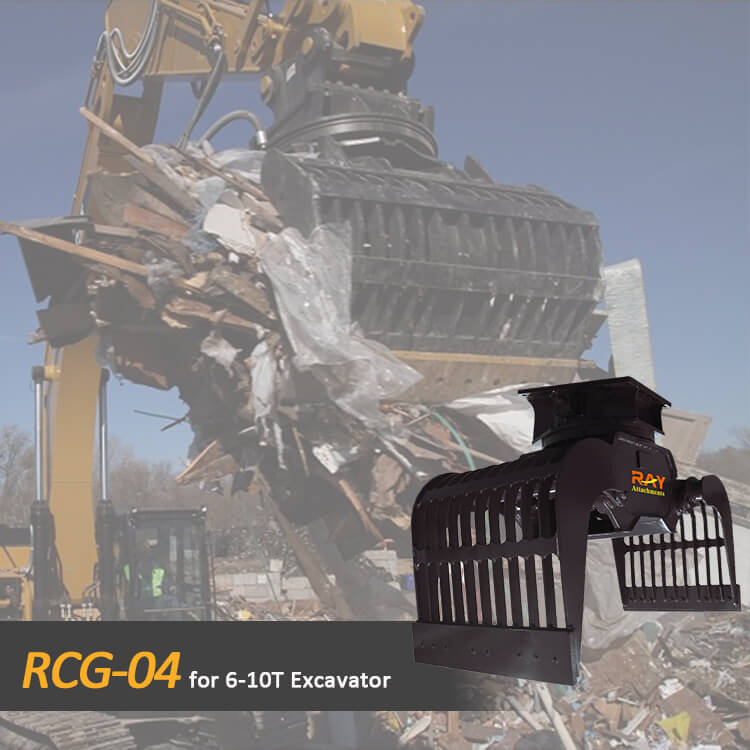

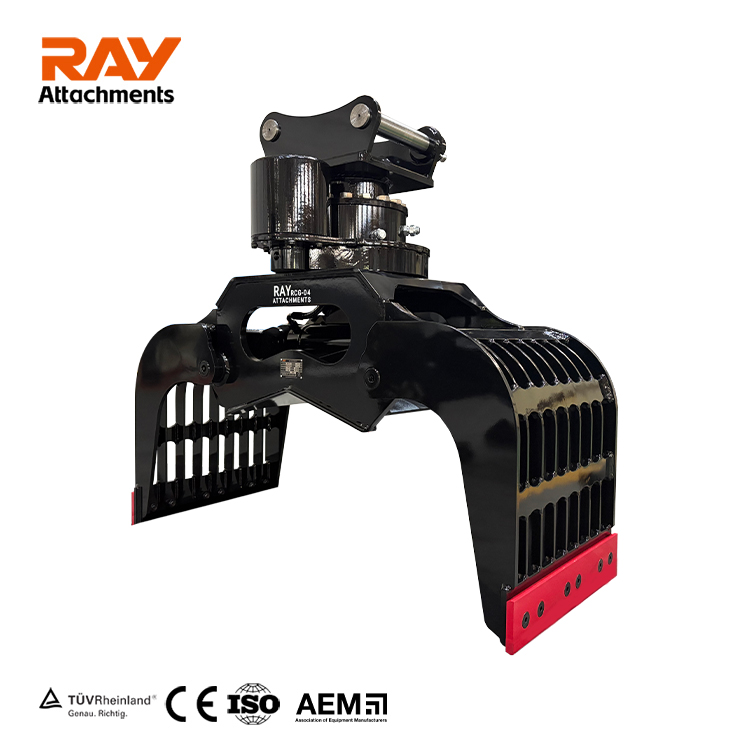

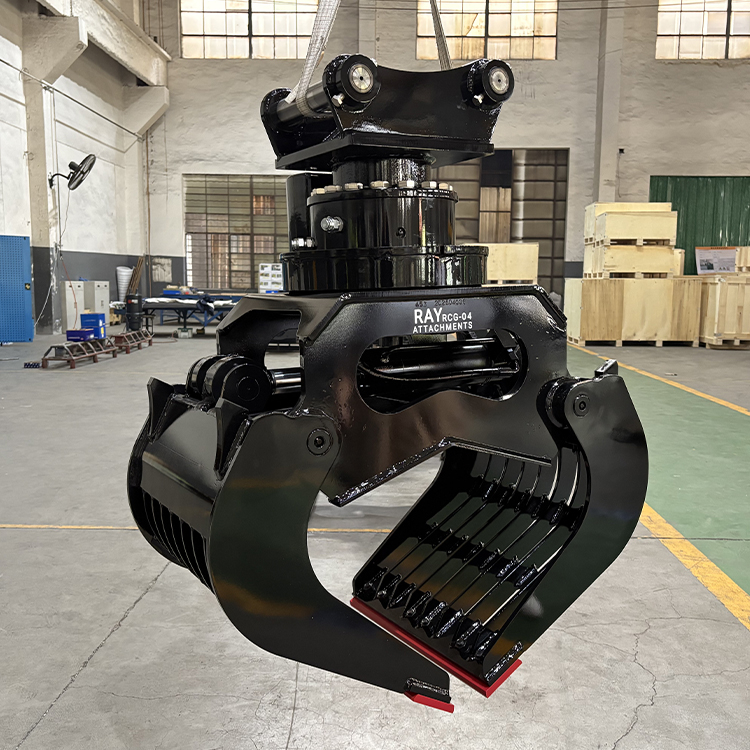

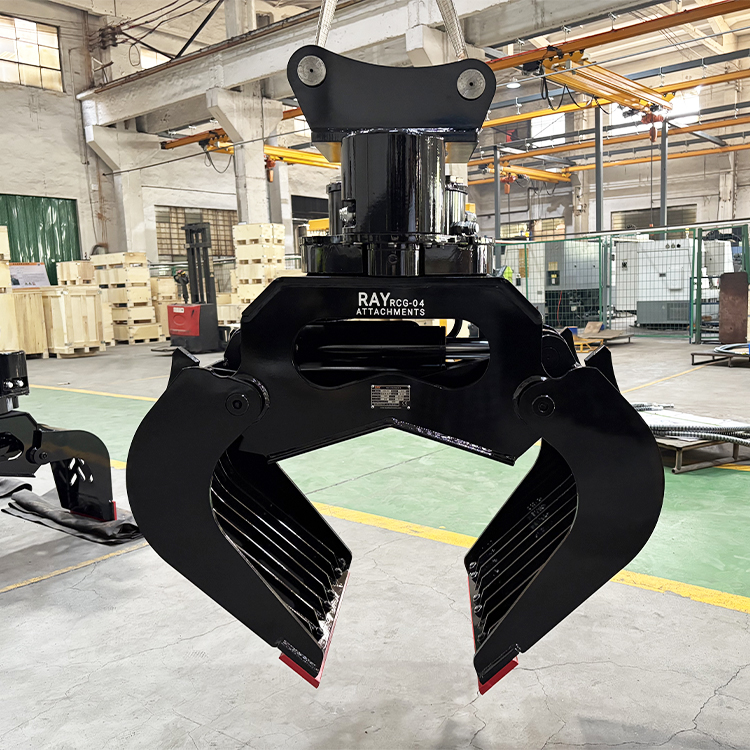

6-10T Excavator Demolition Grapple for Sale RCG-04

RCG-04 can be applied to some lighter demolition tasks, such as the demolition of brick and wood structures.
  • RCG-04

  • RAY ATTACHMENTS

Availability:

Demolition Grapple RCG-04 Products Description

Demolition grabs are a versatile tool for the selective demolition sorting and reclamation of varied materials. They are widely used in the demolition industry for primary stripping works and then subsequent clearance of sites, they are also a useful partner for the sorting and selection of skip and green waste and are used extensively at waste transfer and sorting yards.


Why choose us

Advantages

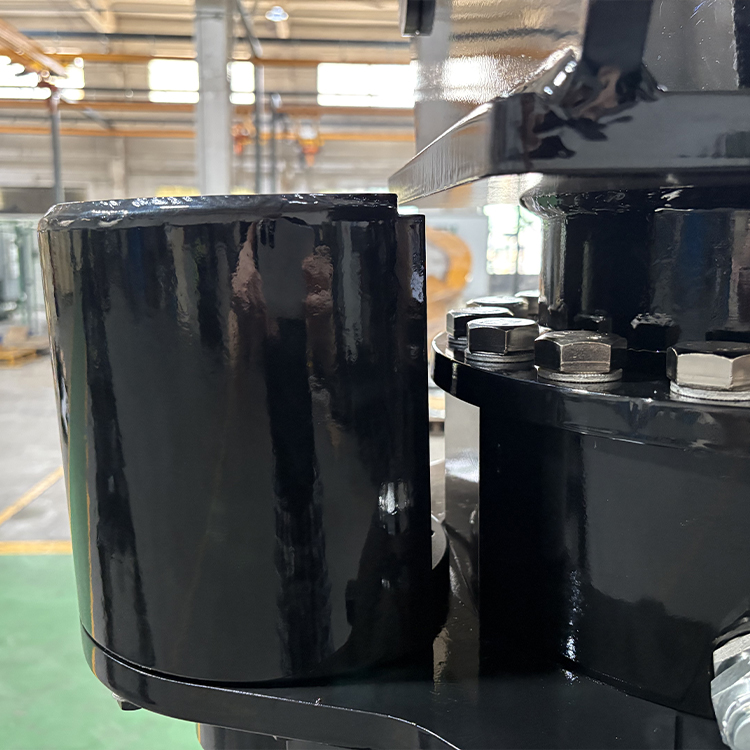

* Unlimited 360° Hydraulic Rotation Motor from Parker.

* Reversible and changeable wear blades to extend service life.

* The use of wear-resistant material makes it durable - HARDOX 450/NM400.

* Several sets of shells are available, customizable on request (recycling, demolition, handling).

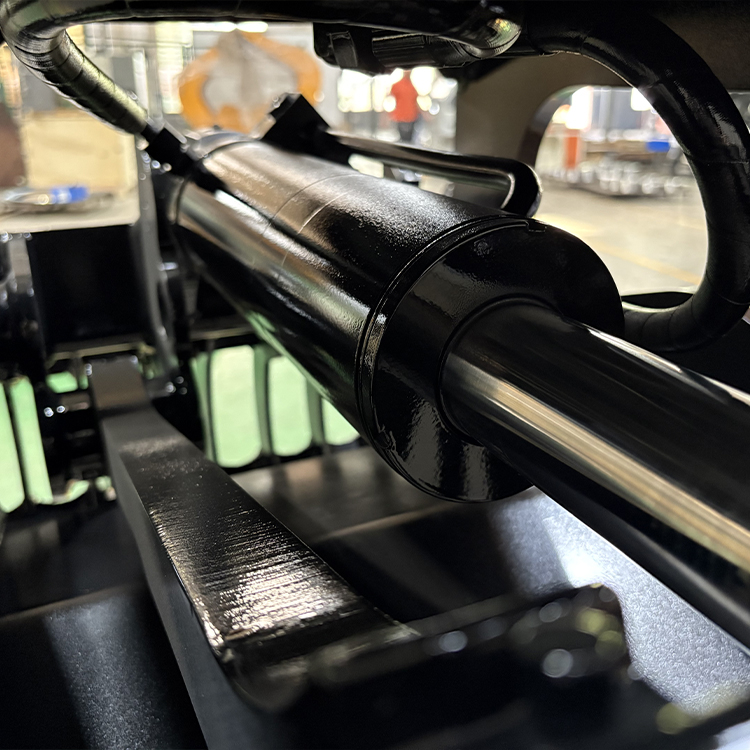

* Fully guarded, high-pressure cylinders.

* Opening/Closing lock valve optional.

* Bolt-On Mounting Bracket, multi-option - MS/CW series.


Demolition Grapple RCG-04 Product Structure

Model
RCG-01
RCG-02
RCG-04
RCG-06
RCG-08
RCG-10
RCG-14
RCG-17
Carrier (Ton)
2.5-4.5
4-6
6-10
10-15
16-22
23-26
27-30
31-37
Cylinder (Bar)
250
300
350
350
350
350
350
350
Cylinder (Liters/min)
8-15
10-20
15-30
30-65
40-80
55-110
55-110
95-165
Cylinder (Safety valve)
N
N
N
Y
Y
Y
Y
Y
360° Rotation (Bar)
100
100
100
140
140
140
140
140
360° Rotation (Liters/min)
6-9
8-12
8-12
12-20
12-20
14-20
14-20
28-40
360° Rotation (Tr/min)
10/15
10/15
10/15
10/15
10/15
10/15
10/15
10/15
Force (N)
12000
19000
25000
40000
50000
60000
62000
93000
A (mm)
1090
1180
1290
1710
1845
2000
2100
2270
B (mm)
770
850
960
1245
1375
1440
1465
1630
C (mm)
770
840
910
905
1000
1050
1190
1275
D (mm)
760
850
930
1080
1100
1290
1375
1425
L (mm)
400
460
550
800
900
1010
1130
1210
Volume (L)
77
105
147
395
470
700
820
1080
Weight (Kg)
210
260
370
745
950
1230
1500
2100
