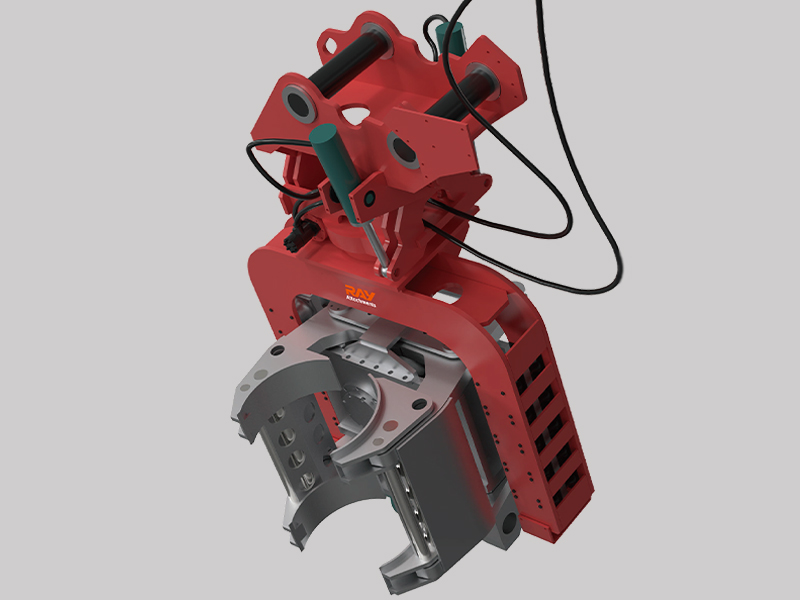

Side Grip Vibro Hammer/Pile Driver

REQUEST A QUICK QUOTE

Why Choose Us

Core components

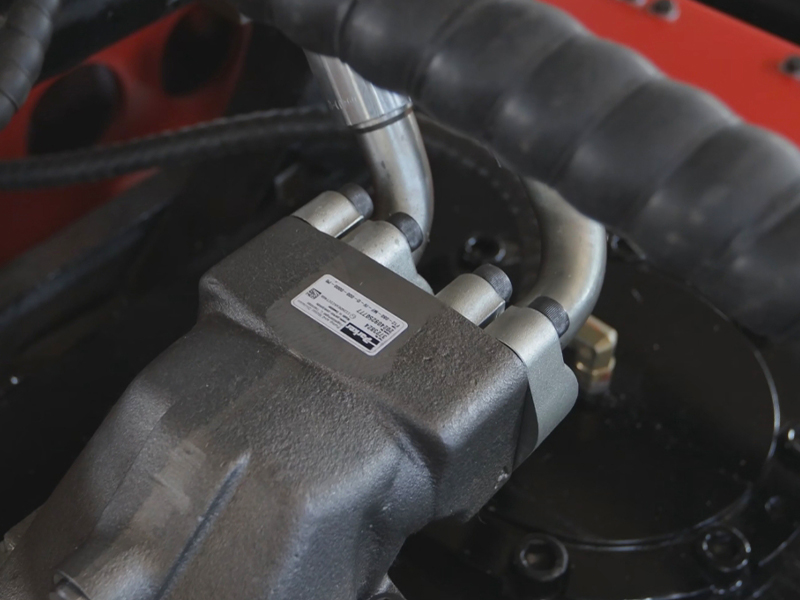

High-quality Parker vibration motors+ German FAG bearings ensure superior machine performance and long-lasting durability.

Processing Technology

Precision annealing boosts Parker motor strength and heat resistance, preventing deformation and cracks.

Reasonable structure

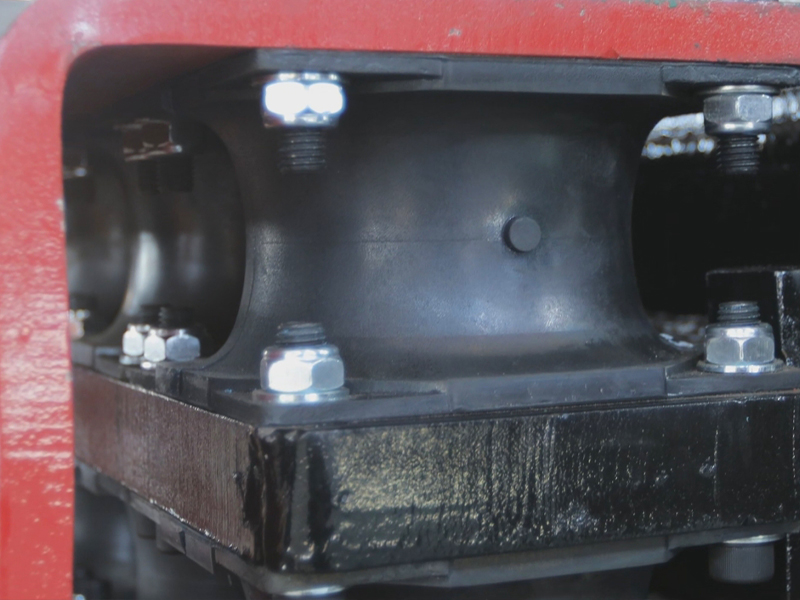

The horizontal shock-absorbing rubber position fits the device better and is not easily deformed.

Gift Service

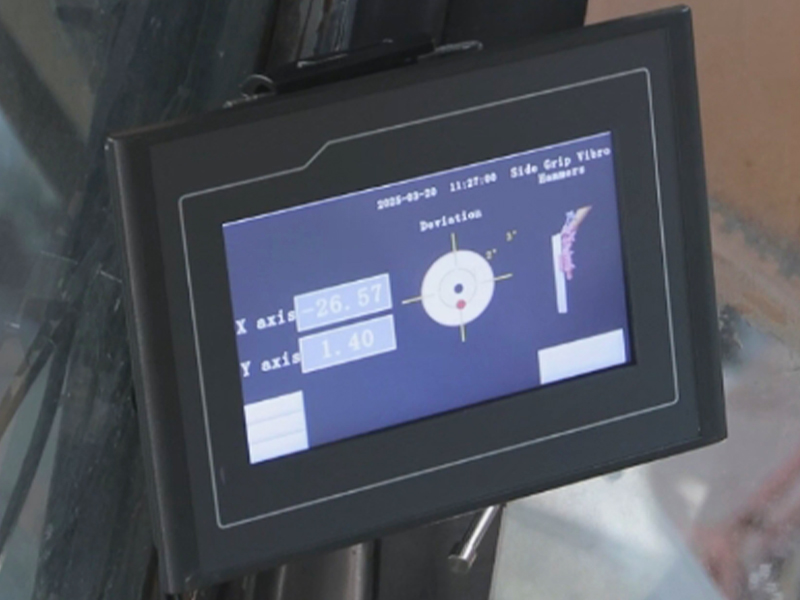

When you purchase a vibro hammer, you’ll get a free self-developed verticality detector to ensure vertical work and boost efficiency.

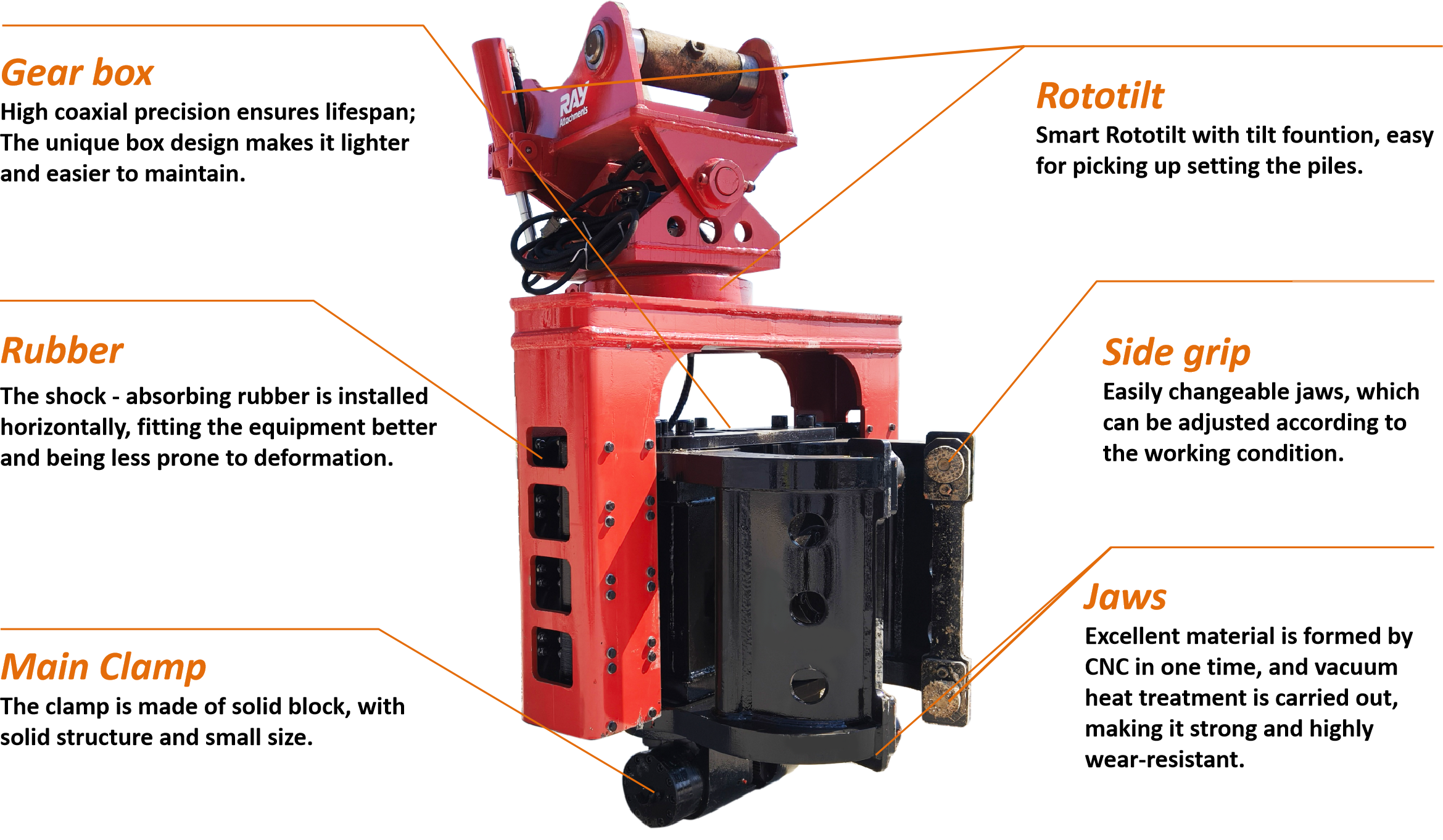

Side Grip Pile Driver Structure

Gear box
High coaxial precision ensures lifespan; The unique box design makes it lighter and easier to maintain.

Rubber
The shock - absorbing rubber is installed horizontally, fitting the equipment better and being less prone to deformation.

Main Clamp
The clamp is made of solid block, with solid structure and small size.

Rototilt
Smart Rototilt with tilt fountion, easy for picking up setting the piles.

Side grip
Easily changeable jaws, which can be adjusted according to the working condition.

Jaws
Excellent material is formed by CNC in one time, and vacuum heat treatment is carried out, making it strong and highly wear-resistant.

REQUEST A QUOTE

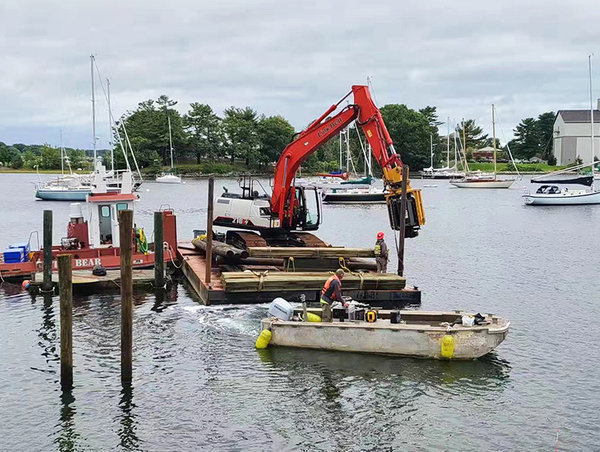

Operational Applications

REQUEST A QUOTE

Customer Witness

Time Saved, Worries Ended

We undertook a pile foundation project in Manila Port, with complex geological conditions and tight construction schedule. After using your company's side clamp pile driver, the construction efficiency far exceeded expectations - the piling task that originally took 5 days to complete was completed with high quality in only 3 days.

What impressed us most was the stability of the equipment: continuous high-intensity operation for 12 hours without failure, the pile clamps were accurate and did not slip, and the verticality of the piles could be maintained even in the alternating strata of clay layers and sand and gravel. This greatly reduced our equipment commissioning time and the risk of rework.

As a contractor engaged in foundation construction for a long time, we believe that this machine truly achieves "worry-free and time-saving" in terms of efficiency and reliability.

REQUEST A QUOTE

Specifictaion

Model	Unit	SV30	SV40	SV50	SV60	SV70
Eccentric Moment	kg·m	3.0	4.0	5.1	6.3	7.3
Centrifugal Force	KN	206-297	275-396	350-505	433-624	502-723
Frequency	rpm	2500-3000	2500-3000	2500-3000	2500-3000	2500-3000
Total Weight	T	1.80	2.63	2.76	3.21	3.24
Total Weight	lbs/pounds	3968.32	5798.16	6084.76	7076.84	7142.98
Swing/tilt Angle	degree	360/+25	360/+25	360/+25	360/+25	360/+25
Oil Flow	Lpm	80	110	165	221	256
Oil Flow	gpm	21	29	44	58	68
Amplitude	mm	3.3	5	6	6	7
Amplitude	inch	0.13	0.20	0.24	0.24	0.28
Side Gripping Force	ton	50	50	50	60	60
Side Gripping Force	lbs/pounds	110231	110231	110231	132277	132277
Clamping Force	T	43	43	43	62	62
Clamping Force	lbs/pounds	94799	94799	94799	136686	136686
Arm Stroke	mm	250	250	250	250	250
Arm Stroke	inch	9.84	9.84	9.84	9.84	9.84
*Dimensions(LWH)*	mm	1030x1485x2042	1350x1050x2410	1350x1050x2410	1600x1280x2610	1600x1280x2610
*Dimensions(LWH)*	inch	40.55∗58.46∗80.39	53.15∗41.34∗94.88	53.15∗41.34∗94.88	62.99∗50.39∗102.76	62.99∗50.39∗102.76
Excavator	T	13-18	20-23	24-27	28-33	34-40
Excavator	lbs/pounds	28660−39683	44092−50706	52911−59525	61729−72752	74957−88185
Sheet Piles Width	mm	400-800	350-800		400-1000
Sheet Piles Width	inch	15.75−31.50	13.78−31.50		15.75−39.37
H-Beams	mm	H100- H400	H200-H500		H250-H500
H-Beams	inch	H3.94−H15.75	H7.87−H19.69		H9.84−H19.69
Timber Piles	mm	φ220-325	φ120-400		φ160-600
Timber Piles	inch	φ8.66−12.80	φ4.72−15.75		φ6.30−23.62
Tube Piles	mm	φ90-350	φ120-400		φ160-600
Tube Piles	inch	φ3.54−13.78	φ4.72−15.75		φ6.30−23.62
Max Pile Length(common soil )	m	12	12	12	18	18
Max Pile Length(common soil )	inch	472.44	472.44	472.44	708.66	708.66
Max Clamping Pile Weight	kg	600	1000	1000	1500	1500
Max Clamping Pile Weight	lbs/pounds	1322.77	2204.22	2204.22	3306.93	3306.93

Can't Find Ideal Pile Driver/ Vibro Hammer for Your Industries?

We provide custom solutions to all our customers and offer vibro hammer that you can take advantage of.

Contact RAY Attachments Expert

Related Excavator Attachments

Earth Auger

Hydraulic Breaker

Long Boom&Arm

Cooperation Process

Step.1
Send your inquiry

Step.2
Quote price

Step.3
Negotiate price and lead time

Step.4
Sign the contract

Step.5
Payment and production

Step.6
Inspection

Step.7
Shipment

Pile Driver/ Vibro Hammer FAQ

What type of Elastomers do your Vibratory hammers use? as far as I have known, it's very important when driving and extracting a vibratory hammer.

You are right! Elastomeric rubber plays a very important role, in absorbing shocks transmitted to the base robot boom, and when driving or mining. We use two different sizes of elastomeric rubber, each with a maximum shear load of over 2 tons. Additionally, a small safety bar is housed inside the suppressor to prevent the elastomer from being dropped by the crane being over-pulled or pulled back.
What are the advantages of installing a vibratory hammer on an excavator?

A wide variety of products, Fast, reliable and simple shovel connection, Ergonomic design provides convenient use, move around the link yoke with complete safety, high performance and towing/extraction capabilities, minimal vibrations are transmitted to the environment, Double or single clamped steel pipe piles can be driven easily and powerfully, Robust, reliable and long lasting.
What is the working principle of excavator mounted vibration drive?

Connect the pressure and return hoses to the flow meter from the excavator. Make sure the hose is properly connected to the correct port on the flow meter. Adjust the pressure of the flow meter with the restrictor to the pressure required by the vibrator, and at the adjusted pressure, set the required flow with the regulating valve of the main pump of the excavator.
How does the vibro hammer work?

RAY Vibro Hammer machines, also known as vibratory drivers and vibratory hammers, work to reduce the resistance of the ground to vibrations and change the formation of the ground. The vibratory pile driver transmits vertical vibration to the pile through hydraulic clamps. This, in turn, transmits vibrations to the ground, reducing the friction between the pile and the ground, allowing the pile to be driven in or out with less force. The pile is driven into the ground by a combination of the weight of the vibrator and the centrifugal force it generates.
What are the advantages of a vibratory hammer?

A vibratory hammer saves time and money as it drives into the pile faster, They can be used to strike and pull piles out of the ground, They can be used underwater It's simple and easy to use, They can be used for crane and excavator dependencies. Crane hammers are used in projects that require high impact/demolition performance, and they provide the required energy through a power pack. It has eco-friendly technology (especially for protecting animals). They are powered by hydraulic or electrical lines, but hydraulic lines are becoming more popular because they are lighter and stronger. They are small and easy to transport and maintain. Vibratory hammers are much less expensive than traditional hammer drives.
How does a pile driver work?

A pile is a machine that drives piles into the ground to form the foundation of a structure. It works by twisting the weight on a pile surrounded by a guide frame. The weights will then be released to fall and hit the piles against the ground below.
How do I choose a vibro hammer?

To select the right vibratory hammer for a given job, some general rules are recommended, such as ground conditions, power of the vibratory hammer, weight of the pile, weight of the hammer and type of pile.
What is vibrating hammer?

A vibratory hammer is a tool used to drive piles into the ground when constructing foundations for objects such as bridges, buildings, roads, marine piers, walls or railways

Factory FAQ

Are you a factory or trading company?

We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.
Where is your factory located?

Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China

It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.
How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
What are your terms of payment?

Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
How about quality control in your factory?

Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.
How about guarantee?

We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
Purchase notes

(1) As the manufacturing factory, RAY Attachments works in international trade and can handle wholesale orders with containers' capacity.

(2) We aim to find our business partner as our international dealers.
