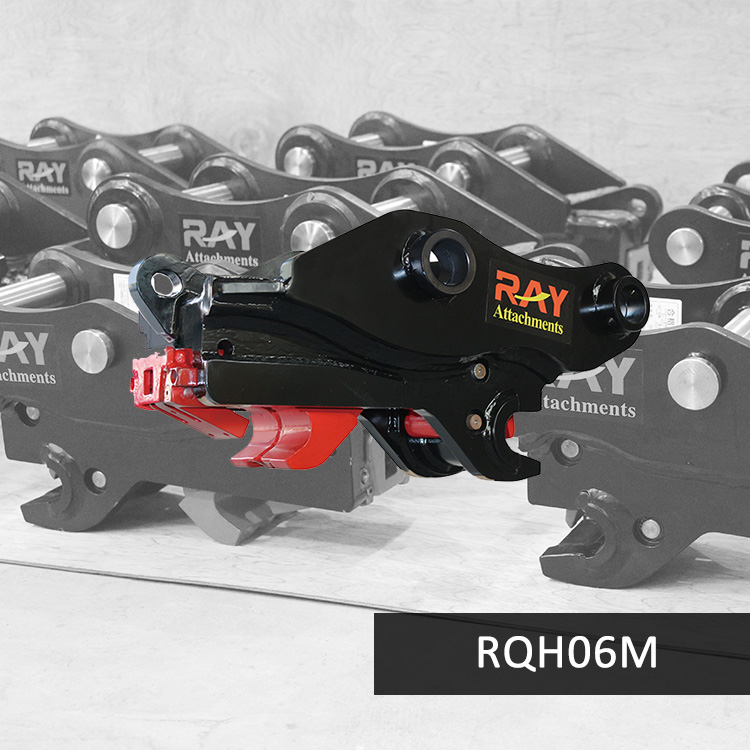

RQH06M Quick hitch Description
Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
RQH06M Quick hitch Images
1. Welding Technique: 17 years experience, full welding and not easy to crack.
2. Grease Nipple: Make pin not easy to wear
3. Double Lock System: Front jaw lock and Rear safety lock make the operation much safer. Which embrace the pins tightly even if the cylinder suddenly inoperation.
4. Imported oil cylinder and not easy to damage.
5. Without safety pin and excavator operator can operate it in the cab alone.
6. Wide range of application: Compared with fixed C to C distance(A) of routine quick hitch, multi quick hitch is more flexible.It is suitable for all attachments with the C to C distance(A) within its range.
1. Open the cylinder, and ensure slide is fully extended with front jaw safety lock open.
2. Line up attachments and engage front attachments pin.
3. Close the cylinder. This will retract the slide mechanism and this will visibly lock the front jaw safety latch around front attachment pin.
4. Open the cylinder again. The sliding mechanism will extend and engage the rear slide hook onto the rear attachment pin.
5. Proceed with connection test.
Quick hitch for Excavator Specification
| Model | Unit | RQH01M | RQH01D | RQH02M | RQH02D | RQH04M | RQH04D | RQH06M | RQH06D | RQH08M | RQH08D | RQH10M | RQH10D |
| Carrier | T | 1～2 | 2～4 | 2.5～4 | 4～6 | 4～6 | 6～8 | 10～15 | 10～15 | 15～27 | 15～27 | 25～30 | 25～30 |
| Pin diameter | mm | 30 | 35/40 | 40/45 | 40/45 | 45/50 | 50/55 | 60/65 | 65 | 70/80 | 80/90 | 90/100 | 90/100 |
| C-to-C distance | mm | 115～140 | 160-200 | 185～220 | 215～250 | 255～290 | 262～320 | 340～400 | 355～420 | 380～435 | 425～485 | 460～550 | 480～550 |
| Arm width | mm | 100～125 | 110～125 | 125～140 | 145～180 | 150～180 | 185～220 | 215～250 | 250～270 | 300～340 | 305～340 | 350-390 | 390～420 |
| Oil pressure | Bar | 40～248 | 40～248 | 40～248 | 40～248 | 40～248 | 40～205 | 40～205 | 40～205 | 40～205 | 40～205 | 40～205 | 40～205 |
| Oil flow | L/min | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 |
| Hose | Inch | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Unit weight | Kg | 21 | 31 | 47 | 60 | 70 | 97 | 160 | 170 | 275 | 310 | 430 | 490 |
| Length | mm | 370 | 400 | 570 | 570 | 585 | 655 | 745 | 876 | 940 | 985 | 1065 | 1080 |
| Width | mm | 200 | 220 | 280 | 280 | 290 | 312 | 390 | 390 | 475 | 475 | 510 | 590 |
| Height | mm | 210 | 225 | 305 | 305 | 305 | 335 | 420 | 420 | 505 | 505 | 565 | 580 |
Suit For Following Excavators
| Excavator Brand | Model |
| CATPERRILAR (CAT) | 301.5, 301.8, 302.5, MM30 |
| Doosan | S015, S018, S030 |
| KOMATSU | PC18MR/20/25/28/30/35 |
| HITACHI | EX15/12/15/18/20/22/25/27u/30UR/35/40
AX15u/15/17u-4/18/20u/22/25/27/30/35/40
ZX8U-2/10U-2/15UR/17U-2/15/27U/27U-2/30UR |
| HYUNDAI | R15, R16-7 |
| KOBELCO | SK007/09SR/SK13SR/15SR/015/20SR-1/25SR/30SR |
| Kubota | KX41/61/91/101, K-022, KH90, U35 |
| Takeuchi | TB014/016/15/650/125/25FR/20/25/30 |
| Yanmar | VIO15/18/20/27/30/35, B27/37 |
| Yuchai | YC18-2, YC15, YC35-7 |
| Thomas | T15S, T25S
|
