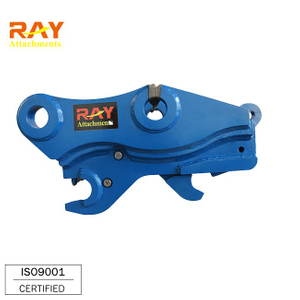

RQH02D Good Quality Double Lock Quick Hitch Safe To Contact Earth Auger for Excavator

Quick hitch For 1~2 T Excavator
  • RQH02D
  • RAYATTACHMENTS
Availability:

RQH02D Quick hitch For 2~4 T Excavator Description

quick hitch 1
Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
quick hitch 2

RQH02D Quick hitch For 2~4 T Excavator Details Images

quick hitch details
1. Welding Technique: 17 years experience, full welding and not easy to crack.
2. Grease Nipple: Make pin not easy to wear
3. Double Lock System: Front jaw lock and Rear safety lock make the operation much safer. Which embrace the pins tightly even if the cylinder suddenly inoperation.
4. Imported oil cylinder and not easy to damage.
5. Without safety pin and excavator operator can operate it in the cab alone.
6. Wide range of application: Compared with fixed C to C distance(A) of routine quick hitch, multi quick hitch is more flexible.It is suitable for all attachments with the C to C distance(A) within its range.
quick hitch installation process
1. Open the cylinder, and ensure slide is fully extended with front jaw safety lock open.
2. Line up attachments and engage front attachments pin.
3. Close the cylinder. This will retract the slide mechanism and this will visibly lock the front jaw safety latch around front attachment pin.
4. Open the cylinder again. The sliding mechanism will extend and engage the rear slide hook onto the rear attachment pin.
5. Proceed with connection test.
quick hitch installation process

Quick hitch for Excavator Specification

Model Unit RQH01M RQH01D RQH02M RQH02D RQH04M RQH04D RQH06M RQH06D RQH08M RQH08D RQH10M
Carrier T 1~2 2~4 2.5~4 4~6 4~6 6~8 10~15 10~15 15~27 15~27 27~35
Pin diameter mm 30 35/40 40/45 40/45 45/50 50/55 60/65 65 70/80 80/90 90/100/110
C-to-C distance mm 115~140 160-200 185~220 215~250 255~290 262~320 340~400 355~420 380~435 425~485 460~550
Arm width mm 100~125 110~125 125~140 145~180 150~180 185~220 215~250 250~270 300~340 305~340 350-390
Oil pressure Bar 40~248 40~248 40~248 40~248 40~248 40~205 40~205 40~205 40~205 40~205 40~205
Oil flow L/min 10~20 10~20 10~20 10~20 10~20 10~20 10~20 10~20 10~20 10~20 10~20
Hose Inch 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25
Unit weight Kg 21 31 47 60 70 97 160 170 275 310 427
Length mm 370 400 570 570 585 655 745 876 940 985 1065
Width mm 200 220 280 280 290 312 390 390 475 475 510
Height mm 210 225 305 305 305 335 420 420 505 505 565


Suit For Following Excavators


Excavator Brand Model
CATPERRILAR (CAT) 301.5, 301.8, 302.5, MM30
Doosan S015, S018, S030
KOMATSU PC18MR/20/25/28/30/35
HITACHI EX15/12/15/18/20/22/25/27u/30UR/35/40
AX15u/15/17u-4/18/20u/22/25/27/30/35/40
ZX8U-2/10U-2/15UR/17U-2/15/27U/27U-2/30UR
HYUNDAI R15, R16-7
KOBELCO SK007/09SR/SK13SR/15SR/015/20SR-1/25SR/30SR
Kubota KX41/61/91/101, K-022, KH90, U35
Takeuchi TB014/016/15/650/125/25FR/20/25/30
Yanmar VIO15/18/20/27/30/35, B27/37
Yuchai YC18-2, YC15, YC35-7
Thomas T15S, T25S

RQH02D Quick hitch For 2~4 T Excavator Stock & Package

RQH02D Quick hitch For 2~4 T Excavator Customer Photos

quick-coupler-ship


multi-quick-couplerhydraulic-couplermechanical-couplercustom-made

RQH01D Quick hitch For 2~4 T Excavator Videos
