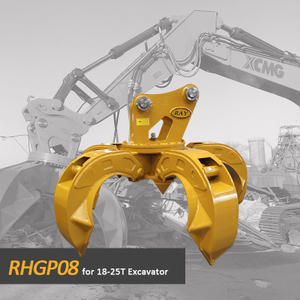

Grab is a lifting appliance which depend on jaw opening and closing crawl and unloading bulk material. According to be stacked capture material density is divided into light, medium, heavy, and super heavy. So it can handle of stones, pipes, disposable waste, landscaping works and many others.
Model | Unit | RHGP-06 | RHGP-08 | RHGP-10 |
Weight | kg | 1200 | 1560 | 1800 |
Max jaw opening | mm | 1780 | 1950 | 2180 |
Height of closed grapple | mm | 1540 | 1650 | 1860 |
Rotating Pressure | Bar | 260 | 260 | 260 |
Operating flux | lpm | 60-120 | 60-120 | 60-120 |
Cylinder Volume | Litre | 600 | 800 | 1000 |
No.of Jaw | Piece | 4-5 | 4-5 | 4-5 |
Suitable excavator | Ton | 12-18 | 18-25 | 26-35 |
Model | Unit | RHG01 | RHG03 | RHG04 | RHG06 | RHG08 | RHG10 | RHG14 |
Weight | Kg | 100 | 250 | 390 | 740 | 1380 | 1700 | 1900 |
Jaw opening | mm | 800 | 1100 | 1400 | 1800 | 2300 | 2500 | 2500 |
Working pressure | Kg/cm² | 80-100 | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 |
Setting pressure | Kg/cm² | 160 | 170 | 180 | 190 | 200 | 210 | 250 |
Oil flow | l/m | 20-40 | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
Cylinder | pcs | 3.0 x 2 | 4.0 x 2 | 4.5 x 2 | 8.0 x 2 | 9.7 x 2 | 12 x 2 | 14 x 2 |
Carrier | ton | 1-3 | 4 - 5 | 6-11 | 12-16 | 17-23 | 24-30 | 33-45 |
Applications: Grasp the chipping, bits of wood and the steel scrap. Grabbing gravels, waste metal, industry waste, construction garbage, daily rubbish, grab operation under other conditions.
1.Rotary Option: Non-swing or Swing.Non-swing type uses excavator bucket cylinder oil pathway, no need to add hydraulic value and pipeline. Hydraulic swing type need to add one set of hydraulic value and pipeline to control cylinders with piston protection device.
2. The material is Q-345B+NM360.Really durable.
3. Possible to manufacture with 4-5 tines to be adequate for operation’s character and purpose.
