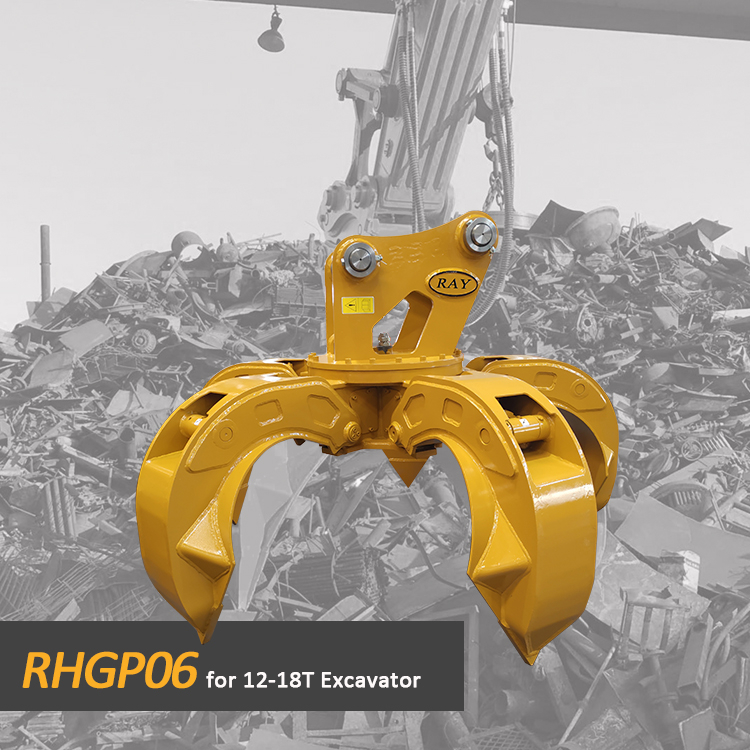

RHGP-06
RAY ATTACHMENTS
Grab is a lifting appliance that depends on jaw opening and closing crawling and unloading bulk material. According to to be stacked capture material density is divided into light, medium, heavy, and super heavy. So it can handle stones, pipes, disposable waste, landscaping works, and many others.
1. Optimize the action of the oil cylinder to maximize the grabbing weight within the effective grabbing range, thereby shortening the machine running time and improving work efficiency.
2. The specially designed oil separator and flow control valve ensures the stability and synchronization of the whole hydraulic system.
3. The design of the gripper structure is optimized to realize the minimum weight and maximum gripping load at the same level.
4. The special wear-resistant steel plate welding process not only improves the wear resistance of the gripper but also ensures the overall welding quality.
5. The specially designed meshing gear improves the bearing strength of the gear, the load distribution in the process of movement, and the accuracy and stability of the transmission.
| Model | Unit | RHGP-04 | RHGP-06 | RHGP-08 | RHGP-10 |
| Weight | kg | 510 | 1200 | 1560 | 1800 |
| Max jaw opening | mm | 1750 | 1780 | 1950 | 2180 |
| Height of closed grapple | mm | 1440 | 1540 | 1650 | 1860 |
| Rotating Pressure | Bar | 260 | 260 | 260 | 260 |
| Operating flux | lpm | 20-70 | 60-120 | 60-120 | 60-120 |
| Cylinder Volume | Litre | 400 | 600 | 800 | 1000 |
| No.of Jaw | Piece | 4-5 | 4-5 | 4-5 | 4-5 |
| Suitable excavator | Ton | 5-11 | 12-18 | 18-25 | 26-35 |
Grasp the chipping, bits of wood, and steel scrap. Grabbing gravel, waste metal, industrial waste, construction garbage, daily rubbish, and grab operation under other conditions.
