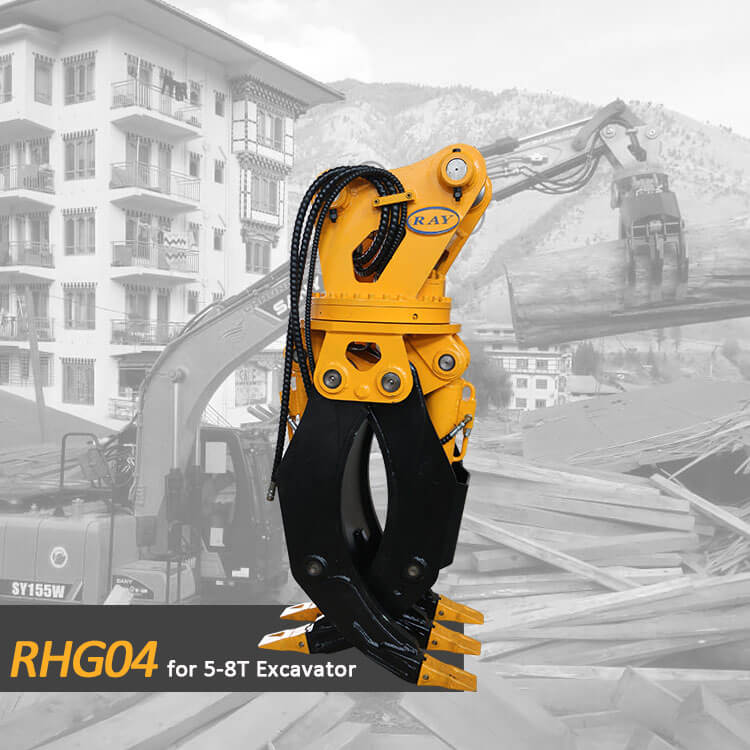

RHG04 Model Rotating Wood Grapple For 5-8 T Excavator

RHG04 Wood/Stone Grapple is used on 5-8 tons of excavator. The max jaw opening is 1371mm. 2+3 fingers or 3+4 fingers, 360º rotation or not is depending on your demands.
  • RHG04



Product Overview

RAY hydraulic grapple-1 Grab is a lifting appliance which depend on jaw opening and closing crawl and unloading bulk material. According to be stacked capture material density is divided into light, medium, heavy, and super heavy. So it can handle of stones, pipes, disposable waste, landscaping works and many others.

Select Model

RAY hydraulic grapple type
Specification: (Wood/Stone Grapple)
Model Unit RHG03 RHG04 RHG06 RHG08 RHG10 RHG14
Weight Kg 400 450 860 1500 1600 1700
Jaw Opening mm 1280 1371 1539 2492 2492 2492
Working Pressure Kg/cm² 110-140 120-160 150-170 160-180 160-180 160-180
Setting Pressure Kg/cm² 170 180 190 200 210 250
Oil Flow l/m 30-55 50-100 90-110 100-140 130-170 200-250
Cylinder pcs 2 2 2 2 2 2
Carrier ton 3-5 5-8 9-16 17-23 24-30 30-40
Standard finger 2+3
Optional finger 3+4
* This specifications are subject to change without prior notice for the improvement of quality.
RAY hydraulic wood grapple-2
RAY hydraulic wood grapple-3
RAY hydraulic stone grapple-3
RAY hydraulic stone grapple-2

Our Advantages

RAY hydraulic grapple for excavator
RAY hydraulic grapple part-1
RAY hydraulic grapple part-2
RAY hydraulic grapple part-3
RAY hydraulic grapple for excavator-1
RAY hydraulic grapple part-4
RAY hydraulic grapple part-5
RAY hydraulic grapple part-6

1. Imported motor : Driven by M+S motor
2. High strength rotating support device
3. Cylinder with USA safety valve (USA SUN brand)
4. 3+2,4+3,5+4 fingers for your option, grab thing more stable
5. Quality assurance: 12 months
