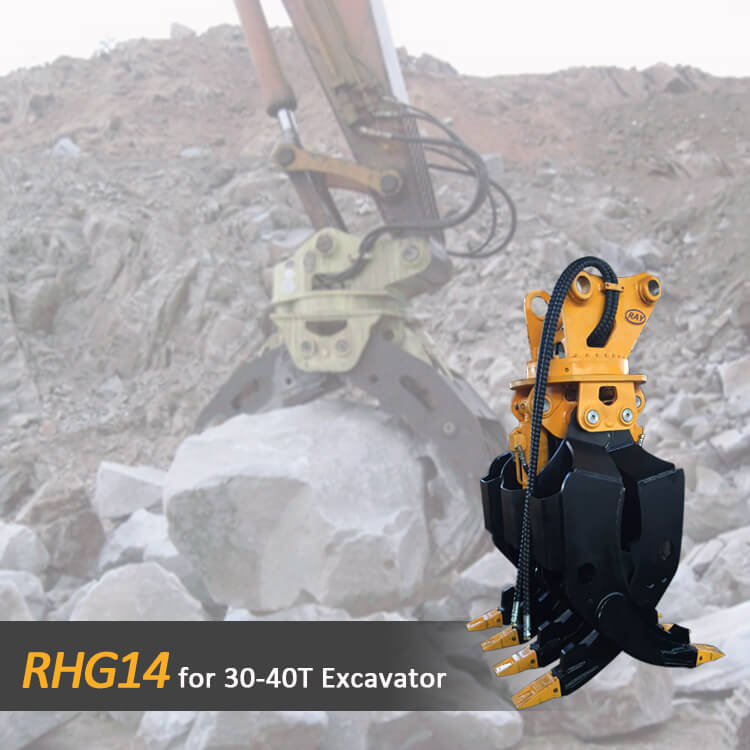

RHG14
RAY ATTACHMENTS
Availability: | |
---|---|
Applications: Including the handling of stones, pipes, disposable waste, landscaping works, and many others.
According to to be stacked capture material density is divided into light, medium, heavy, and super heavy.
Stone Type: Durable teeth to Increase the friction and keep the stone never falling down.
Good quality:
• 1. Export motor hydraulic: Driven by M+S motor with brake valve
• 2. Using high strength rotating support device. The operator can control the rotating speed. 360 degree clockwise and anticlockwise rotating.
• 3. Cylinder with USA safety valve (USA SUN brand). It is equipped with non-return valve, more safety for grabbing.
• 4. 3+2,4+3,5+4 fingers for your option,grab thing more stable
• 5. Throttle, pressure reducing valve, relief valve (all the valves are USA SUN brand) are in electrical and hydraulic control system, making it safer and much more stable and durable in use.
• 6. Flexible design: The grabbing shape of RAY grapple can be customized as customers' request in order to meet operation requirement. It also can be made confirmed.
• 7. Light weight with wide opening jaws show outstanding performance of grabbing as well as maximizing operating efficiency.
Make sure of the weight of your carrier.
Make sure of the oil flow of your excavator.
Make sure of the wood or stone which you want to carry.
Specification: (Wood/Stone Grapple) | |||||||
Model | Unit | RHG03 | RHG04 | RHG06 | RHG08 | RHG10 | RHG14 |
Weight | Kg | 400 | 450 | 860 | 1500 | 1600 | 1700 |
Jaw Opening | mm | 1280 | 1371 | 1539 | 2492 | 2492 | 2492 |
Working Pressure | Kg/cm² | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 160-180 |
Setting Pressure | Kg/cm² | 170 | 180 | 190 | 200 | 210 | 250 |
Oil Flow | l/m | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
Cylinder | pcs | 2 | 2 | 2 | 2 | 2 | 2 |
Carrier | ton | 3-5 | 5-8 | 9-16 | 17-23 | 24-30 | 30-40 |
Standard | finger | 2+3 | |||||
Optional | finger | 3+4 | |||||
* This specifications are subject to change without prior notice for the improvement of quality. |
