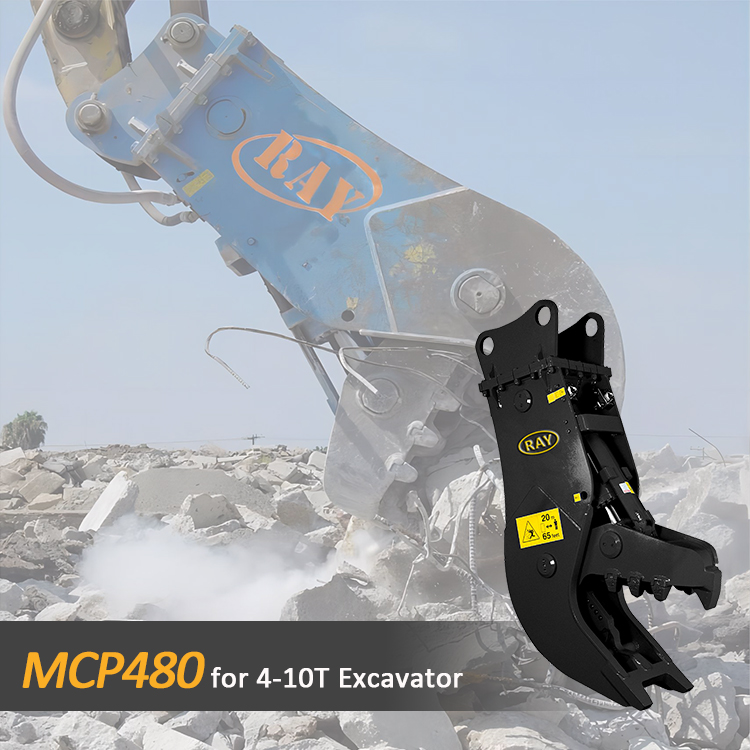

MCP480
RAY ATTACHMENTS
Availability: | |
---|---|
MCP fixed head pulveriser, with its new tooth design, is the ideal attachments for secondary demolition. The MCP is the perfect tool for crushing reinforced concrete and separating the rebar from the aggregate.
Model | Unit | MCP300 | MCP480 | MCP600 | MCP700 | MCP800 | MCP910 |
Excavator weight | T | 1.5-4 | 4-10 | 10-18 | 16-22 | 18-25 | 25-35 |
Tool weight | kG | 150 | 450 | 1000 | 1650 | 2050 | 2850 |
Cylinder force | T | 24 | 71 | 100 | 120 | 145 | 157 |
Rotation type | / | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. |
Speed valve | / | NO | NO | Optional | Yes | Yes | Yes |
Max diameter to be cutted | mm | 15 | 25 | 50 | 50 | 55 | 60 |
Jaw Opening | mm | 300 | 480 | 600 | 800 | 850 | 1000 |
Blade length | mm | 80 | 120 | 122 | 200 | 180 | 180 |
Automatic grease system | / | NO | NO | NO | NO | NO | NO |
