Pile breaking involves demolition of old concrete piles in order to make way for driving of new piles and subsequentbuilding of new structures. Demolition of concrete piles is quite a challenge due to the presence of steel reinforcementbars and using conventional methods of can be quite cumbersome and time-consuming.

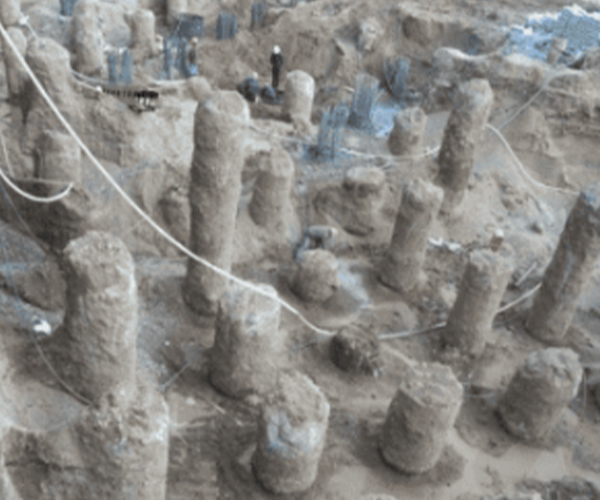

In construction project involving pile foundations, one of the most cumbersome and time consuming activity is thecrushing of top portion of the Castin-situ Piles /Precast Piles as required to remove the weak top concrete and exposethe reinforcement to be used for further construction. Pile breakers solve the problem by crushing such overhangs in aspeedy and precise way.
The reinforcement bars are left intact facilitating the rebuilding work. The breaking down ofconcrete piles is an essential part of the construction process and a subject that is often not given suficient earlythought in the planning of the piling works.The adoption of a suitable pile breaking method can result in financialsavings for the project and most importantly will address and reduce potential health and safety issues in relation tothis phase of the works.

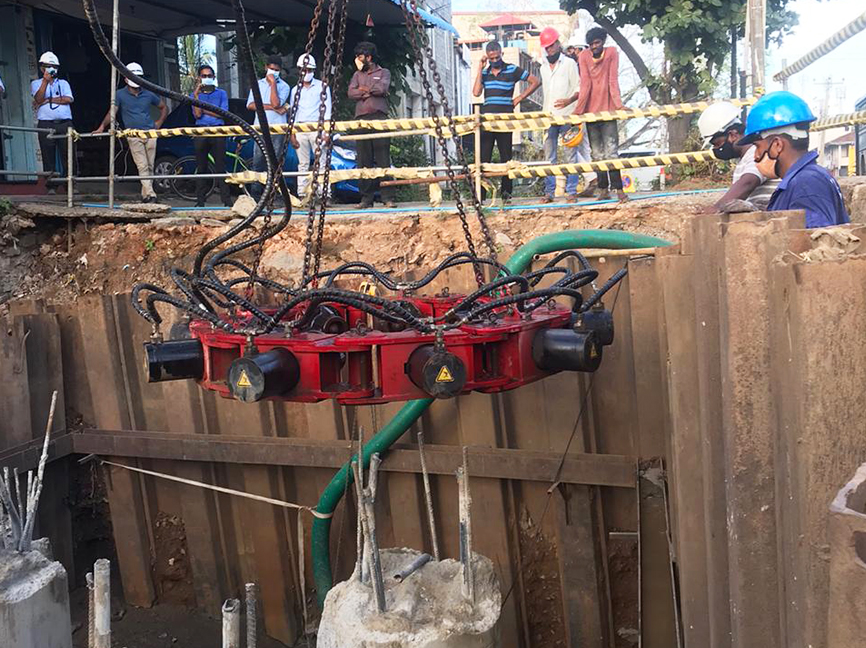

1. Pump stations are widely used in the construction of pile foundations of high-rise buildings. The overall investment of this combination of equipment is relatively small, but it is very convenient to move and is suitable for cutting off the pile heads of pile groups.

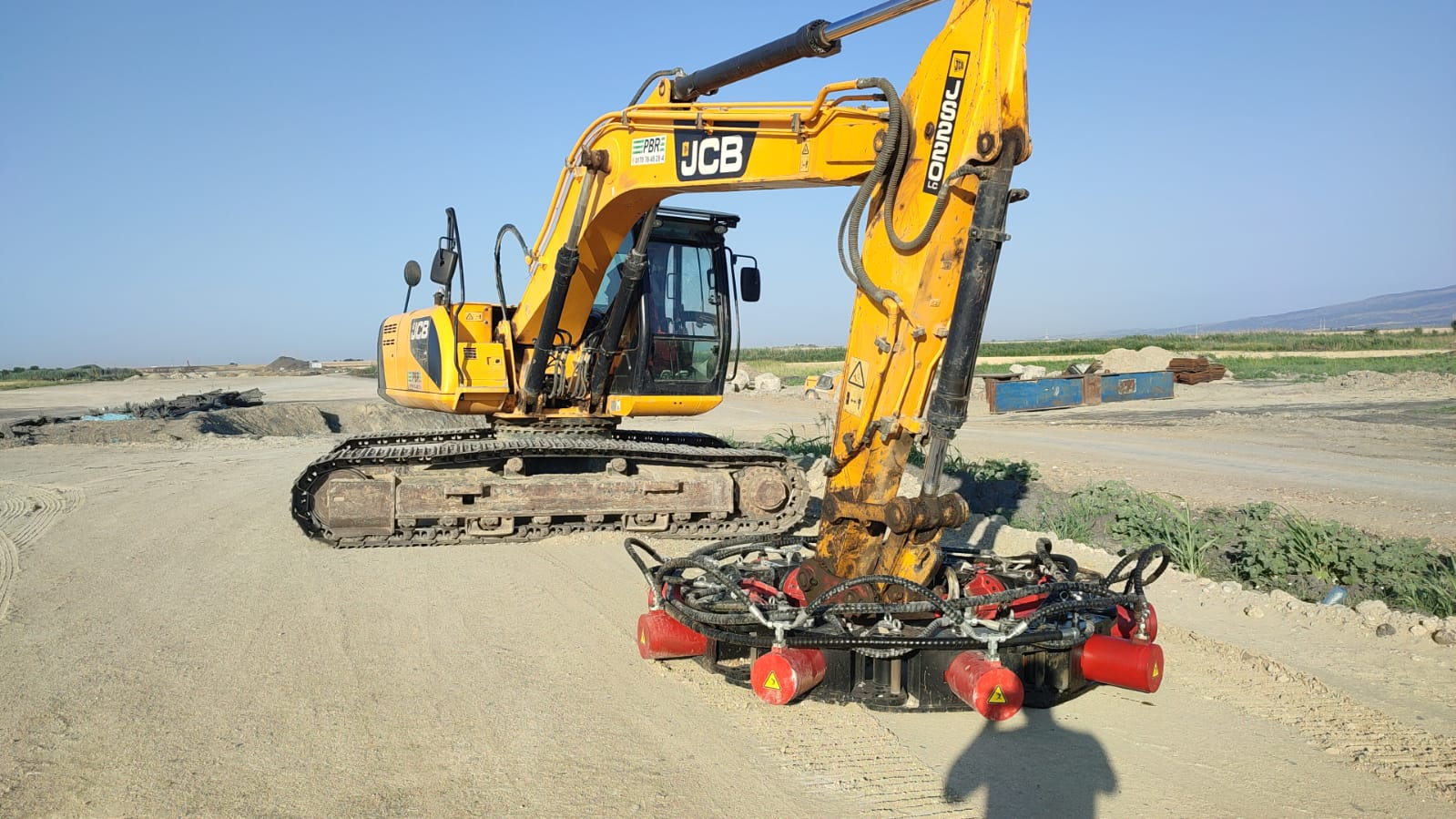

2. In bridge construction, excavators that are easy to move are often used as power sources. The bucket of the excavator is removed, and the lifting chain of the pile breaker cutter is hung on the connecting shaft between the bucket and the boom to mechanically combine the two equipment together. Then, the hydraulic oil circuit of any cylinder of the excavator is connected to the cylinder oil circuit of the pile cutter through a balancing valve to drive the cylinder group of the pile cutter. This combined pile cutter is easy to move and has a wide operating surface. It is suitable for construction projects where piles are not concentrated and the operating front is long.

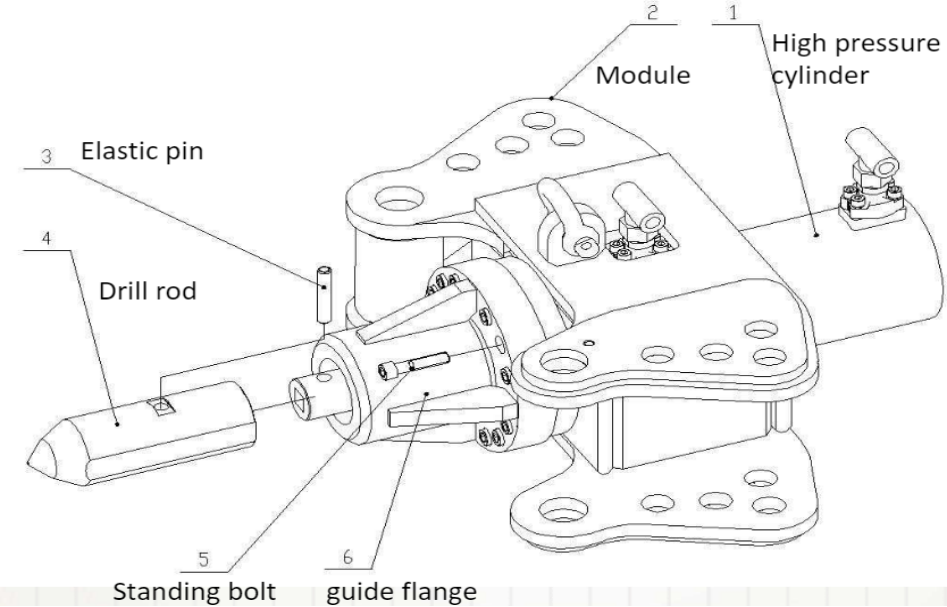

When the pile breaker operation, the chisel will work on the pile. It will produce counter (acting) force for the front of module, put pressure on the structural parts not on the connection. It is good for the frame. And protect the cylinder.
Just tell us the answers as belows:
1) What is the model of your machine?
2) What is the diameter and shape of the pile?
3) How many quantities of your piles?
And then we have professional salesman to help you select the right model.
