Durable Auger: European Standards, Chinese Rates. Cut Your Costs by 30%+!

Proven production process ensure our products are built to last.
We use durable materials and top-brand components for all key parts.
Our rigorous inspection process to ensure durable quality.

Full OEM/ODM Service

  OEM/ODM services for your brand, logo, color, output shaft & specs.
  Free professional sample photography services, marketing materials, and website resources for your own brand.

Transparent Partnership Framework

  Support video factory inspection. Direct factory access for secure inventory, short lead time & stable supply chain.

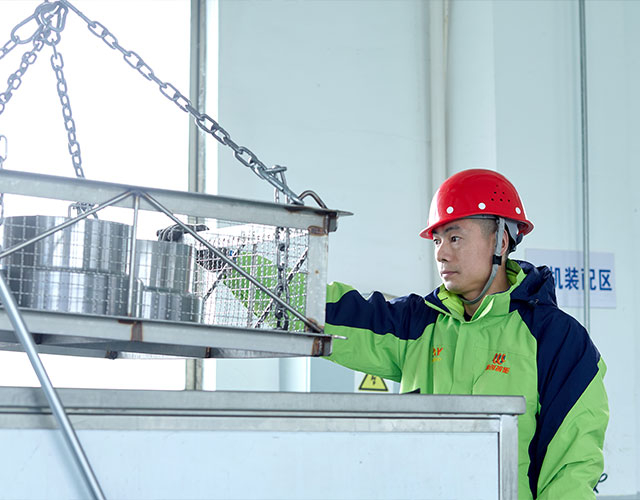

  Full process inspection from raw material procurement to finished product quality control.

No Hassle After-Sales Support System

  Industry-Leading 18-Month Except Ware Parts.

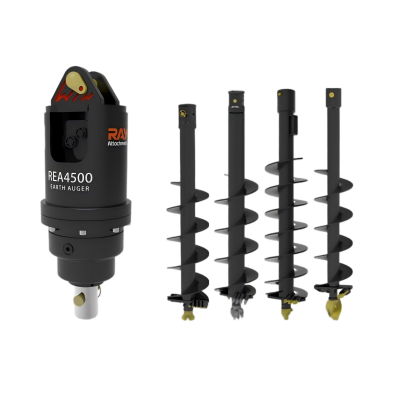

REA4500
EARTH AUGER
Tested 5+ years with extended lifespan!
 Available for excavators from 0.75 to 50T.
Drilling diameter 100-2400mm, maximum depth up to 20m.
100% top brand hydraulic motor Danfoss/Parker.

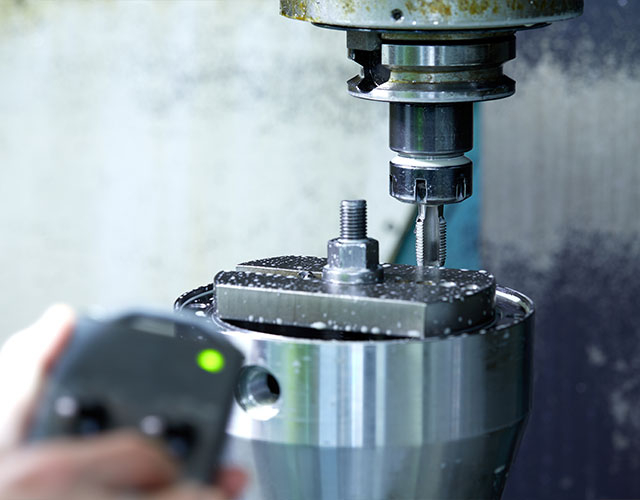

 Proven gearbox production process same as the high-speed railway used.
18 months warranty for the entire drive.
PRODUCT INFORMATION

Auger Drive Advantages

 We use Danfoss or Parker motor and offer an 18-month warranty to protect the entire drive head.
 High precision gear box with less nopisy, longer service life.
 Each parts with serial number, it is conducive to the control of prouduct quality.
 Low deformation rate of drill pipe with longer service life.

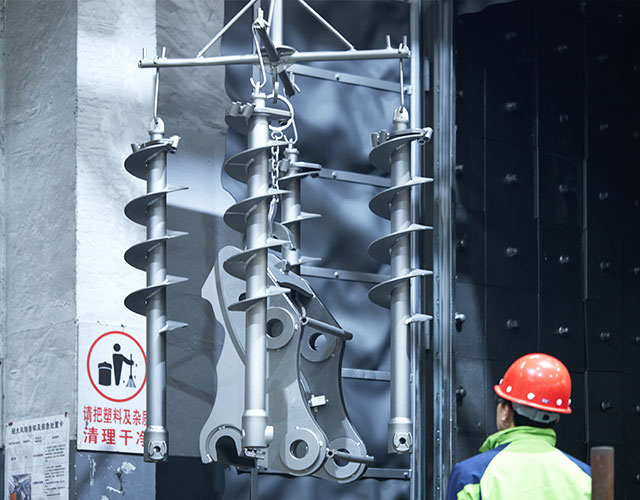

 Shot blasting craft: this process not only ensures surface finish, but also prevents rust and prolongs life.
 Good packing to protect machine well when it arrive at customers warehouse. Less after-sales problems.
Earth-Auger-Parts
 FORGED HOOD EARS

Locked hood pins making the auger drive connect with the pin hitch safety.

 HYDRAULIC MOTORS
Danfoss or Parker brand with stable quality. The satisified rate more than 99.8%.
 EPICYCLIC GEARBOX
The unique planetary gear box provided powerful torque with stable quality.
 MULTI-LEVEL REDUCTION GEARBOX WITH LARGE TORQUE


 HOSES AND ADAPTORS
All Auger drives come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).

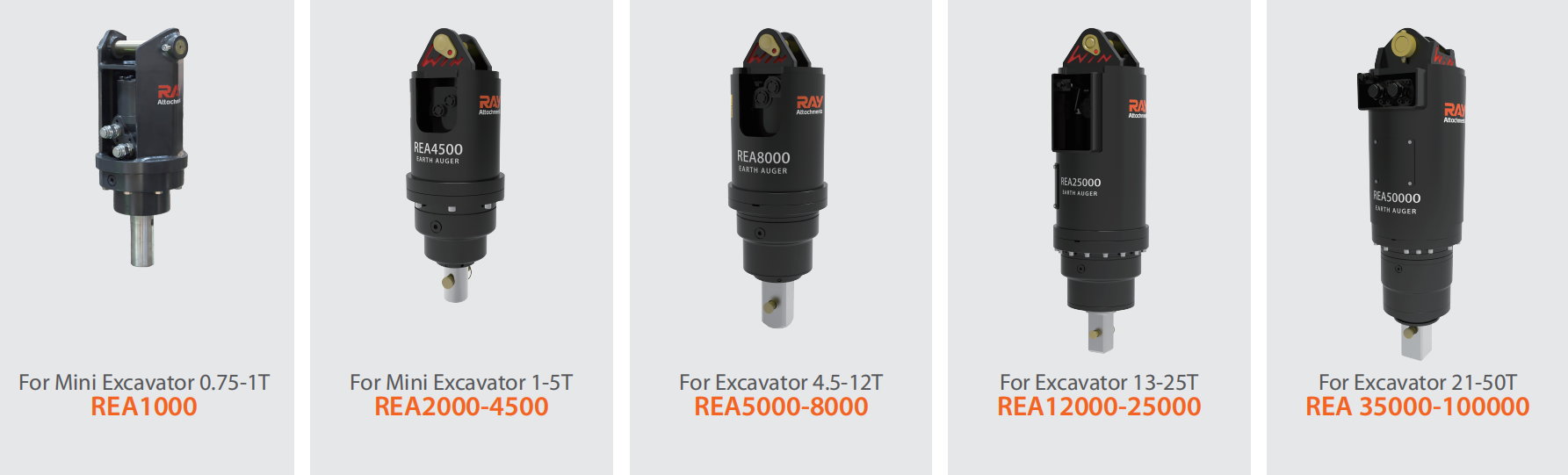

 Auger Drive Specifictaion
Applicable 0.75-50 tons Excavator
auger drive
  • Light Series
    Model Unit REA1000 REA2000 REA2500 REA3500 REA4500
    Carrier Weight T 0.75～1 1～2.5 1.5～3 2.5～4.5 3～5
    Lbs/Pounds 1653-2205 2205-5512 3307-6614 5512-9921 6614-11023
    Working Pressure Bar 30~150 70~205 70~205 80~240 80~240
    Working Oil Flow L/min 15～32 23～53 30～61 30~68 38～76
    Torque N.m 189~950 638~1871 830~2432 1205~3614 1500~4499
    Rotary Speed rpm 38~81 40～92 40～82 32~72 32～64
    Hydraulic Hose Inch 1/2 1/2 1/2 1/2 1/2
    Output Shaft mm Ф50 Ф65 Ф65 Ф65 Ф65
    Unit Weight Kg 35 54 54 71 71
    Unit Height mm 507 595 595 700 700
    Unit Max Dia. mm 194 200 200 244 244
    Auger Series   S2 S4 S4 S4 S4
    Auger Length mm 900 1200 1200 1200 1200
    Auger Dia. Range mm 100～300 100～400 100～500 100～750 100～900
  • Medium Series
    Model Unit REA5000 REA5500 REA7000 REA8000 REA12000 REA15000 REA20000 REA25000
    Carrier Weight T 4.5～7 5～7 7～10 8～12 13～17 13～17 13～20 15～23
    Lbs/Pounds 9921-15432 11023-15432 15432-22046 17637-26455 28659-37479 28659-37479 28659-44092 33069-50706
    Working Pressure Bar 80~240 80~240 80~240 80~240 80~240 80~240 80~240 80~240
    Working Oil Flow L/min 38～76 45～83 61～121 61～136 70～150 80～170 80～170 80～170
    Torque N.m 1685~5056 1970~5910 2310~6931 2717~8152 3992~11976 5015~15046 6520~19560 8316~24949
    Rotary Speed rpm 29～58 28～50 37～72 29～64 22～48 20～43 16～33 12～26
    Hydraulic Hose Inch 1/2 1/2 3/4 3/4 1 1 1 1
    Output Shaft mm □75 □75 □75 □75 □75 □75 □75 □75
    Unit Weight Kg 108 108 112 115 167 167 270 270
    Unit Height mm 780 780 850 850 930 930 1150 1150
    Unit Max Dia. mm 269 269 269 269 290 290 345 345
    Auger Series   S5 S5 S5 S5 S6 S6 S6 S6
    Auger Length mm 1500 1500 1500 1500 1750 1750 1750 1750
    Auger Dia. Range mm 150～600 150～750 150～900 150～900 150～900 150～1200 150～1200 150～1200
  • Heavy Series
    Model Unit REA35000 REA42000 REA50000 REA65000 REA100000
    Carrier Weight T 20～45 20～45 20～45 20～50 20～50
    Lbs/Pounds 44092-99208 44092-99208 44092-99208 44092-110231 44092-110231
    Working Pressure Bar 155~310 155~310 160~320 165~350 165~350
    Working Oil Flow L/min 80～170 80～170 100～280 100～280 100～280
    Torque N.m 17632~35265 21159~42318 23694~47389 29321~62197 48797~103509
    Rotary Speed rpm 9～24 9～20 11~30 9~25 5~13
    Hydraulic Hose Inch 1 1 1 1/4 1 1/4 1 1/2
    Output Shaft mm □110 □110 □110 □110 Hex 150
    □130
    Unit Weight Kg 440 440 470 490 1350
    Unit Height mm 1410 1410 1410 1450 2010
    Unit Max Dia. mm 406 406 406 406 675
    Auger Series   PA PA PA PA PA
    Auger Length mm 2300 2300 2300 2300 2300
    Auger Dia. Range mm 300～1500 300～1500 300～1800 300～1800 300～1800

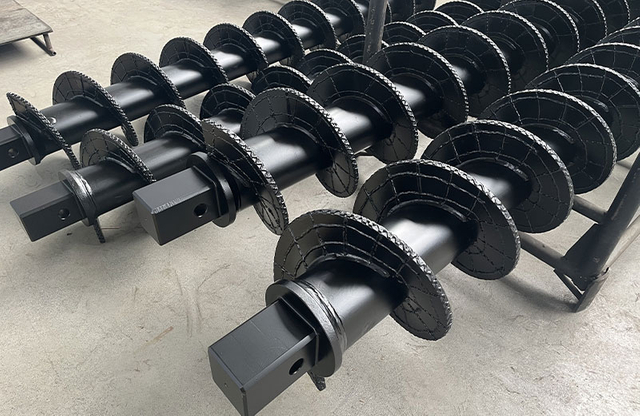

Auger Drill Advantages

Ray Auger Drill
Tungsten auger drill: It fit to clay, snady land or a little gravel. Digging the soil land very easily.
 Rock auger drill: It fit to rock, pitch or a lot of gravel land.
Sharp auger drill: It fit to rock, concrete, cement, asphalt and so on.

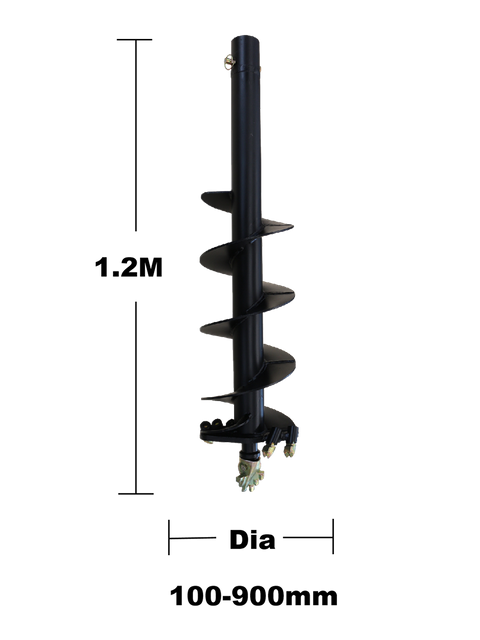

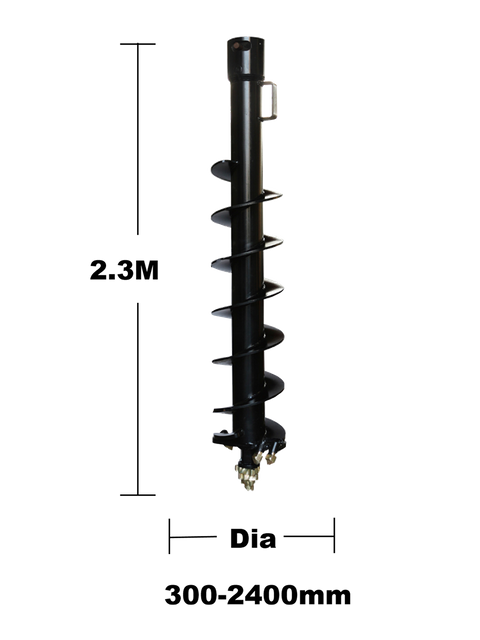

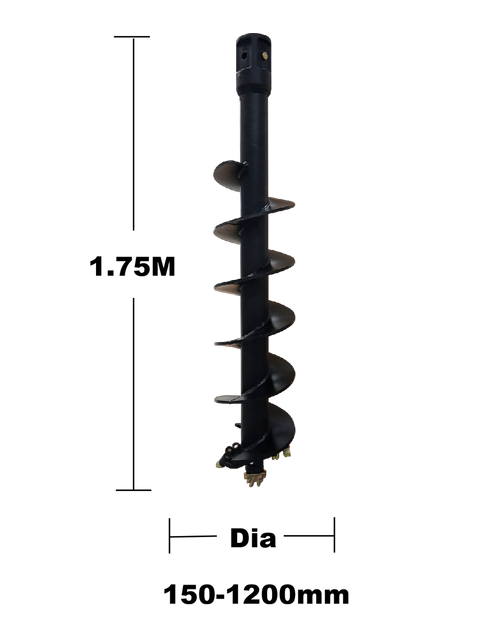

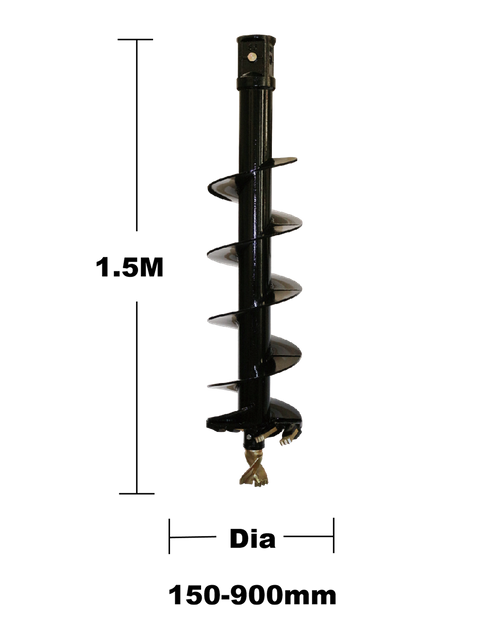

Auger drill can be flexibly selected, S4, S5, S6, PA, four types are available.

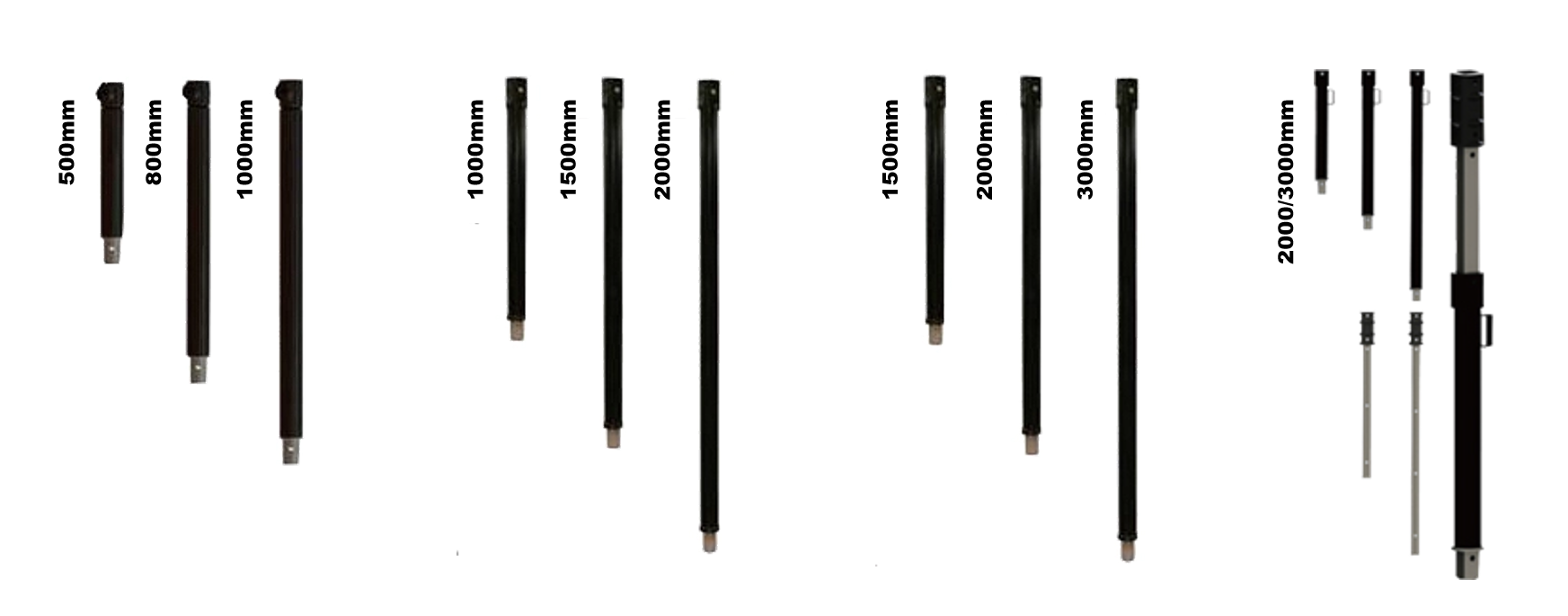

extension shaft
 Auger drill have different lengths of extension rods and the length of the auger drill can be set according to customer requirements (size within a certain range).
RELATED PRODUCTS

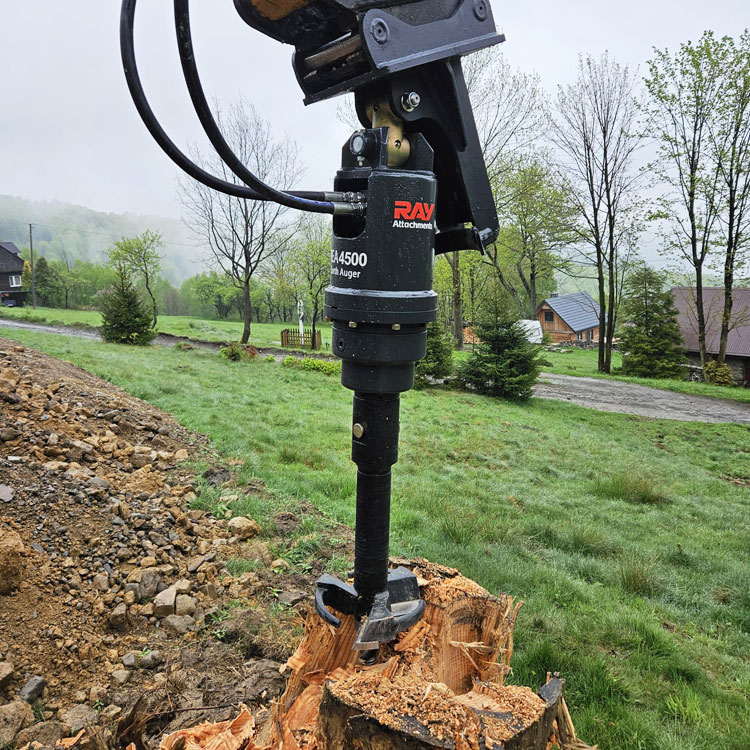

Stump Planer
Stumps can be removed quickly and quietly in a very short period of time.
auger-stump-planer
Model RSP-250 RSP-350
Excavator/T 1.5-5 4.5-12
Diameter/mm 250 350
Length/mm 635 675
Output Shaft 65mm Round & 2"Hex 75mm Square

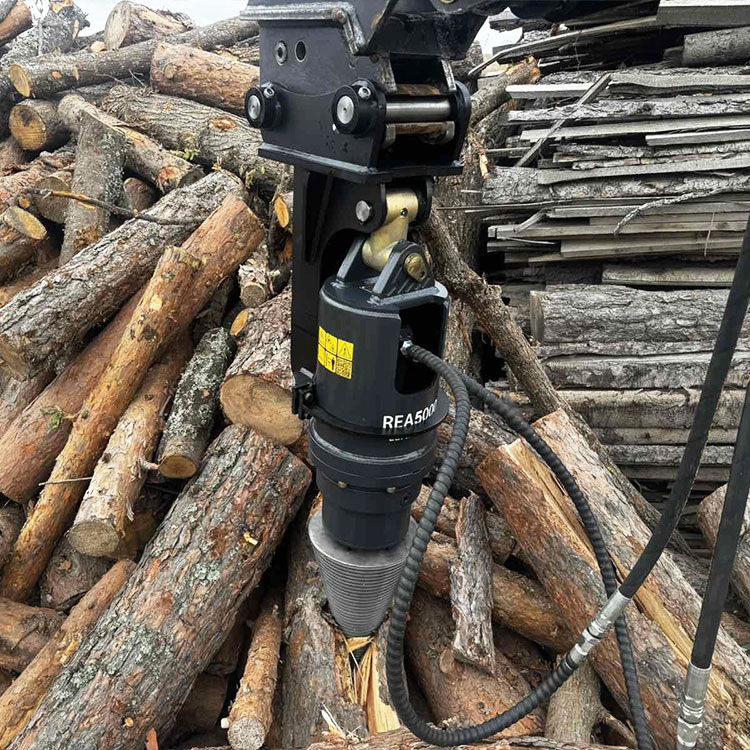

Log Splitter
Handles and recovers wood easily. To processes felled trees into usable splinters and quickly.
auger-log-splitter
Model RLS-180 RLS-200 RLS-250
Excavator/T 2-12
Diameter/mm 180  200  250
Length/mm 260  360  445
Output Shaft 65mm Round & 2"Hex & 75mm Square

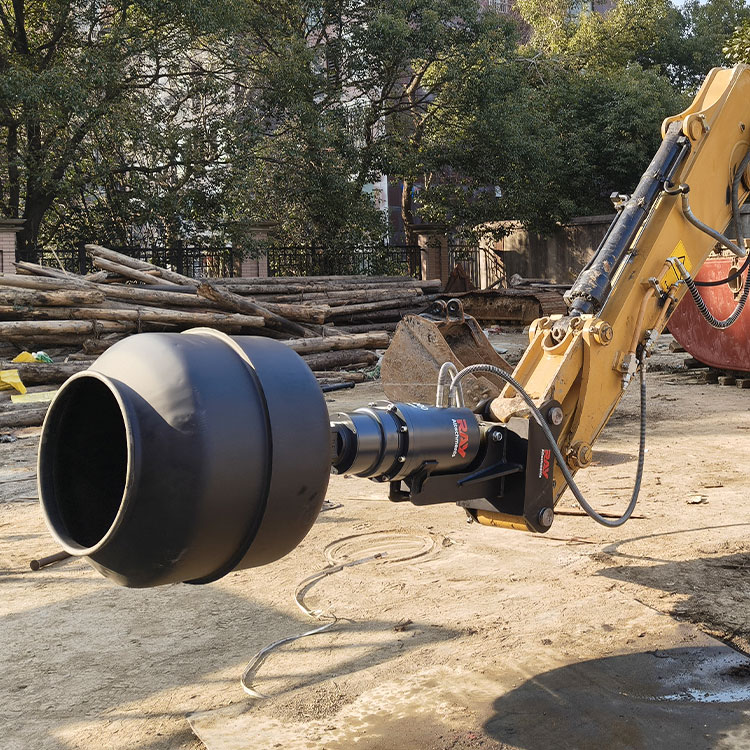

Mixer Bowl
Thoroughly mix a small amount of cement.
auger-mixer-bowl
Auger Drill Range REA2000-3500 REA3500-8000
Bowl Capacity/L 140 180
Unit Depth/mm 600 690
Unit Diameter/mm 675 724
Unit Weight/kg 28 33

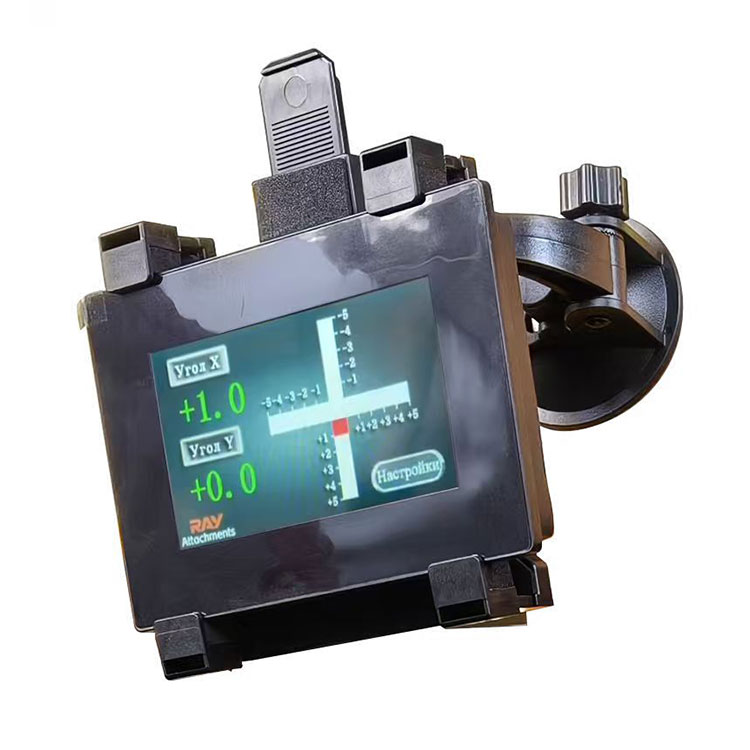

Drill Verticality Gauge
DRILL-VERTICALITY-GAUGE
Model Unit RVI20
Angle Sensor Accuracy ° ±0.1
Sensor Dimensions mm 55*37*24
Viewable Dimensions mm 140*98*22
Weight Kg 1.14
Voltage V 12/24
Wire Length M 10/15/20

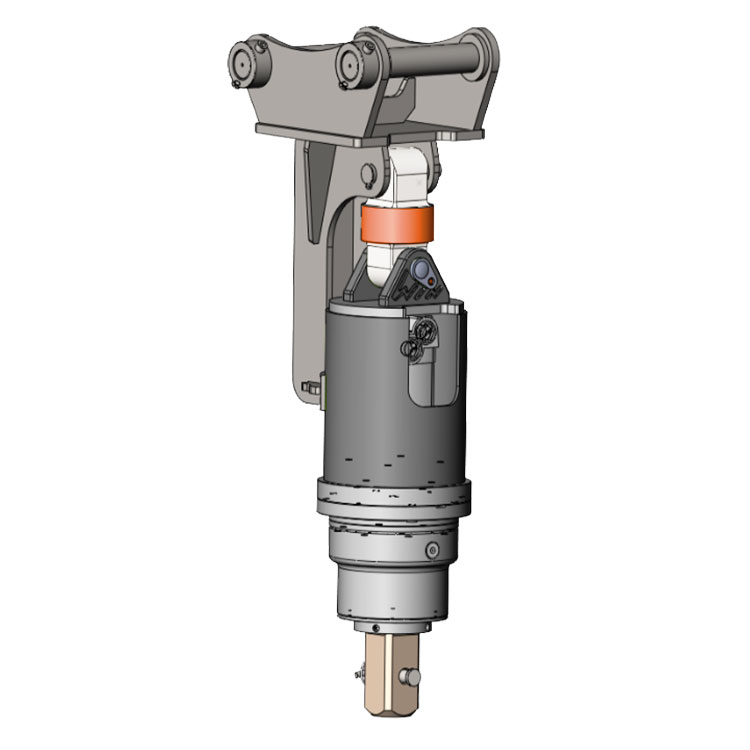

Torque Monitor
TORQUE-MONITOR
Torque Range Up to 10000 N.m
Earth Drill Range REA5000 - REA8000
Hitch Connection Single Pin
Pin Diameter 30mm
CUSTOMIZATION SERVICES
  CONNECTOR BRACKET CUSTOMIZATION
Compatible with Leading European Interface Standards: MS / CW Standard Flanges.
  • COMMON STYLE

    COMMON STYLE
  • MS

    MS
  • CW1

    CW
  • CW2

    CW

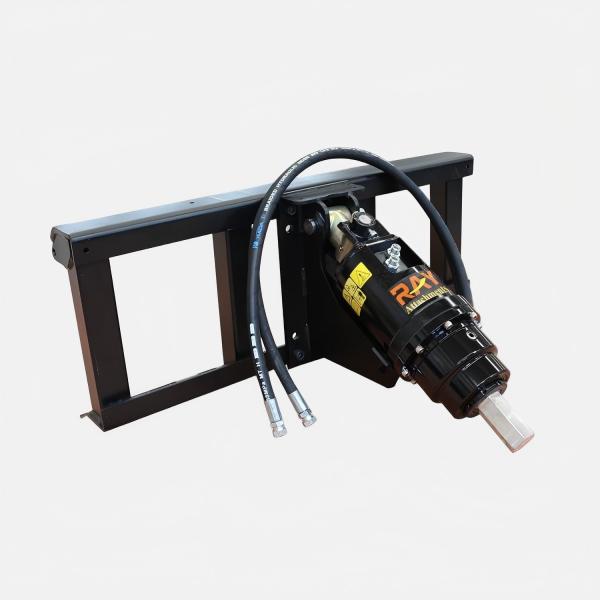

  • SKID STEER STYLE
    SKID STEER STYLE

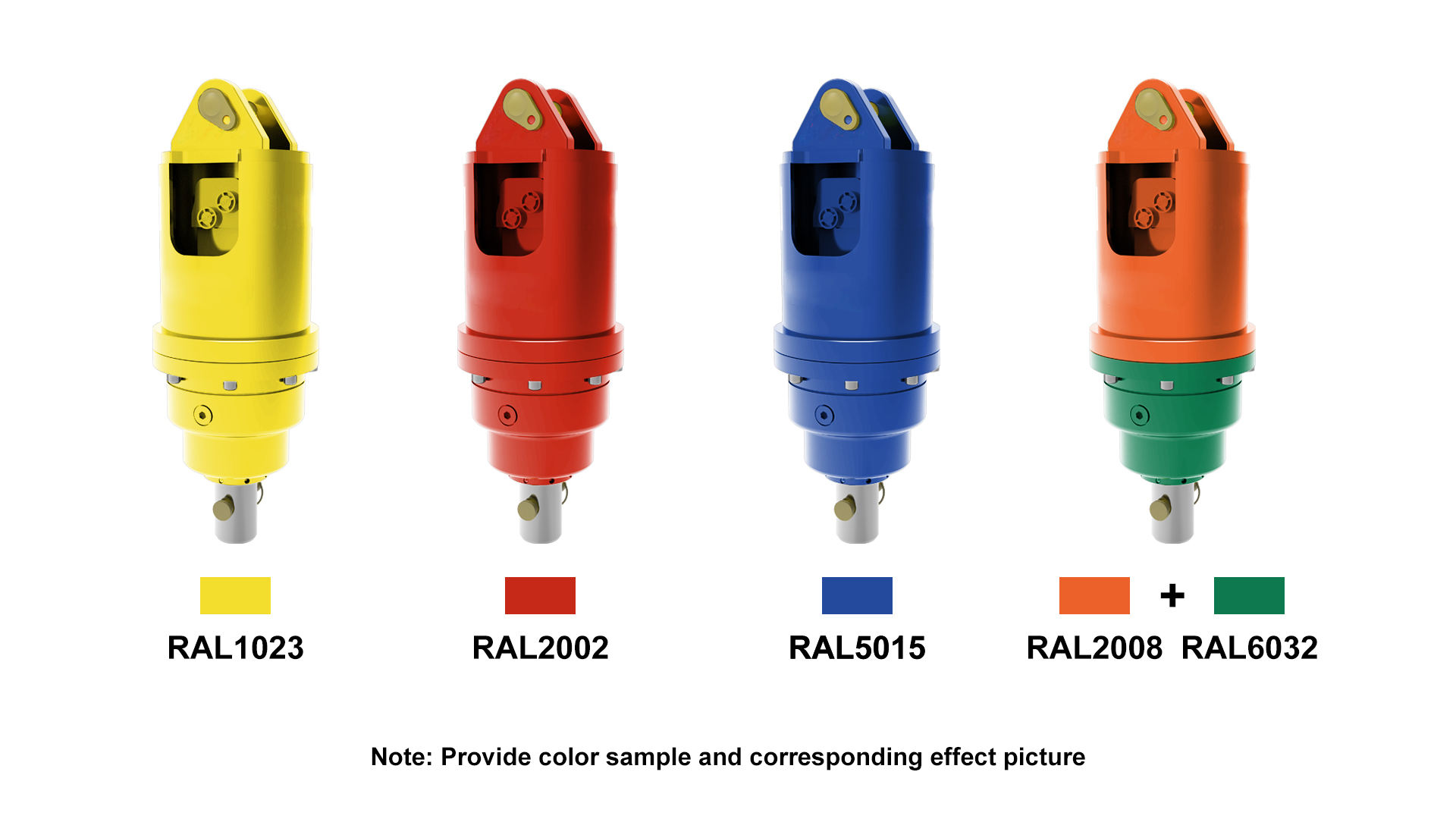

  COLOR CUSTOMIZATION
Simply share your preferred color code with us, and we’ll create a detailed visual mockup to help you visualize the final effect before production.
OEM-1

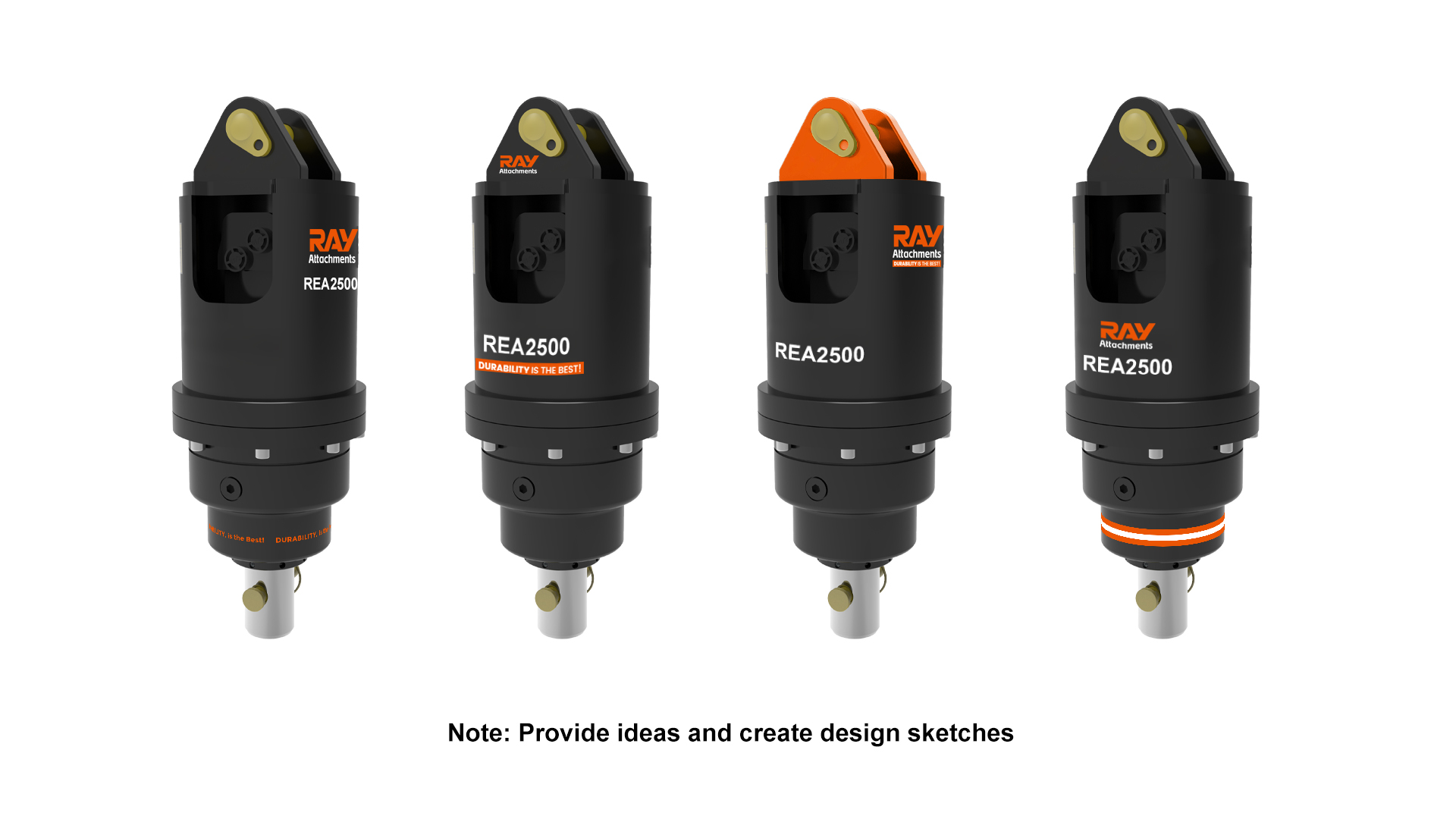

  LOGO CUSTOMIZATION
Simply communicate your creative ideas or specific requirements, and we’ll create detailed visual mockups to bring your vision to life—for your confirmation before production.
OEM-2
  NAMEPLATE CUSTOMIZATION
Opt for our ready-to-use universal template or provide your unique design requirements—we’ll create a detailed visual mockup to confirm the final look before production.
OEM-3
SERVICE GUARANTEE SYSTEM
SERVICE GUARANTEE
15-20 day rapid delivery (for regular orders)
Support OEM/ODM customization
Provide 18 months warranty

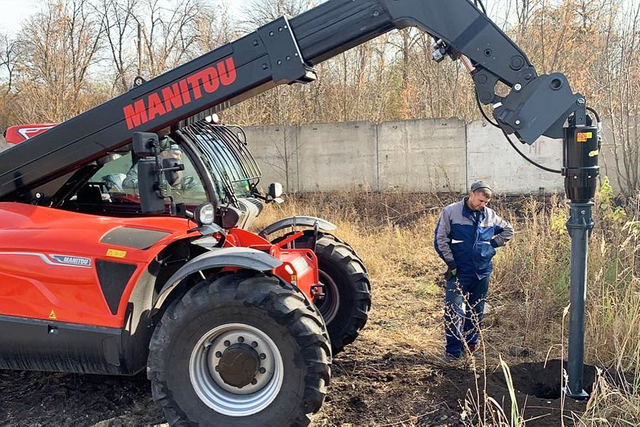

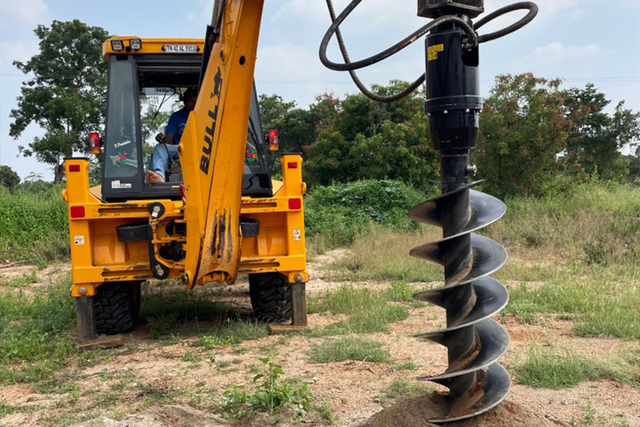

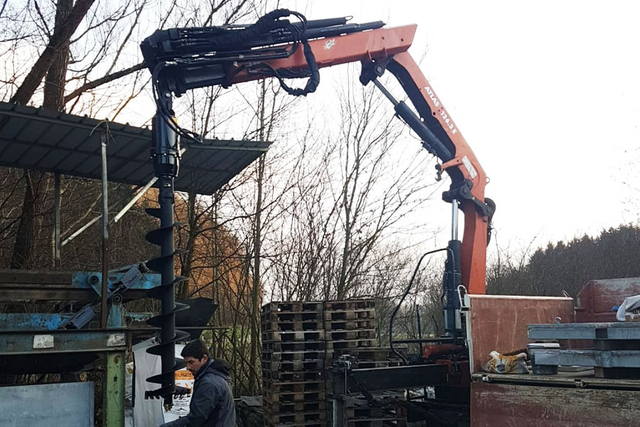

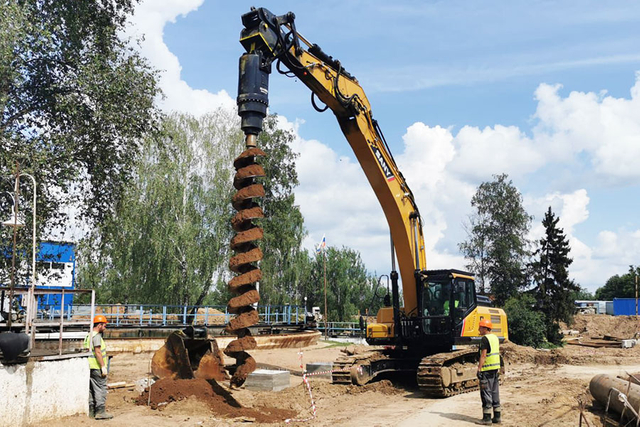

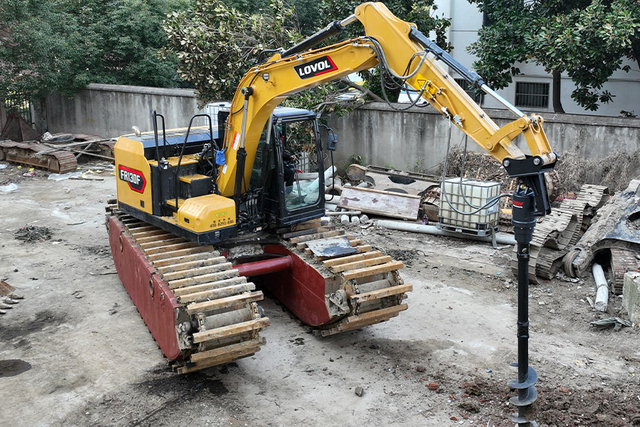

APPLICATIONS
