More Than Durable

High-Performance Demolition & Sorting Grapples

Engineered with Parker® motors, Hardox 450 wear plates, and integrated braking systems.

We deliver European engineering excellence through Chinese manufacturing efficiency

Proven production process ensure our products are built to last.

We use durable materials and top-brand components for all key parts.

Our rigorous inspection process to ensure durable quality.

OEM-Certified Quality Assurance

High-Torque Power (Parker Motor): Experience stable, high-torque 360° rotation. Engineered for extended service life in high-intensity demolition.

Precision Control (Braking System): Equipped with a dedicated hydraulic braking system for unlimited, targeted positioning in all conditions.

Zero-Gap Sorting (Edge-to-Edge Contact): The blade closes completely without any gaps, making the selection of fine and thin materials incredibly easy.

Superior Protection: Fully guarded, high-pressure cylinders and reinforced jaw design ensure maximum uptime and easy maintenance.

Competitive Factory Pricing for Better Profitability

As a direct manufacturer, we help you controlcosts and improve market competitiveness.
Flexible volume discounts for one-stop assortment orders- Stable cost system for long-term OEM cooperation- Transparent quotation without hidden charges.

We believe durability is a result of rigorous selection. RAY implements a 5-stage qualification process for every supplier.

We integrate Parker® hydraulic motors and Hardox 450 wear plates as standard. We don't just assemble; we curate excellence to ensure superior performance on heavy-duty job sites.

The 30-Day Promise: For full container orders, we guarantee a 1-month lead time, backed by our highly synchronized "1+N" factory-trading model.
Critical Parts Stock: We maintain a massive inventory of wear parts, seals, and hydraulic components. Downtime is not an option; we ensure 48-hour dispatch for essential spare parts.

The 1+N Integrated Supply Model: One Partner, Total Solutions

Streamline your procurement by sourcing your core grapples and all matching attachments (N) from a single quality-controlled point.

Consolidated Logistics: Save up to 20% on shipping by loading diverse attachments in one container.

Market Protection: Exclusive regional agency systems and HD marketing support for our OEM partners.

REQUEST A QUOTE

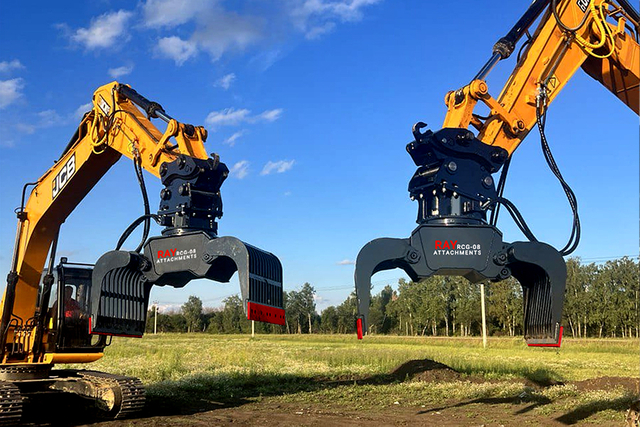

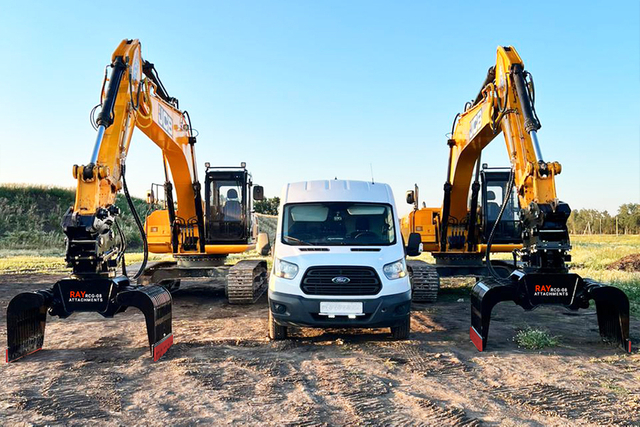

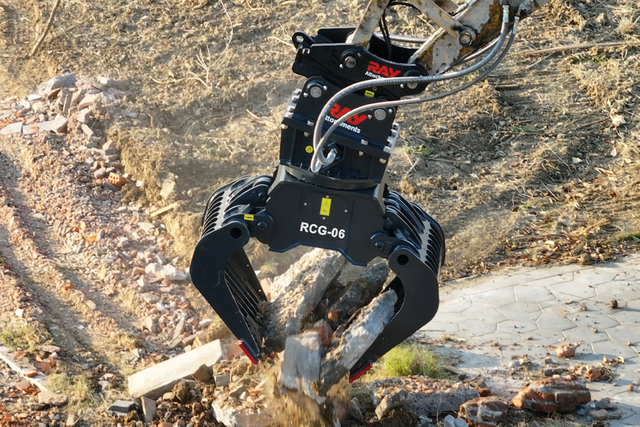

DEMOLITION & SORTING GRAPPLE

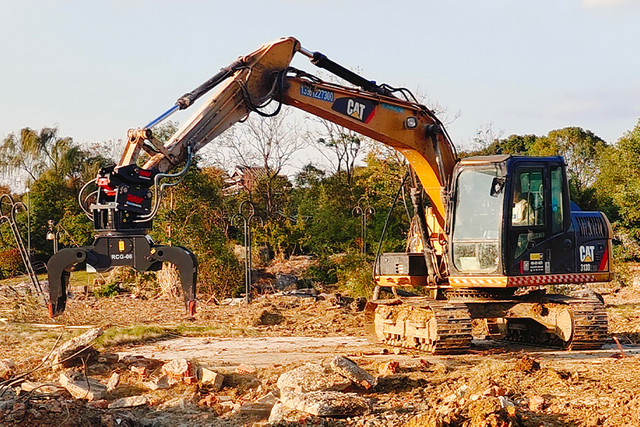

RAY Demolition grapple for stone, wood, iron, soil, and sand. One tool for multiple construction scenarios, incredibly efficient!

Available for excavators from 1 to 37T

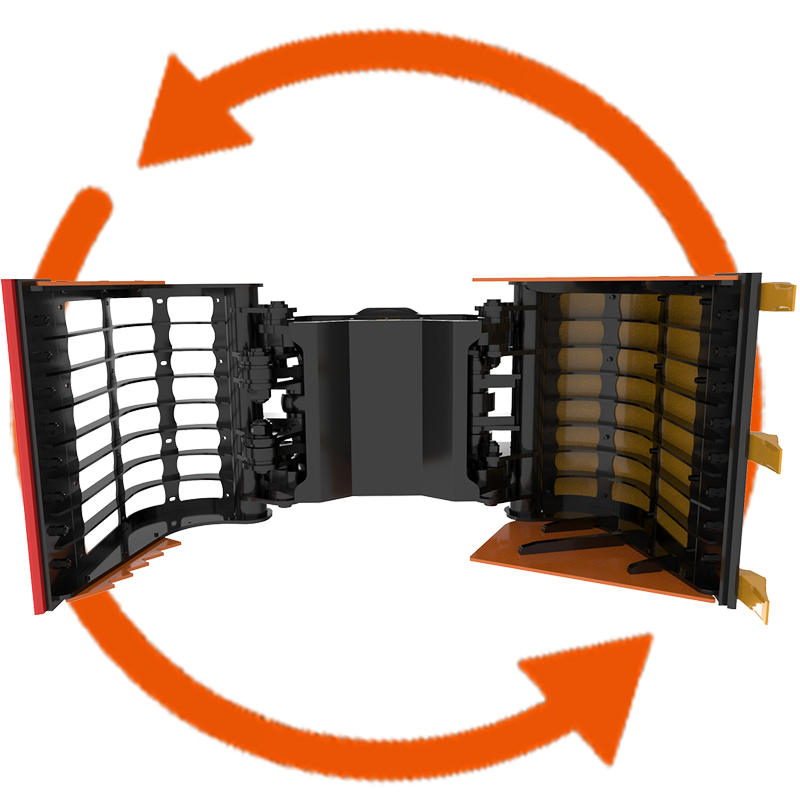

Unlimited 360° Hydraulic Rotation Motor from Parker

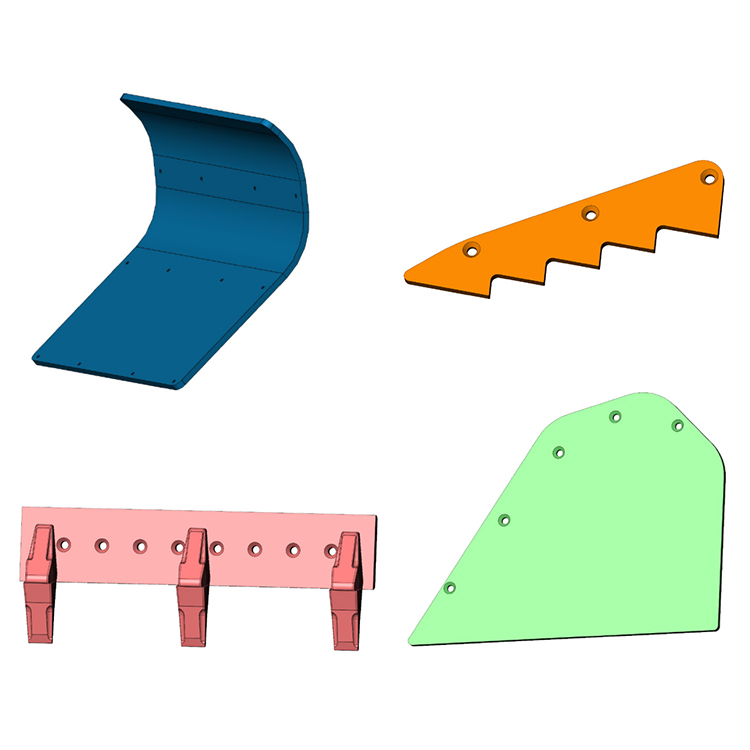

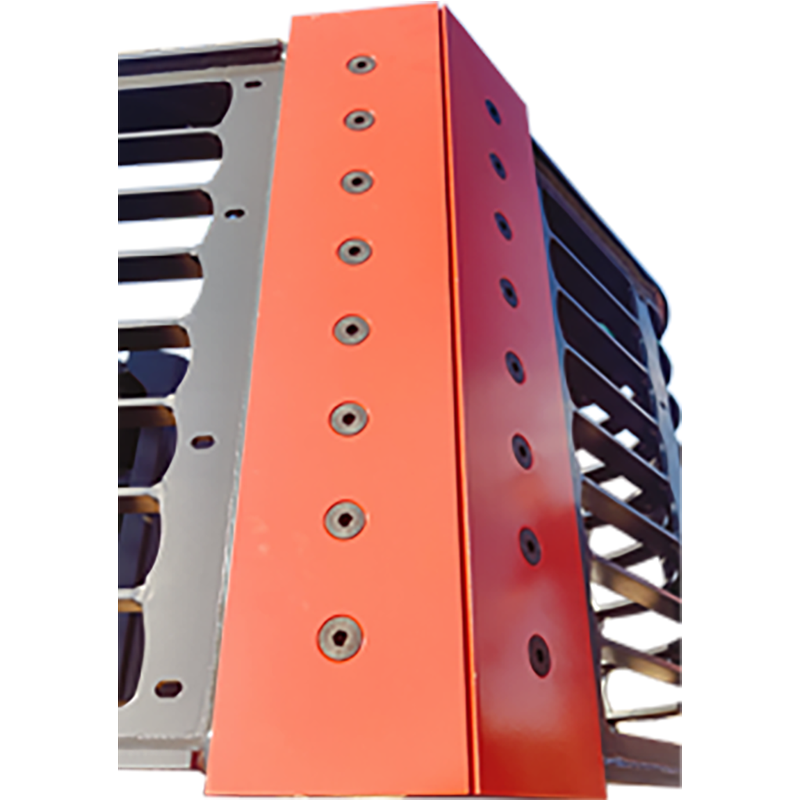

Reversible and changeable wear blades to extend service life

Wear-resistant HARDOX 450/NM400 ensures durability

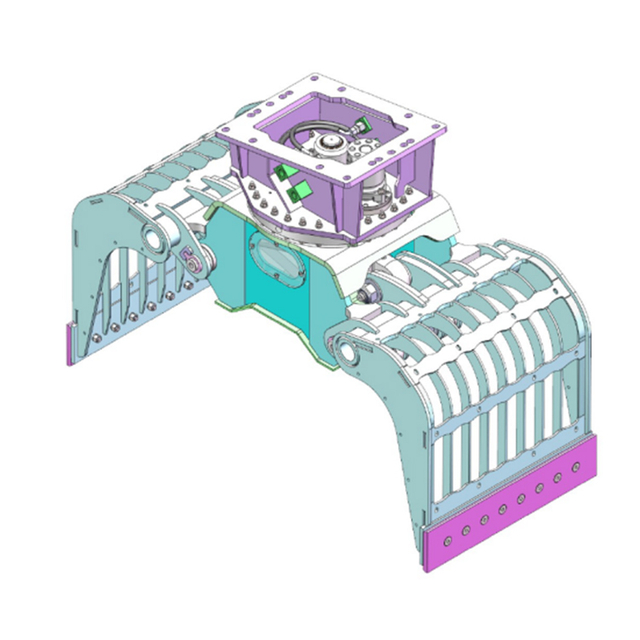

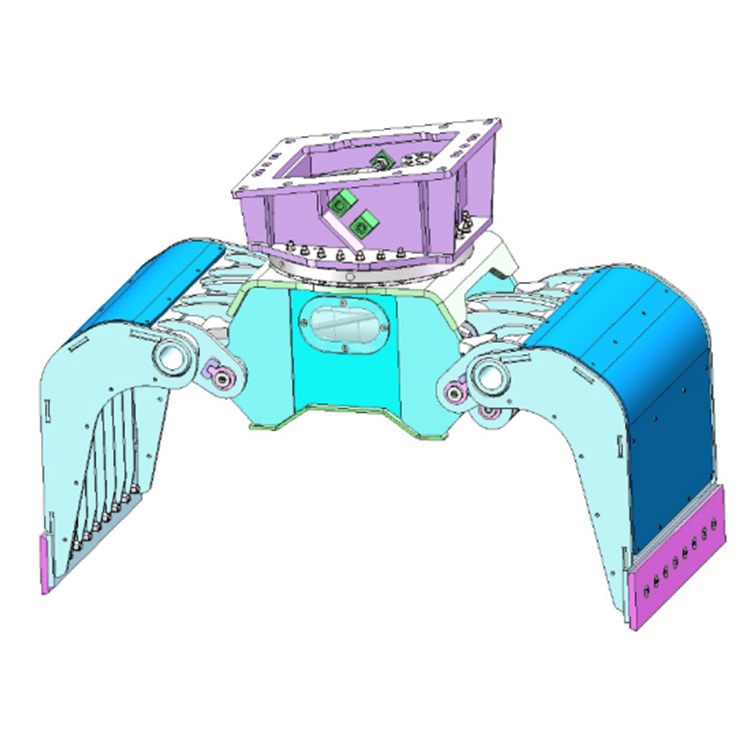

Several sets of shells are available, customizable on request

Fully guarded, high-pressure cylinders

Opening/Closing lock valve optional

Bolt-On Mounting Bracket, multi-option - MS/CW series

REQUEST A QUOTE

PRODUCT INFORMATION

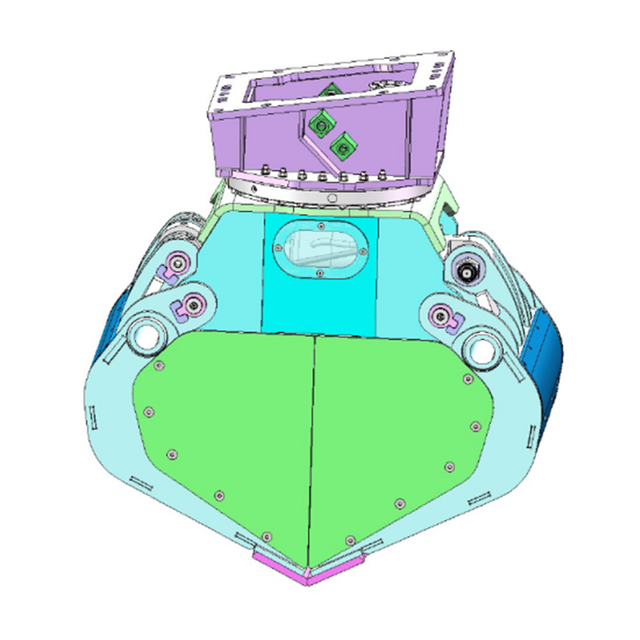

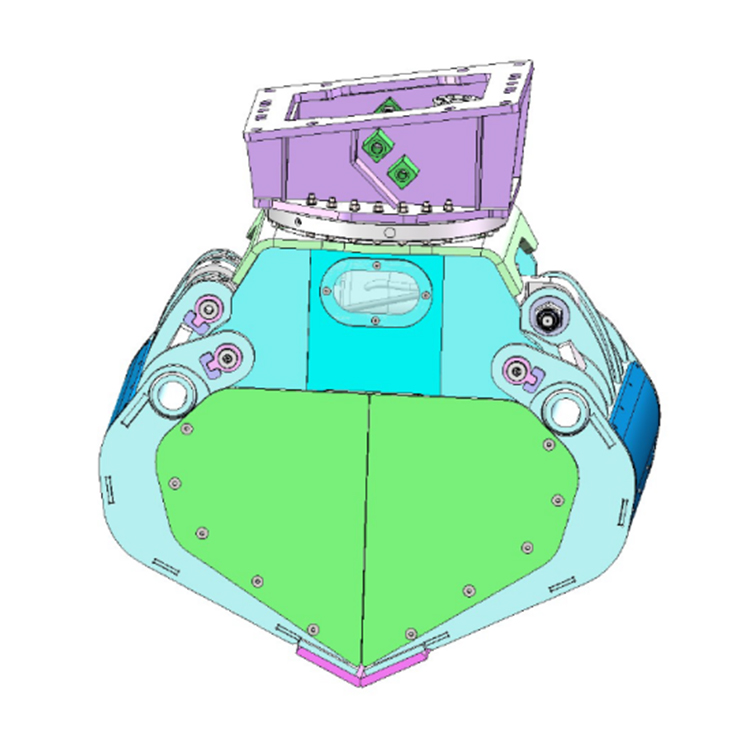

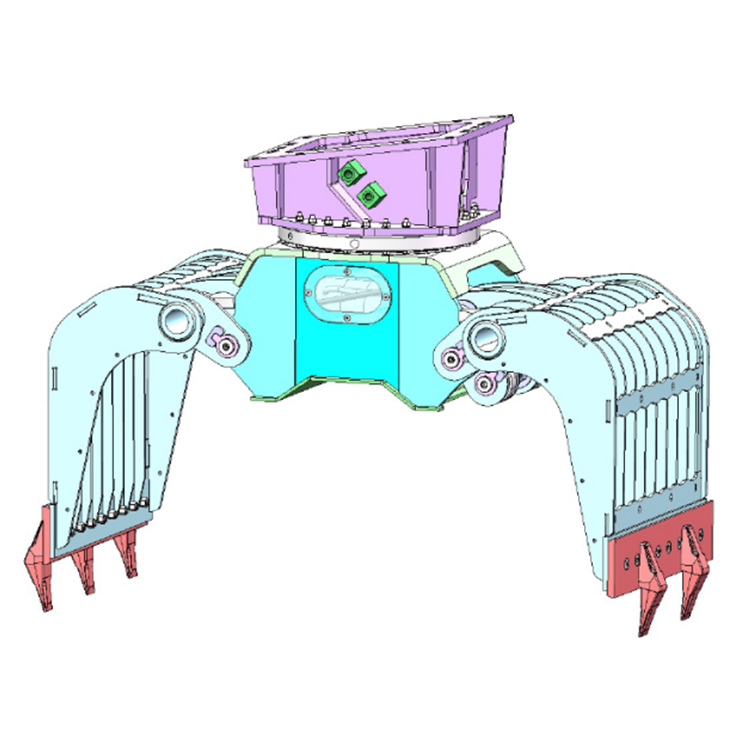

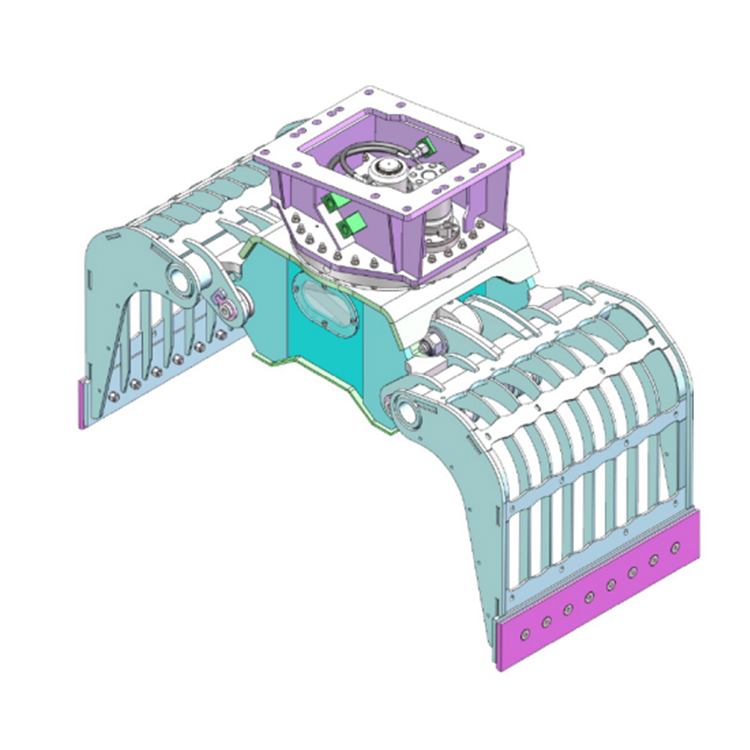

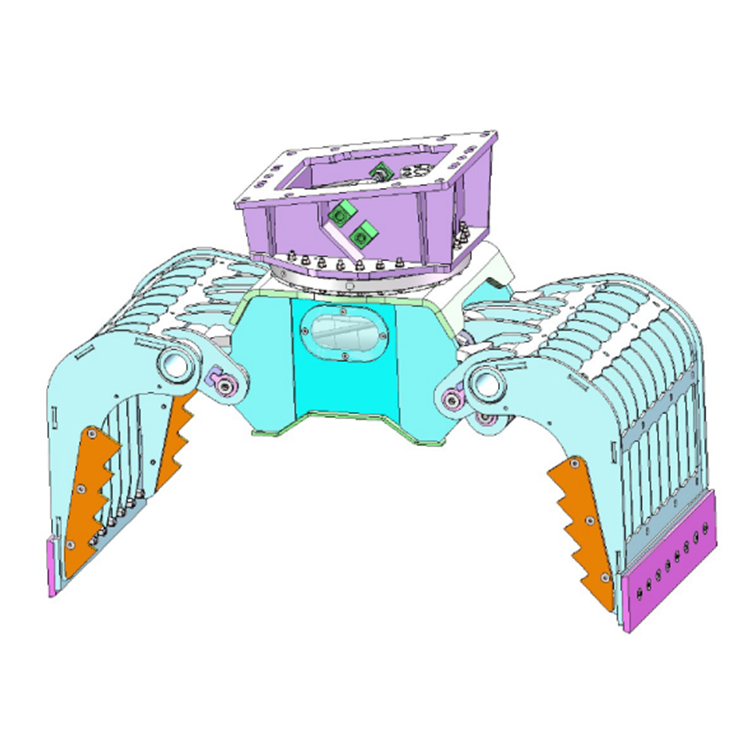

Demolition Grab 5 In 1

* Compatible with Leading European Interface Standards: MS / CW Standard Flanges

Specification of Sorting Grapple

Model	Unit	RCG-mini	RCG-01	RCG-02	RCG-04	RCG-06	RCG-08	RCG-10	RCG-14	RCG-17
Carrier Weight	Ton	1-2.5	2.5-4.5	4-6	6-10	10-15	16-22	23-26	27-30	31-37
Carrier Weight	Lbs/Pounds	2205～5512	5512～9921	8818～13228	13228～22046	22046～33069	35274～48502	50706～57320	59525～66139	68343～81571
Cylinder Max Working Pressure	Bar	250	250	300	350	350	350	350	350	350
Cylinder Max Working Pressure	Psi	3626	3626	4351	5076	5076	5076	5076	5076	5076
Cylinder Working Oil Flow	L/min	6-13	8-15	10-20	15-30	30-65	40-80	55-110	55-110	95-165
Cylinder Working Oil Flow	Gpm	2-3	2-4	3-5	4-8	8-17	11-21	15-29	15-29	25-44
Safety Valve	/	N	N	N	N	Y	Y	Y	Y	Y
Motor Max Working Pressure	Bar	250	100	100	100	140	140	140	140	140
Motor Working Oil Flow	L/min	4-6	6-9	8-12	8-12	12-20	12-20	14-20	14-20	28-40
Rotation System	Tr/min	10/15	10/15	10/15	10/15	10/15	10/15	10/15	10/15	10/15
Force	N	10000	12000	19000	25000	40000	50000	60000	62000	93000

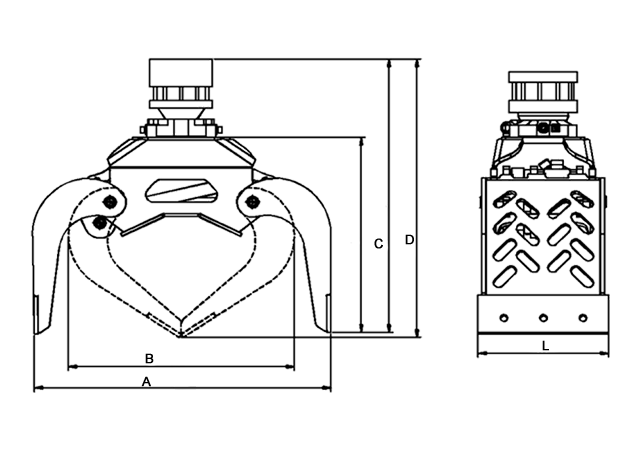

A	mm	750	1090	1180	1290	1710	1845	2000	2100	2270
B	mm	570	770	850	960	1245	1375	1440	1465	1630
C	mm	720	770	840	910	905	1000	1050	1190	1275
D	mm	730	760	850	930	1080	1100	1290	1375	1425
L	mm	330	400	460	550	800	900	1010	1130	1210
Volume	L	50	77	105	147	395	470	700	820	1080
Weight	Kg	115	210	260	370	745	950	1230	1500	2100
Weight	Lbs/Pounds	254	463	573	816	1642	2094	2712	3307	4630

REQUEST A QUOTE

WHY CHOOSE US

Edge-to-Edge Contact

360° Rotation

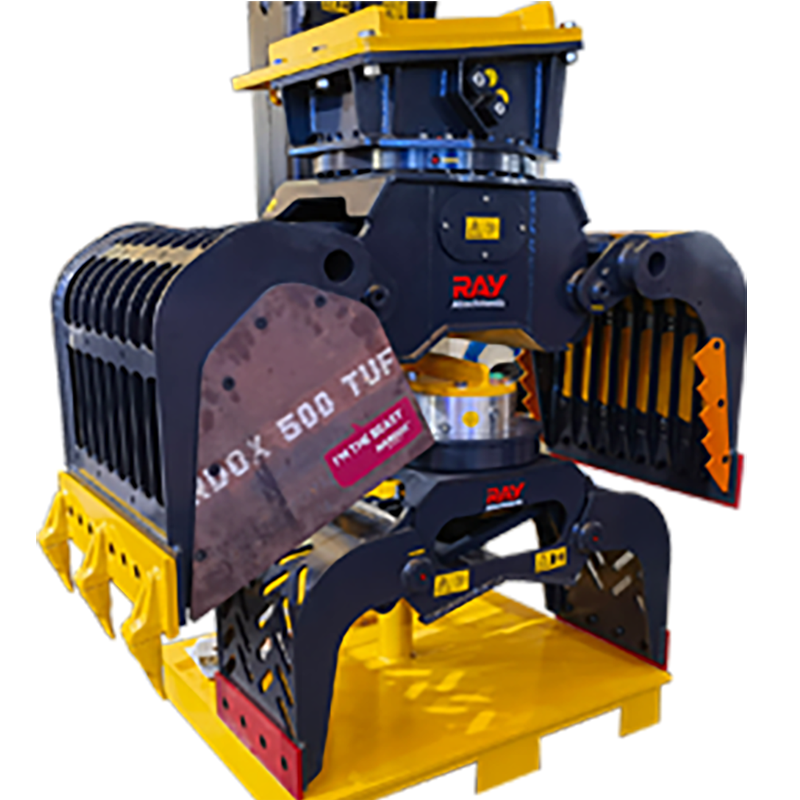

Hardox Wear Plate

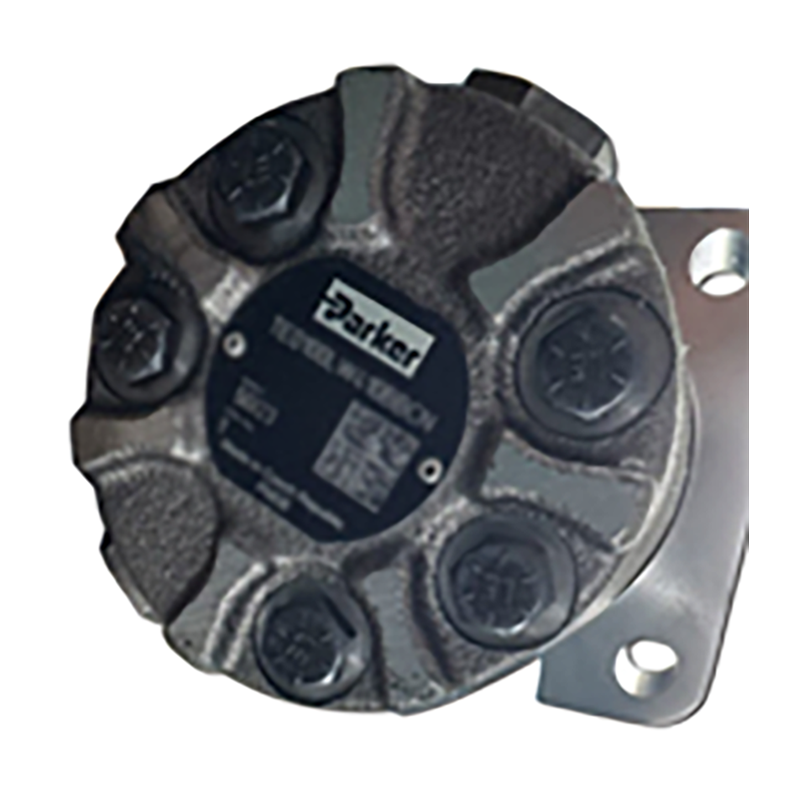

Parker Motor

REQUEST A QUOTE

SERVICE GUARANTEE SYSTEM

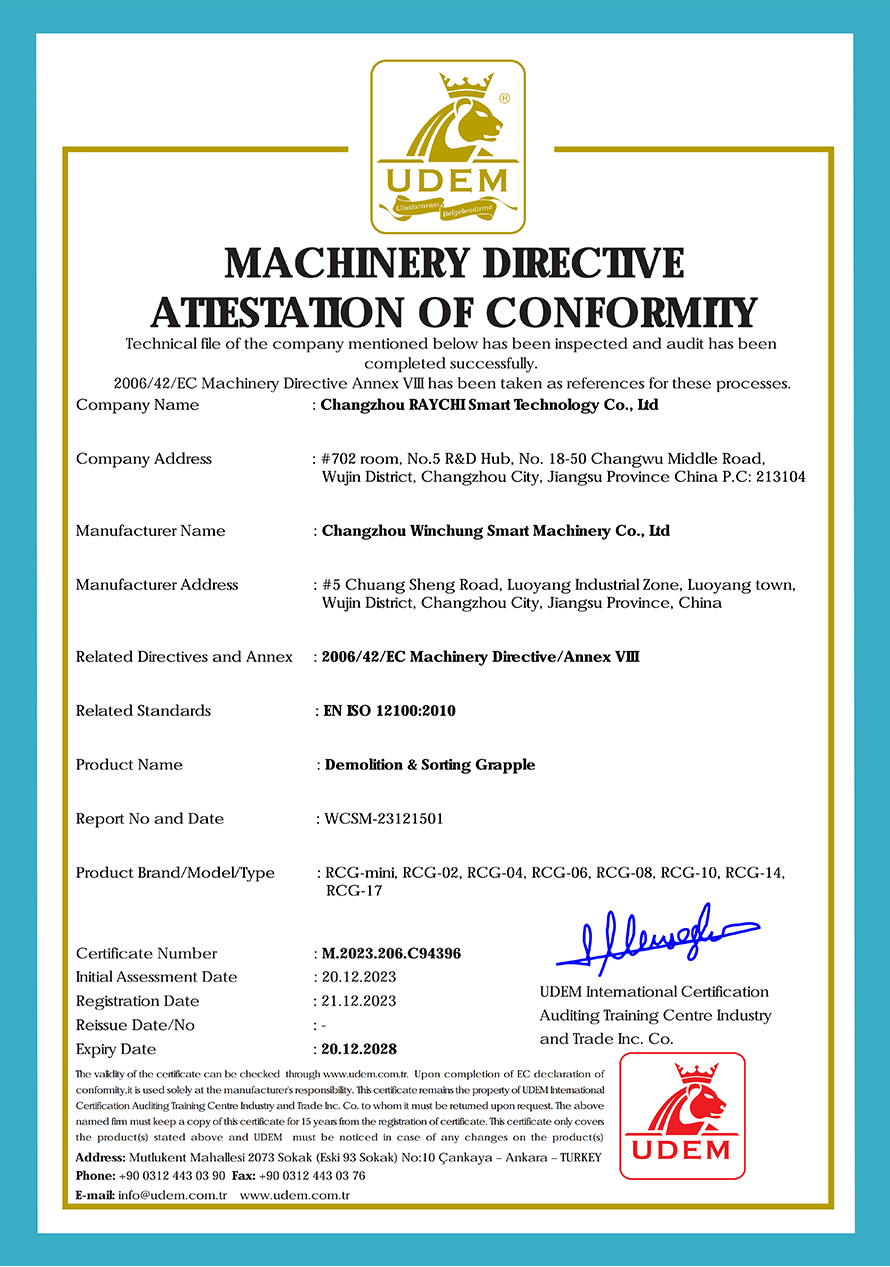

CE
ISO9001

SERVICE GUARANTEE

15-20 day rapid delivery (for regular orders)

Support OEM/ODM customization

Provide 12 months warranty

REQUEST A QUOTE

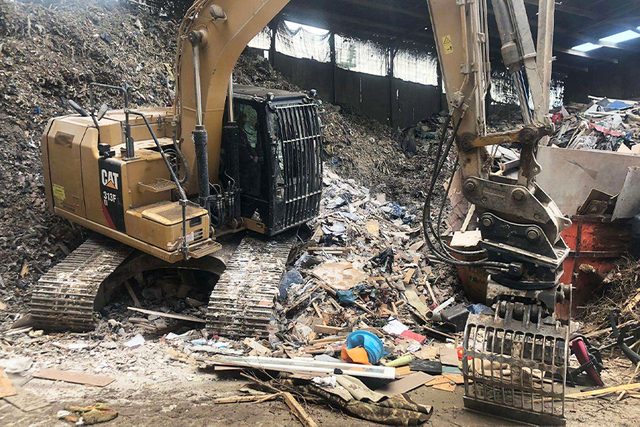

APPLICATIONS

REQUEST A QUOTE

CUSTOMER WITNESS

DEMOLITION OF OLD FACTORY

As a demolition company manager, I managed an old factory demolition project (concrete crushing, steel bar removal, waste recycling). Initially, I planned to use two separate grabs—costly and time-consuming for replacements.
We used your multi-functional crushing grab, which does both crushing and grabbing by swapping the bottom wear plate for claws. Your team provided on-site operation and maintenance training.
The project finished in 1.5 months (originally 2 months). We saved the cost of a second grab and time on equipment changes. The client was satisfied, and the grab performed as required.

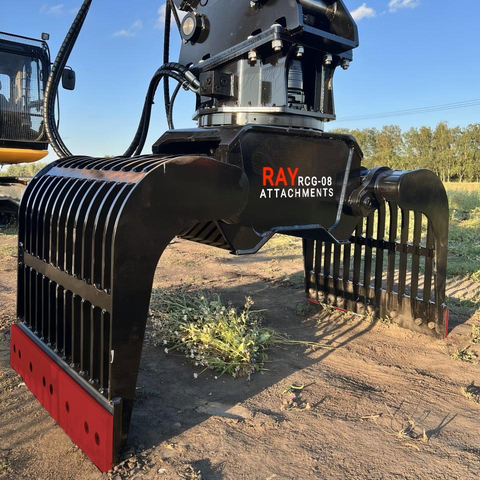

Multifunktionsgreifer – Zuverlässigkeit, die zählt

Als Baumaschinenwerkzeuge-Vertreiber in Bayern setzen wir seit 2 Jahren die Multifunktionsgreifer dieses Herstellers ein. Besonders überzeugend ist ihre Haltbarkeit: Auch bei täglichem Einsatz in anspruchsvollen Umgebungen wie Müllverarbeitung, Abrissarbeiten und Baustofftransport bleibt der Verschleiß moderat, und der Wartungsbedarf ist minimal – ein großer Vorteil für unsere Kunden.
Die Vielseitigkeit eines Gerätes für verschiedene Anwendungen spart Zeit und Investitionen. Kombiniert mit europäischem Qualitätsstandard und wettbewerbsfähigen Preisen aus China stärkt dies unsere Marktposition erheblich.
