Durability from OEM Expertise, Profit from Unbeatable Value

Strategic Partner of Japanese & Korean Original Equipment Manufacturers (OEMs)

SB Series: High Compatibility | Affordable Pricing

Wearable Parts Promotion: Free Spares Included | Ensure no hassle after-sales support

Why Choose RAY Attachments

PREMIUM QUALITY PRODUCT BUILT TO LAST

Superior quality, durable Breakers and Attachments.

Looking for breakers and attachments that deliver superior quality and long-lasting performance? At RAY Attachments, we specialise in engineering heavy-duty breaking attachments designed for maximum durability and efficiency. Our products are crafted from top-grade materials using cutting-edge manufacturing techniques, ensuring you get robust, reliable tools that meet the highest industry standards.

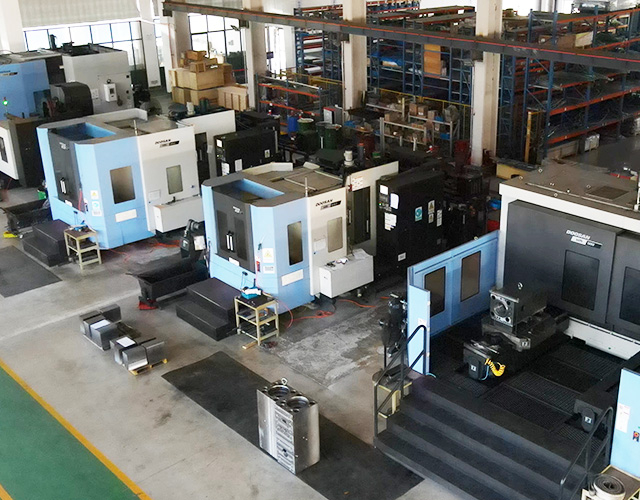

CUSTOMISABLE FACTORY DIRECT MANUFACTURING

Tailored Solutions & Visual Mockups from Our Expert Team

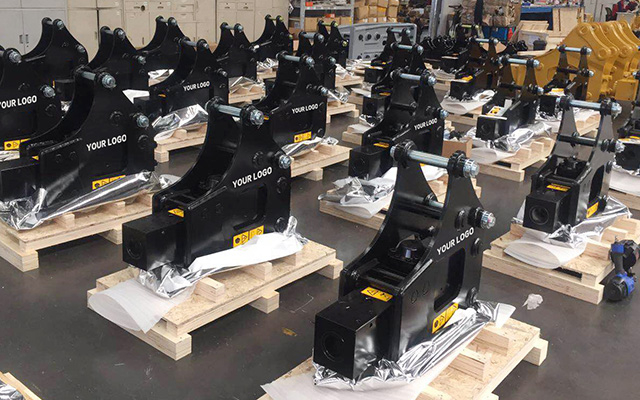

At RAY Attachments, we understand the unique needs of your business and are committed to delivering breaker attachments that align with your brand and requirements. As a direct manufacturing facility, we offer flexible customisation options including product colour matching, logo sticker customization, and nameplate design — with detailed visual mockups provided for your approval. Our highly trained, solution-focused team provides personalised guidance to ensure your customised products meet your exact specifications, keeping your projects running smoothly and efficiently every time.

OUTSTANDING SERVICE & TECHNICAL SUPPORT

Trusted and Recommended Across Earthmoving and Construction Industries
With over 26 years of experience in the earthmoving and construction attachment industry, RAY Attachments has built a reputation for expert knowledge, reliable products, and outstanding customer service. Our customers return to us time and again because we deliver not only top-quality breaker attachments but also ongoing support and a firm commitment to being the leading attachment provider in the market.

RELIABLE LEAD TIME & ABUNDANT ACCESSORIES

Comprehensive Breaker Attachments with 1-Month Container Lead Time Backed by Sufficient Accessories
RAY Attachments offers premium hydraulic breaker attachments for diverse industrial uses, compatible with most leading excavators and loaders. With sufficient essential components and spare parts in stock, we guarantee a 30-day lead time for container orders via a reliable supply chain, supporting precise project execution and minimizing operational disruptions.

Mounted Pin Kit
Rod Pin and Stop Pin

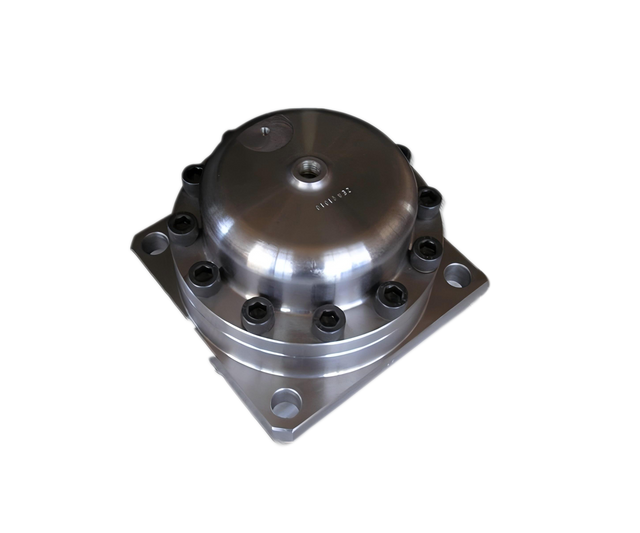

Accumulator

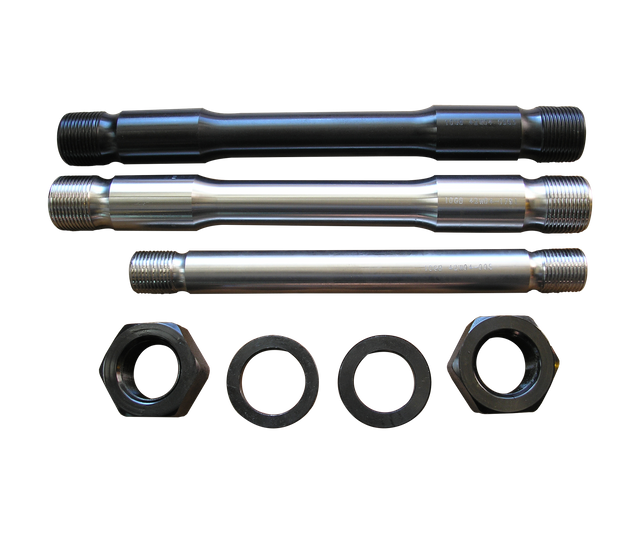

Side Bolts
Front Cover
Through Bolts

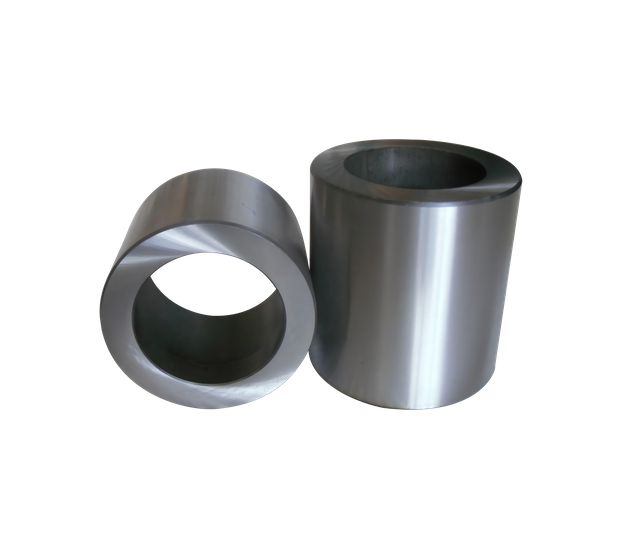

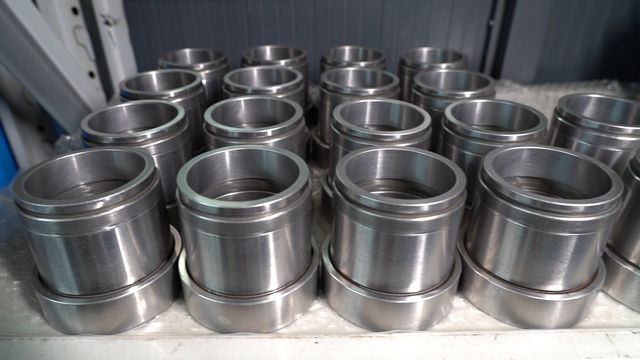

Ring Bushes
N2 Charging Kit
Piston
Back Head
Front Head Ass'y
Cylinder with Piston
Seal Kits

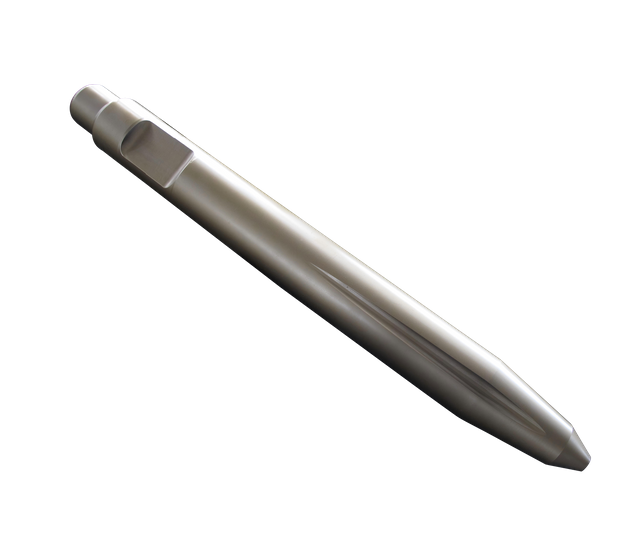

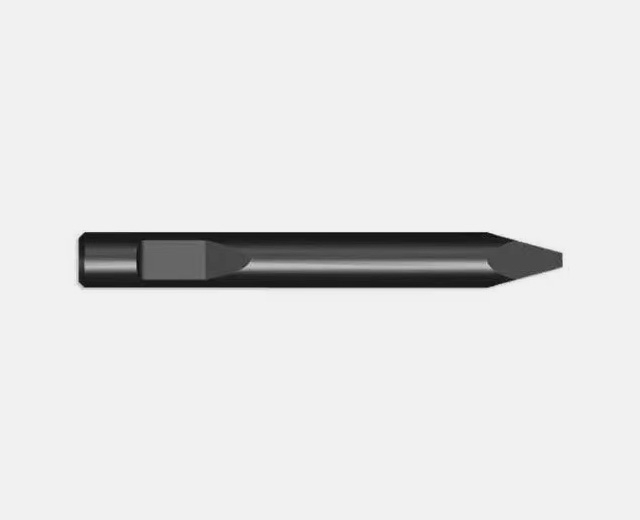

Chisel

COMPETITIVE PRICING & VALUE FOR MONEY

High-Performance Breaker Attachments Offering Exceptional Value and Long-Lasting Durability
On the jobsite, you need breaker attachments you can rely on — tools that deliver robust performance, maximum efficiency, and outstanding value for money. That’s why every RAY Attachments product undergoes rigorous testing to ensure superior durability, reliability, and performance. With our competitively priced range, you can trust that your equipment will get the job done right, time after time.

REQUEST A QUOTE

ACT NOW TO START YOUR
WIN-WIN PARTNERSHIP

REQUEST A QUOTE

PRODUCT IMFORTATION

Type of Hydraulic Breaker

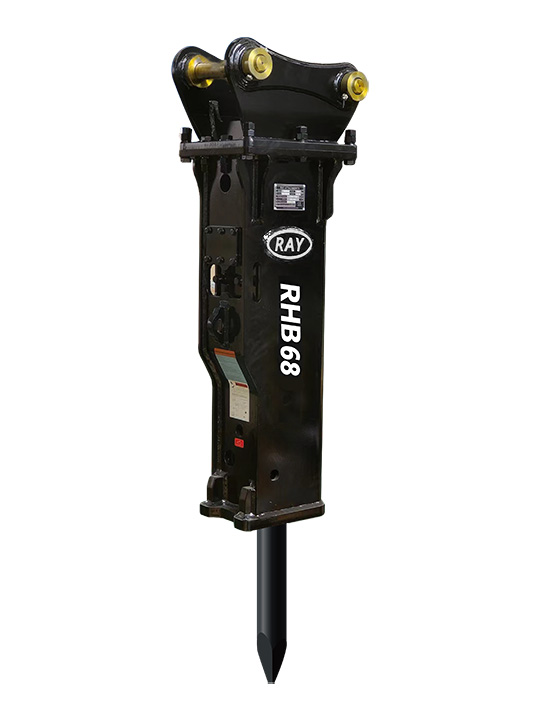

Box Silence Type

1. Reduce noise.
2. Protect the enviroment.

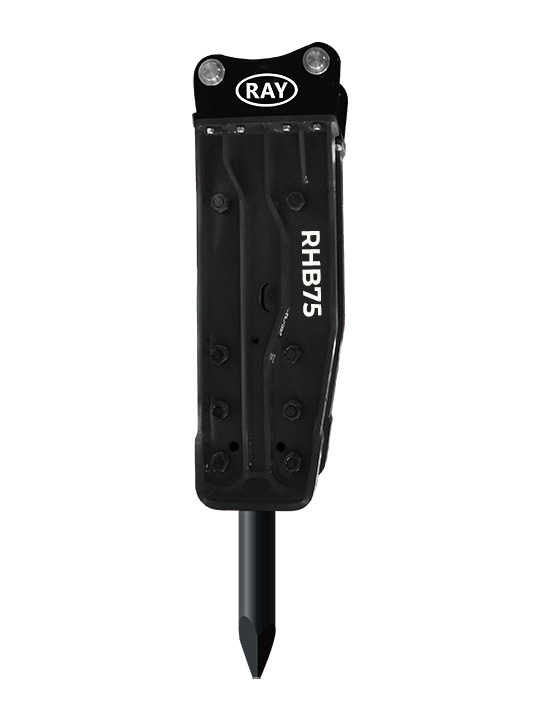

Top Type

1. Easy to locate and control.
2. More conducive to excavate.
3. Weight lighter, the lower risk of broken chisels.

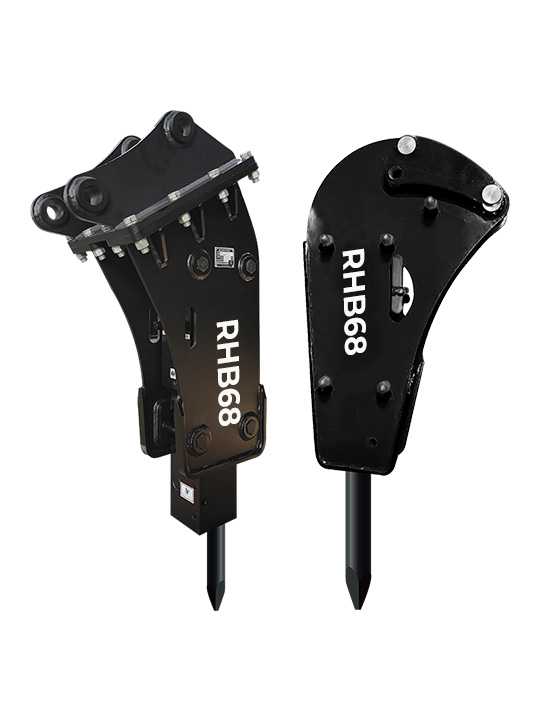

Backhoe Loader Type

for JCB3CX, 4CX.
Case580, CAT 416D,
John Deere 310J, 410J.

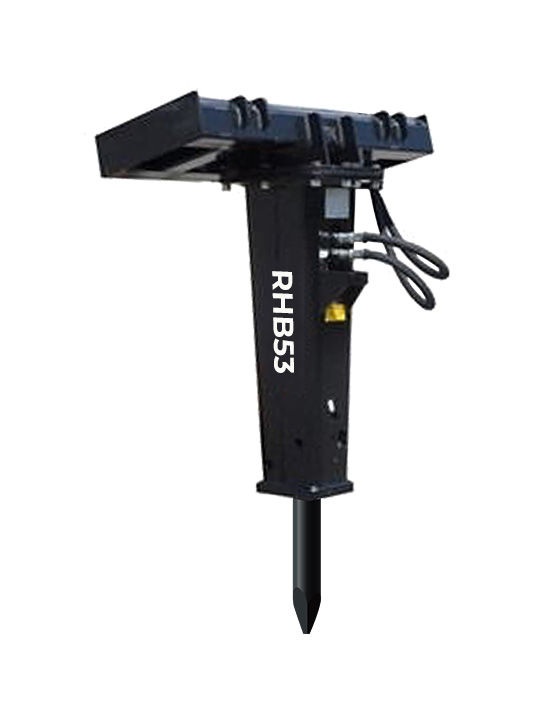

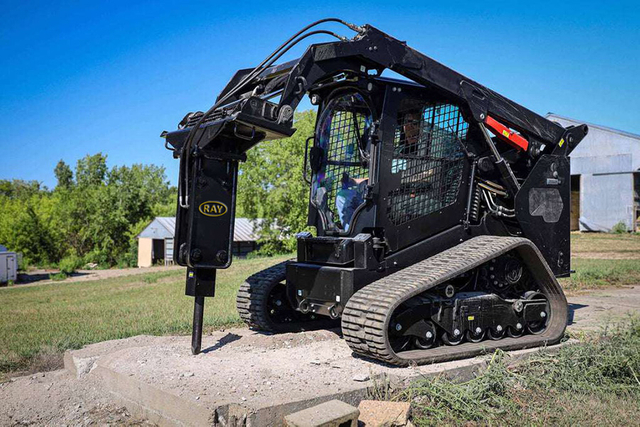

Skid Steer Loader Type

for Bobcat185,
CAT 216, CAT 226,
262 and other brands.

Specifictaion of Hydraulic Breaker

Light Series

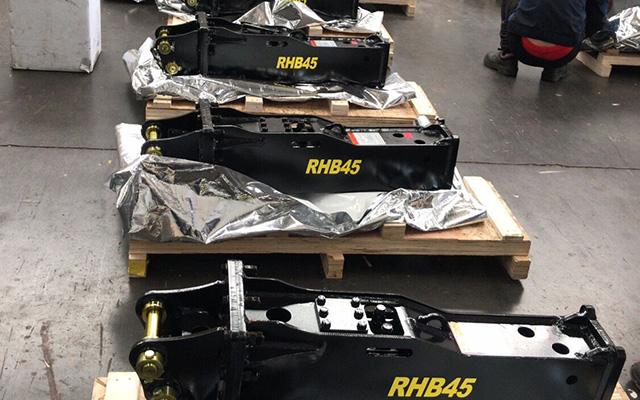

Spec Name		RHB45	RHB53	RHB68	RHB75	RHB85	RHB100
Body Weight	kg	71	89	156	214	282	479
Body Weight	lbs	156	196	343	741	620	1054
Total weight (Top/Box)	kg	122/155	148/189	303/345	412/429	625/672	817/966
Operating pressure	kg/cm	90-120	90-120	110-140	120-150	130-160	150-170
	psi	1280-1704	1280-1704	1562-1988	1704-2130	1846-2272	2130-2414
	bar	88-117	88-117	108-137	118-147	128-157	147-166
Hydraulic flow range	l/min	20-30	25-50	40-70	50-90	60-100	80-110
Hydraulic flow range	gal/min	5-8	7-13	11-19	13-24	16-26	21-29
Impact frequency	bpm	700-1200	600-1100	500-900	400-800	400-800	350-700
Diameter of hose	mm	12.7	12.7	12.7	12.7	19.05	19.05
Diameter of hose	inch	1/2	1/2	1/2	1/2	3/4	3/4
Suitable Carrier	ton	1.2-3.0	2.5-4.5	4-7	6-9	7-14	10-15

Medium Series

Spec Name		RHB125	RHB135	RHB140	RHB150	RHB155	RHB160	RHB165
Body Weight	kg	620	850	920	1092	1313	1400	1590
Body Weight	lbs	1364	1870	2024	2402	2889	3080	3498
Total weight (Top/Box)	kg	1287/1285	1859/1743	2048/1894	2511/2351	2774/2716	3116/2993	3511/3183
Operating pressure	kg/cm	150-170	160-180	160-180	160-180	160-180	160-180	180-200
	psi	2130-2414	2272-2556	2272-2556	2272-2556	2272-2556	2272-2556	2556-2840
	bar	147-166	157-177	157-177	157-177	157-177	157-177	177-196
Hydraulic flow range	l/min	90-120	130-150	120-180	150-190	180-240	200-250	200-250
Hydraulic flow range	gal/min	24-32	34-40	32-48	40-50	48-64	52.8-65.79	52.8-65.79
Impact frequency	bpm	350-650	400-600	350-550	350-700	300-450	250-380	250-380
Diameter of hose	mm	125	135	140	150	155	260	165
Diameter of hose	inch	4.92	5.31	5.51	5.91	6.1	6.3	6.5
Suitable Carrier	ton	15-18	18-26	18-26	27-35	28-35	30-40	30-40

Heavy Series

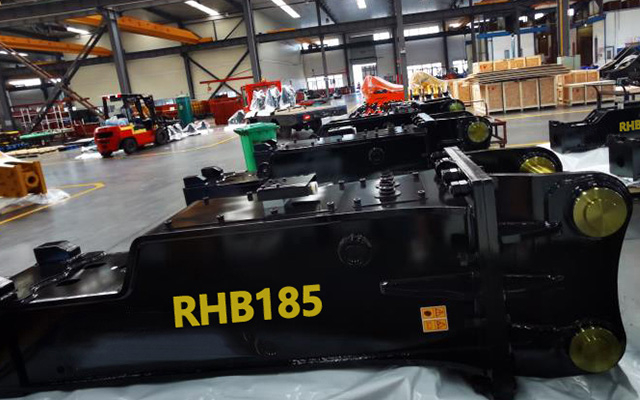

Spec Name		RHB175	RHB185	RHB195	RHB200	RHB205	RHB210	RHB215	RHB220	RHB230	RHB258
Body Weight	kg	1960	2375	2823	3077	3339	3400	3577	3939	4153	5994
Body Weight	lbs	4310	5222	6210	6766	7345	7480	7868	8665	9135	13185
Total weight (Top/Box)	kg	4232/3789	5102/5226	5810/5823	6536/6243	6280/6700	7225/7000	7513/7453	8147/8053	9032/9432	11420/11820
Operating pressure	kg/cm	180-210	180-240	200-240	200-240	230-260	230-260	230-260	230-260	230-260	230-260
	psi	2558-2984	2558-3410	2842-3410	2842-3410	3268-3695	3268-3695	3268-3695	3268-3695	3268-3695	3268-3695
	bar	176-206	176-235	195-235	196-235	225-255	225-255	225-255	225-255	225-255	225-255
Hydraulic flow range	l/min	200-260	240-300	290-360	300-370	320-390	340-420	360-460	400-500	420-540	500-600
Hydraulic flow range	gal/min	52.8-68.42	63-79	77-95	79-98	85-103	90-111	95-122	106-132	111-143	132-159
Impact frequency	bpm	200-350	180-250	150-200	150-200	130-170	130-170	130-170	130-170	130-170	110-140
Diameter of hose	mm	175	185	195	200	205	210	215	220	230	258
Diameter of hose	inch	6.89	7.28	7.68	7.87	8.07	8.27	8.46	8.67	9.06	10.16
Suitable Carrier	ton	35-40	40-50	45-55	50-60	55-65	55-65	65-75	65-80	80-120	90-140

REQUEST A QUOTE

SPARE PARTS OF BOX TYPE BREAKER

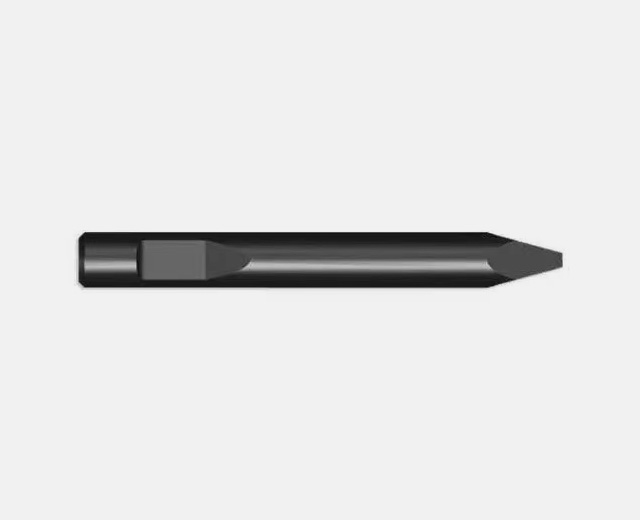

Chisel*2

(include one chisel in breaker)

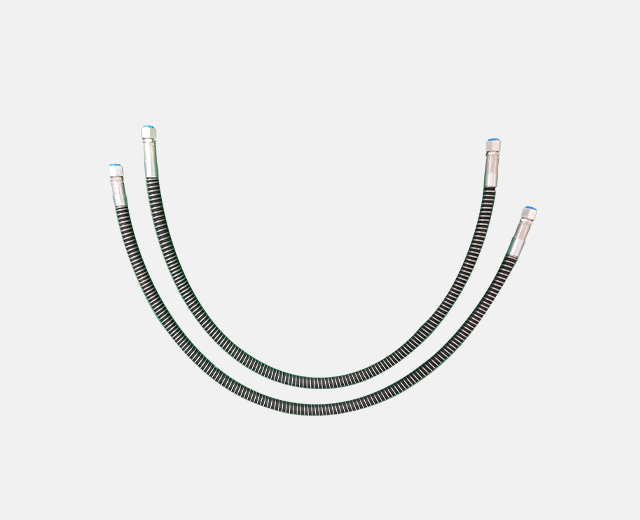

Hose*2

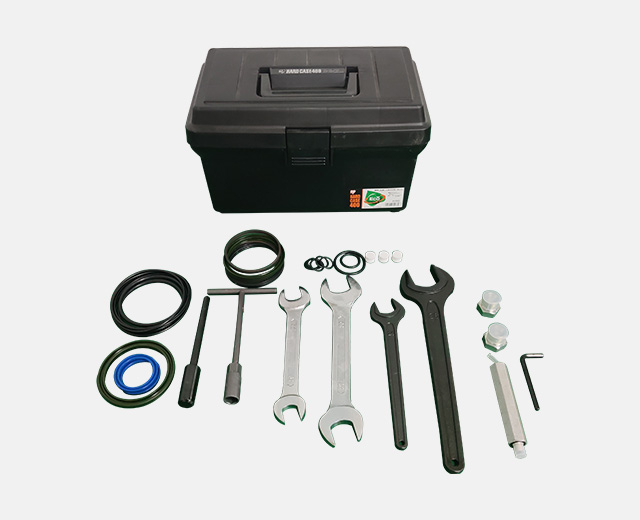

Tool Box*1

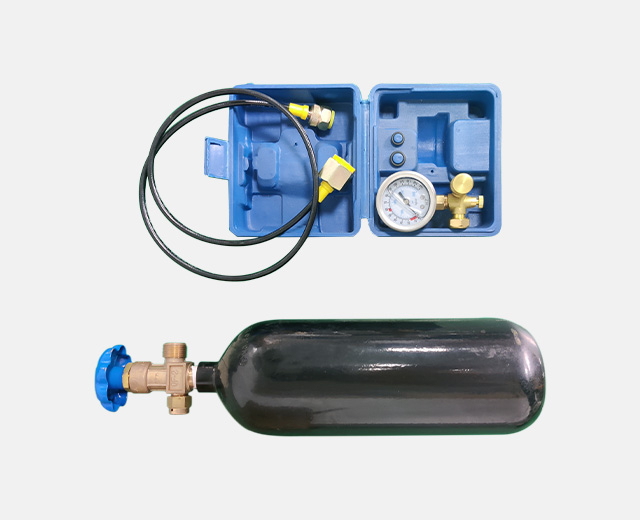

N2 Bottle and Charing Kits*1

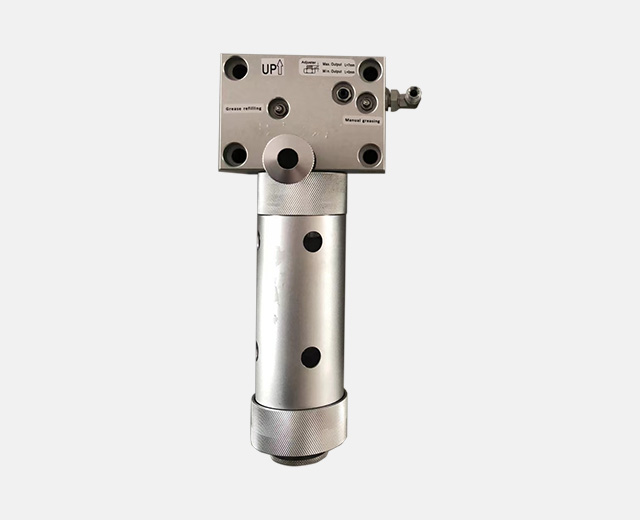

Automatic Greasing System (Optional)

Note: Sliding Model includes sliding quick-release coupling.

REQUEST A QUOTE

SERVICE GUARANTEE SYSTEM

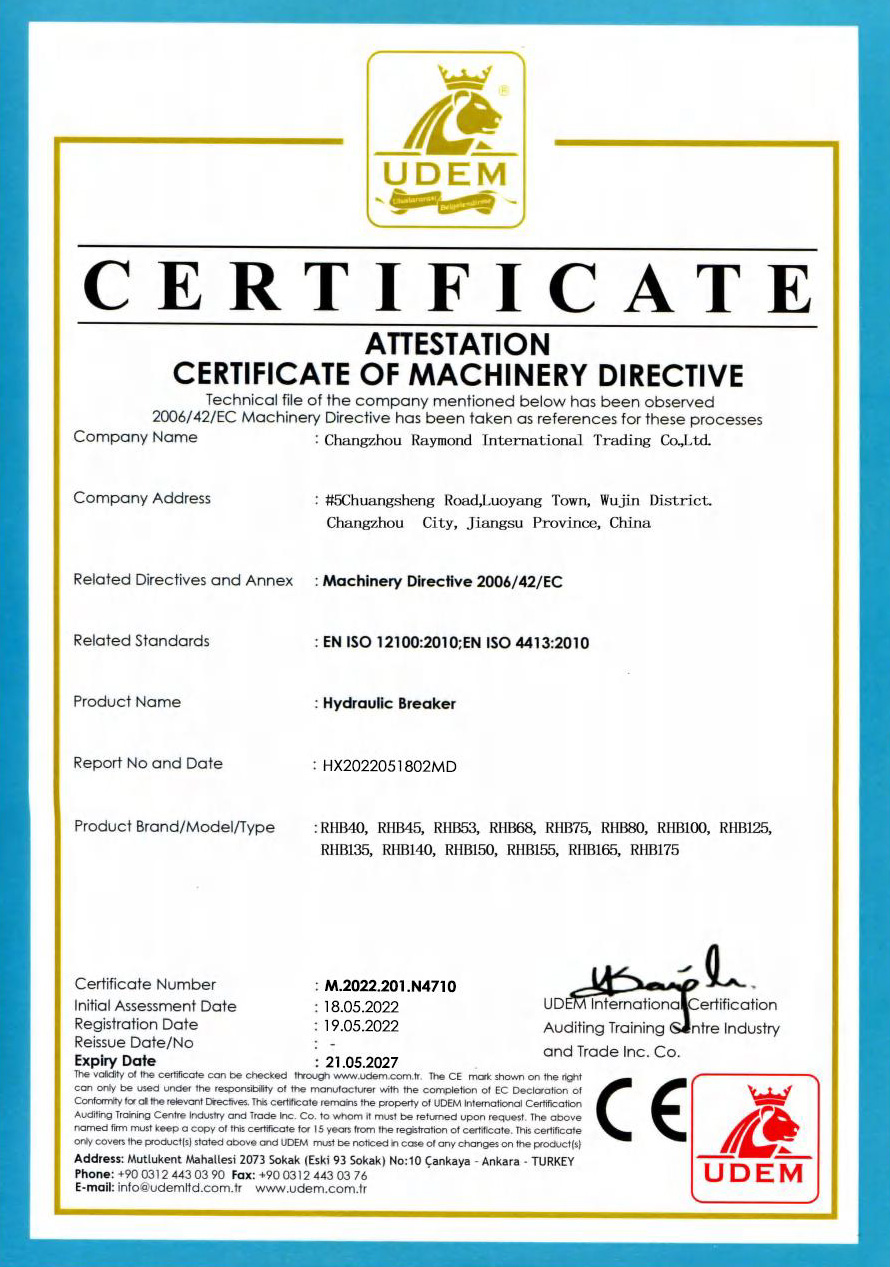

CE

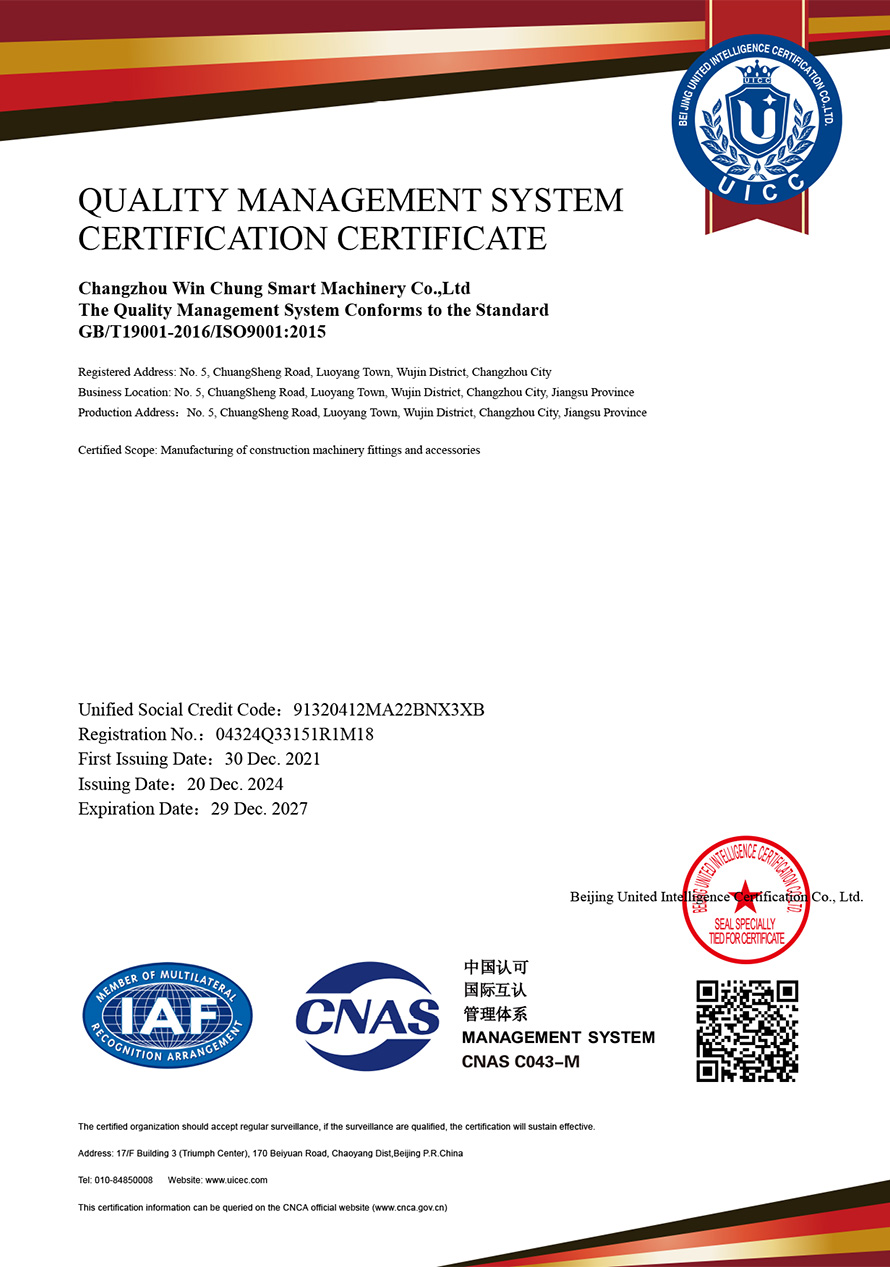

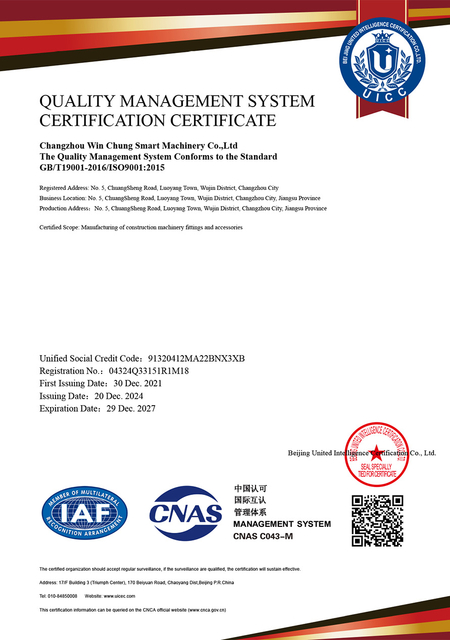

ISO9001

SERVICE GUARANTEE

15-20 day rapid delivery (for regular orders)

Support OEM/ODM customization

Provide lifetime supply guarantee for accessories

REQUEST A QUOTE

CUSTOMIZATION SERVICES

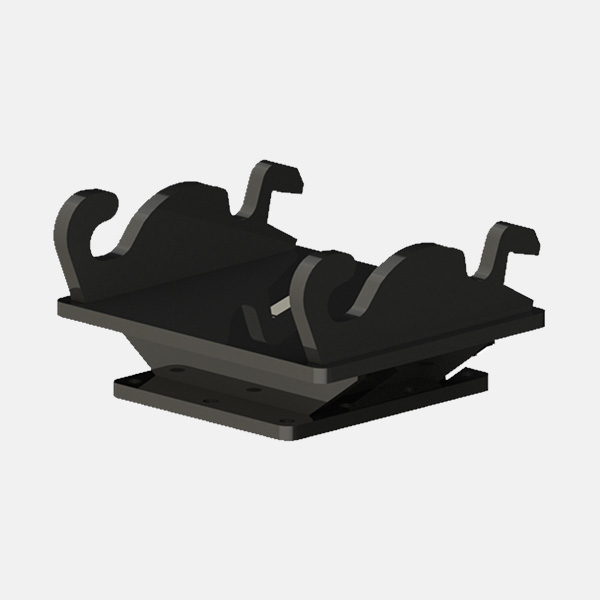

CONNECTOR BRACKET CUSTOMIZATION

Compatible with Leading European Interface Standards: MS / CW Standard Flanges

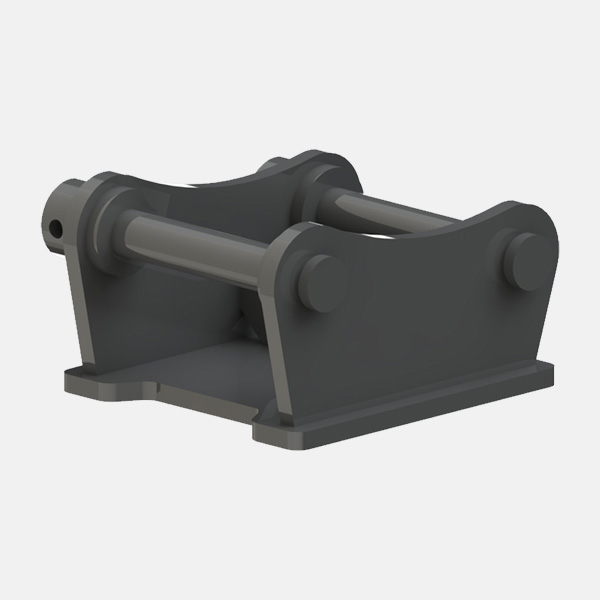

COMMON STYLE

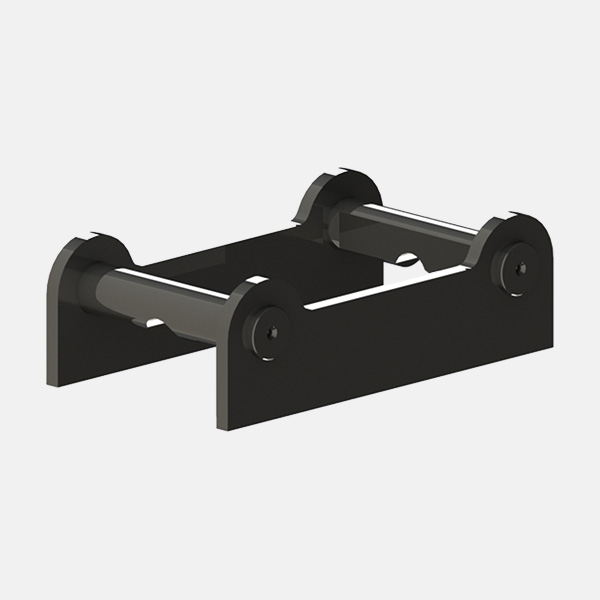

MS

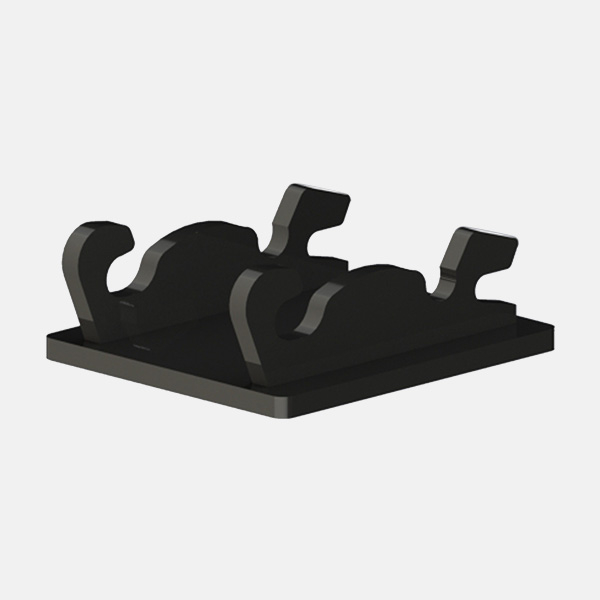

CW
CW

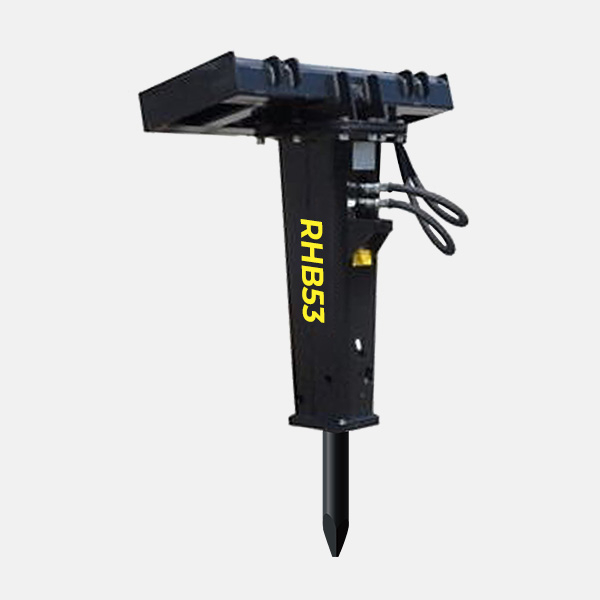

SKID STEER STYLE

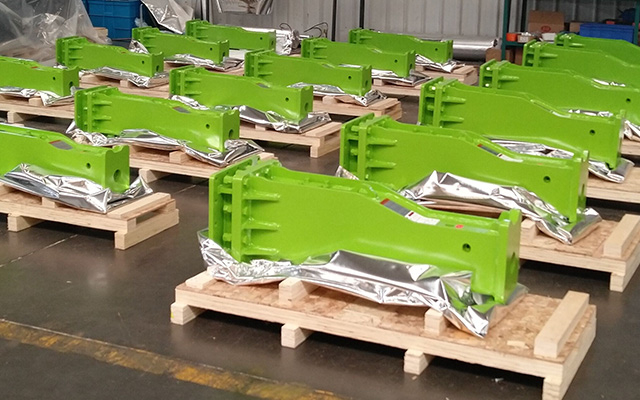

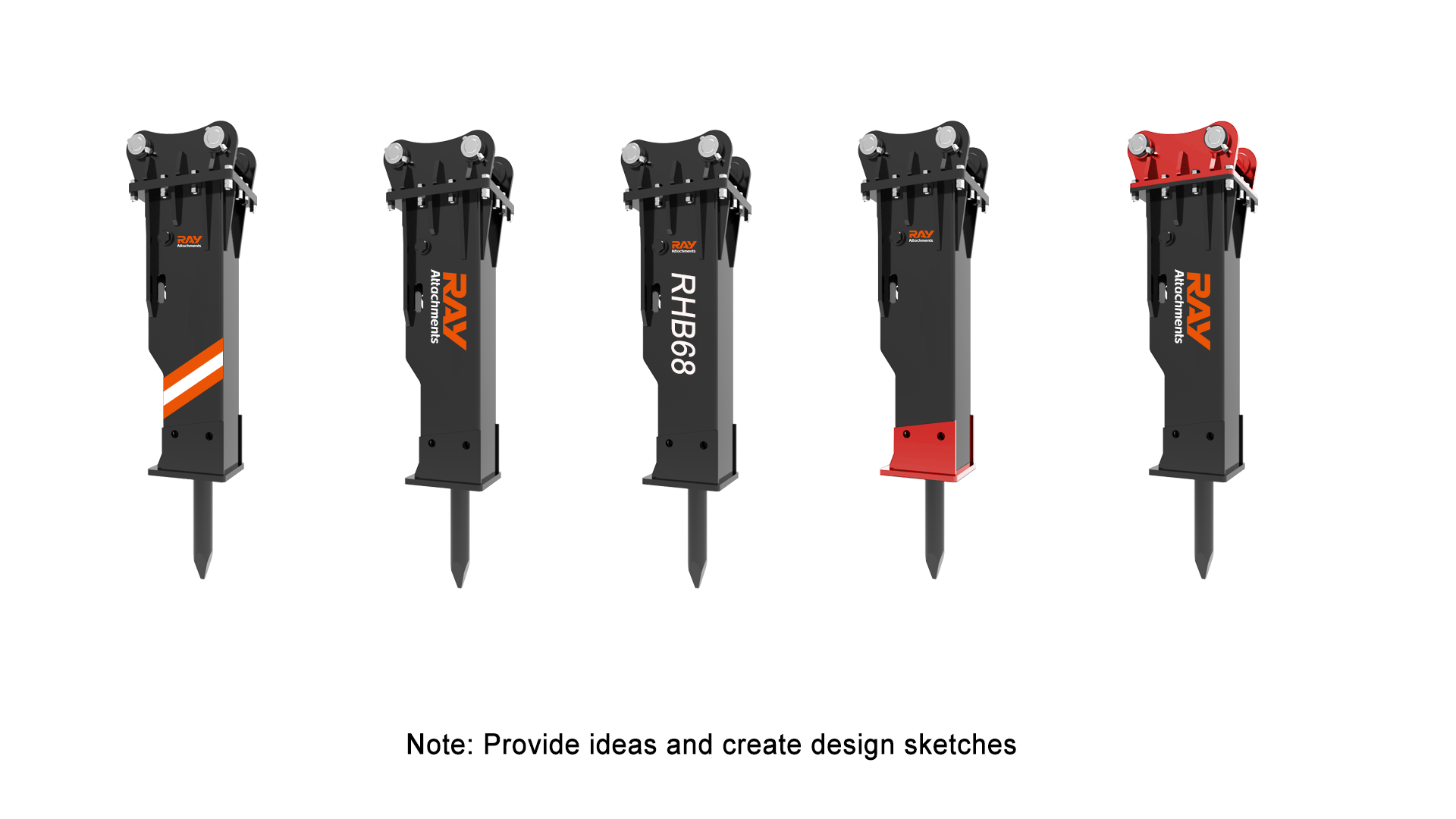

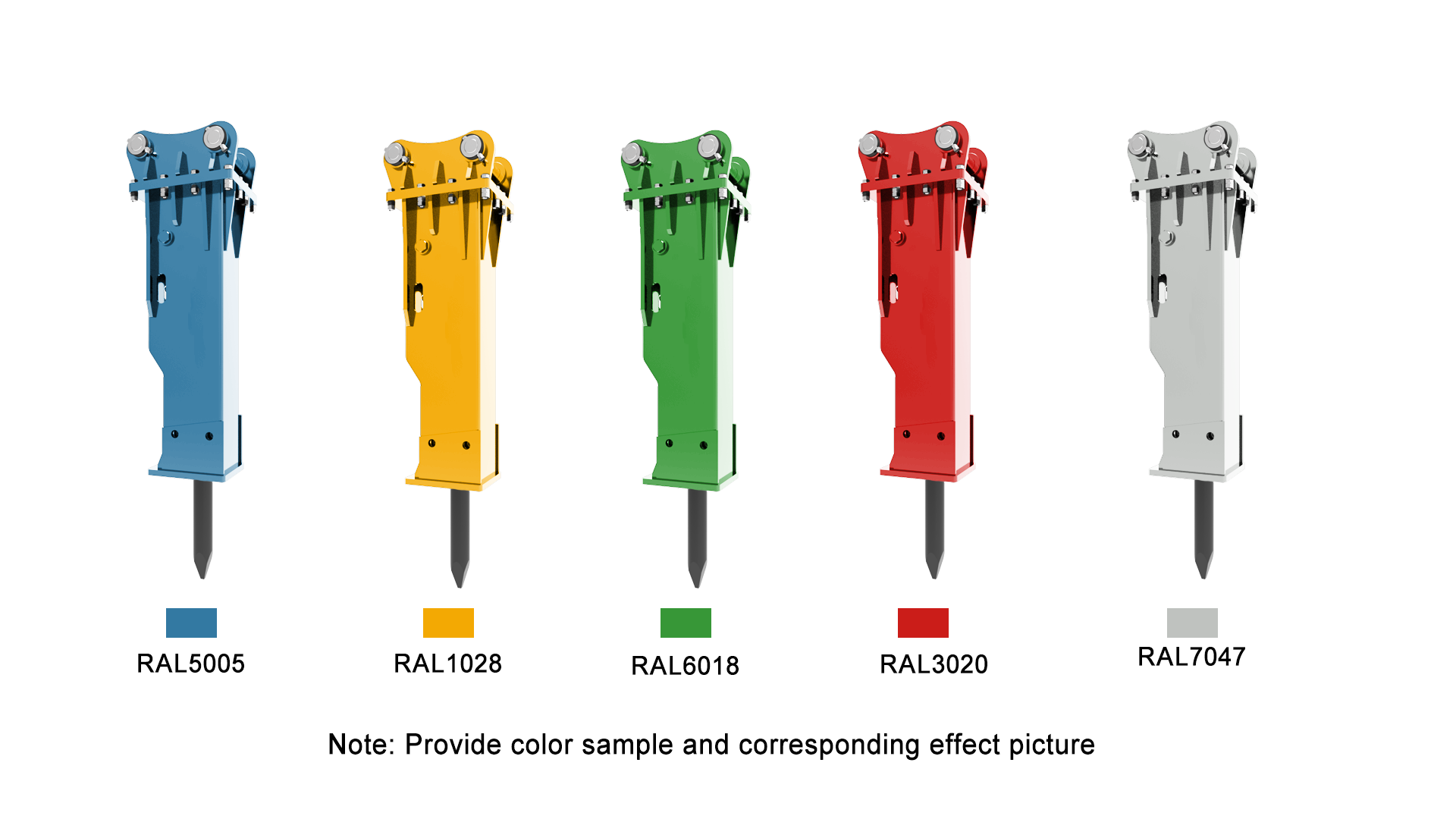

COLOR CUSTOMIZATION

Simply share your preferred color code with us, and we’ll create a detailed visual mockup to help you visualize the final effect before production.

LOGO CUSTOMIZATION

Simply communicate your creative ideas or specific requirements, and we’ll create detailed visual mockups to bring your vision to life—for your confirmation before production.

NAMEPLATE CUSTOMIZATION

Opt for our ready-to-use universal template or provide your unique design requirements—we’ll create a detailed visual mockup to confirm the final look before production.

REQUEST A QUOTE

WHY CHOOSE US BREAKER

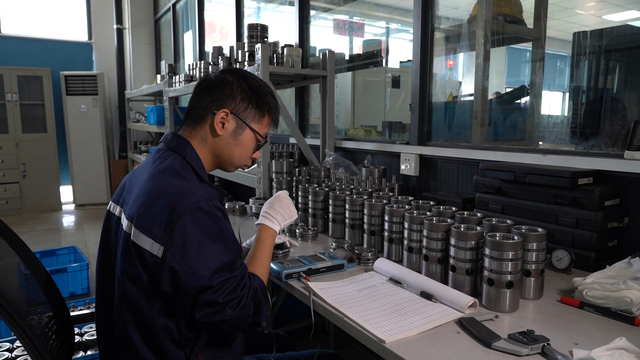

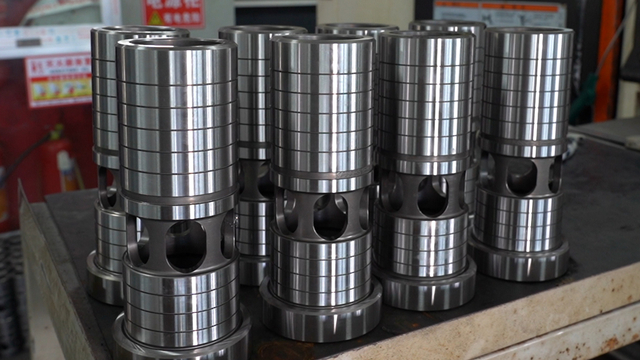

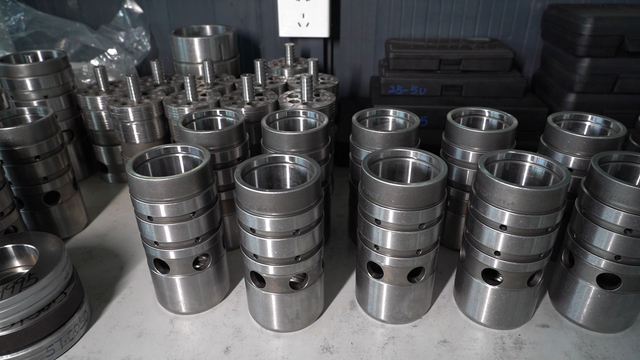

High precision matching ensures stable, durable striking power and durability.

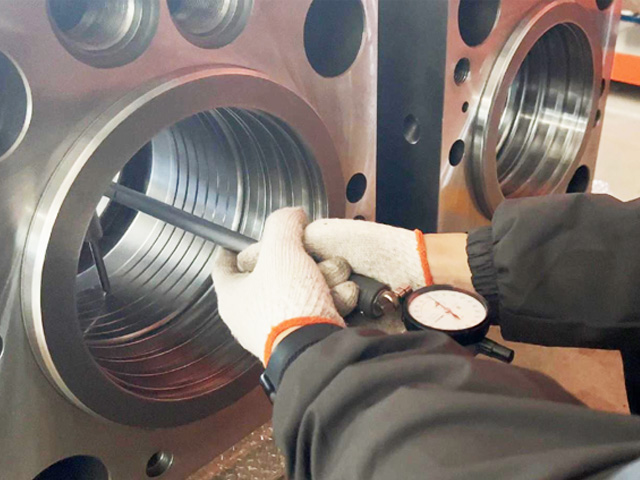

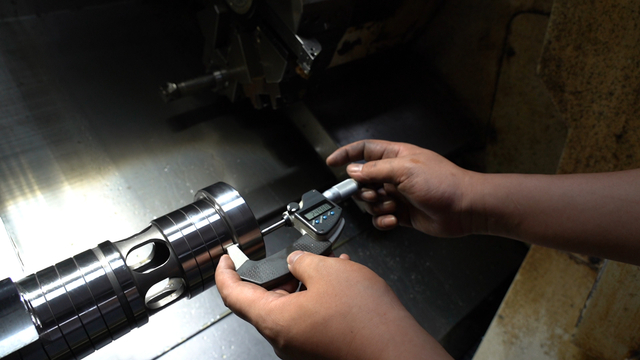

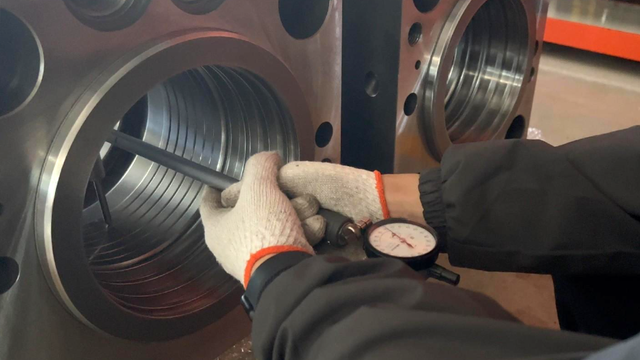

Precise grinding ensures tolerance under 0.01mm, maintaining strong striking power.

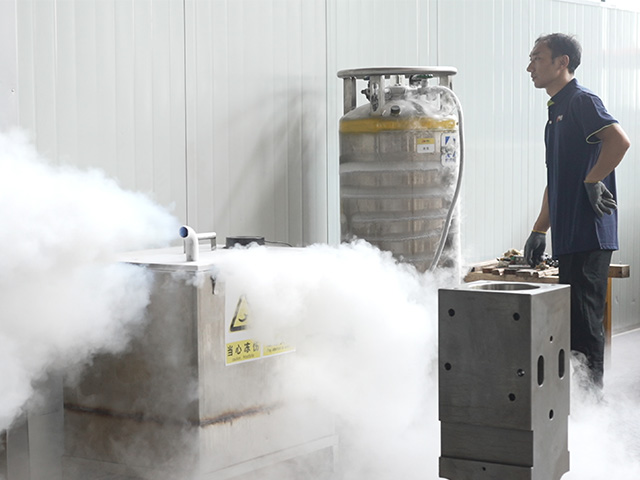

Liquid nitrogen cooling ensures a tight, wear-resistant, damage-preventing match.

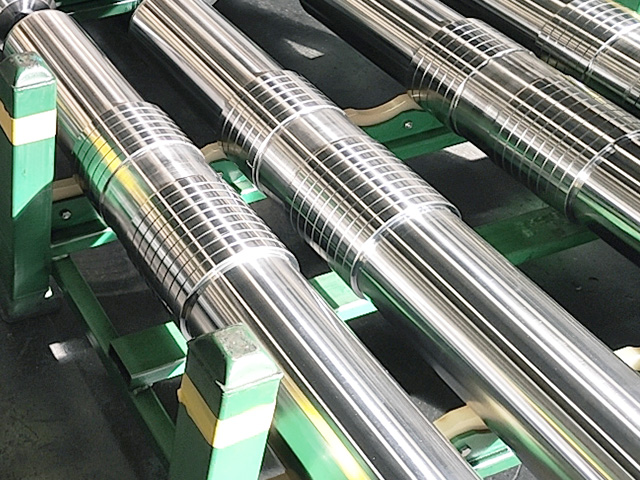

Quality materials, precise grinding, and assembly increase striking power, reducing damage.

REQUEST A QUOTE

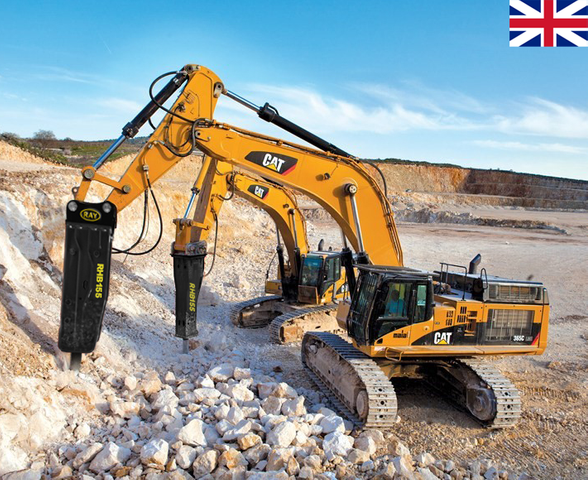

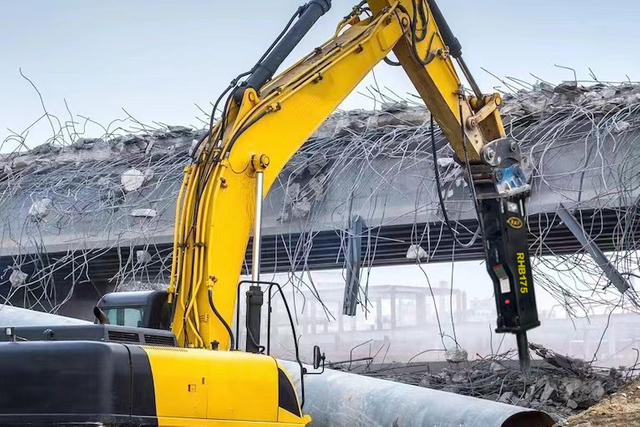

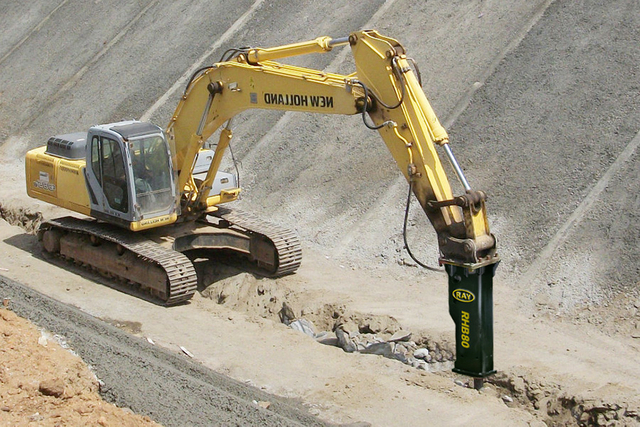

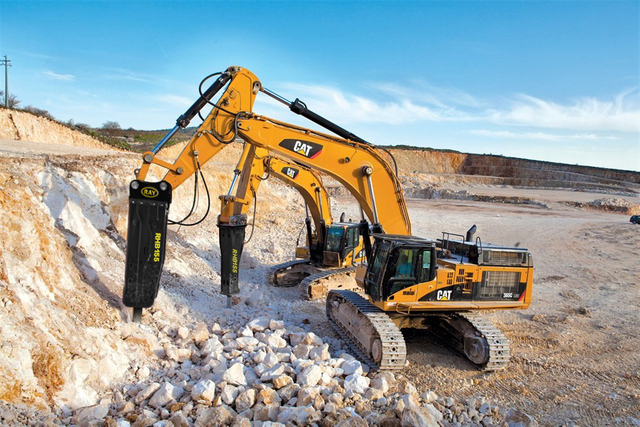

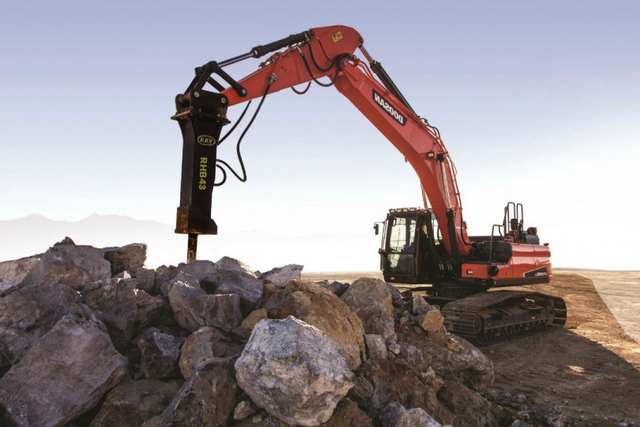

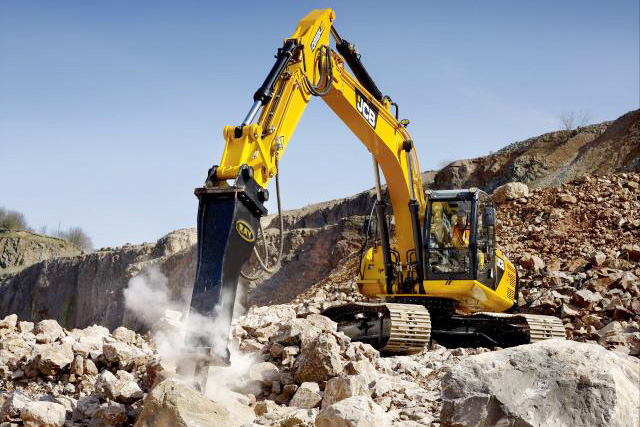

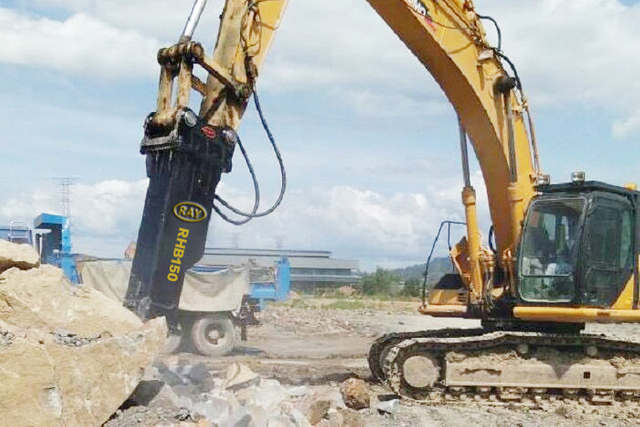

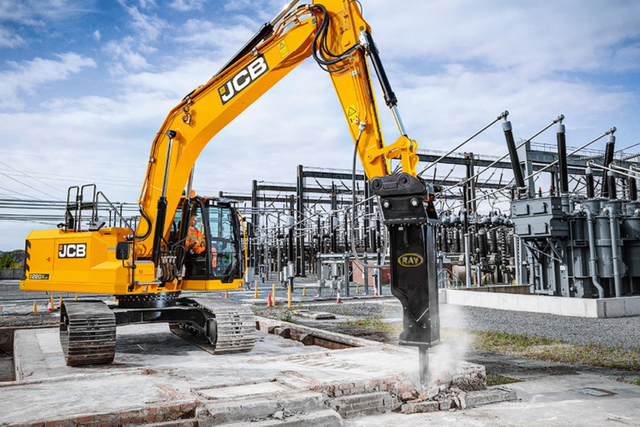

APPLICATIONS

REQUEST A QUOTE

CUSTOMER WITNESS

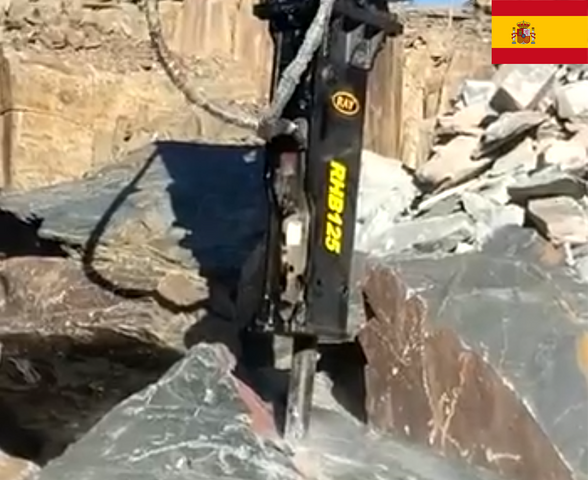

Distribuimos RHB125 en España desde 2023

Distribuimos RHB125 en España desde 2023. La resistencia a condiciones climáticas locales (temperaturas extremas y polvo) supera a modelos europeos comparables, aunque el embalaje podría ser más compacto para reducir costos de transporte. Nuestros clientes destacan la compatibilidad perfecta con equipos españoles como Caterpillar y JCB, lo que acelera la integración en proyectos. El servicio técnico local responde en menos de 48h, aunque algunas veces hay demoras en el envío de piezas específicas.

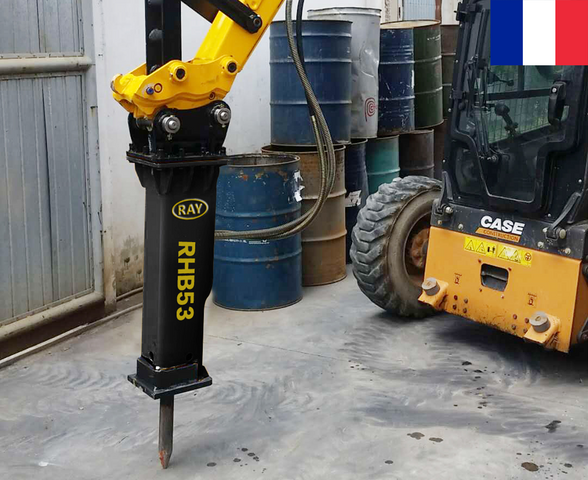

Notre entreprise utilise RHB53 dans les chantiers agricoles

Notre entreprise utilise RHB53 dans les chantiers agricoles. La puissance impressionnante permet de travailler sur des sols rocheux sans effort. Cependant, le manuel d'utilisation pourrait être plus détaillé en français. Le service après-vente est rapide, nous avons reçu une réponse en moins de 24h pour un problème mineur de joint d'étanchéité.
Quarries and complex construction sites use

For over a year, we've utilized your brand's hydraulic couplings in quarries and complex construction sites. Their durability and adaptability to extreme conditions (hard rock, intense vibrations) have impressed us. Unlike other models, they require minimal maintenance while remaining effective even in the most demanding scenarios. Your innovative technology and rapid technical support enable us to meet deadlines reliably. We've found in you a partner who understands our needs and values durability as deeply as we do.

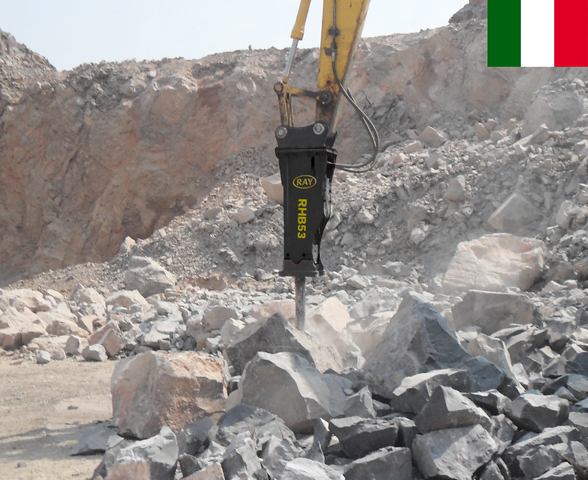

Italian Distributor

Ciao！Come distributore in Italia, collaboriamo con RAY da oltre tre anni. I loro attaccaggi resistono perfettamente nelle più dure condizioni operative (Alpi, Appennino) e in tre anni non abbiamo ricevuto alcun reclamo sulla qualità.
Ci hanno convinto il supporto tecnico personalizzato, con guide italiane per ogni situazione e pacchetti di ricambi standardizzati. Anche la consulenza remota in tempo reale è stata fondamentale.
Speriamo in un futuro miglioramento del tempo di consegna (45 giorni attuali), ma consigliamo RAY a tutti: nel nostro Paese, affidabilità e servizio fanno la differenza.
Scoprite voi stessi la qualità orientale che conquista l’Italia!
