More Than Durable

Super Wear-resistant Log Grapple

We empower your brand with premium forestry attachments, combining global-tier components with the cost-efficiency of integrated manufacturing

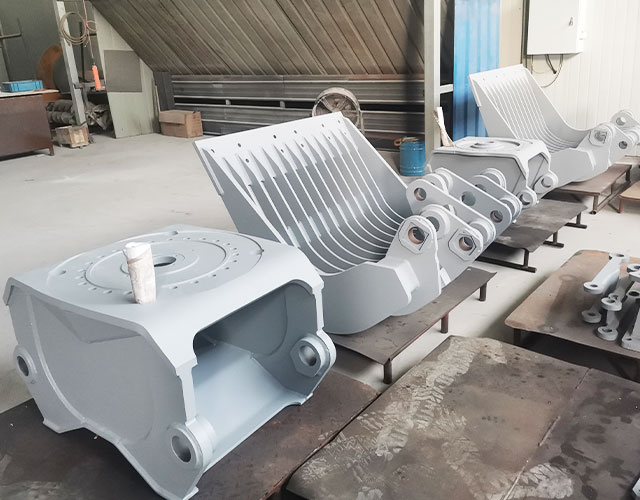

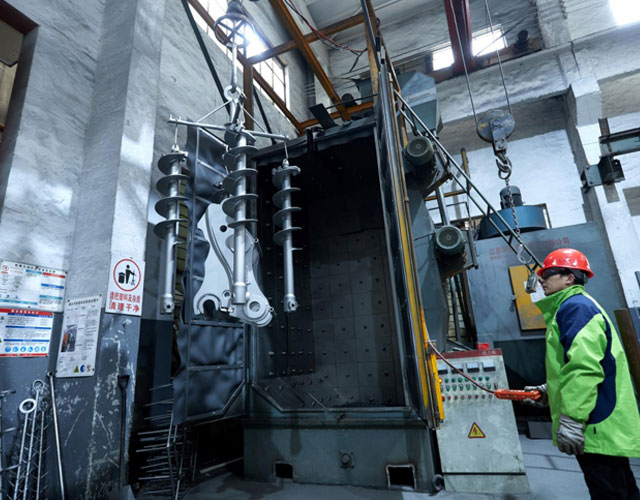

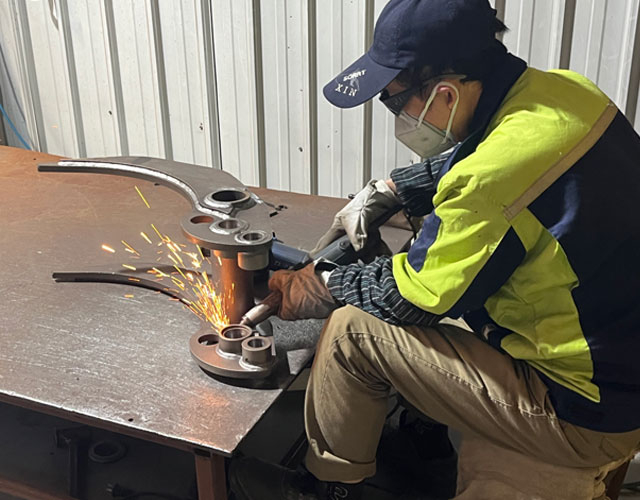

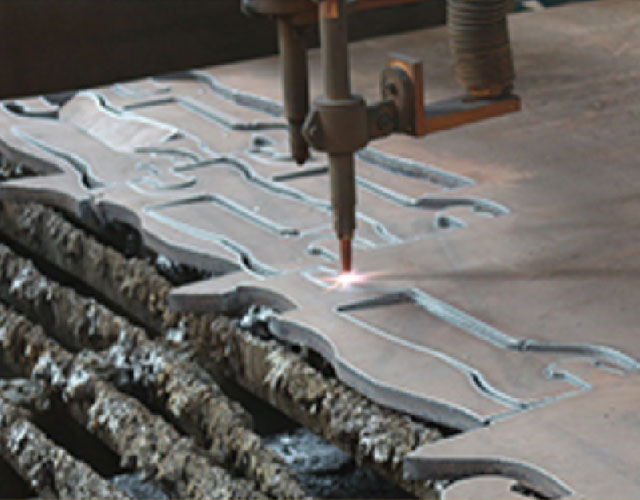

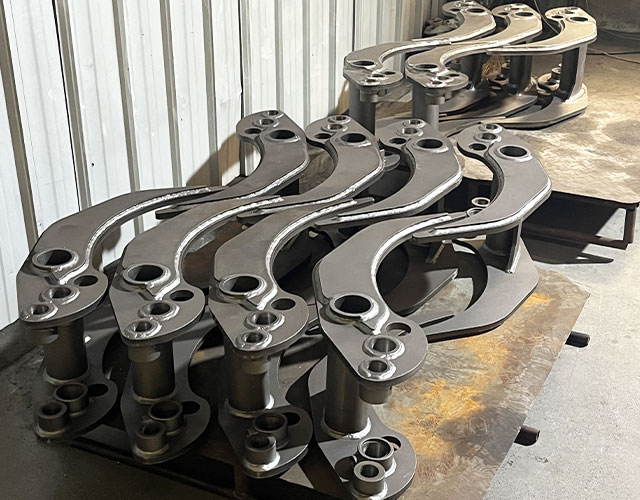

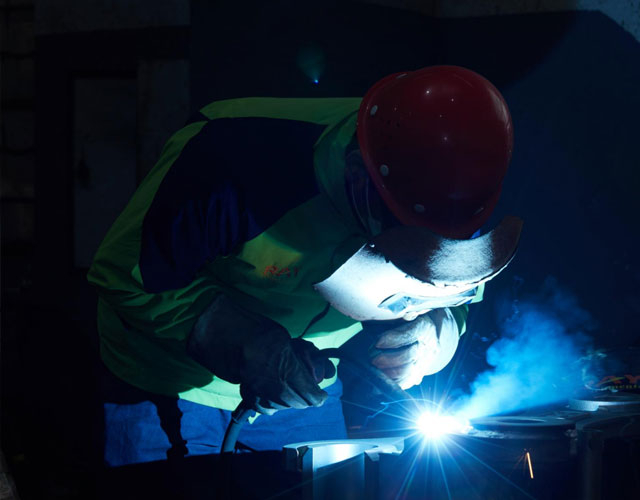

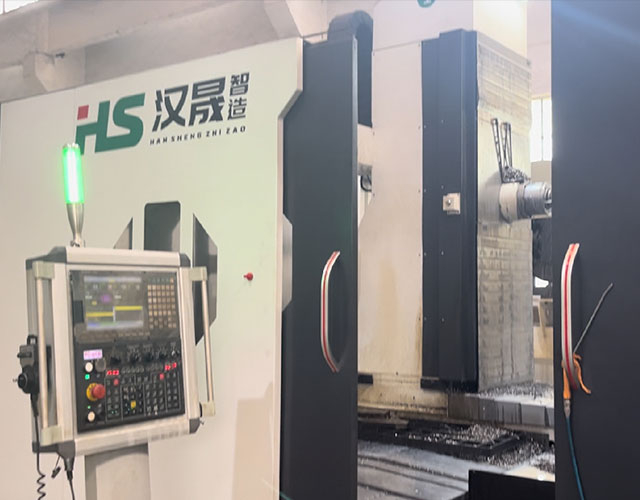

Proven production process ensure our products are built to last.
We use durable materials and top-brand components for all key parts.

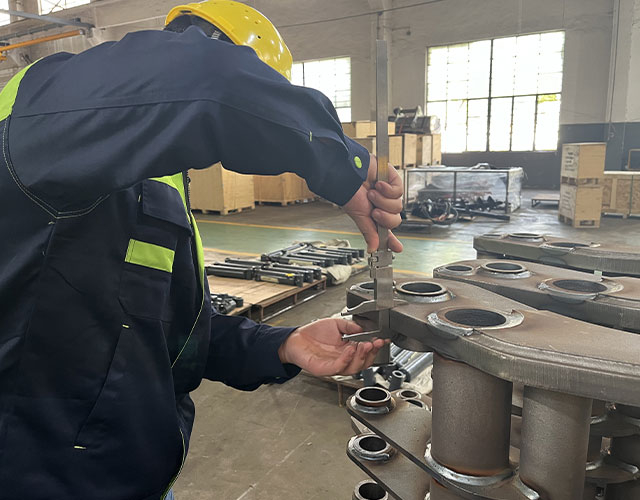

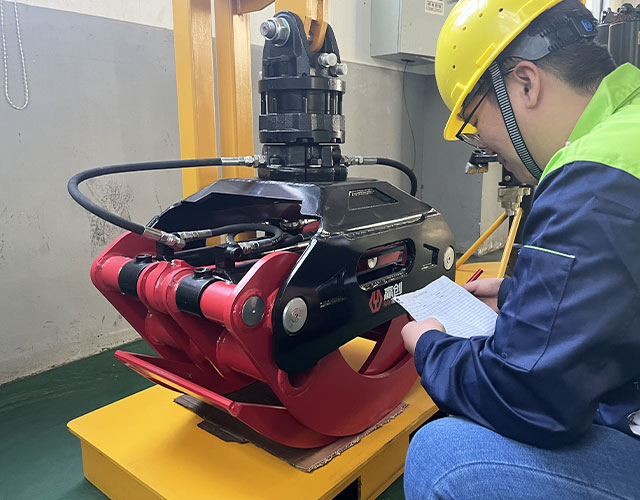

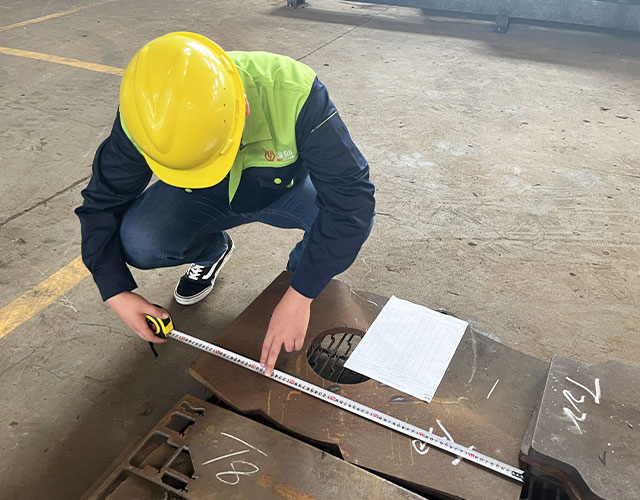

Our rigorous inspection process to ensure durable quality.

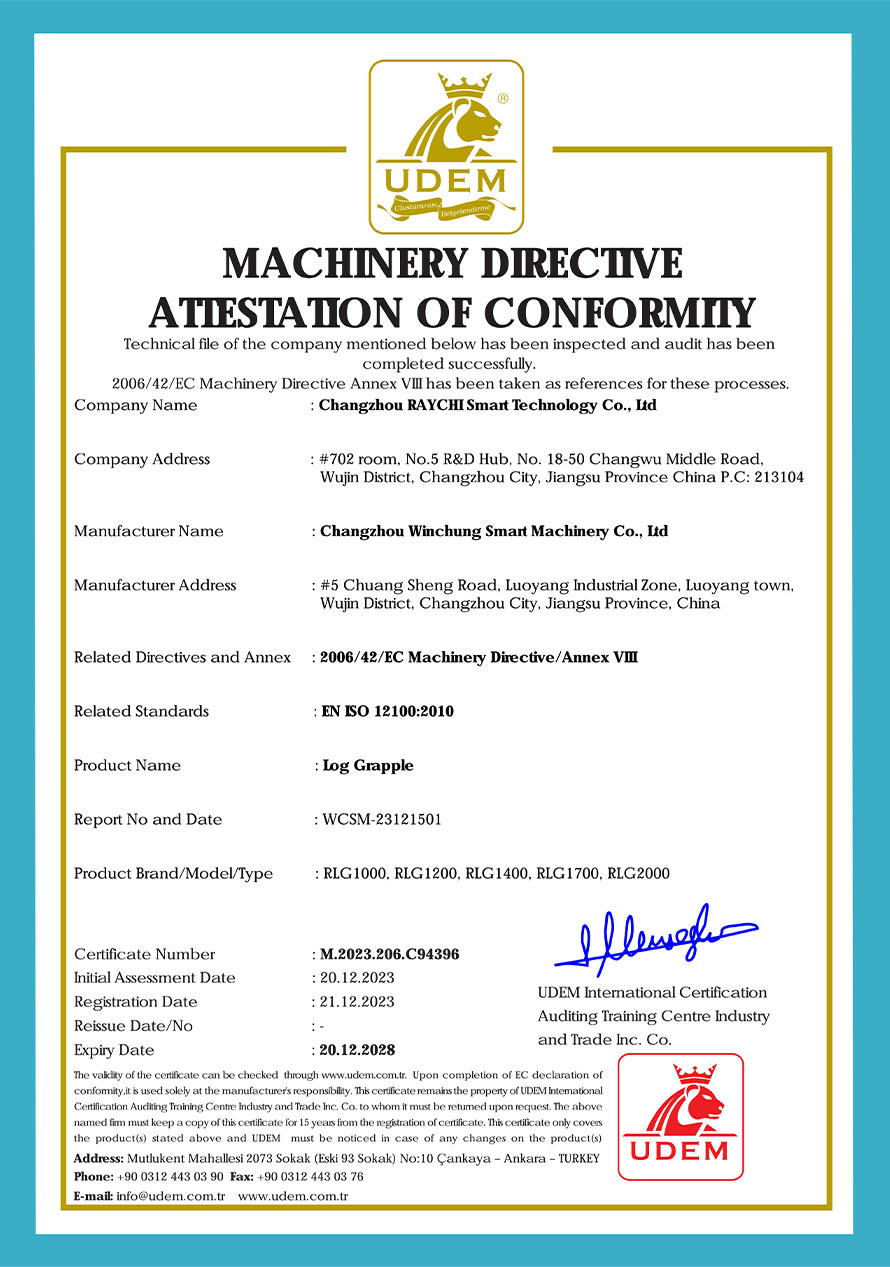

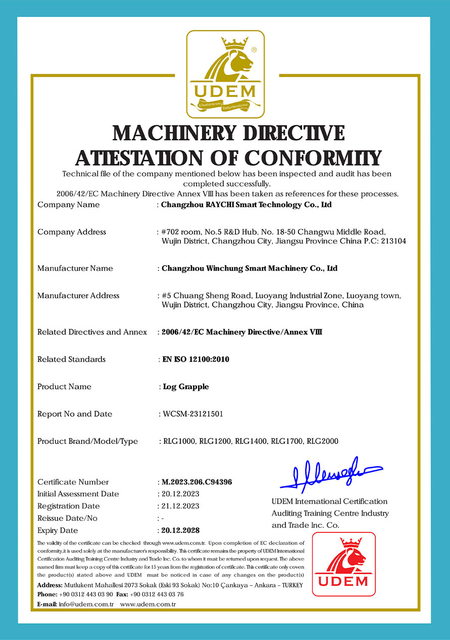

OEM-Certified Quality Assurance

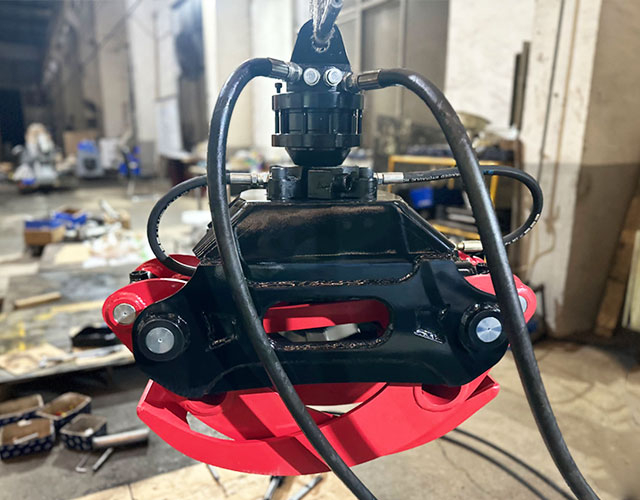

  360° Heavy-Duty Rotation: Integrated relief valve for extreme safety.

  Opening Range: 1000mm to 2000mm, optimized for diverse forestry applications.

  Synchronized Closing: High-torque cylinder ensures powerful, balanced gripping force.

  Material Integrity: Every RAY log grapple is crafted from NM400 wear-resistant steel, ensuring a service life that outlasts standard industry offerings in high-stress forestry environments.













Competitive Factory Pricing for Better Profitability

As a direct manufacturer, we help you controlcosts and improve market competitiveness.
  Flexible volume discounts for one-stop assortment orders- Stable cost system for long-term OEM cooperation- Transparent quotation without hidden charges.
  We believe durability is a result of rigorous selection. RAY implements a 5-stage qualification process for every supplier.

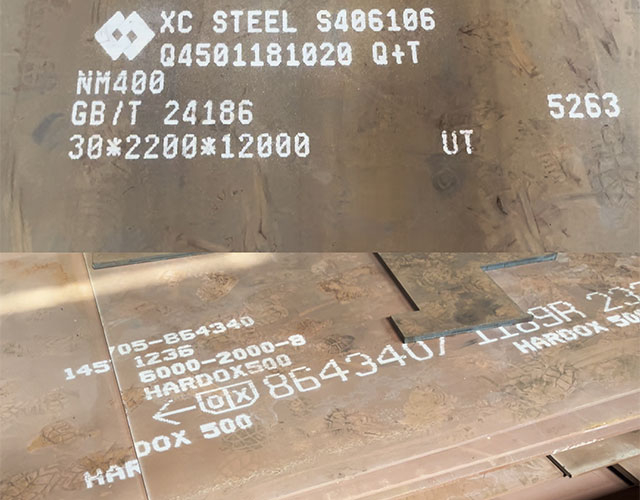

  We integrate NM400 wear plates as standard. We don't just assemble; we curate excellence to ensure superior performance on heavy-duty job sites.

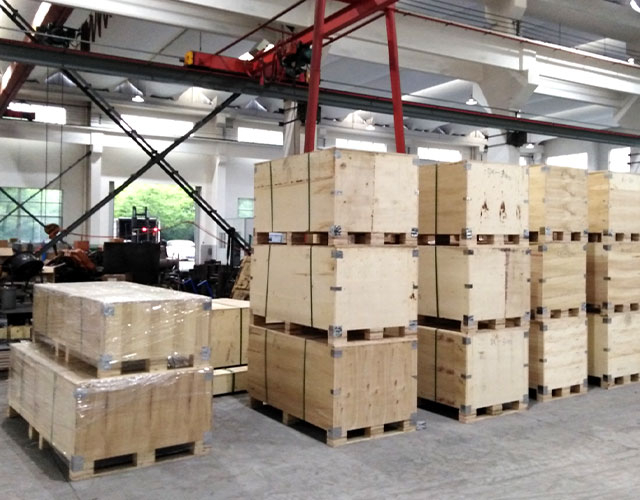

   The 30-Day Promise: For full container orders, we guarantee a 1-month lead time, backed by our highly synchronized "1+N" factory-trading model.

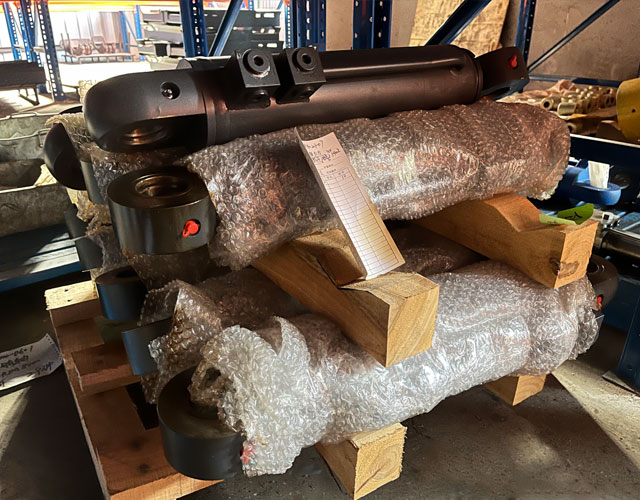

   Critical Parts Stock: We maintain a massive inventory of wear parts, seals, and hydraulic components. Downtime is not an option; we ensure 48-hour dispatch for essential spare parts.

The 1+N Integrated Supply Model: One Partner, Total Solutions

  Streamline your procurement by sourcing your core grapples and all matching attachments (N) from a single quality-controlled point.

  Consolidated Logistics: Save up to 20% on shipping by loading diverse attachments in one container.

  Market Protection: Exclusive regional agency systems and HD marketing support for our OEM partners.

LOG GRAPPLE

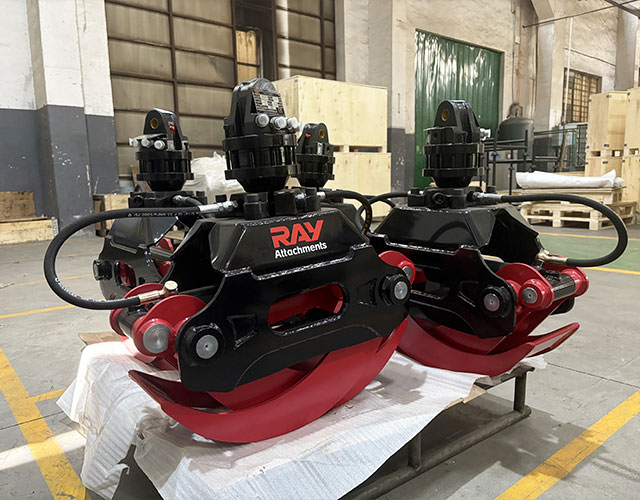

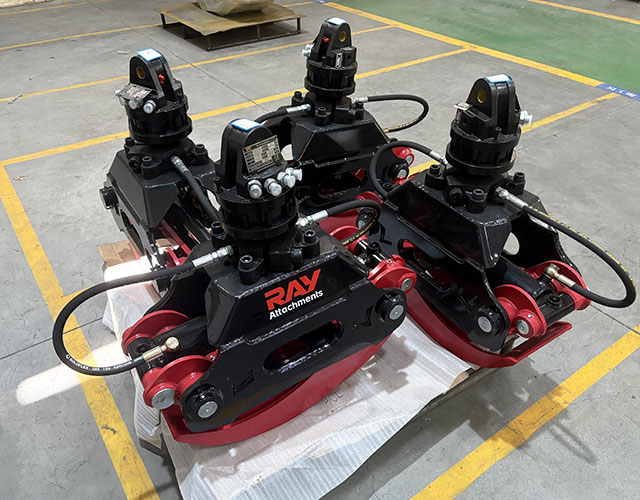

RAY High grabbing power Super wear-resistant log grapple
Available for excavators from 1 to 24T
360 degree rotation system
NM400 material with longer service life
Light weight with powerful grabbing force
Wider opening size from 1000-2000mm

PRODUCT INFORMATION

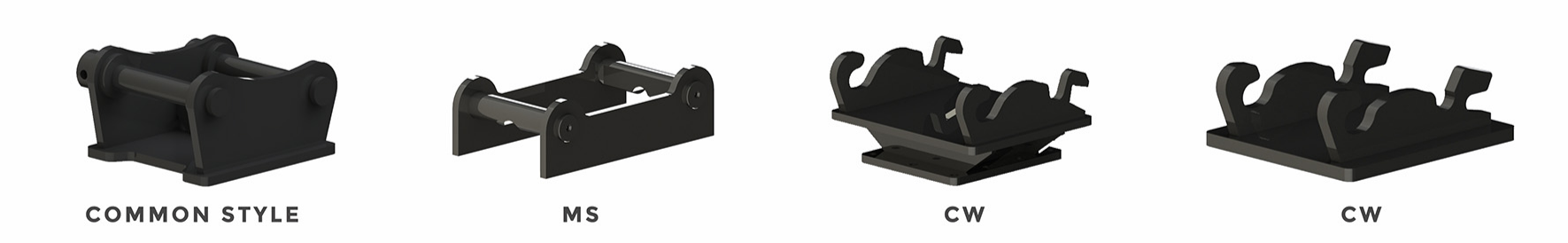

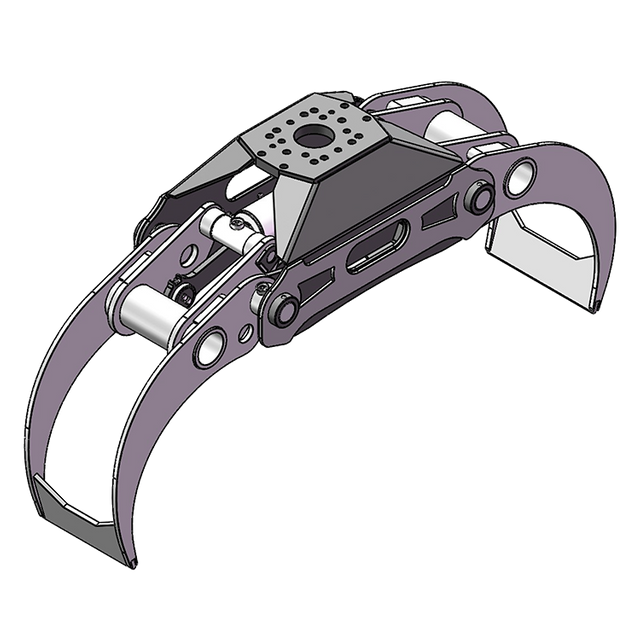

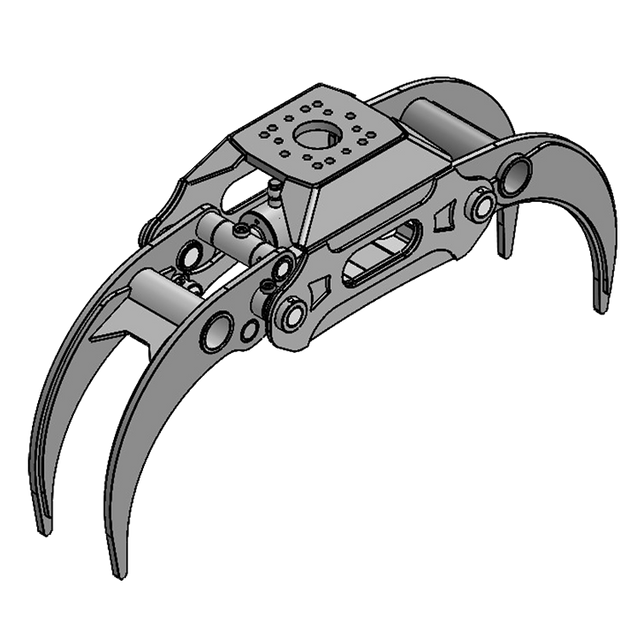

 Log Grab Types
* Compatible with Leading European Interface Standards: MS / CW Standard Flanges
 Log Grapple Specification

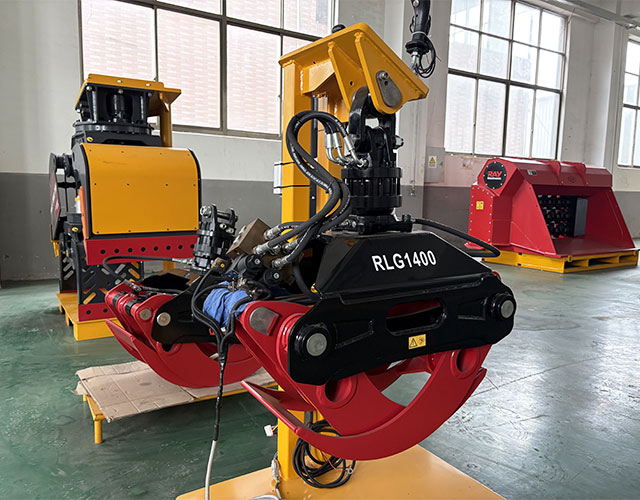

Model Unit RLG1000 RLG1200 RLG1400 RLG1700 RLG2000
Excavator weight Ton 1-3 1-5 5-7 12-16 17-24
Lbs/Pounds 2000 - 6000 2000 - 10000 10000 - 14000 24000 - 32000 34000 - 48000
Weight
(Without motor)
Kg 69 82 139 260 365
Lbs/Pounds 152 181 306 573 805
Weight
(With motor)
Kg 89 107 169 312 435
Lbs/Pounds 196 236 373 688 959
Working pressure Bar 210 210 210 210 210
Max load Kg 1500 2000 2000 3000 5000
Lbs/Pounds 3307 4409 4409 6614 11023
Max clamp power KN 9.5 12 14 17 21
Materia Material  NM400 NM400  NM400 NM400 NM400
Rotation motor Model 30F 40F 50F 60F 100F
Oil hose inch 3/8 3/8 3/8 1/2 1/2
SERVICE GUARANTEE SYSTEM
SERVICE GUARANTEE
15-20 day rapid delivery (for regular orders)
Support OEM/ODM customization
Provide 12 months warranty

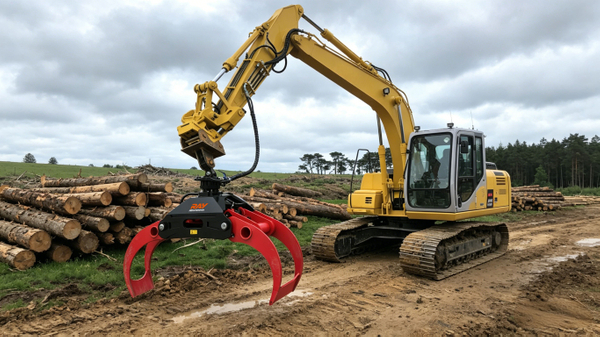

CUSTOMER WITNESS
