Vibro ripper is a new generation attachment recently developed and manufactured to effectively excavate, crush and destroy soft rock mass such as rocks weathered by wind and water, hard soil, slate, quartz, concrete, and asphalt. It makes light work of ripping the soil to be more productive and easier.
Mass demolition, civil construction
Open pit minig area, tunneling
Downtown construction site
Noise restriction area
Cracked rock and layered rock
Productivity can reach up to 3-5 times equivalent to a breaker with less than 6-level hardness
Low noise Level (Approx.30dBA lower than equivalent breaker)
Underwater works (10-15m)
All units are tested before being delivered to the customer
Lower maintenance cost
We are navigator of Chinese Vibro Ripper and we have professional technology team, produce team and sales team. Our vibro ripper has won two national invention patents and a number of utilitymodel patents, is protected by China Intellectual property.

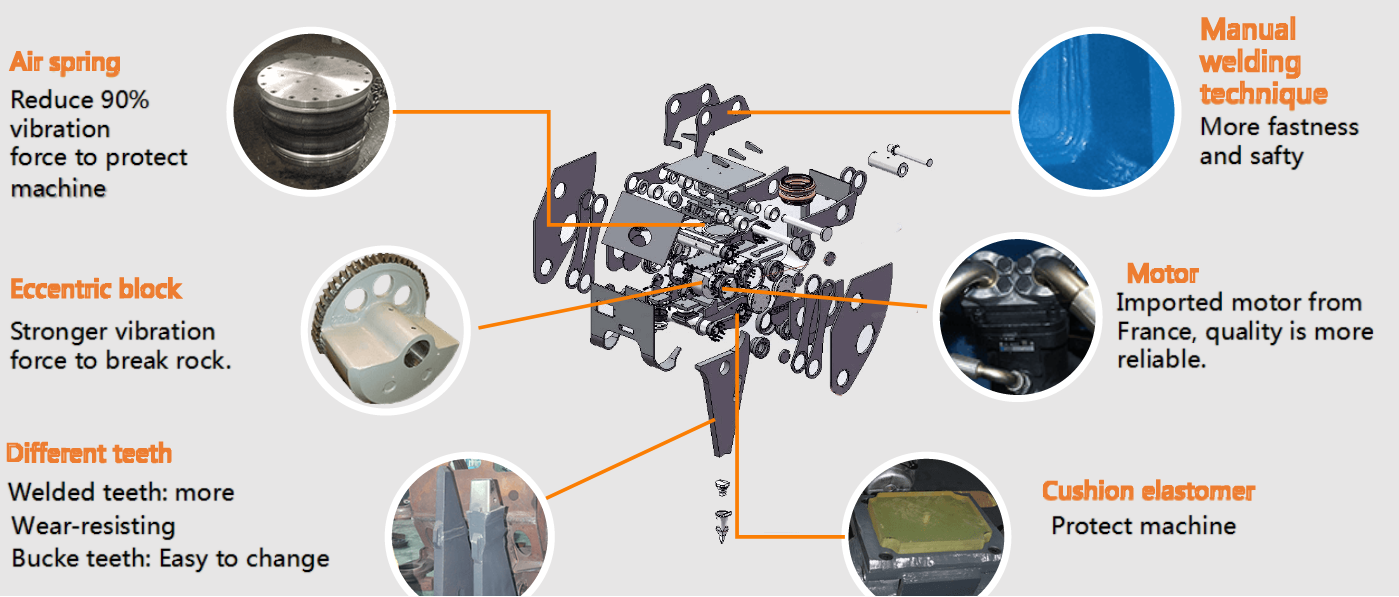

We use air springs on top of Vibro Ripper, and some brands use side rubber designs.

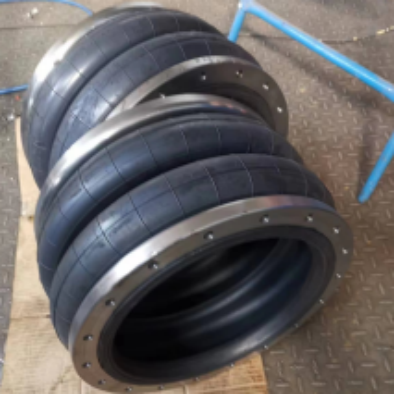

Air Spring: Top design rubbers with more powerful vibration.

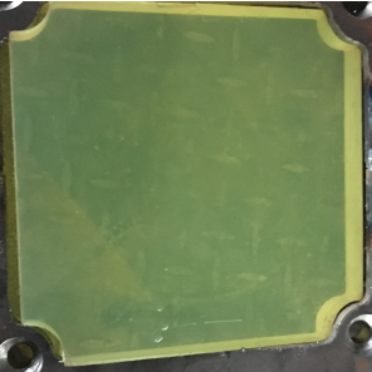

Cushion Elastomer: Avoid the vibration box touching the ripper's shell body directly when the air spring doesn't have enough gas in it.

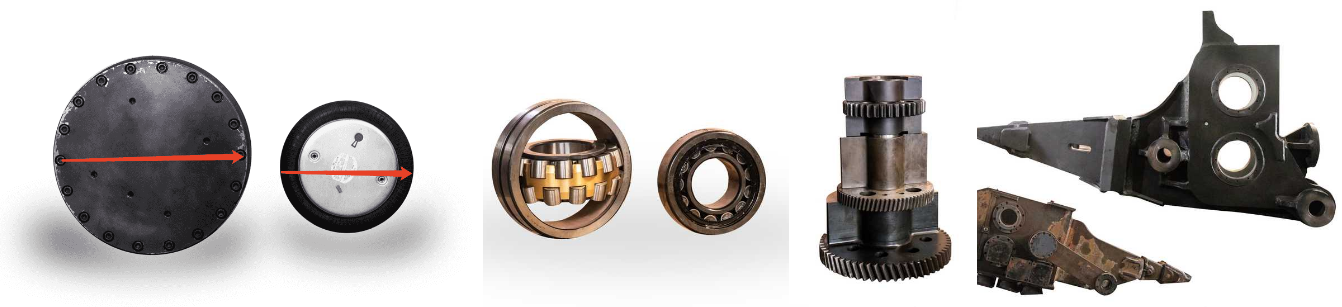

1. Productivity is 2 times that of others
2. Different design: South Korea's amplitude is short, and the technology and ability are not up to limit the force of the high-frequency hammer.
RAY uses a four-bar linkage structural with anti-vibration bearing, to ensure enough braking power and longer service life.
1. The Gas Spring charges around 7-9kg (with the meter in the toolbox), and the charge is placed under the excavator rack.
2. How to check the pressure:
2.1 Place the equipment tip facing the ground, press the excavator down and the front track should be about 20 cm away from the ground.
2.2 Look at the distance between the iron plate and rubber buffer block of the rear movement of the equipment. The distance should be around 5-8 cm.
2.3 If it is too high, the pressure should be increased if it is not enough, and if it is too high, the pressure should be released if it is too high.
Use the supplied main inlet and return hydraulic hoses to connect the main oil inlet and main return port to the oil inlet and return hard pipes of the excavator's backup pipeline respectively as shown in the right view; the hydraulic high-speed motor drain port is supplied with the supplied. The drain pipe is directly connected to the hydraulic oil tank of the excavator, and must not be connected in parallel or in parallel with any oil pipe or valve group.
