Durability, Precision, and Versatility for Excavators & Loaders
Powered by the host machine’s hydraulic flow (120-320 L/min), our screening buckets feature foot-pedal-controlled drum rotation for precision operations:
Forward Rotation (15-25 RPM): Crushes hard materials (glass, bricks, gypsum)
Reverse Rotation (2-3 RPM): Self-cleaning mode prevents clogging in high-moisture clay (up to 40% water content)
Instant Switching: <0.5s transition via torque-sensing automation
Spiral blade configuration enhances centrifugal separation
Maintains 95%+ throughput efficiency in wet conditions
Outputs stabilized backfill with ≤12mm particle size
Material: YG15 alloy (89+ HRA hardness)
5.2X lifespan vs standard manganese steel (ASTM G65 tested)
Modular replacement: <30 minutes per segment
10,000-hour MTBF certification
IP69K waterproof rating (-40°C to 120°C operation)
±2% torque consistency
50mm Gap: Soil aeration/compost mixing
75mm Gap: Pipeline padding/aggregate separation
| Industry | Application | Technical Benchmark |
|---|---|---|
| Demolition | 1. C&D waste sorting | 90%+ material purity |
| Utilities | 2. Pipeline backfill prep | 95% compaction-ready output |
| Remediation | 3. Contaminated soil mixing | <5% CV in stabilization agent blend |
| Recycling | 4. Glass/gypsum crushing | 20-40mm fragment size |
| Agriculture | 5. Compost aeration | 40% oxygenation increase |
| Roadworks | 6. Subgrade material blending | <8% mixture variability |
| Model | RT20 | RT30 | RT40 |
|---|---|---|---|
| Capacity | 1.2 m³ | 1.7 m³ | 2.0 m³ |
| Weight | 2,010 kg | 2,640 kg | 3,050 kg |
| Flow Rate | 120-200 L/min | 150-220 L/min | 200-320 L/min |
| Compatible Machines | |||
| Excavators | 18-25T | 25-30T | 30-45T |
| Loaders | 9-14T | 12-22T | 14-30T |
80-120 m³/hour throughput (varies with brick density)
≤5% residual debris in screened soil
Continuous 8-hour operation with zero clogging
Output moisture reduction: 40% → 18-22%
8,000+ hours wear life in demolition waste (ISO 12100 certified)
500-hour continuous operation stress test passed
Cost Efficiency: Reduce material transport by 60-80% via on-site reuse
Environmental Compliance: Meet EU Stage V emissions through host machine optimization
Precision Control: Foot-pedal operation with real-time torque feedback
Request Technical Documentation
All performance claims are backed by CNAS-certified lab reports. Contact our engineers for:
Material-specific capacity calculators
Hydraulic compatibility guides
Wear life prediction tools

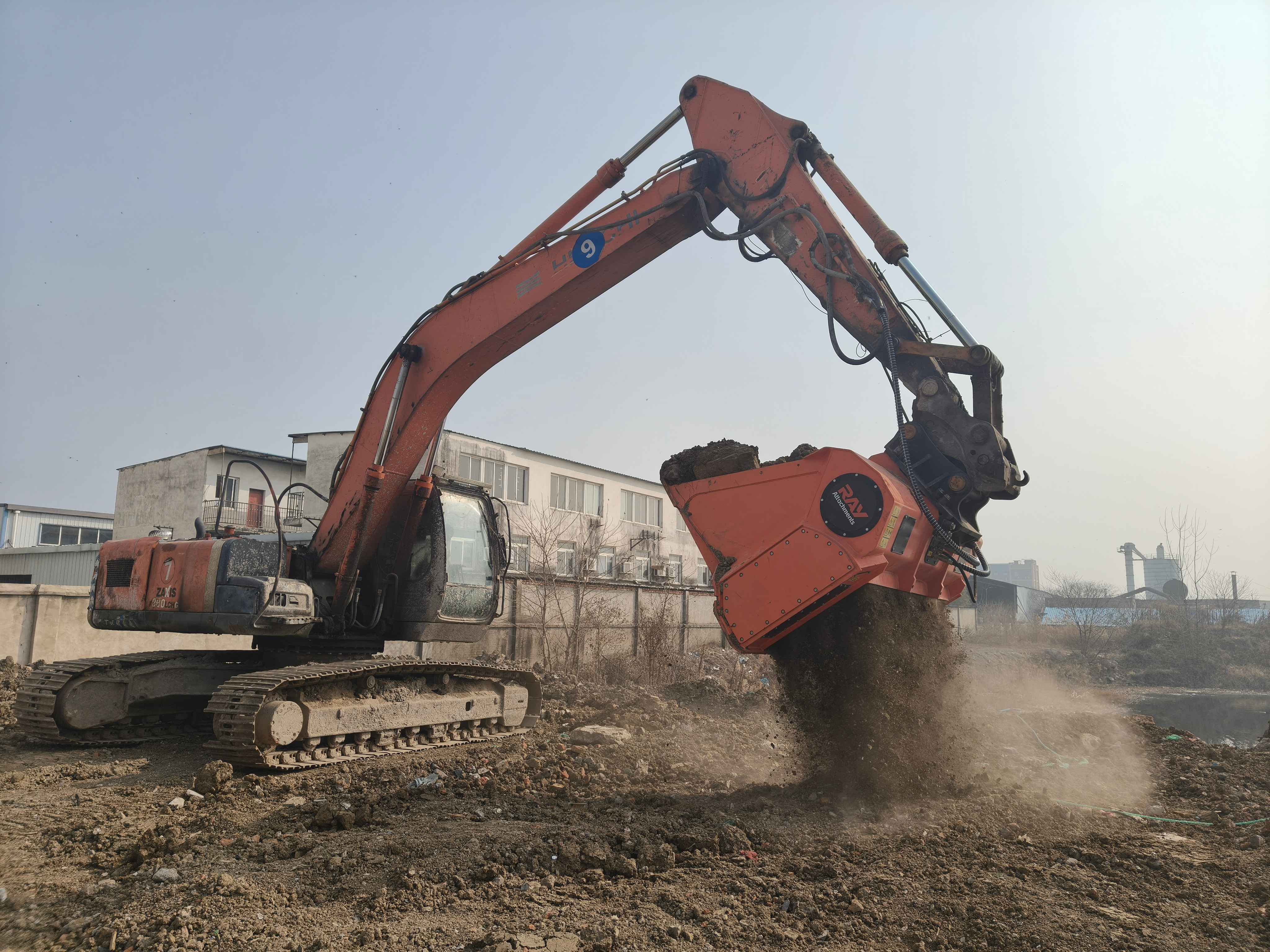

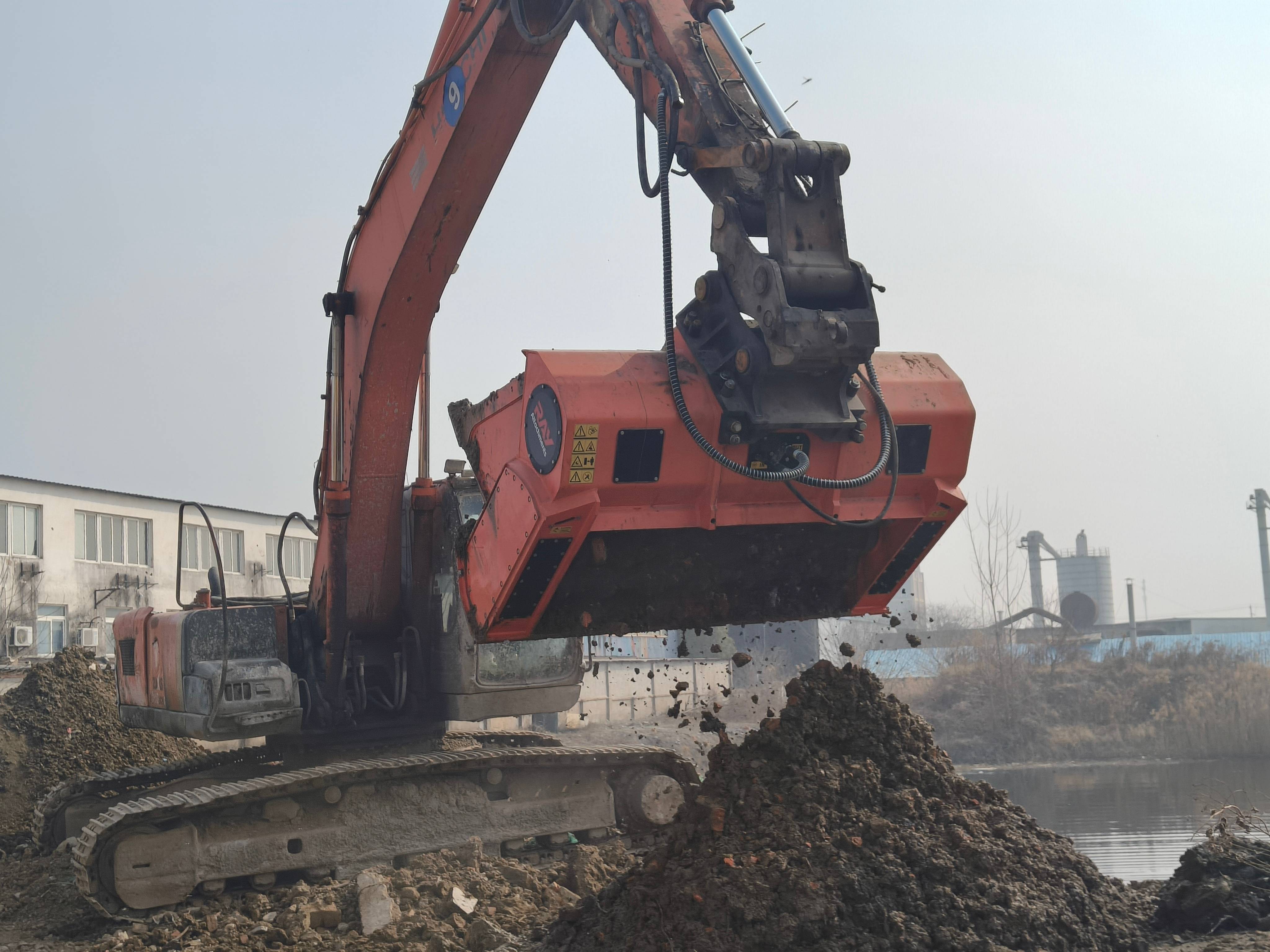

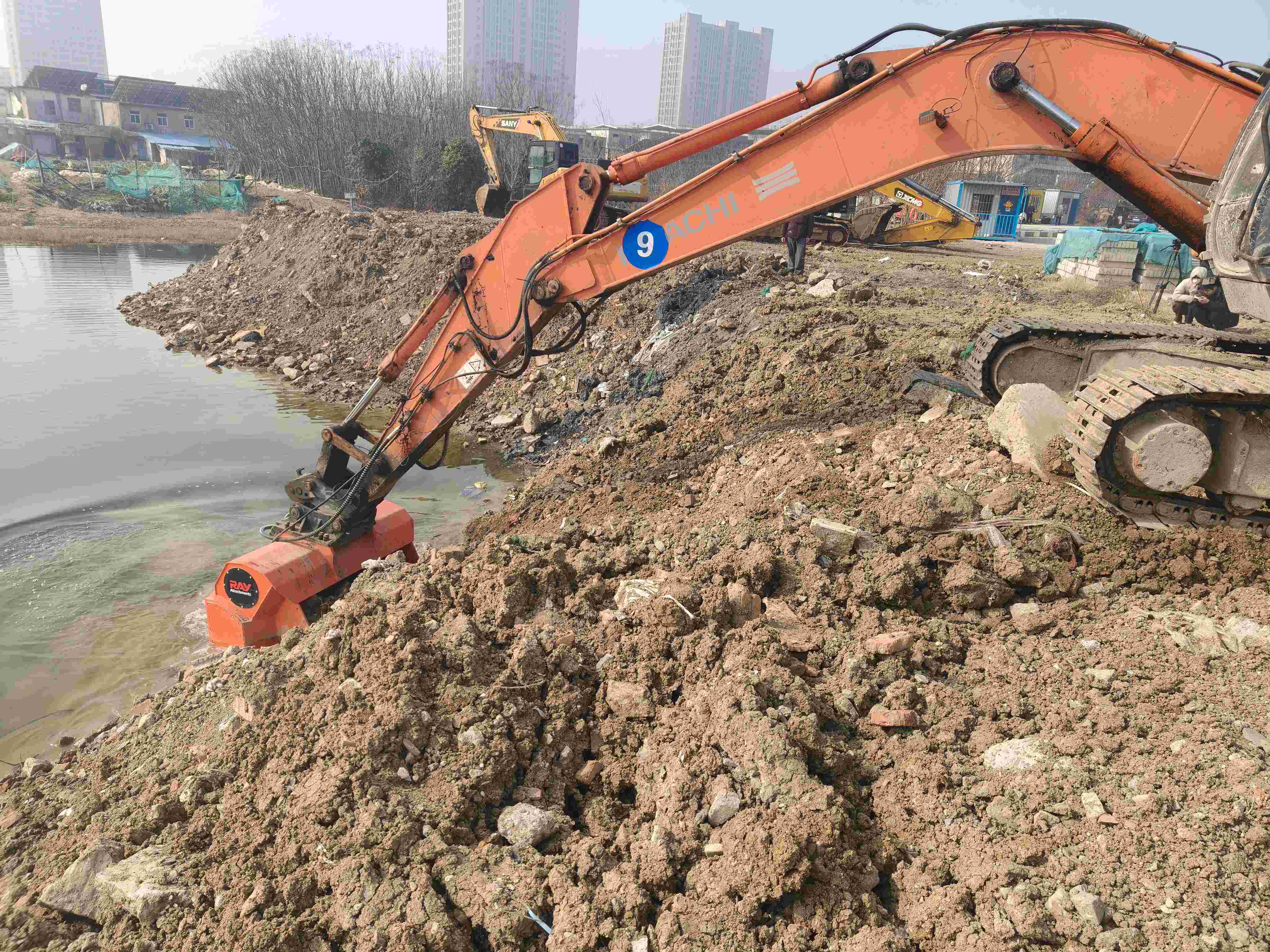

Our Screening & Crushing Bucket redefines on-site material processing by integrating crushing, screening, mixing, aeration, and loading into a single, robust attachment for excavators and wheel loaders. Engineered for maximum efficiency and durability, this innovative tool transforms raw materials into reusable resources while drastically reducing operational costs.
