RAY Attachments Auger Drives: Redefining Industrial Durability with High-Speed Rail Gear Technology

1. Core Technology: Three Hardcore Configurations for Excellence

1. Danfoss Motors – Power & Reliability Redefined

Equipped with customized Danfoss hydraulic motors, renowned for high torque output and precise speed control, our auger drives maintain stable power transmission even in tough terrains like frozen soil or rock. The built-in overload protection system adjusts power output automatically, reducing mechanical wear. The fully enclosed hydraulic system isolates dust and mud, enhancing longevity from the ground up.

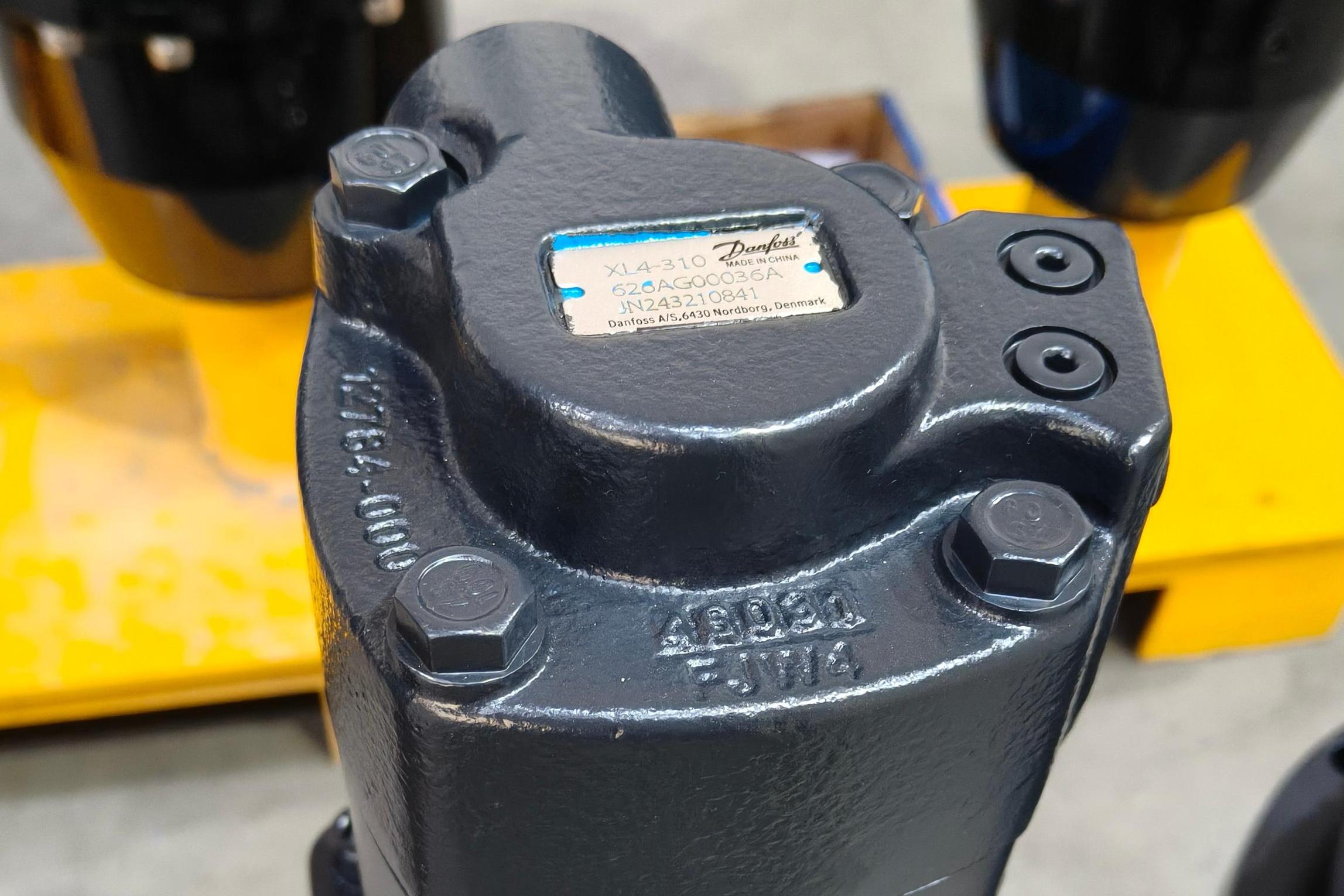

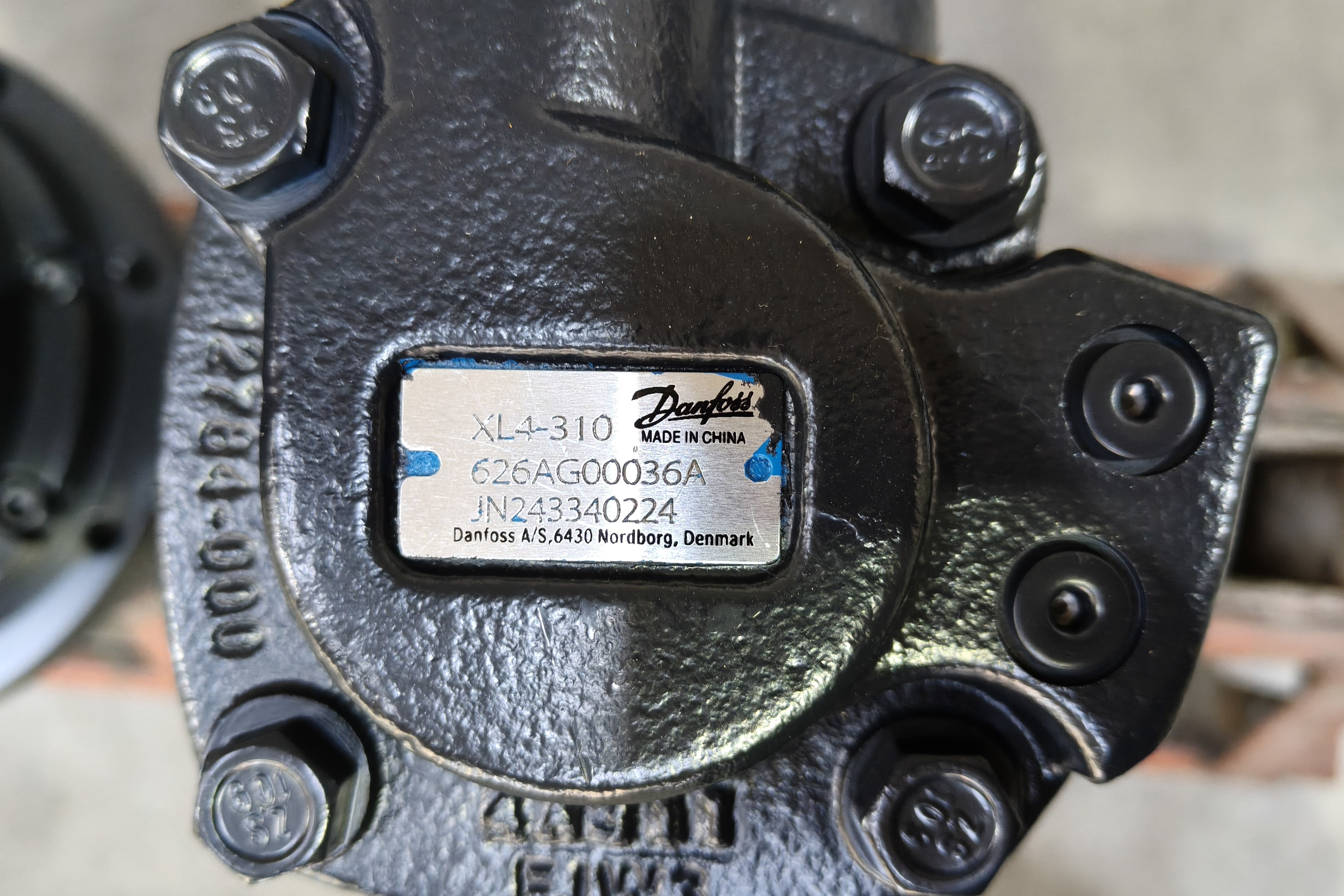

Danfoss motor

Danfoss motor

2. High-Speed Rail Gear Process – Industrial-Grade Precision Manufacturing

2.1 Precision Gear Design

Using exclusive Asymmetric Tooth Profile Modification, we optimize gear meshing contact zones via computer simulation, reducing vibration and noise to ≤300Hz (40% lower than industry average) while achieving ≥98% transmission efficiency. This design enhances drilling accuracy and minimizes gear wear, laying the foundation for extended lifespan.

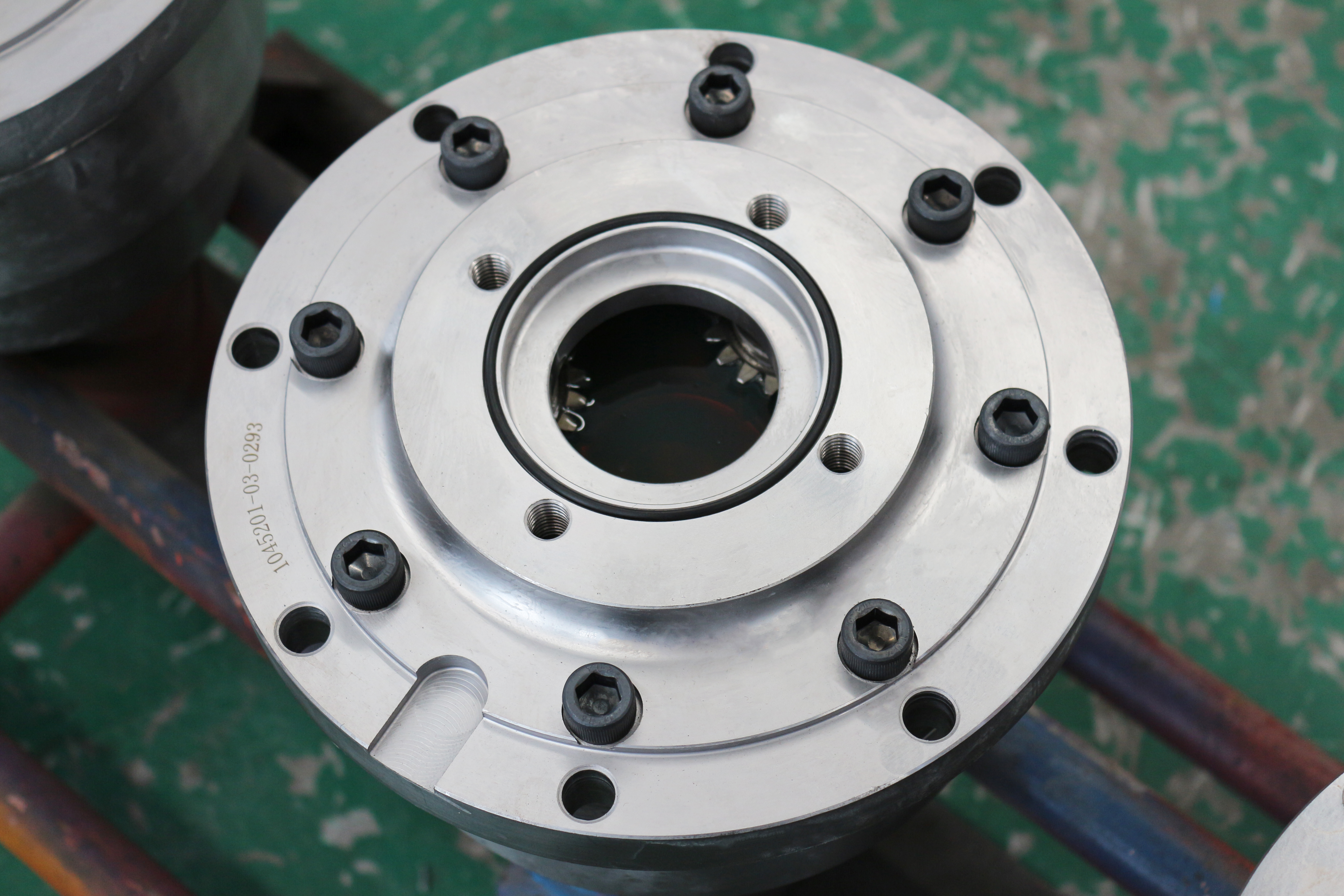

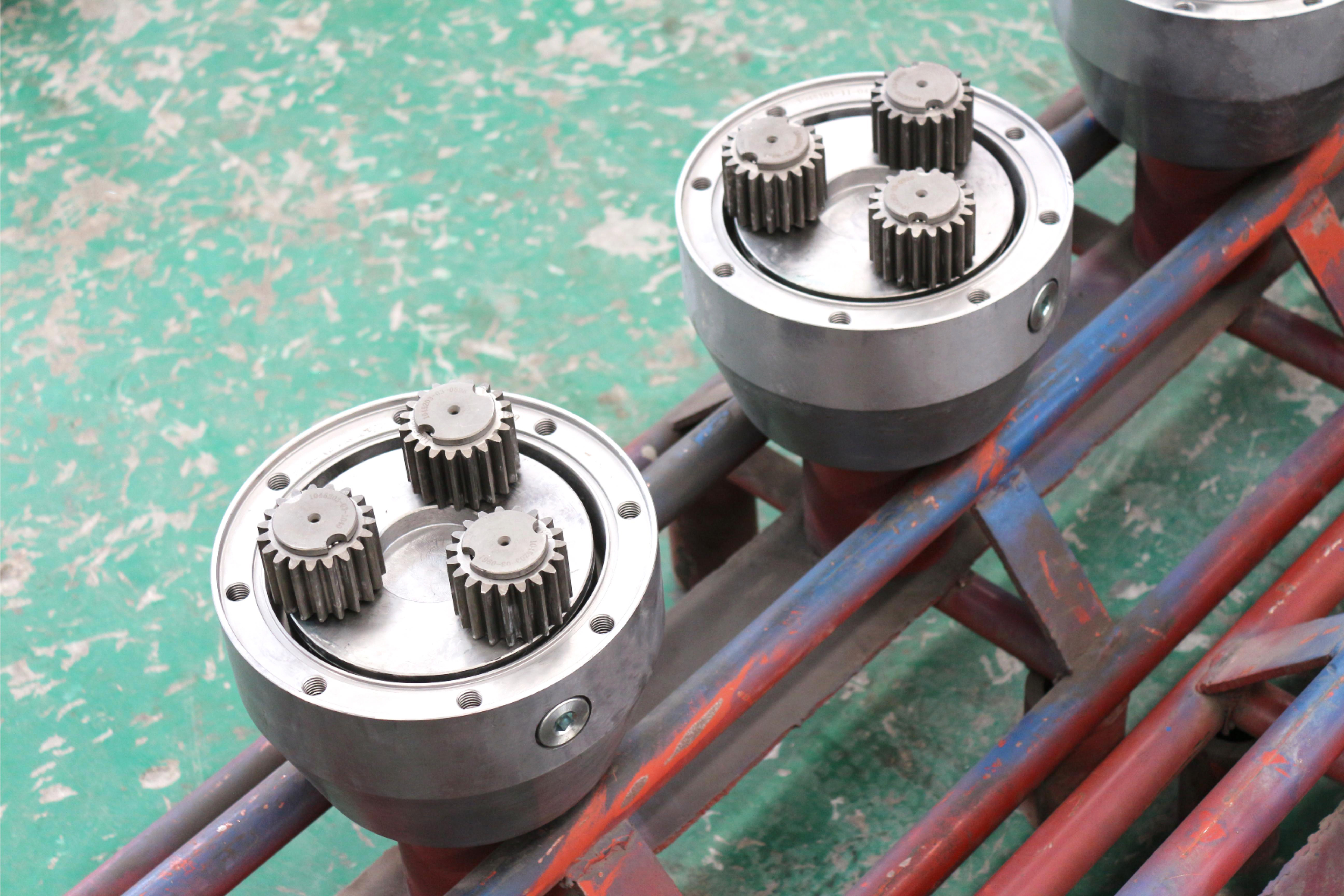

gearbox

gearbox

2.2 Nano-Level Machining & Carburizing Quenching

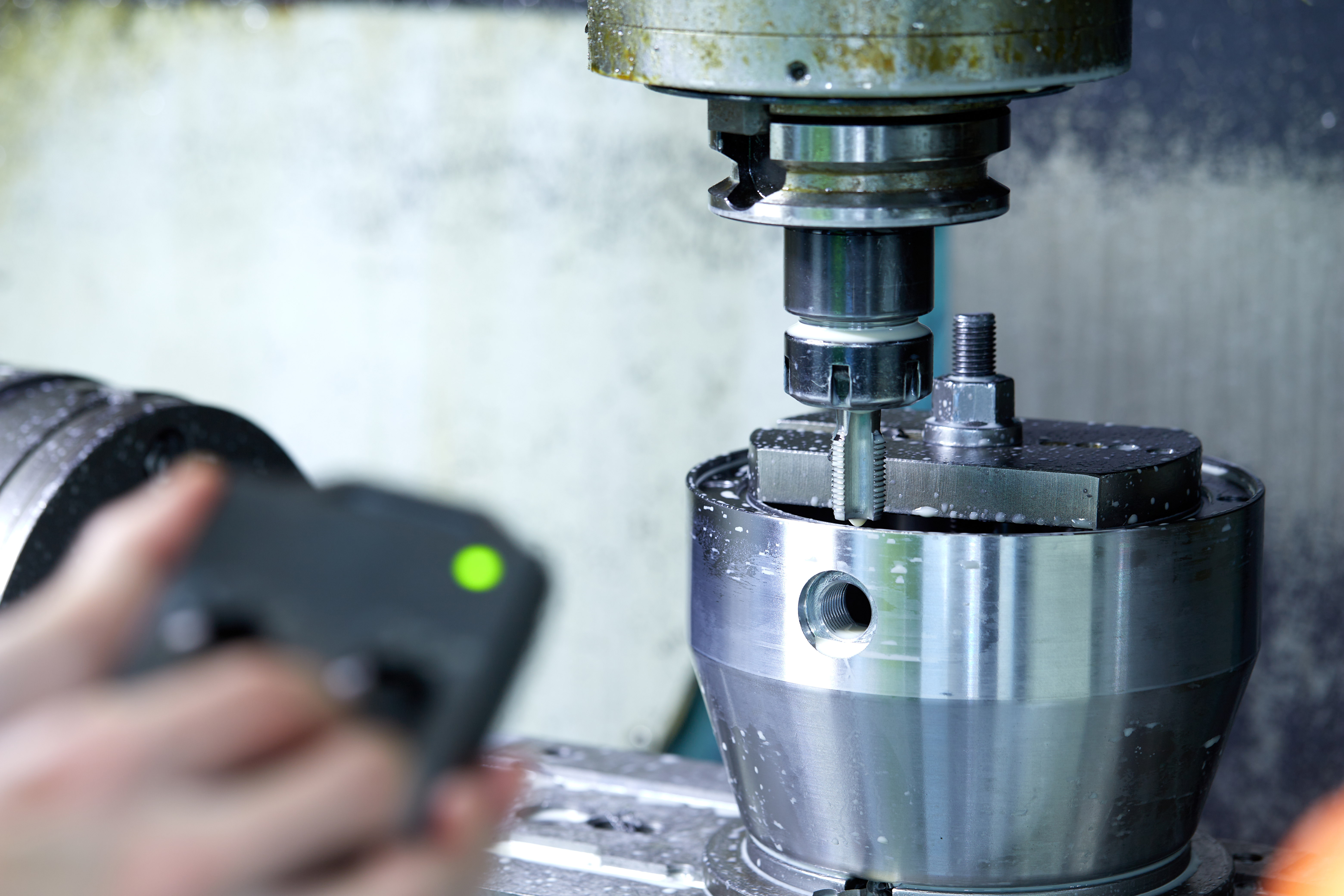

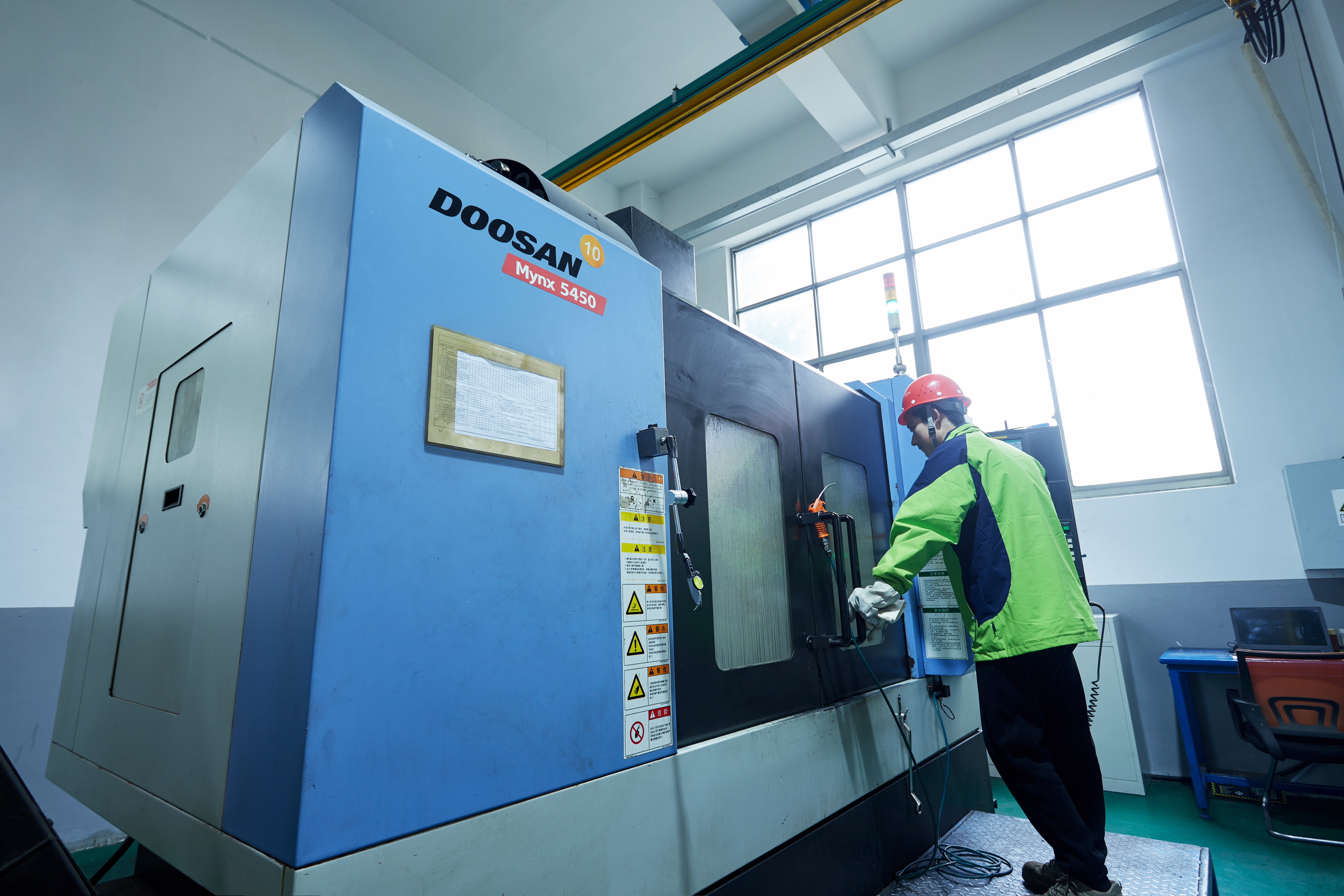

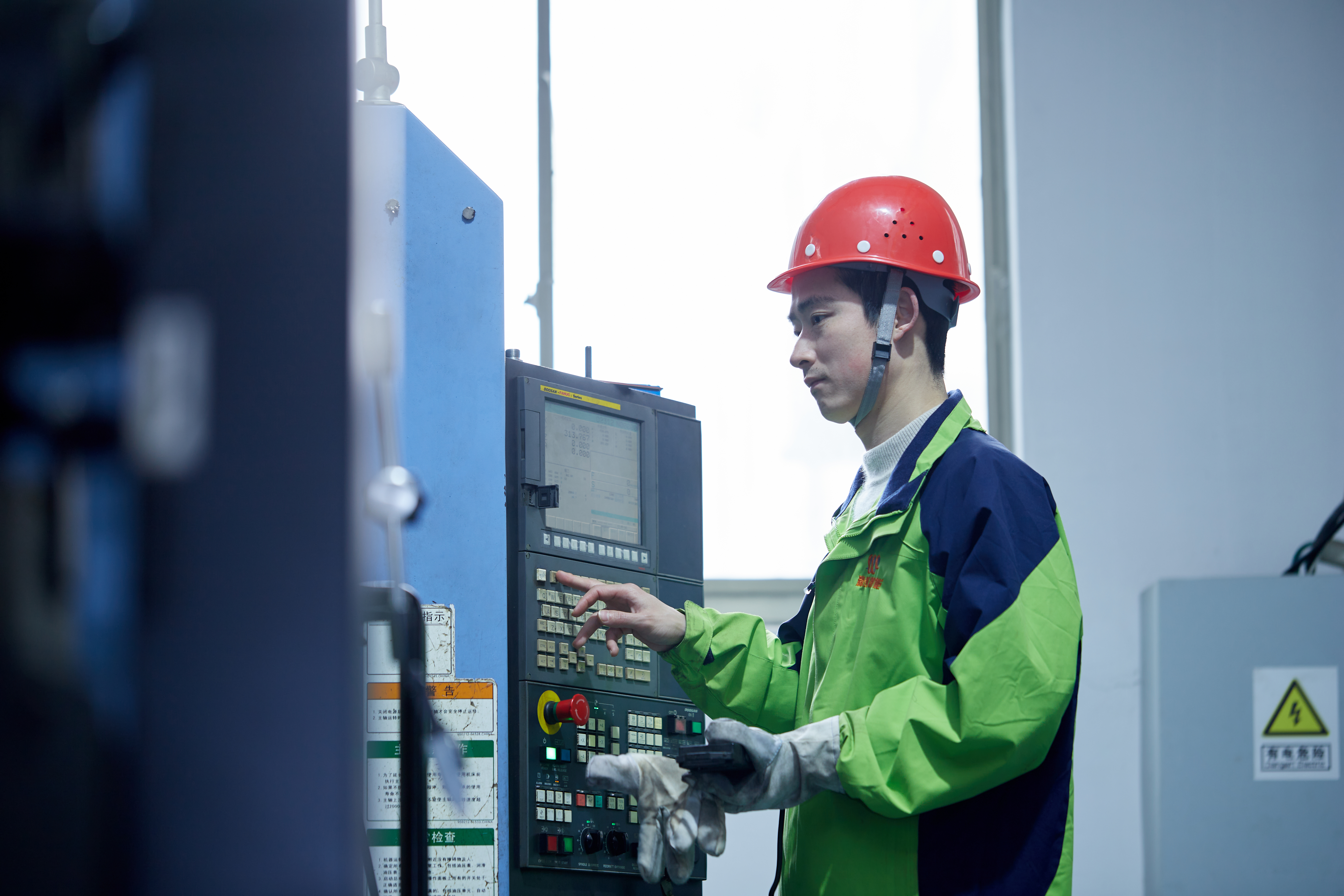

Gears achieve AGMA Class 13/DIN 3962 Grade 1 precision (highest international standards) with Ra ≤0.8μm surface roughness. Manufactured on Doosan DNM5705 machining centers, we ensure ±1μm error control. After 12 heat-treatment processes, the carburized surface (0.8-1.2mm depth) reaches HRC58-62 hardness, tripling fatigue resistance compared to traditional processes.

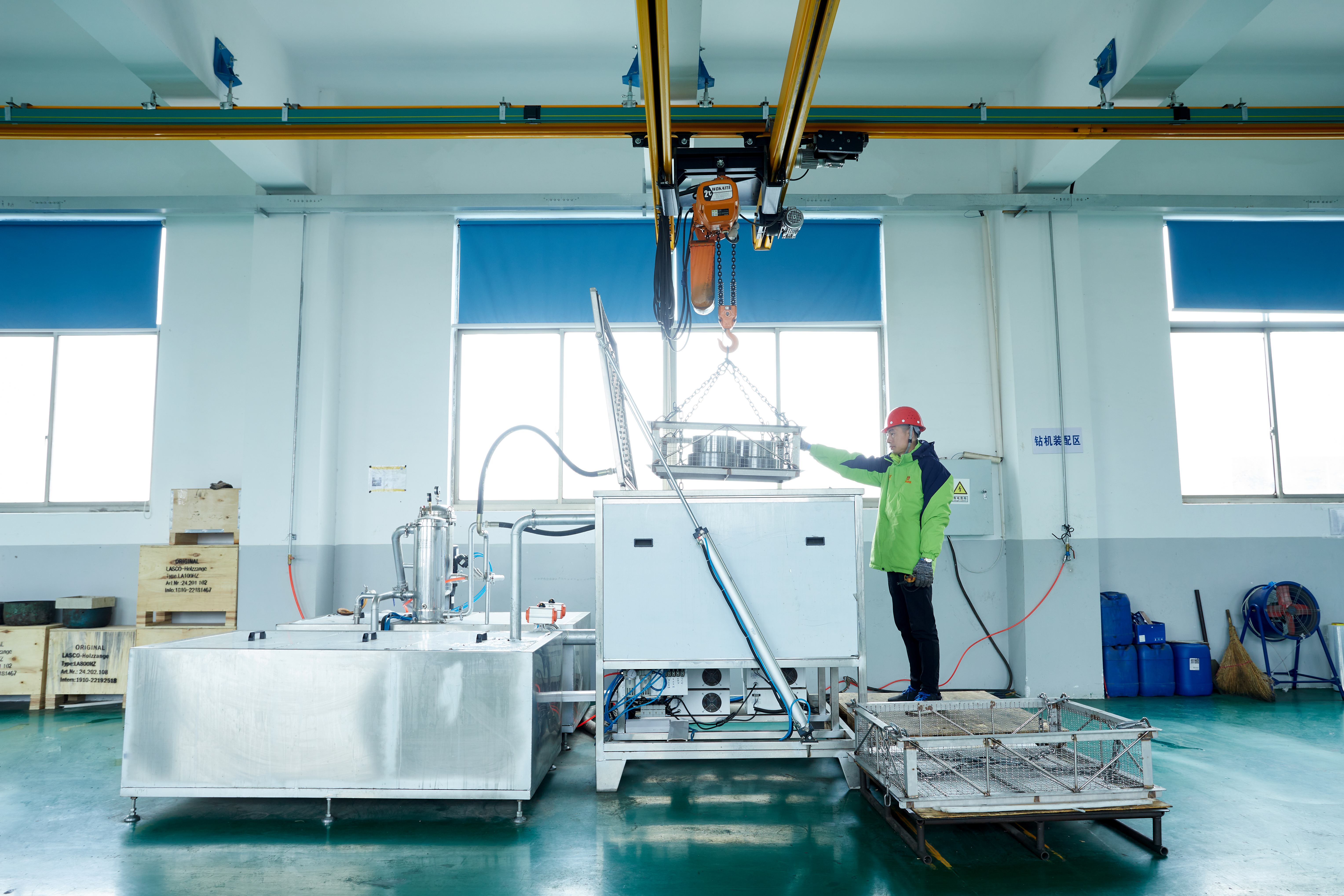

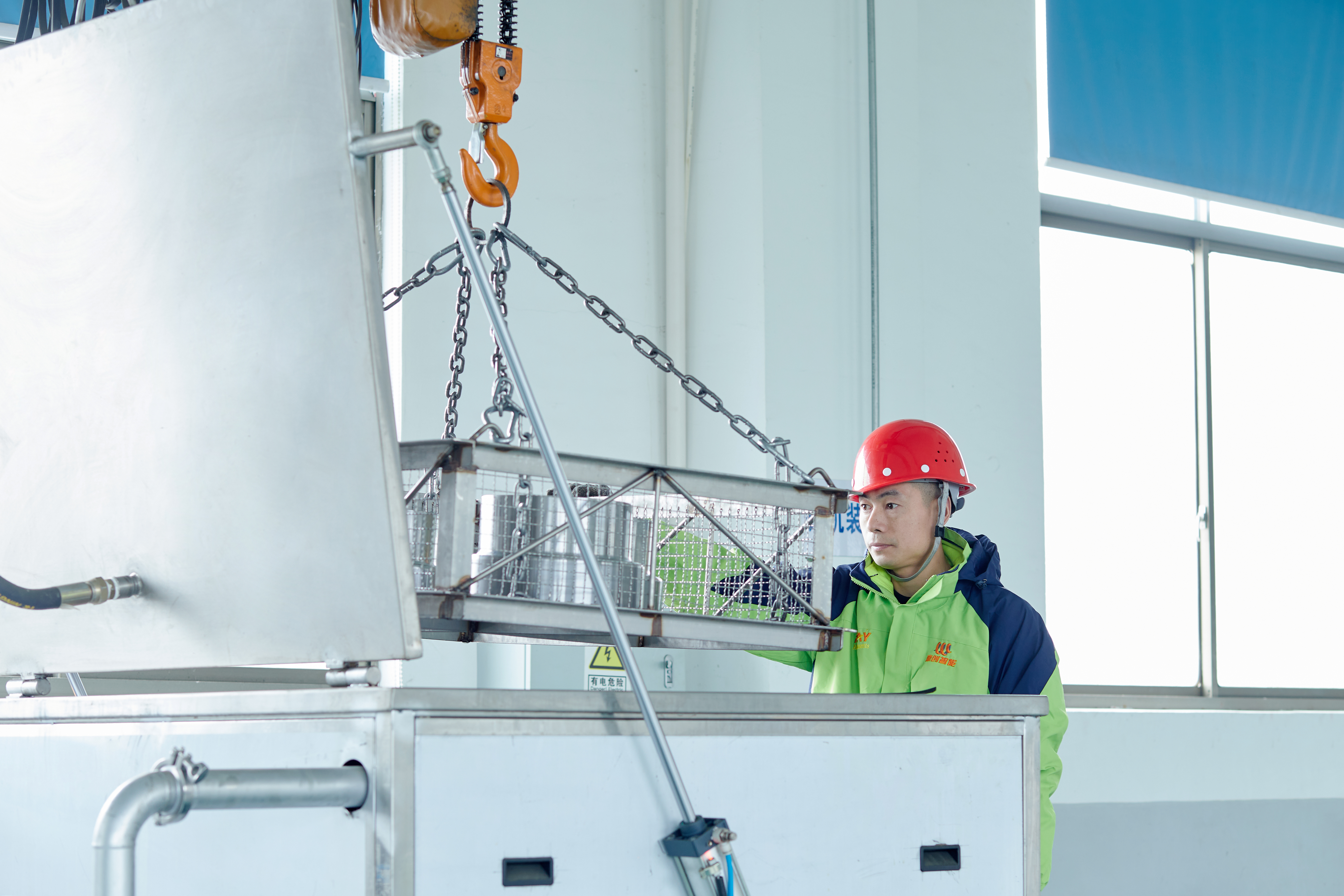

2.3 Ultrasonic Cleaning

Certified to ISO 16232-5, our ultrasonic cleaning eliminates metal debris (residual particles <10μm), reducing jamming incidents by >90% and extending lubrication oil lifespan by 2.3x. This minimizes maintenance costs and ensures smooth operation.

2. The Philosophy Behind 1800+ Days Lifespan

• Fully Enclosed Hydraulic System: IP68-rated dust and water resistance ensures stable operation in extreme environments like mud immersion or sandstorms;

• Stress-Balanced Structure: FEA-optimized auger blade angles reduce lateral stress by 35%, preventing fatigue fractures in key components;

• Intelligent Lubrication System: Pressure sensors monitor lubricant status in real-time, automatically replenishing grease to maintain optimal gear meshing.

3. Versatile Applications for Enhanced Efficiency

• High-Speed Drilling in Hard Terrains: 2.5x faster than chain-driven models in strata with ≤30MPa compressive strength;

• Precision Borehole Control: Asymmetric tooth design ensures ±2mm diameter accuracy, eliminating rework;

• Low-Noise Operation: ≤300Hz noise level complies with environmental standards for urban and residential areas.

4. Why Choose RAY Attachments?

1. Technical Leadership: The combination of Danfoss Motors and High-Speed Rail Gear Technology represents top-tier manufacturing;

2. Cost-Effectiveness: 1800+ days lifespan reduces replacement frequency, saving 40% on total cost of ownership compared to competitors;

3. Global Service Network: 200+ service points with 7×24 support and 98% parts availability minimize downtime.

Conclusion: Redefining "Durability" – From Rail Technology to Construction Reality
