Introduction to RAY Attachments

RAY Attachments leads the construction equipment industry with innovative excavator attachments designed for precision foundation engineering. Our flagship Side Grip Pile Driver series combines cutting-edge technology and German-engineered components to deliver unmatched performance. Visit www.rayattachments.com to explore our full range.

Table of Contents

1. Understanding Side Grip Pile Drivers

2. How It Works: Vibration Technology Explained

3. Component Breakdown & Engineering Excellence

4. Selecting the Right Model for Your Project

5. Maximizing Performance & Efficiency

6. Maintenance & Troubleshooting Guide

7. Why Choose RAY Attachments?

8. Comprehensive FAQ Section

9. Conclusion & Call to Action

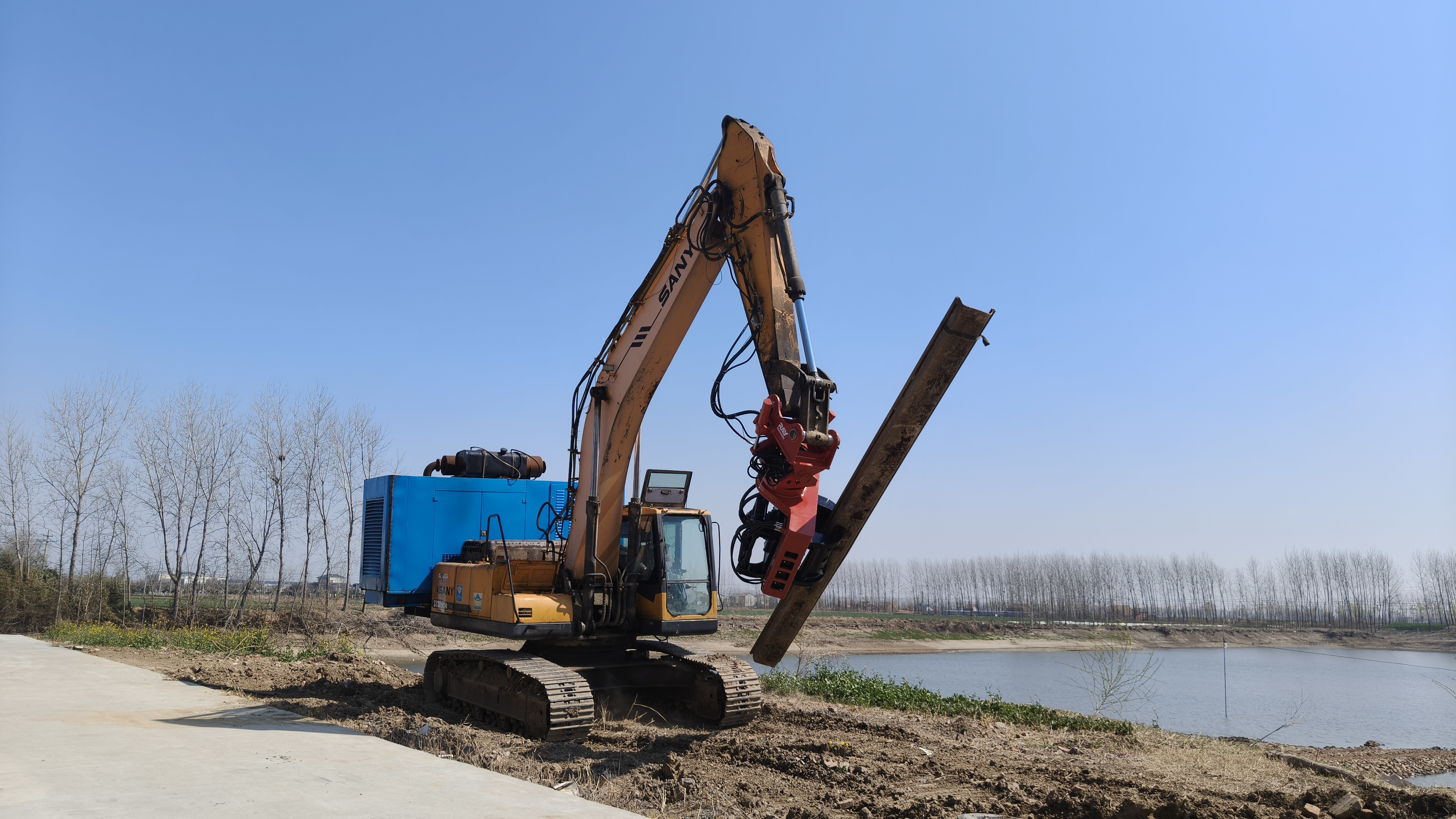

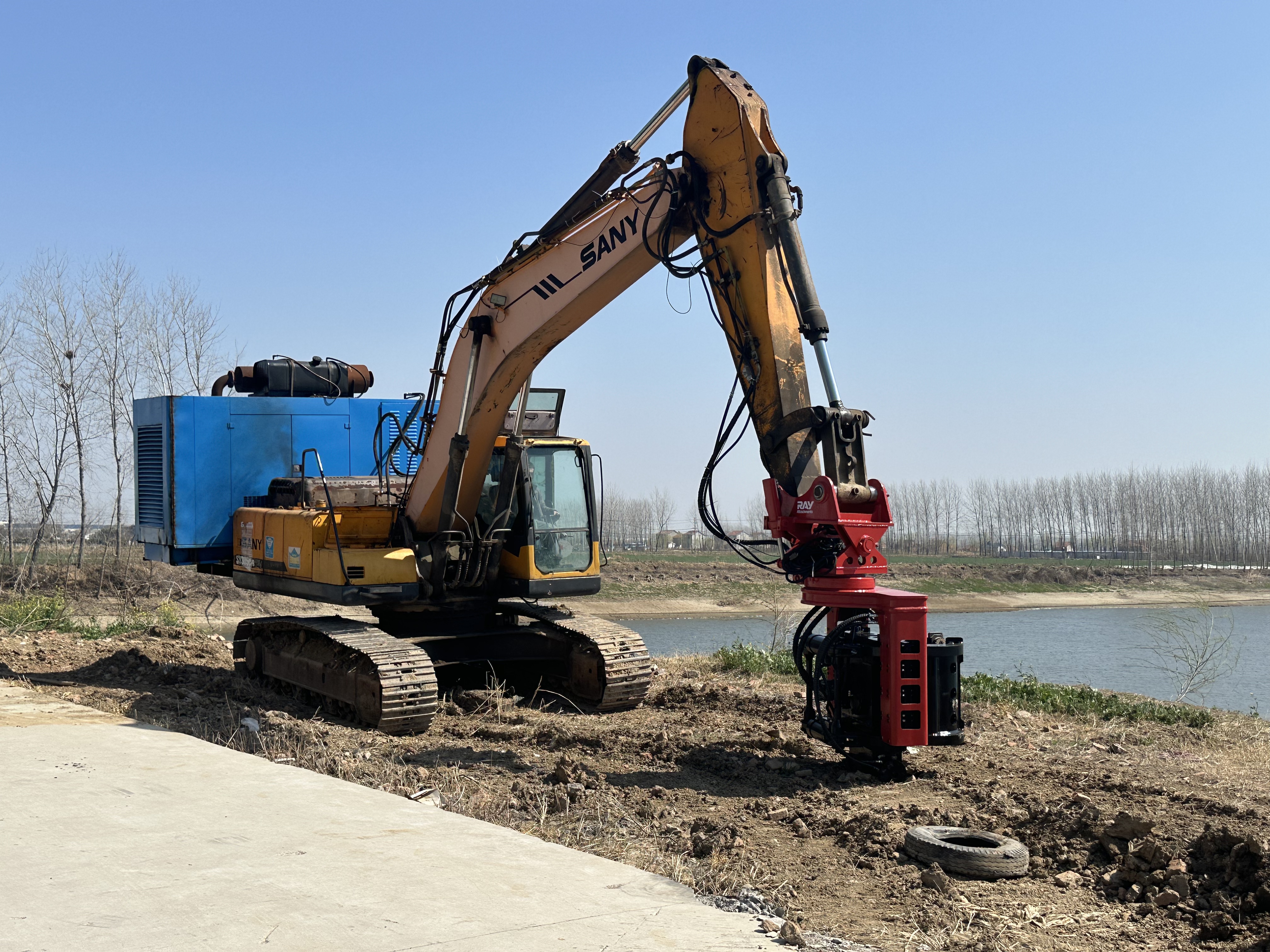

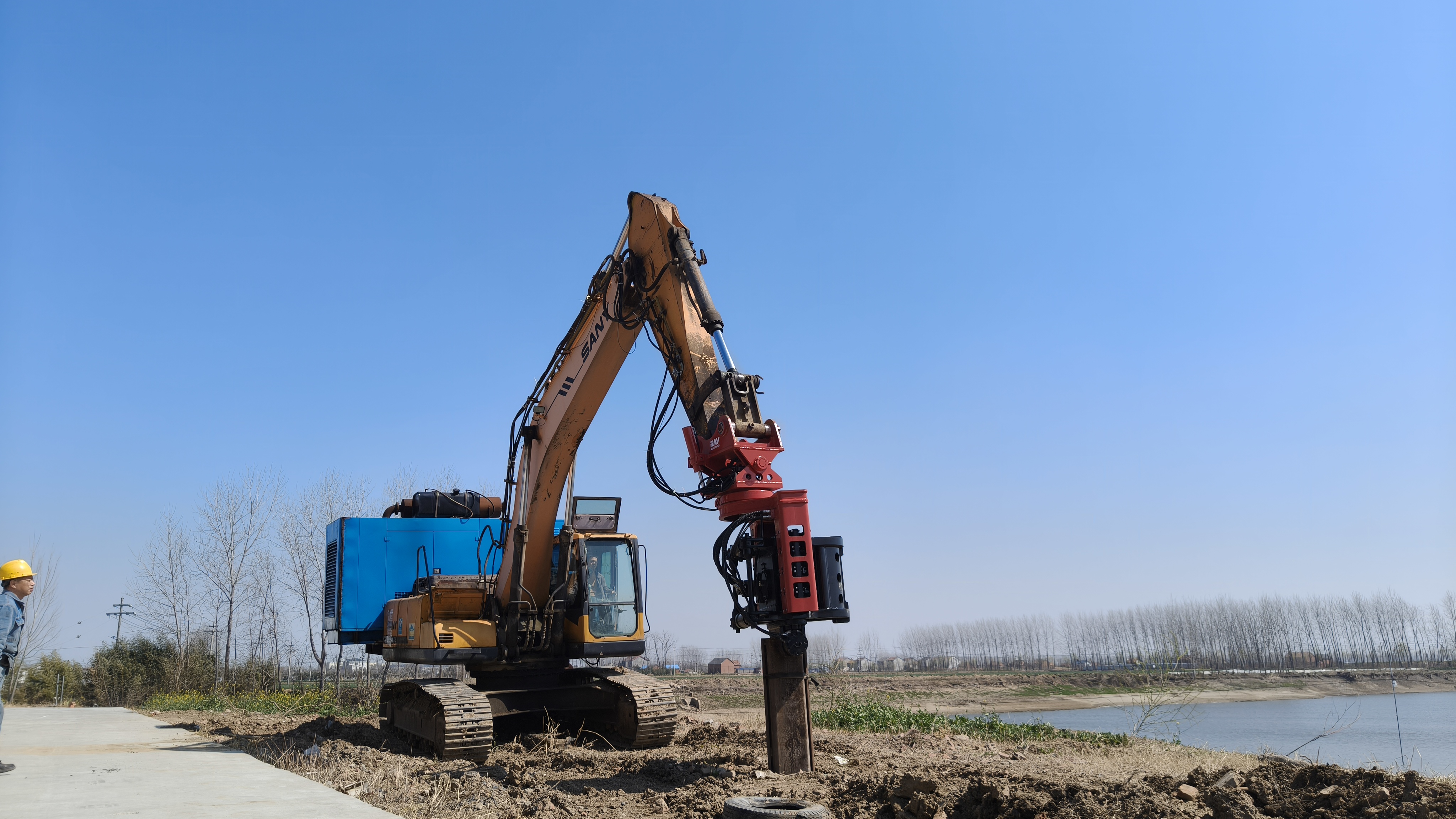

1. Understanding Side Grip Pile Drivers

• Solar/wind energy foundations

• Urban infrastructure projects

• Bridge and flood control systems

• 70% labor reduction

• 360° rotation for confined spaces

• 15% fuel efficiency improvement

2. How It Works: Vibration Technology Explained

Vibration Generation System

• SV Series Motors:

• SV30-50: Italian OMFB motors (proven reliability over 2+ years)

• SV60-70: American Parker motors (higher torque output)

• Technical Specifications:

• Centrifugal force: 206-723 kN

• Frequency range: 41.7-50 Hz

Soil Liquefaction Process

1. High-frequency vibrations disrupt soil particle bonds

2. Reduces skin friction by 60-80%

3. Enables 18m pile penetration in common soil

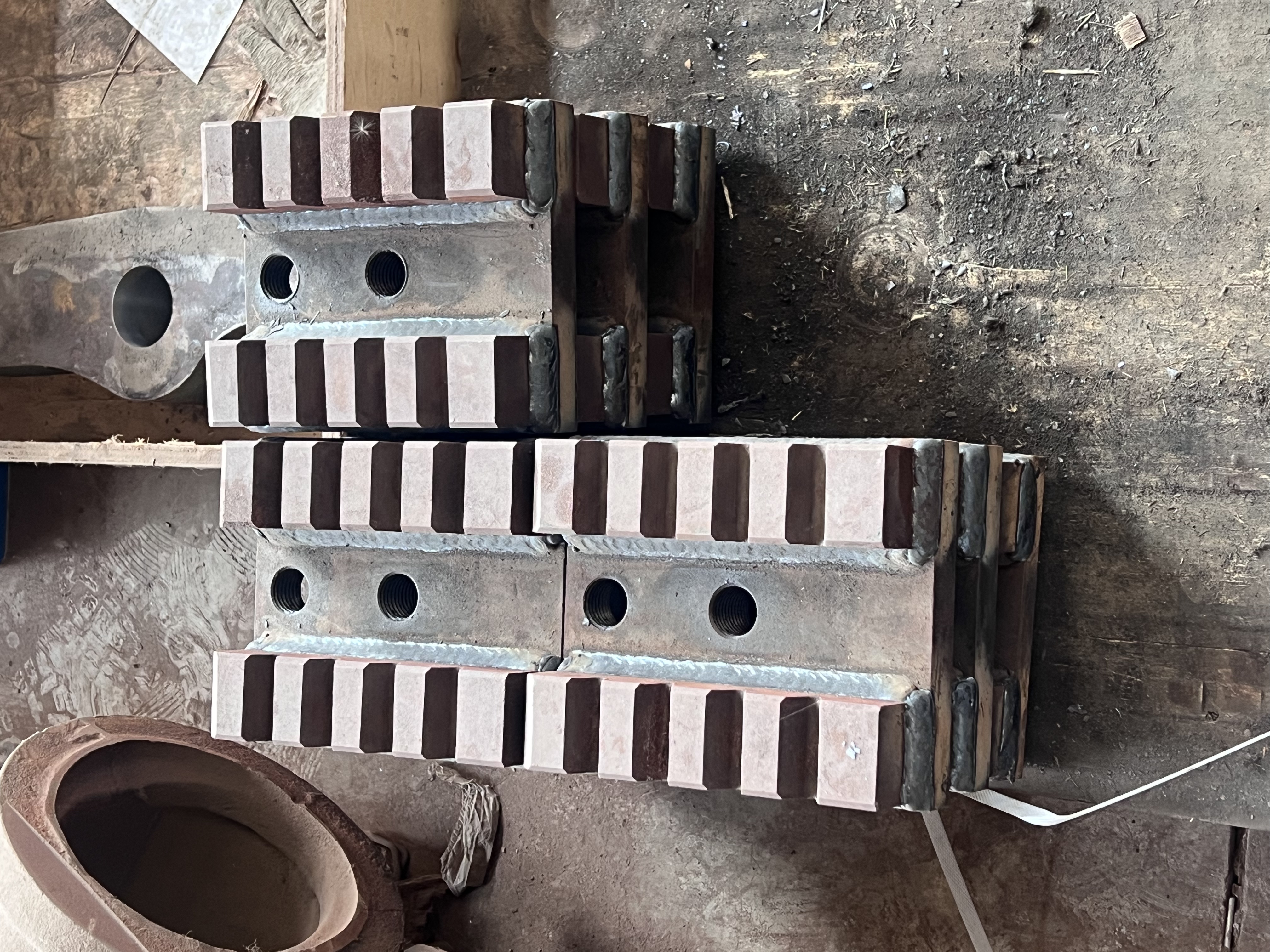

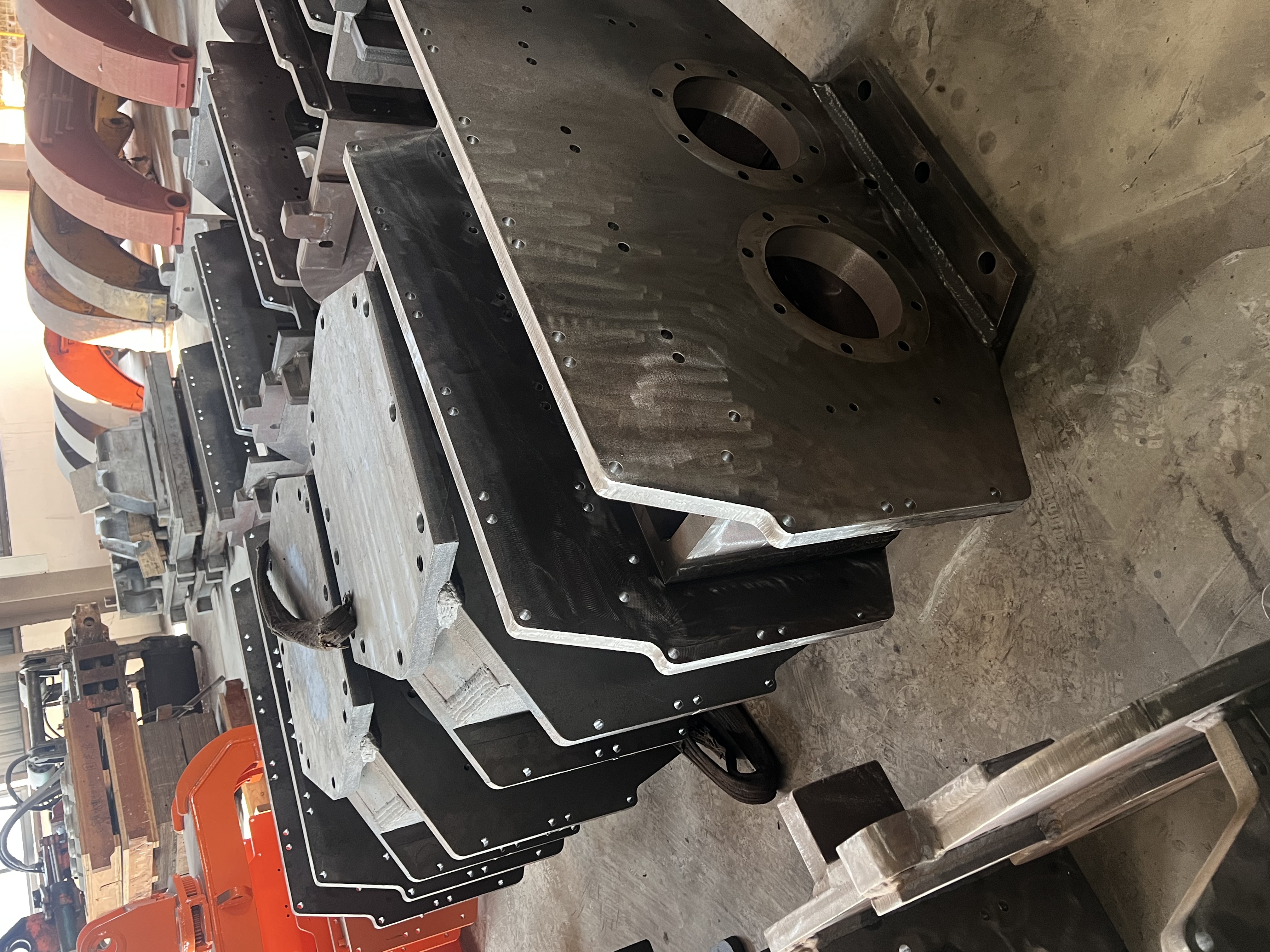

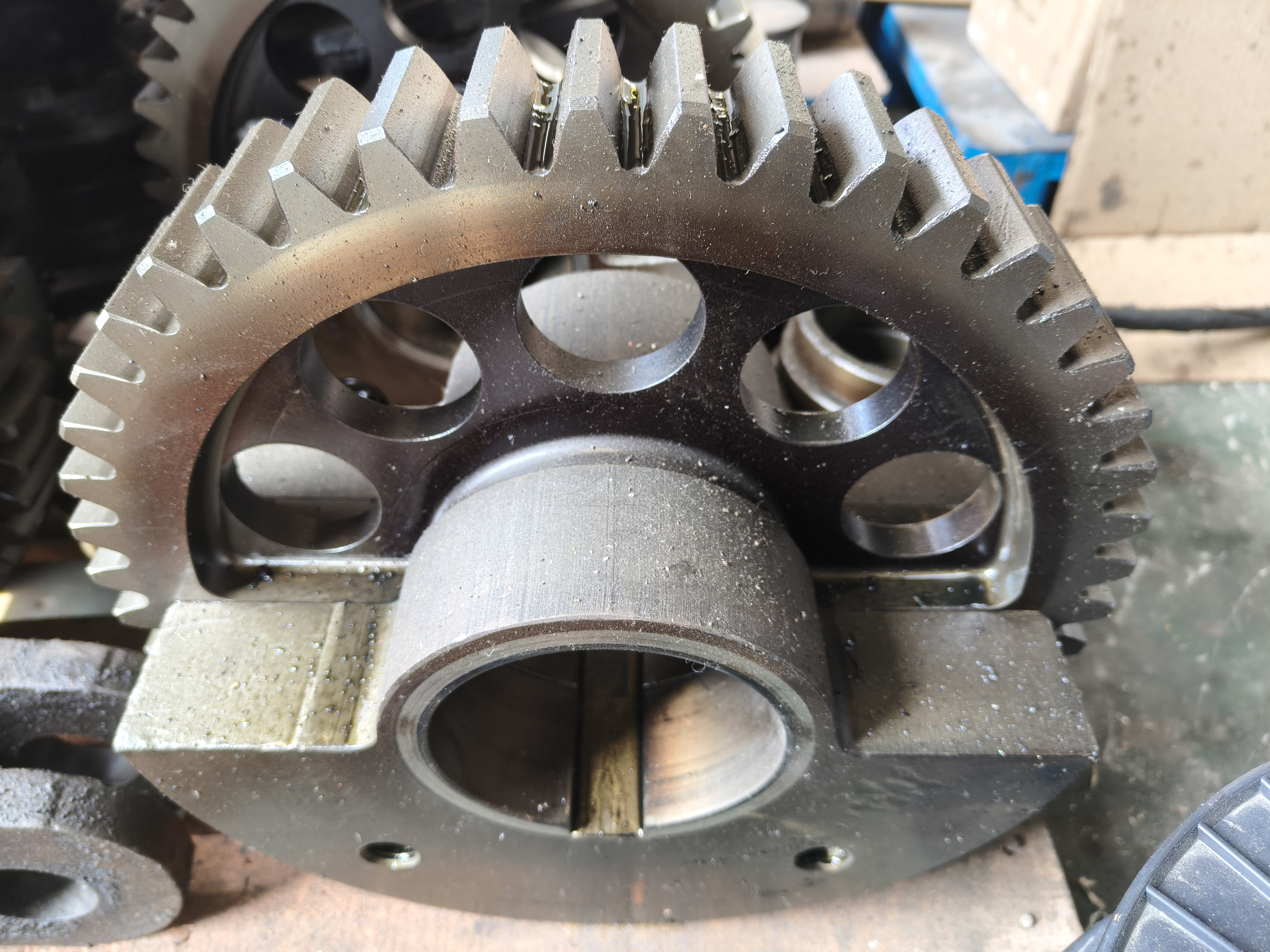

3. Component Breakdown & Engineering Excellence

4. Selecting the Right Model

4-Step Selection Process

1. Excavator Compatibility:

• Tonnage range: 13-40T

• Hydraulic flow: 80-256 LPM

2. Soil Condition Analysis:

• Soft soil: 12-18m pile length

• Hard soil: Requires pre-drilling with auger

3. Pile Type Compatibility:

• H-beams: H100-H500

• Timber piles: φ120-600mm

4. Performance Parameters:

   Model	Eccentric Moment (kg·m)	Centrifugal Force (kN)	Max Pile Length (m)
   SV30	3.0	297	12
   SV70	7.3	723	18

5. Maximizing Performance & Efficiency

1. Perpendicularity calibration

• Use included self-developed the verticality detector for ±25° angle adjustment.

2. Vibration Optimization

• Hard soil: 2,500-2,800 RPM

• Loose soil: 2,000-2,500 RPM

3. Fuel Efficiency

• Lightweight design (1.8-3.24T) reduces fuel consumption by 15%.

6. Maintenance & Troubleshooting

Preventive Maintenance Schedule:

• Daily: Check clamping pressure

• Weekly: Lubricate moving parts

• Monthly: Inspect bearing temperature (<70°C)

Common Issues & Solutions:

7. Why Choose RAY Attachments?

1. Precision Manufacturing:

• Integral plate gantry boring ensures 1-2 silk coaxiality

• German mirror grinding eliminates iron particle contamination

2. Reliability Features:

• Dual-layer shock absorption system

• 25-day rapid delivery with modular design

3. Customer Benefits:

• Free the verticality detector

• 1-year warranty on hydraulics

• Global technical support

8. Comprehensive FAQ Section

9. Conclusion & Call to Action
