Auger post hole digger REA20000

Earth Auger for excavator REA20000 suitable for CAT, JCB and so on with 13-20T. You can find our distributor in Germany, Canada, Australia, UK and so on.
  • REA20000

  • RAY Attachments


earth auger

Auger Drives REA2000 up to REA4500 are the perfect choice for small excavators between 1T and 5T.

Even though these model Auger Drives are the smallest in our line-up they are over engineered and built to last, giving you the same versatility, peace of mind and product quality you’d expect from all our products. Developed to work with all makes and models of parent machine, and complemented with a range of attachments, you will find an earth auger and attachment for your every need. With the versatility to easily switch between attachments depending on the job at hand, you can be sure that your RAY Earth Auger will deliver, time and again.

Auger Drives REA5000 up to REA8000 are the perfect choice for small excavators between 4.5T-12T.

Auger Drives REA10000 up to REA25000 are the perfect choice for excavators between 10T and 23T.

Auger Drives REA50000 up to REA65000 are the perfect choice for excavators between 20T and 50T.

REA20000 Auger Drill Details

earth auger parts


Standard with all Auger Drives in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch


EATON Motor provide stable and high torque power output. The failure rate is only 0.2%


Torque is amplified by using the unique  planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.


The Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.


All Auger drives come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).

earth auger REA4500

Excavator Earth Auger Specification

The efficiency mainly refers to the rotating speed whicj according to the oil flow of the excavator. Different working conditions and the proficiency of operators also affect it.

We have a client who can dig 1,500 holes in a day. His excavator is 6 tons with 350mm diameter and 500mm depth. And There is also a customers use 7 ton excavator with diameter 700mm & depth 1.8m, just 100 holes within 8 hours.

REA Auger Drive Specification
Model Unit REA2000 REA2500 REA3000 REA3500 REA4500 REA5000 REA5500 REA6000 REA7000 REA8000 REA10000 REA12000 REA15000 REA20000 REA25000 REA50000
Carrier T 1~2.5 1.5~3 2~3.5 2.5~4.5 3~5 4.5~7 5~7 6~8 7~10 8~12 10~13 13~17 13~17 13~20 15~23 21~50
Torque N.m ≤1871 ≤2432 ≤2877 ≤3614 ≤4218 ≤5056 ≤5910 ≤6150 ≤6931 ≤8048 ≤10778 ≤11976 ≤15046 ≤19039 ≤24949 ≤50195
Pressure Bar 205 205 240 240 240 240 240 240 240 240 240 240 240 240 250 280
Oil Flow Range l/min 23~53 30~61 30~61 30~68 38~76 38~76 45~83 45~106 61~121 61~136 70~136 80~140 80~151 80~170 90~180 100-280
Rotary Speed rpm 40~92 40~82 40~81 32~72 32~64 29~58 28~50 34~80 37~72 29~64 26~45 22~43 20~39 17~34 16~30 11~30
Hydraulic Hose Inch 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4 3/4 3/4 1 1 1 1 1 1/2
Output Shaft mm Ф65 Ф65 Ф65 Ф65 Ф65 □75 □75 □75 □75 □75 □75 □75 □75 □75 □75 □110
Unit Weight Kg 54 54 71 71 71 108 108 110 112 115 167 167 167 185 185 480
Unit  Height mm 595 595 700 700 700 780 780 850 850 850 930 930 930 930 930 14320
Unit Max.Dia. mm 200 200 244 244 244 269 269 269 269 269 290 290 290 290 290 450
Auger Series mm S4 S4 S4 S4 S4 S5 S5 S5 S5 S5 S6 S6 S6 S6 S6 PA
Auger Length mm 1200 1200 1200 1200 1200 1500 1500 1500 1500 1500 1750 1750 1750 1750 1750 2300
Auger dia. Range mm 100~400 100~500 100~600 100~750 100~900 150~600 150~750 150~900 150~900 150~900 150~900 150~900 150~1200 150~1200 150~1200 300-2400

Available Auger Bit

Available Auger Bit

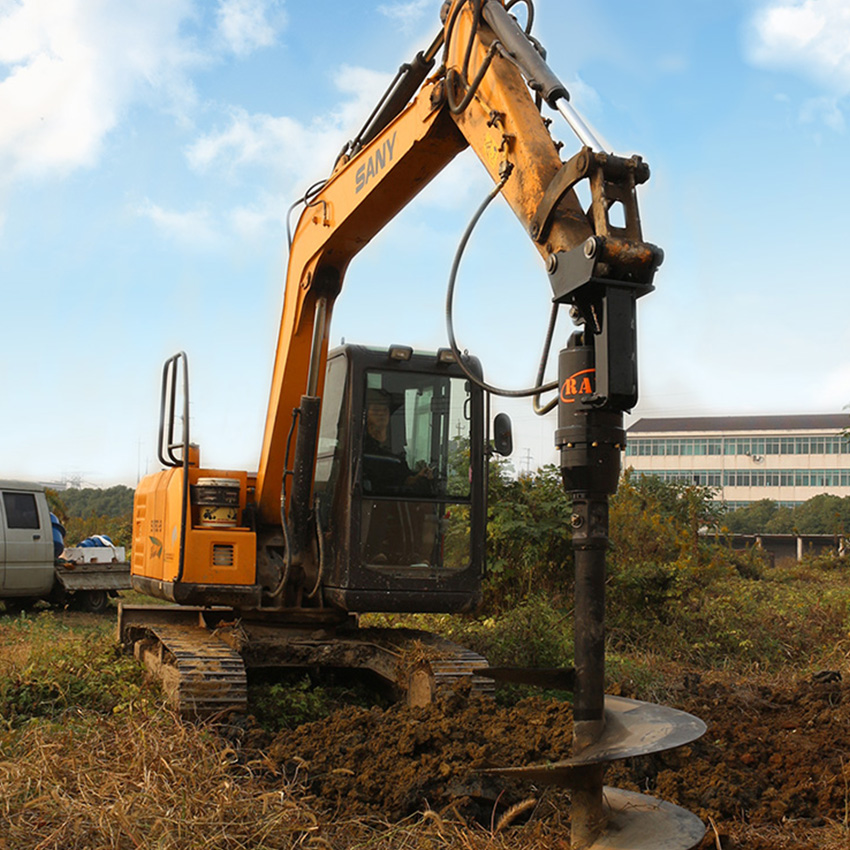

REA20000 Auger Drill Customer Photos

RAY Earth Auger can be mounted on Excavator, Skid steer loader, Crane, Backhoe loader,  Tractor, Telehandlers...

Earth Auger1

Earth Auger2

Earth Auger3

Earth Auger4

Earth Auger review

REA20000 Auger Drill OEM Service

18 years OEM & ODM experience.

We can provide professional OEM and ODM service, such as customize your own colour, brand, package and so on.

Earth Auger

REA20000 Auger Drill Packing & Delivery

Earth Auger package

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

REA20000 Auger Drill Application

 Earth Auger Application

Skid steer loader auger


1.Q:In which condition, auger will craze?

A:Wrong operation will lead auger crazing. Auger should be vertical to the earth when operation. Big type auger drive has reinforcement measure to protect auger.

2.Q:Will the screw blade drop out?

A:No, we haven’t met this condition so far.

3.Q:What’s the gear box used for in the auger drive?

A:The planetary gear is used for transmission. Gear box is used for slowing down the speed of motor.

4.Q:In which condition, earth auger can work most efficient?

A:Efficiency depends on rotate speed. Rotate speed depends on oil flow. Oil flow depends on the excavator pump.

5.Q:In common earth condition, how many holes can be dig in 1 min?

A:Different earth condition has different answer. It depends on the oil flow and pressure, whether the earth loose. For example, it takes 30s to dig a dia 300, depth 1.5m hole in loose earth.

6.Q:How long should change the auger teeth?

A:It depends on the earth condition and working time. According to customers’ feedback, it would be 6 months in loose earth and 1-3 moths in soil with small stones.

7.Q:What’s the space between two screw blade?

A:It depends on the auger type and the outer diameter.

8.Q:What’s the material of screw blade?

A:Q345 alloy steel.

9.Q:Why the output shaft of REA2000-4500 is round, and REA5000-25000 is square?

A:Large type of auger drive has bigger torque. Square output shaft can increase the friction and hard to slide.

10.Q:In which condition, the auger drive won’s work.

A:The hose was not connected correctly. The excavator problem. The motor problem.

11.Q:How about the warranty?

A:We provide 18 month warranty for our auger drive.(Under the correct operation)

12.Q:How many teeth does S4,S5,S6 auger have?  According to diameter of the auger?

A:Yes, according to the auger’s diameter.

13.Q:Why don’t fully weld between screw blade and auger?

A:Because fully weld will make the auger deformation.

14.Q:Will the teeth holder be deformed.

A:It will be worn but won’t be deformed.

15.Q:What’s the material of the teeth and what’s the technology?

A:The material is tungsten and the technology is forged.

16.Q:How many oil seal does a auger drive have. How long should change the oil seal?

A:4 oil seal. It don’t need to change in general.

17.Q:Oil seal must be changed by manufacture? Or customers can change it by themselves?

A:All the oil seal are normal. You can change it by yourself.

18.Q:Why do the auger drive leak oil?

A:There may be some problems of oil seal.

19.Q:What kind of machine can auger drive be installed?

A:Excavator, crane and skip steer loader.

20.Q:What’s the material of the pin hitch?


21.Q:Why the thickness of screw blade is different? What’s the thickness of central pole? Why the thickness of central pole is different?

A:Because of different type, big torque will make the auger broker.

The thickness of central pole: S4 6mm, S5 8mm, S6 12mm.

22.Q:Why don’t make auger longer, a 2-3m long?

A:We can do this, but it may not be lift up.
