RSS72
RAY
Availability: | |
---|---|

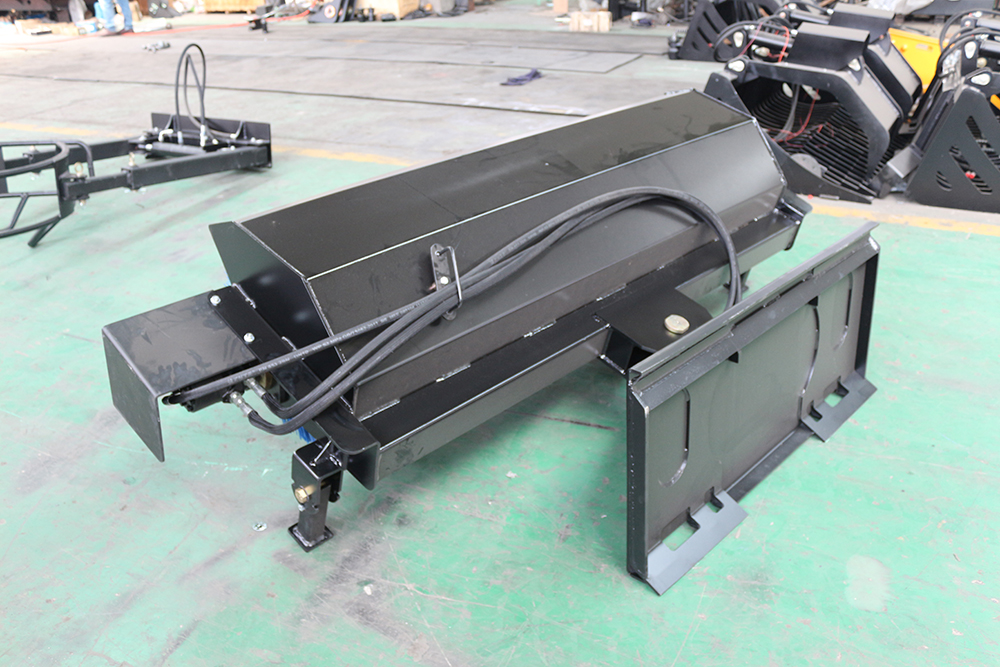

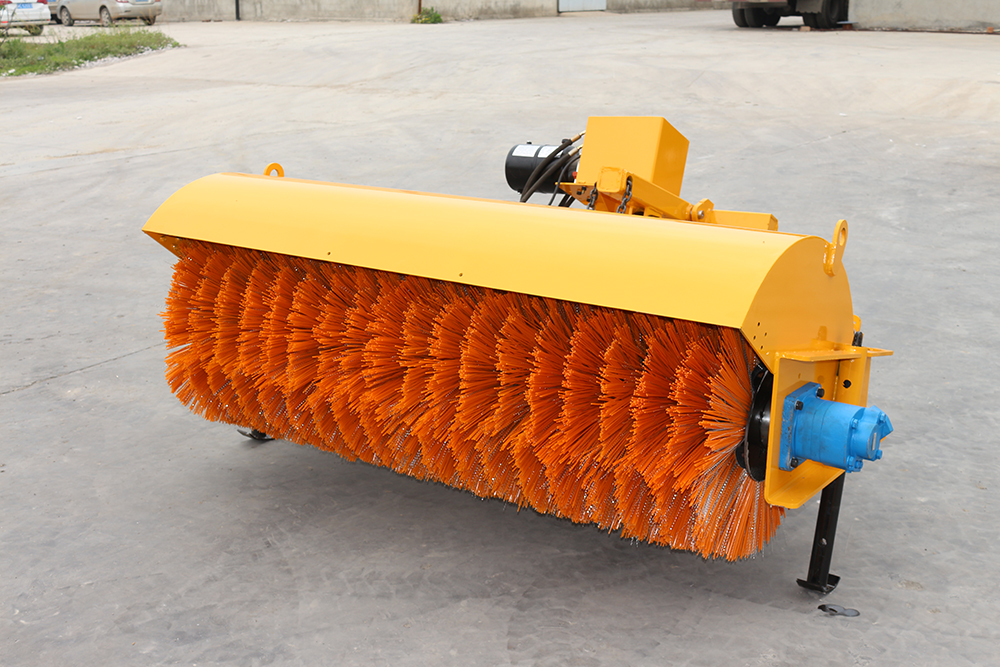

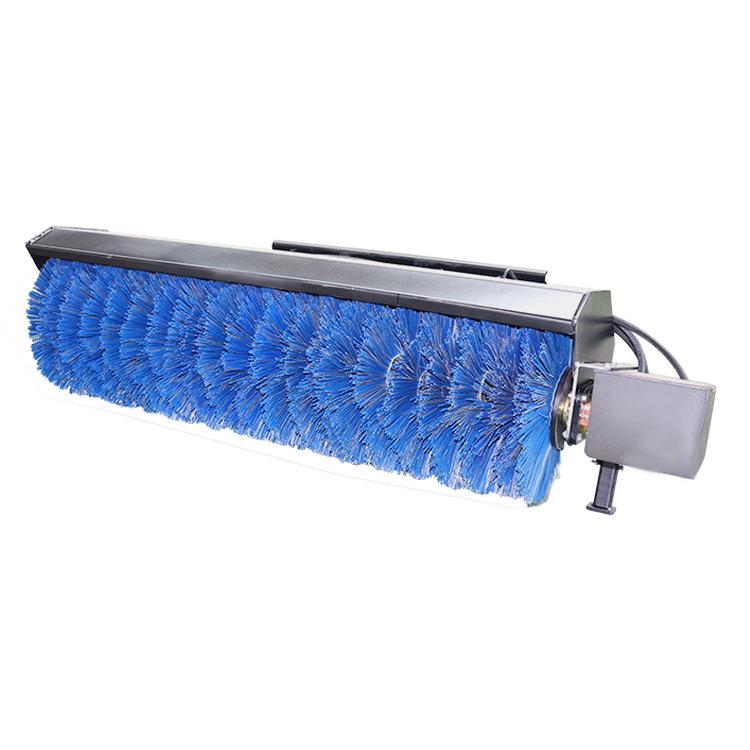

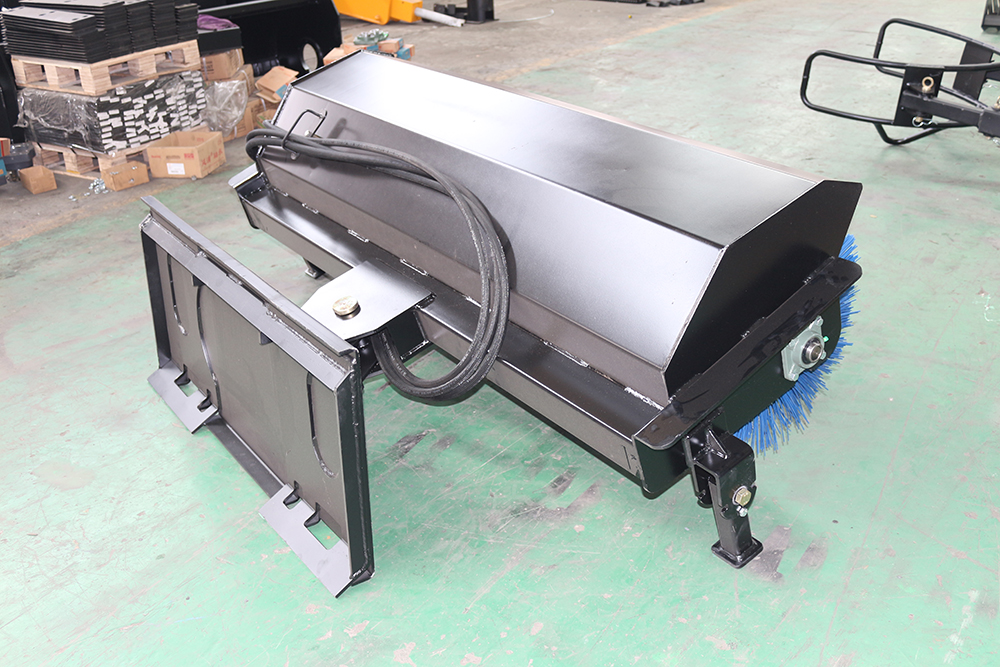

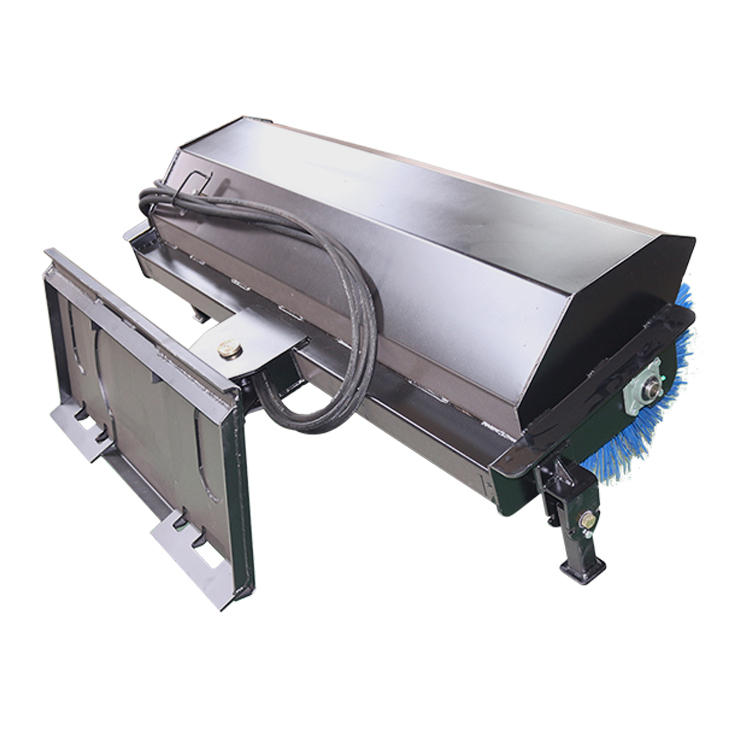

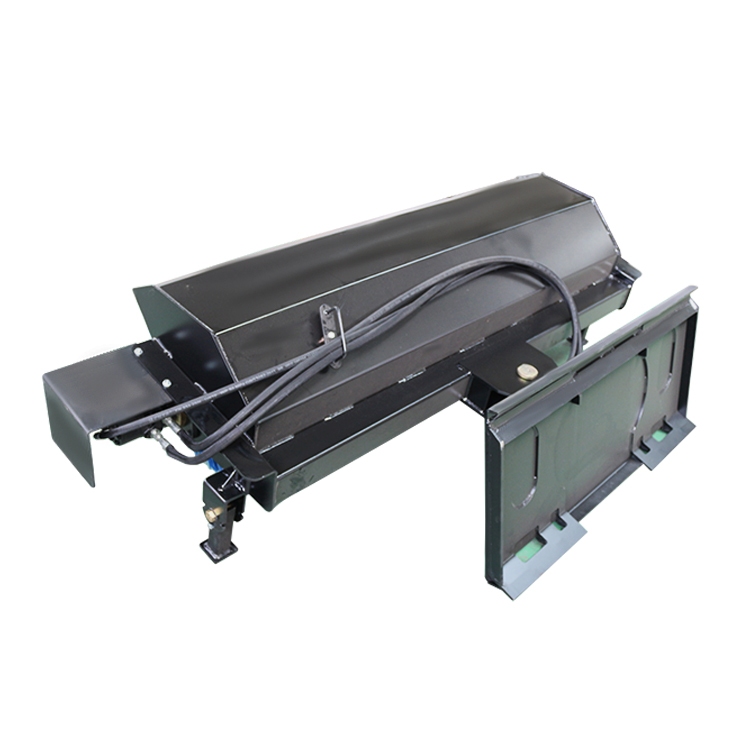

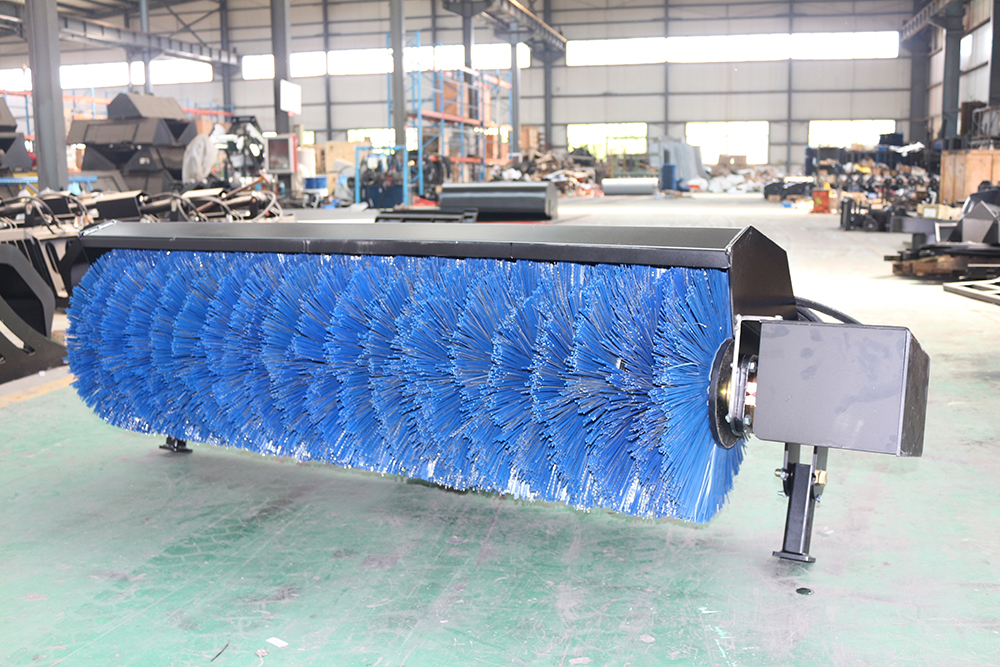

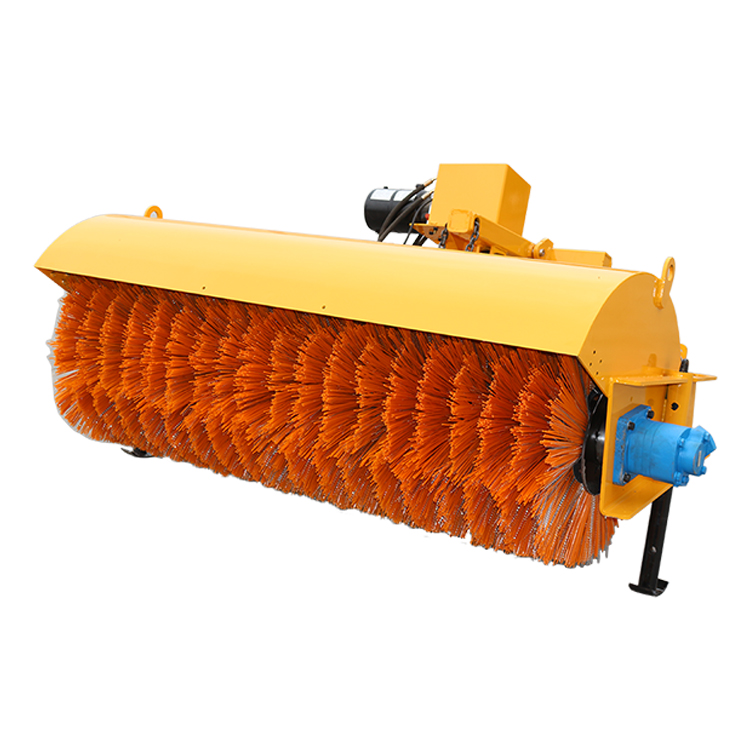

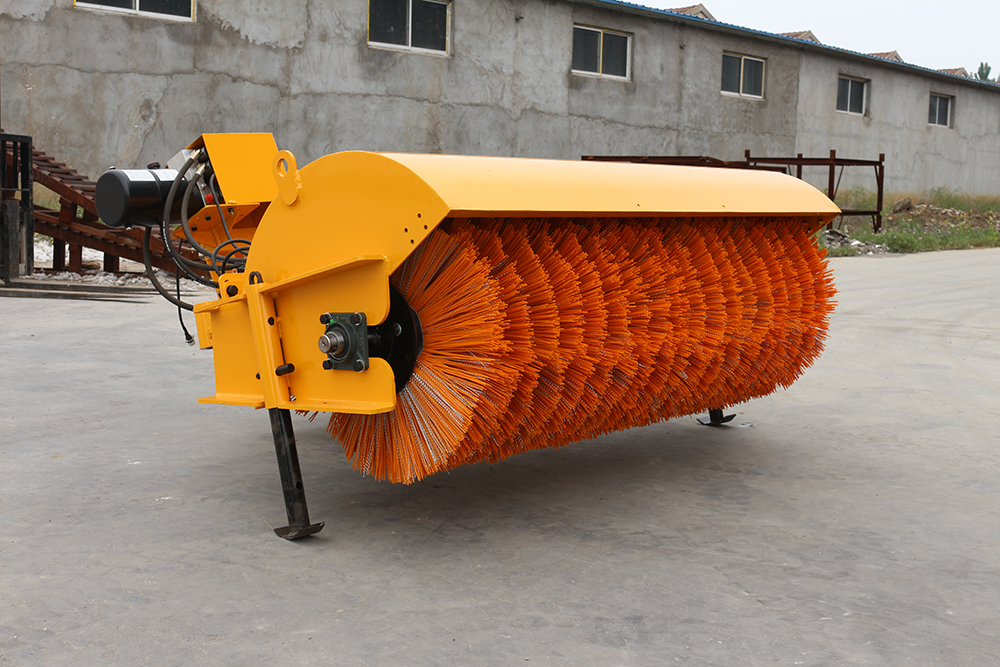

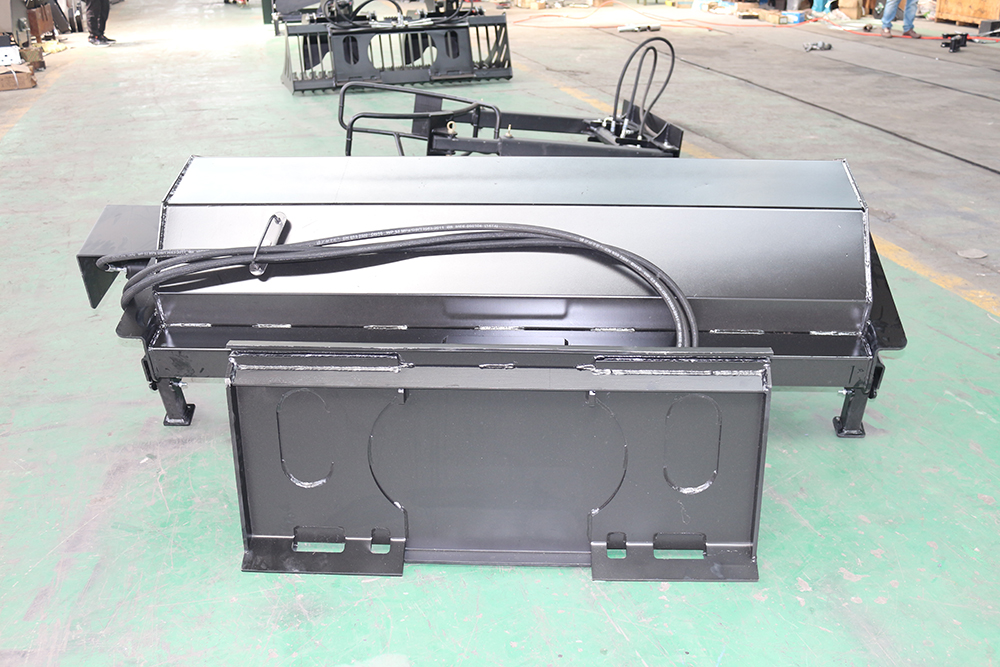

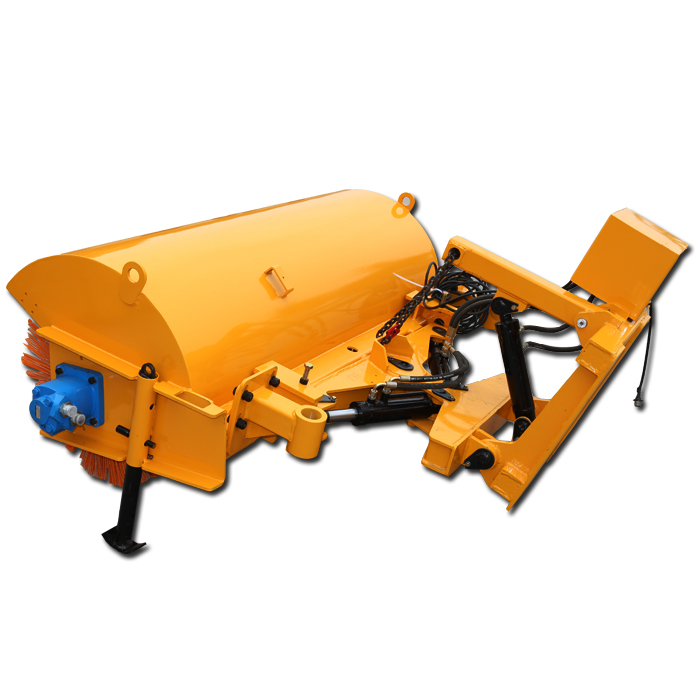

Skid Steer Loader Attachments Family - Snow Sweeper
Feature
1.Auto-Float broom head automatically maintains optimal down pressure on the go

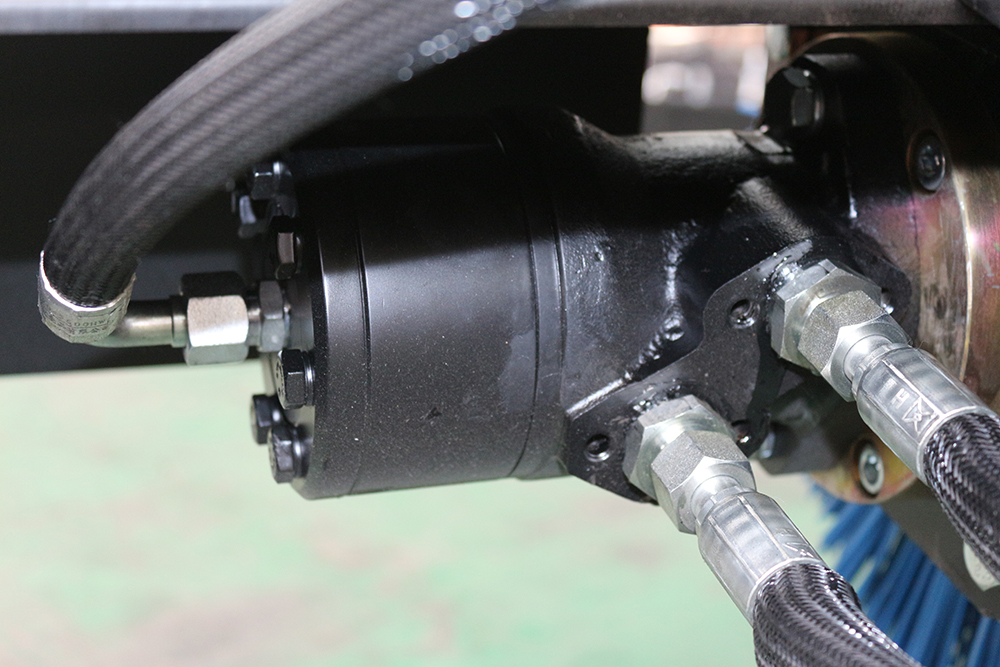

2.Direct-drive motor for maximum torque and reliability (no chain & sprocket break downs)
3.Dual-directional motor sweeps powerfully in both directions

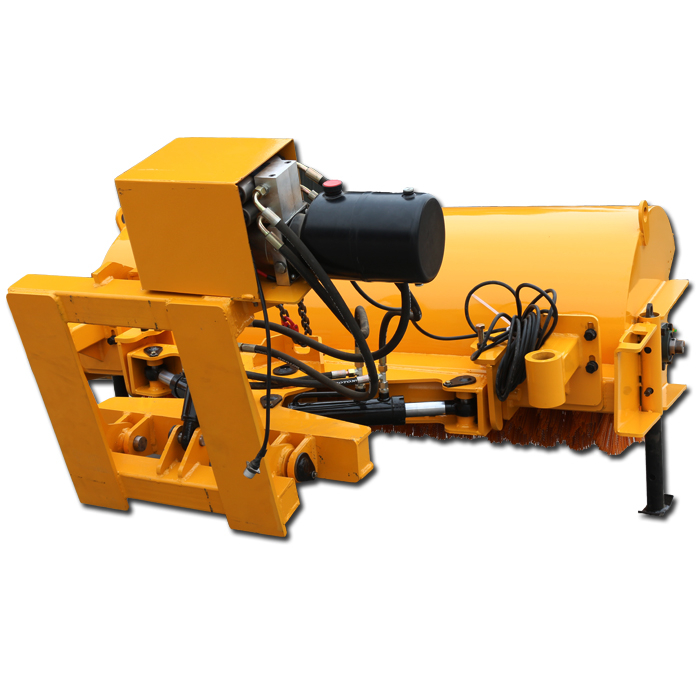

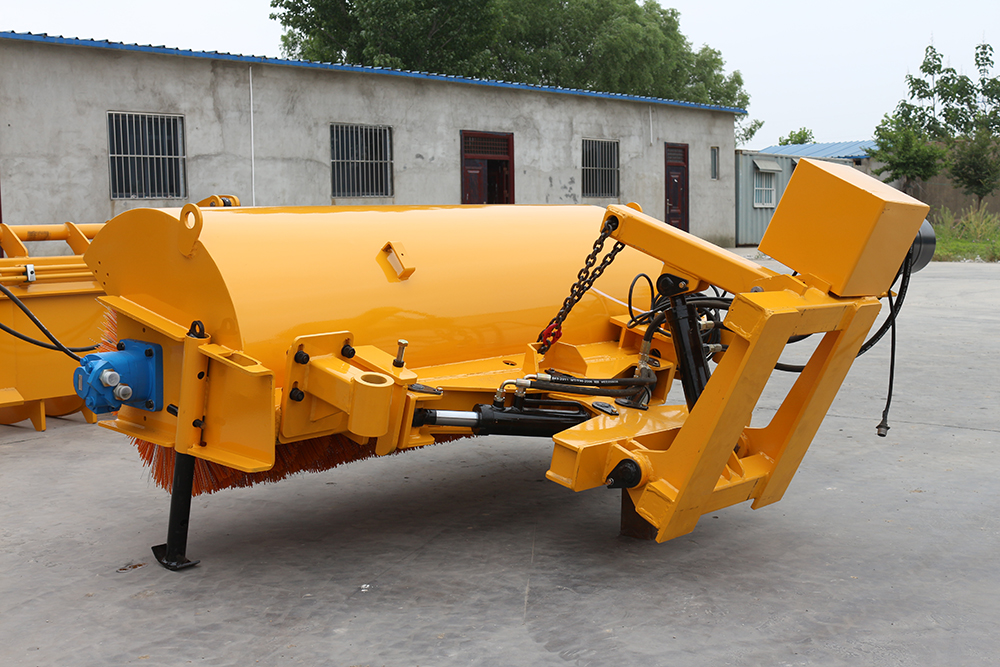

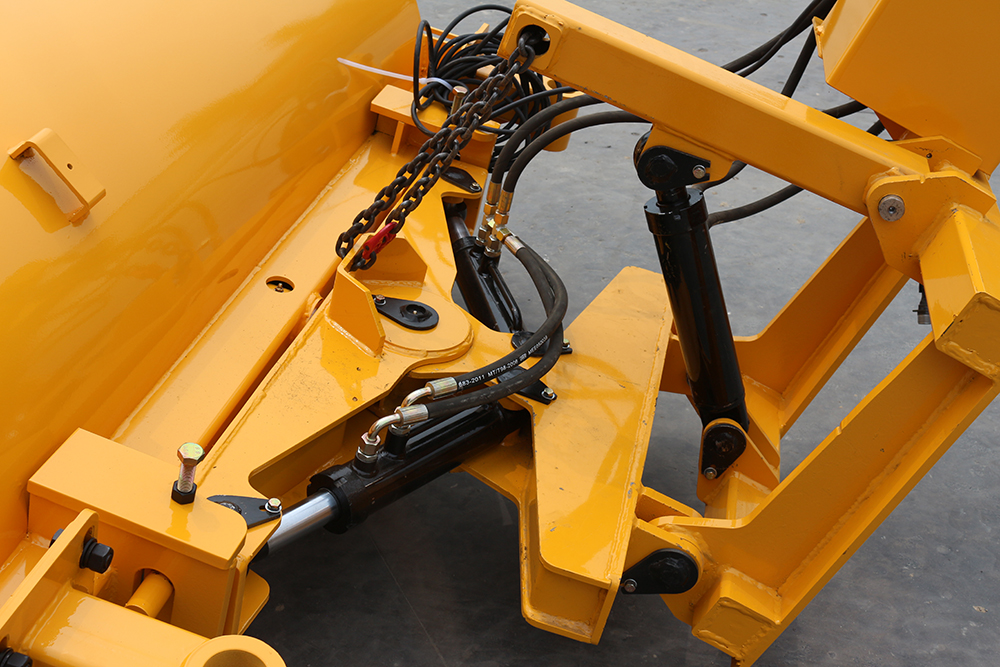

4.Centering swing linkage with multiple pivot points better centers broom in front of loader when angled.
5.Hydraulic pressure relief valves provide system protection when operating broom in both directions.
6.Easy exchange of wafers, no disconnecting of hydraulic hoses required.
Specification
Model | Unit | RSS-72/560 | RSS-72/670 | RSS-84/670 | RSS-84/810 |
Operating Width | mm | 1828 | 1828 | 2133 | 2133 |
Brush Diameter | mm | 560 | 670 | 670 | 812 |
Corner | ° | 30 | 30 | 30 | 25 |
Operatin Pressure | Mpa | 16 | 16 | 16 | 16-21 |
Operating Flow | L/mm | 50-125 | 50-125 | 50-125 | 50-125 |
Weight | kg | 340 | 380 | 420 | 480 |
Length | mm | 2030 | 2030 | 2335 | 1780 |
Width | mm | 1020 | 1020 | 1050 | 2450 |
Height | mm | 640 | 740 | 740 | 900 |
