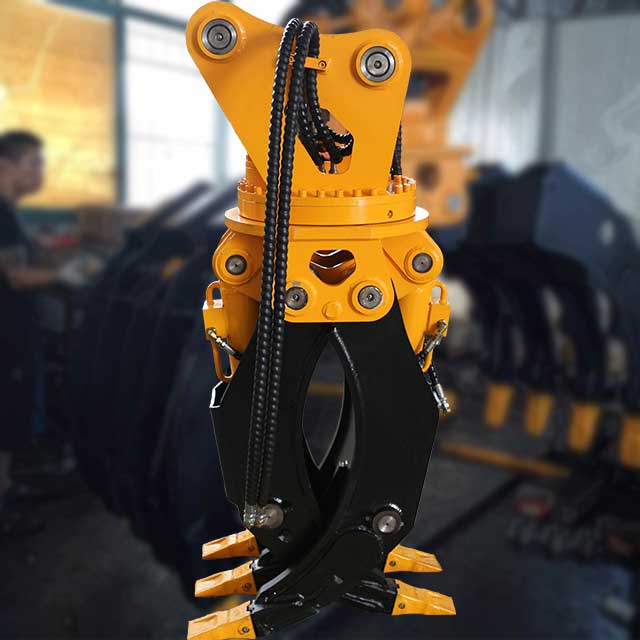

RHG 04
RAY ATTACHMENTS
Rotating Grapple Data
| Model | unit | RHG02 | RHG04 | RHG06 | RHG08 | RHG10 | RHG17 |
| Weight | Kg | 300 | 390 | 740 | 1380 | 1700 | 1900 |
| Jaw opening | mm | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 |
| Working pressure | Kg/cm² | 110-140 | 120-160 | 150-170 | 160-180 | 160-190 | 180-200 |
| Setting pressure | Kg/cm² | 170 | 180 | 190 | 200 | 250 | 250 |
| Oil flow | l/m | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
| Cylinder | pcs | 4.0 x 2 | 4.5 x 2 | 8.0 x 2 | 9.7 x 2 | 12 x 2 | 14 x 2 |
| Carrier | ton | 4 - 5 | 6-8 | 9-16 | 17-25 | 25 -33 | 33-45 |
 Body structure1.Use smarter detachable body (claw) for greater grab space. 2.The range of opening jaw of fingers depending on the model of hydraulic grapple. 3.Rotating grapple using German NM450 board. |
Rotating Grapple Structure
Please contact us for more details.
 Replaceable part 1.Two hand shank 2.Four pcs of oil hose 3.One piece of tool box 4.Four sets hard pipe and pipe clamp 5.One piece of hydraulic grapple 6.One set of valve |
 Application The wood type is mainly suitable for wood, sugar cane, etc. The stone type is mainly used for hard objects such as stones and iron blocks. Appearance: The stone grabber has more teeth than the wood grab, and the scrap grapple into a petal shape, and it has many cylinders. |
Rotating Grapple Data
| Model | unit | RHG02 | RHG04 | RHG06 | RHG08 | RHG10 | RHG17 |
| Weight | Kg | 300 | 390 | 740 | 1380 | 1700 | 1900 |
| Jaw opening | mm | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 |
| Working pressure | Kg/cm² | 110-140 | 120-160 | 150-170 | 160-180 | 160-190 | 180-200 |
| Setting pressure | Kg/cm² | 170 | 180 | 190 | 200 | 250 | 250 |
| Oil flow | l/m | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
| Cylinder | pcs | 4.0 x 2 | 4.5 x 2 | 8.0 x 2 | 9.7 x 2 | 12 x 2 | 14 x 2 |
| Carrier | ton | 4 - 5 | 6-8 | 9-16 | 17-25 | 25 -33 | 33-45 |
| Body structure 1.Use smarter detachable body (claw) for greater grab space. 2.The range of opening jaw of fingers depending on the model of hydraulic grapple. 3.Rotating grapple using German NM450 board. |
Rotating Grapple Structure
Please contact us for more details.
Replaceable part 1.Two hand shank 2.Four pcs of oil hose 3.One piece of tool box 4.Four sets hard pipe and pipe clamp 5.One piece of hydraulic grapple 6.One set of valve |
Application The wood type is mainly suitable for wood, sugar cane, etc. The stone type is mainly used for hard objects such as stones and iron blocks. Appearance: The stone grabber has more teeth than the wood grab, and the scrap grapple into a petal shape, and it has many cylinders. |
