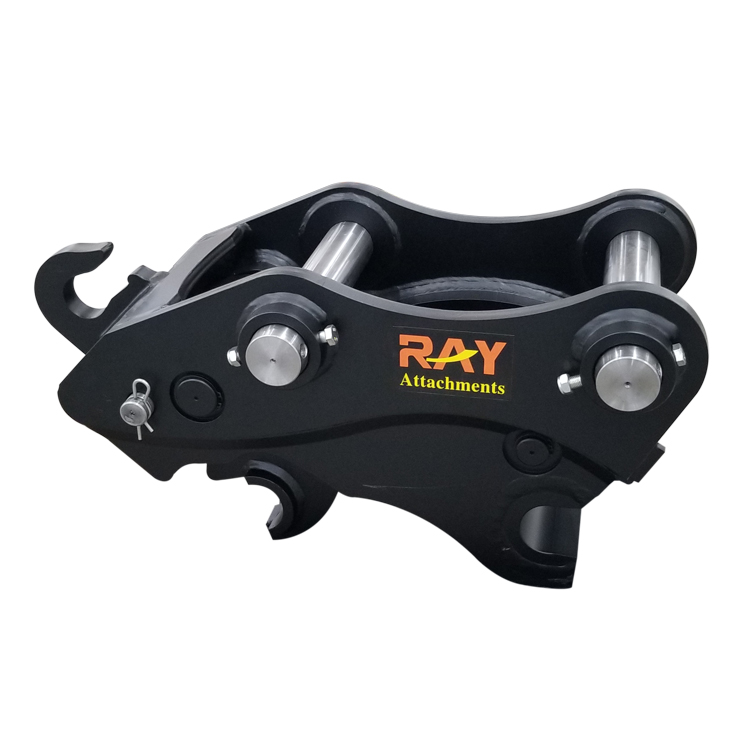

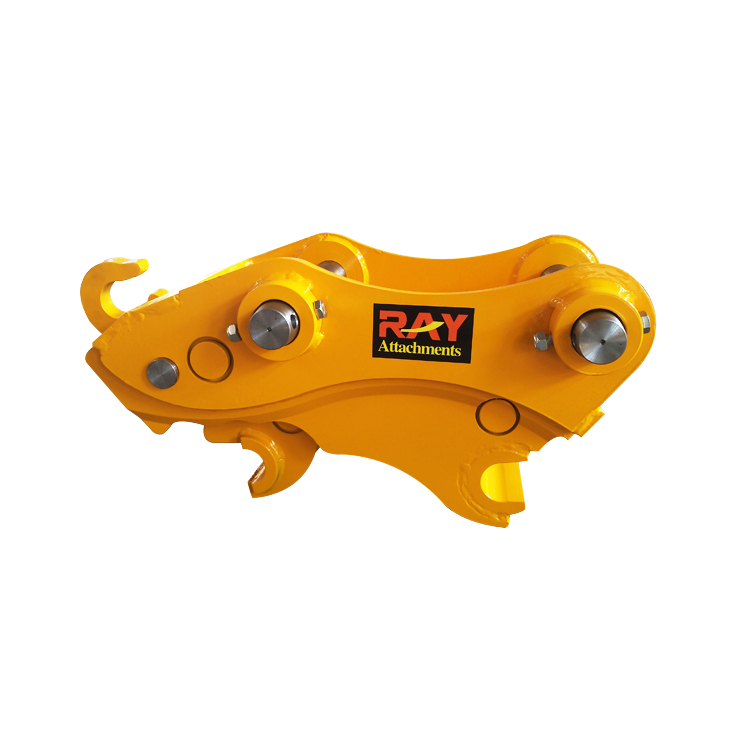

Hydraulic Quick Coupler for Excavator

Good quality Quick Hitch for 1-80 T Excavator
  • RHQ
  • RAYATTACHMENTS
Availability:
Inquire

Product Description
Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
Details Images
1. Welding Technique: 17 years experience, full welding and not easy to crack.
2. Grease Nipple: Make pin not easy to wear.
3. Hook: Wrap the pin in a large area to avoid deformation.

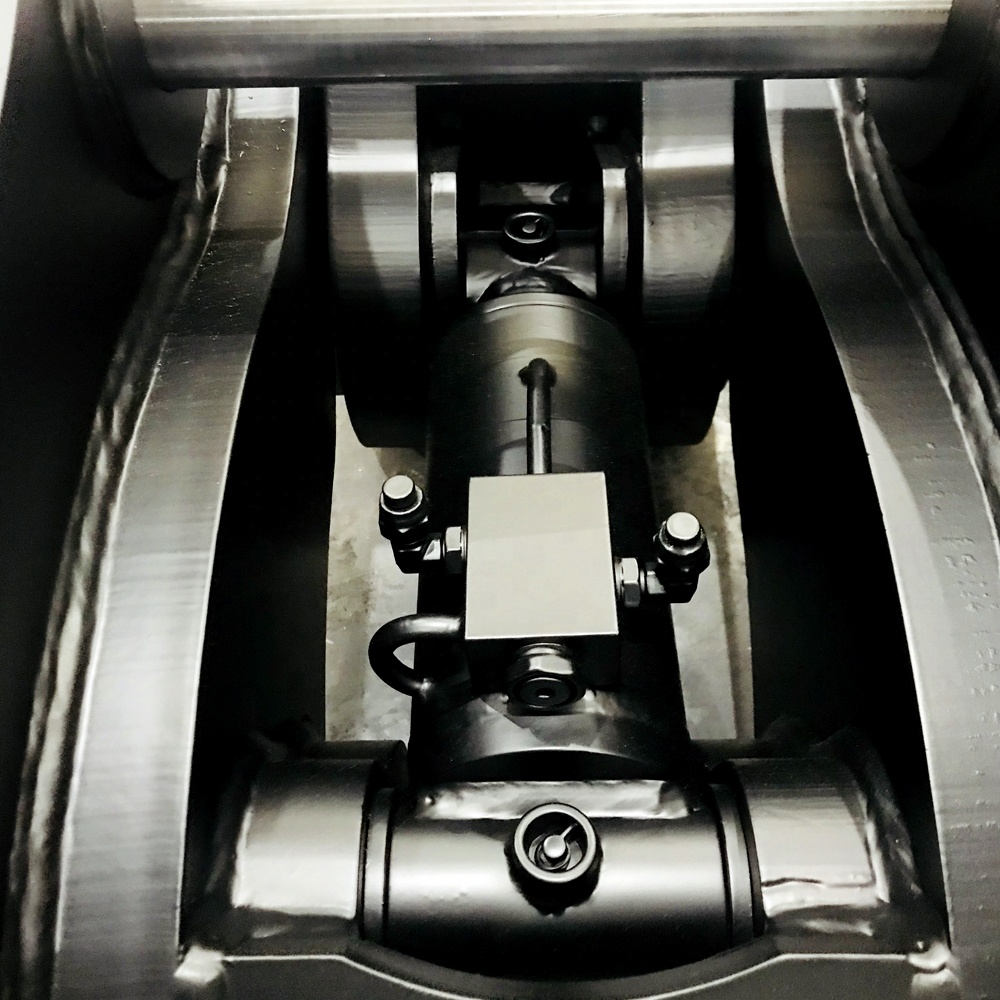

4. Imported oil cylinder and not easy to damage.
Specification
Item
Unit
RQH-MINI
RQH-02
RQH-04
RQH-06
RQH-08
RQH-10
RQH-17
RQH-20
Carrier Weight
T
<4
4-6
7-8
12-18
19-24
25-32
33-40
50-80
Length(L)
mm
306-475
534-545
600
765
924-944
983-1050
1006-1173
1215-1425
Height(H)
mm
230-268
307
310
388
492
574
558-610
622-780
Width(W)
mm
175-242
258-263
270-280
353-436
449-483
543-568
606-663
640-740
C to C distance(A1)
mm
86-200
230-270
290-360
380-420
460-480
473-540
550-620
630-760
Arm With(W1)
mm
86-185
155-170
180-200
232-315
306-340
375-411
416-469
472-560
Equipping Distance(A2)
mm
90-140
208-318
340-450
340-486
256-390
413-590
520-590
570-780
Pin Diameter
mm
25-40
45-50
50
50-70
70-80
80-90
90-120
125-150
Weight
kg
60
100
110
250
500
650
850
1150
Working Pressure
kgf/
cm²
40-380
40-380
40-380
40-380
40-380
40-380
40-380
40-380
Oil Flow
I/m
10-20
10-20
10-20
10-20
10-20
10-20
10-20
10-20
