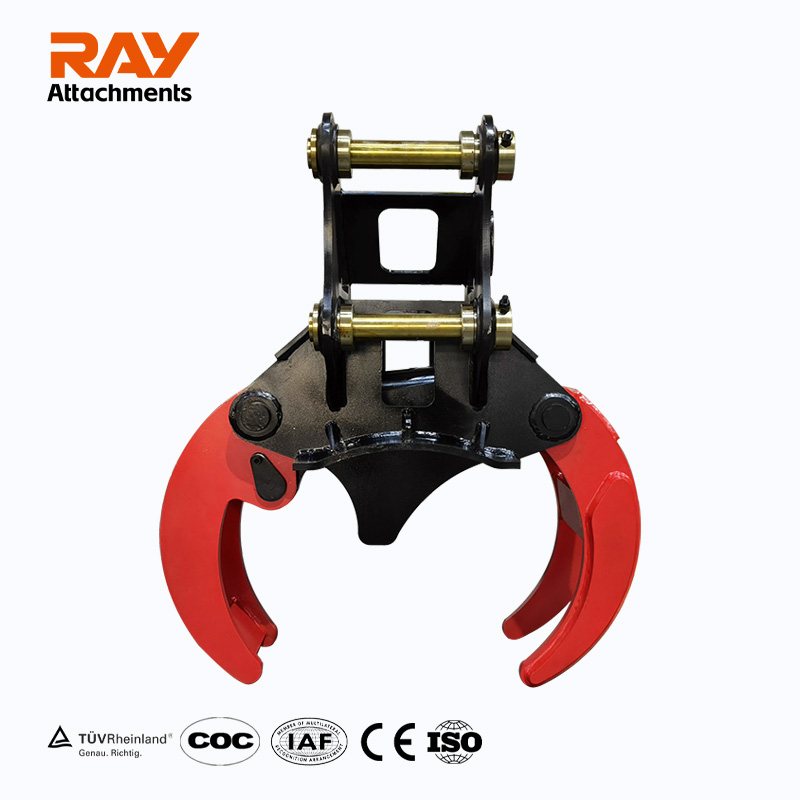

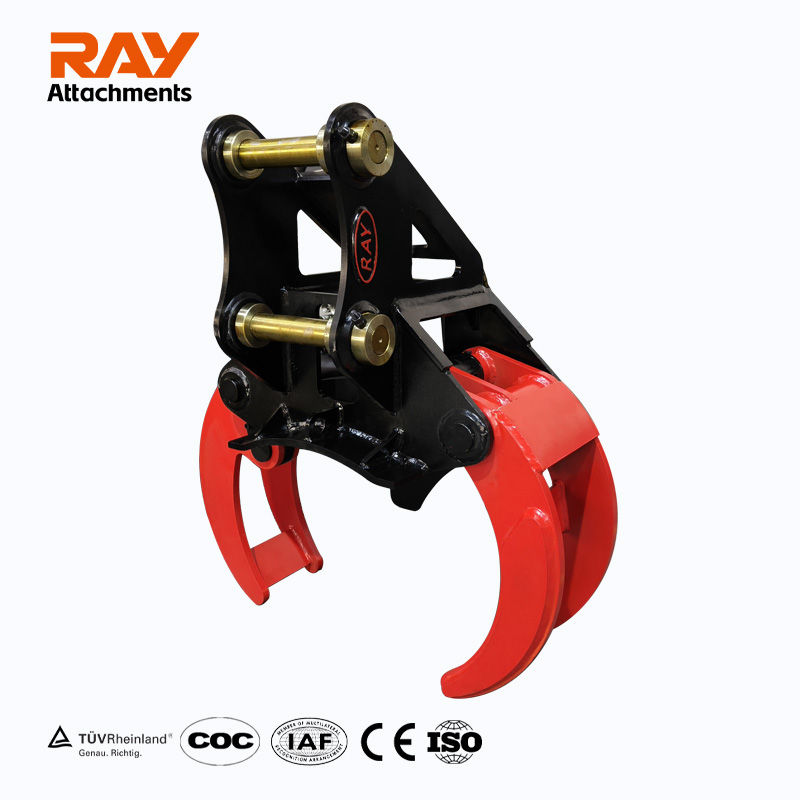

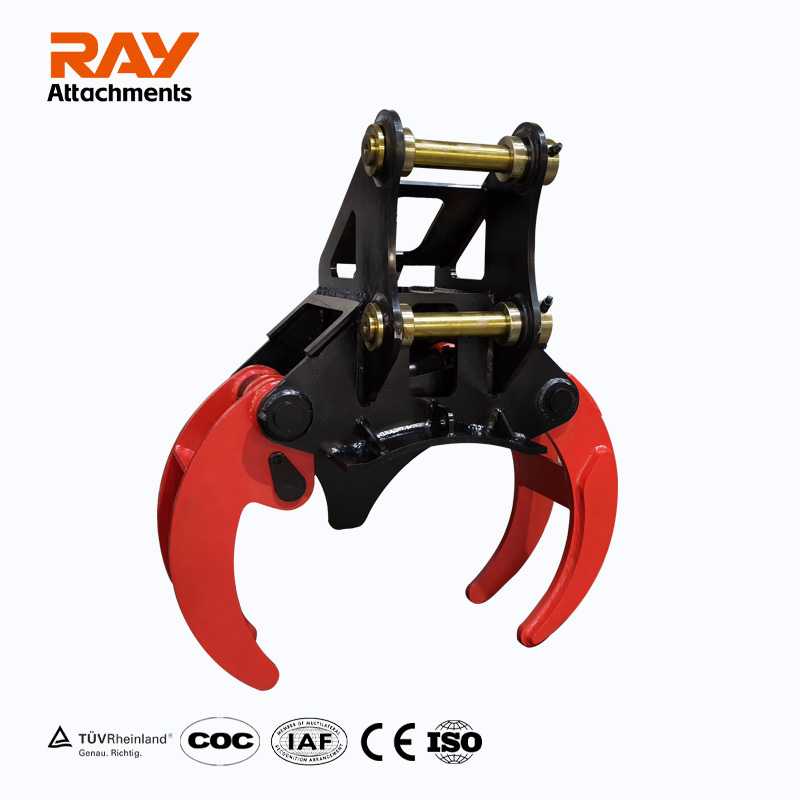

Hydraulic Tree Shear for 2-16 Ton Excavator

RAY hydraulic tree shear fits 2-16t excavators, cuts 150-300mm tree. Ideal for forestry, agriculture, landscaping. Durable, precise, efficient.

  • RLS

  • RAY Attachments

Availability:
Inquire



Model Unit RLS-02 RLS-04 RLS-06
Hydraulic bar 110-140 120-160 150-170
Working Flow LPM 30-55 50-100 90-110
Excavator weight ton 2-6 4-10 12-16
Opening width mm 420  550  830
Cutting width mm 150  200  300
weight KG 200  280  850
Cylinder piston rod
diameter		 mm 30  50  70
Piston diameter mm 55  75  100
Package size mm 745*640*625 1050*750*600 1090*1270*970

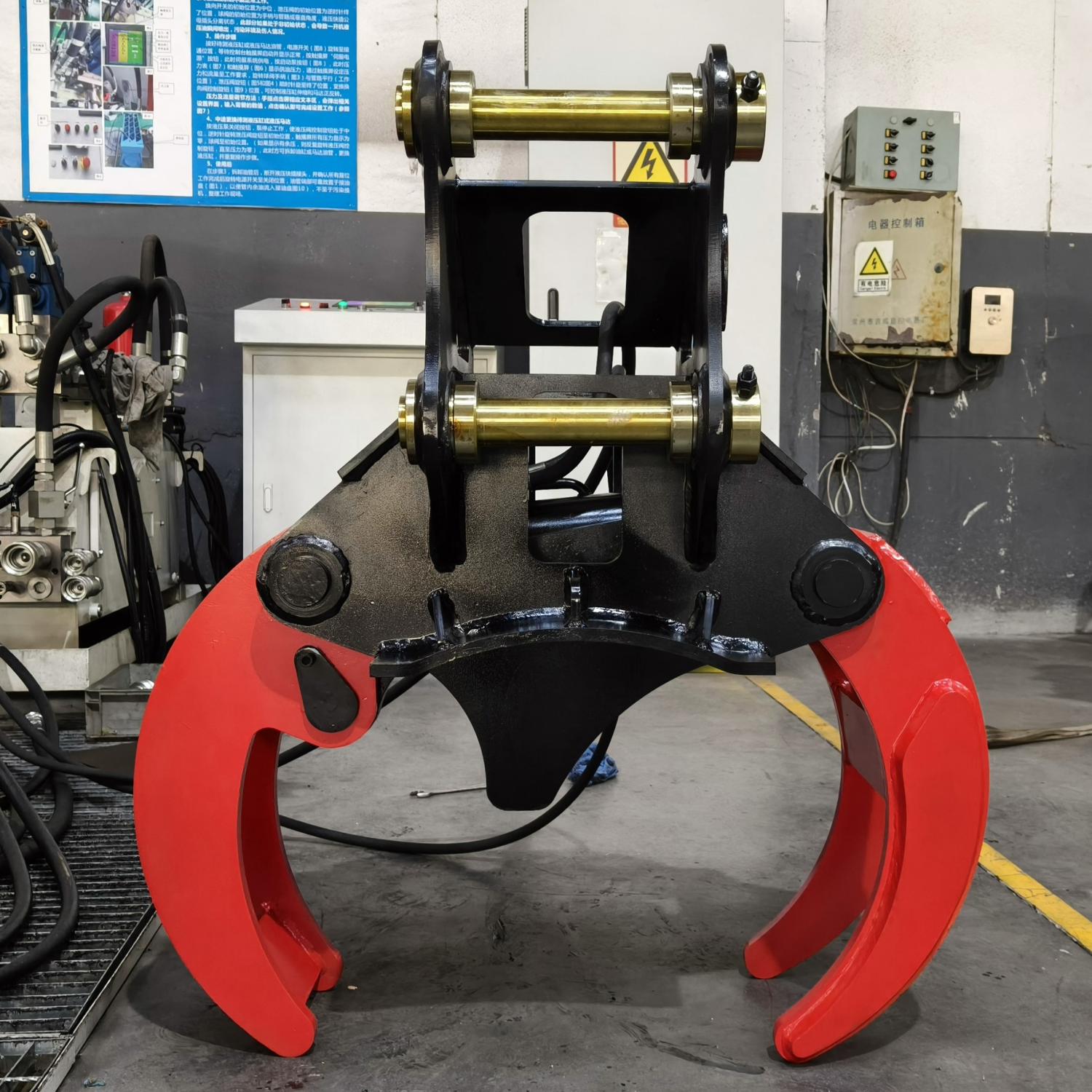

tree shear (2)

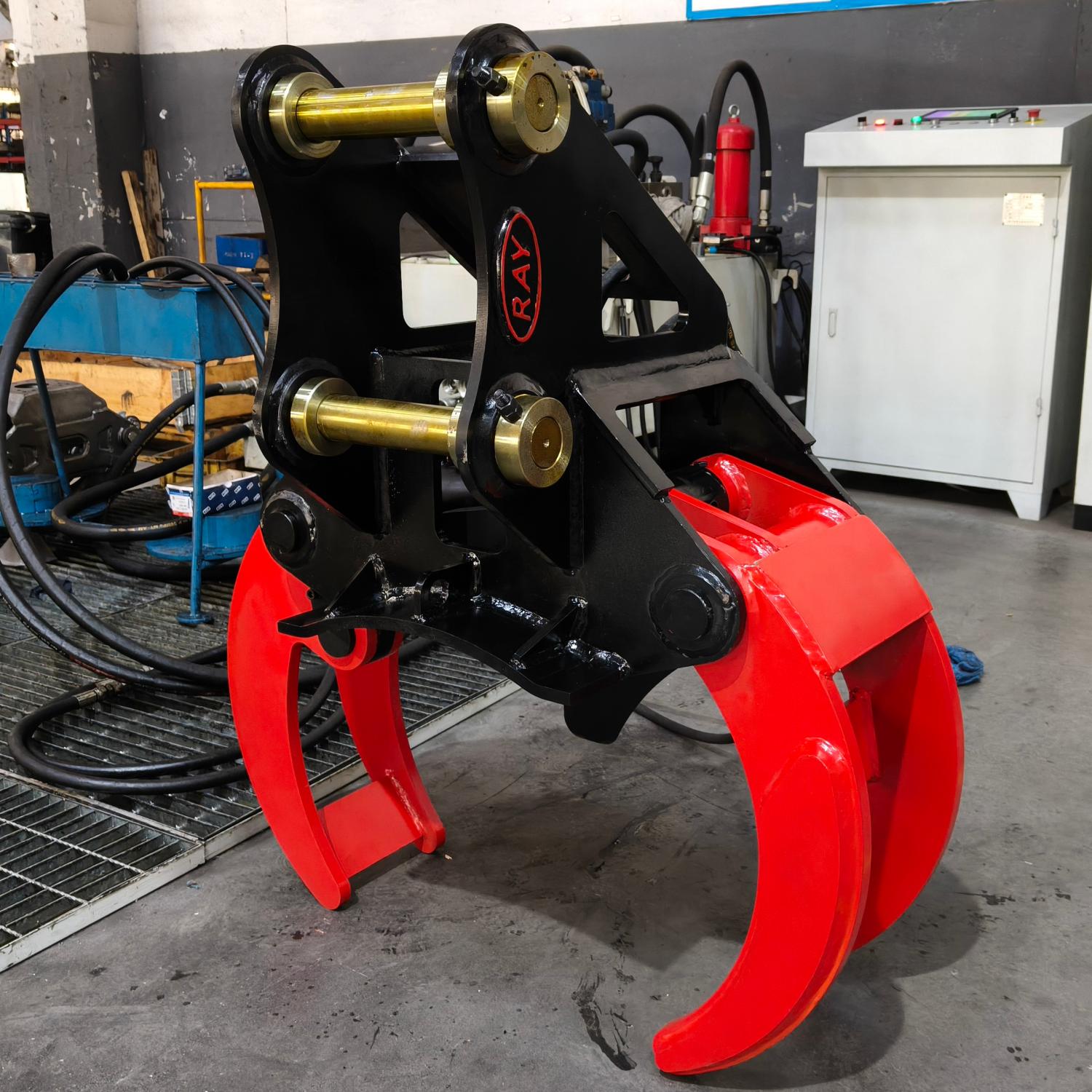

tree shear (5)

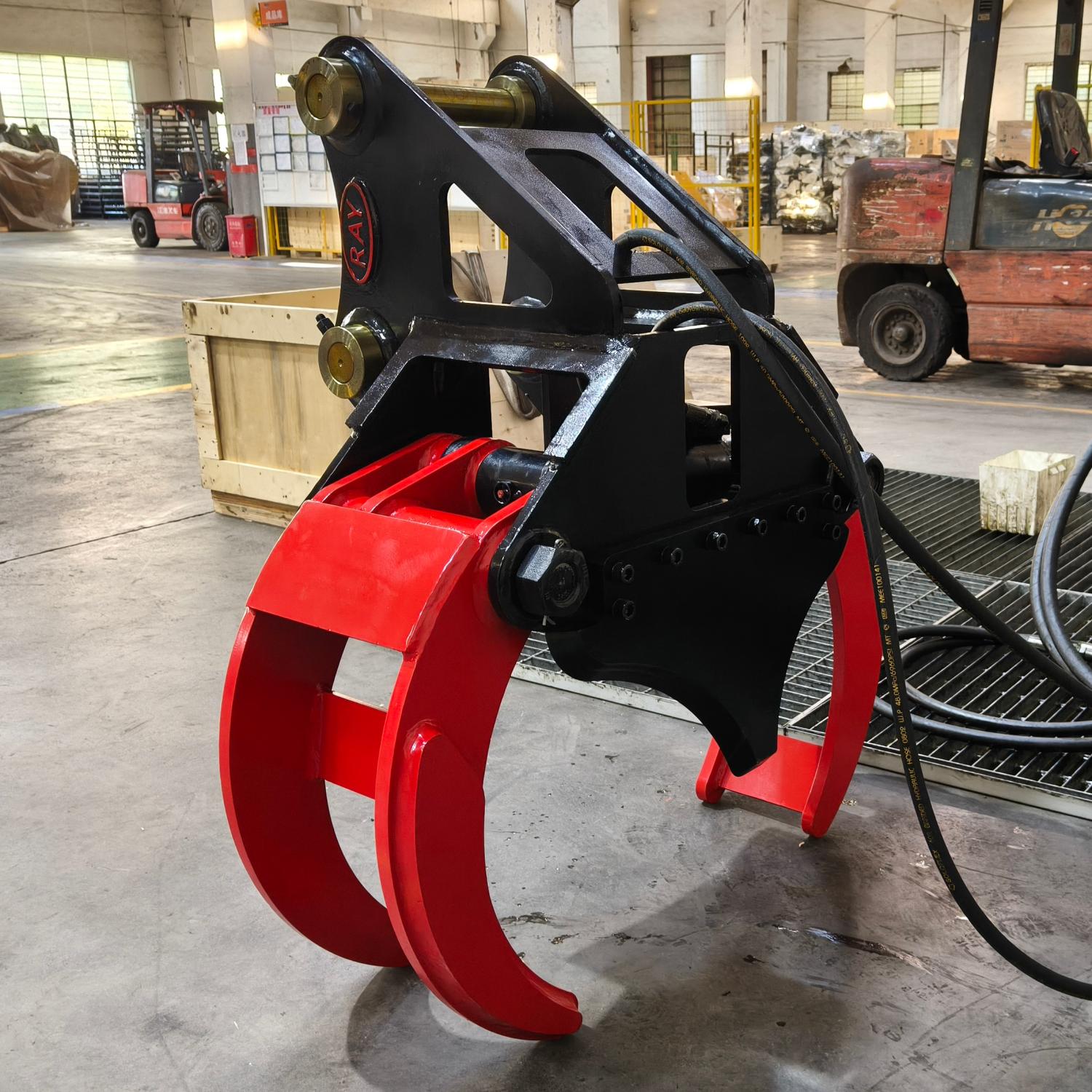

tree shear (7)
