Do you tired to break the piles by manpower? Dangerous , Slowly , Noisy , Expensive salary and so on.

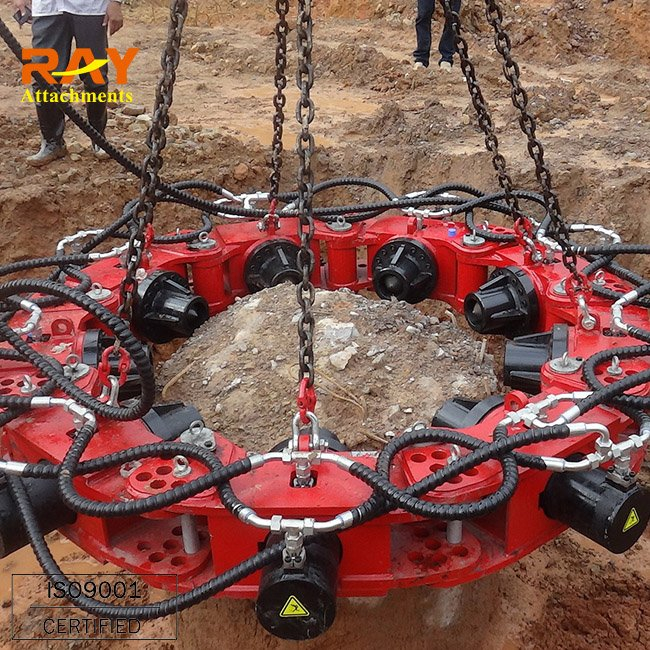

Don’t worry. Ray pile breaker will help you!
|Your problems||How can we solve it?|
|Dangerous||1. Contact-free operation is enabled. |
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.
|Slowly||1.Replaceable and changeable module combination makes its applicable for piles with various diameters. |
2.The modules can be assembled and disassembled easily and conveniently.
|Noisy||Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments|
|1.Fewer operating workers are required to save cost for labor and machines maintenance during construction. |
2.Suitable for different kinds of carrier.
3.Module generalization is realized with our SP380 and SP400 square pile machine. It can be used for both circular
piles and square piles by changing the module combination
|Durable?||1. It is made of military material by first-class suppliers with reliable quality, extending its service life. |
2.The mainboard used Q345B and the chisel used the 20CrNiMo3.
3.12 month free after-sales service.
4.Provide 3 sets wear parts for chisel.
5.Professional small tools for free.
(1)The mechanical stress is put pressure on the structural parts not on the connection when it worked and the oil cylinder which is specially-made by Sany used the double oil seal.
(2)There are 7 kinds of pin axle holes to match different shaft. To prevent the form of pile breaker changed when it worked.
(3)The shackle loading weight is 3 tons .Meet the national standards.
(4)The chain hoist is adjustable and the loading weight is 4 tons.
|3||Range of pile breaker||mm||350-900|
|4||Max force for single rod||KN||350|
|5||Max stroke of hydraulic cylinder||mm||170|
|7||Pressure of hydraulic cylinder||Mpa||32-35|
|8||Max flow for single cylinder||L/min||25|
|9||Max height for each crush||mm||≤300|
|11||Single moulde weight||kg||200|
|12||Total pile breaker weight||kg||1200-2000|
