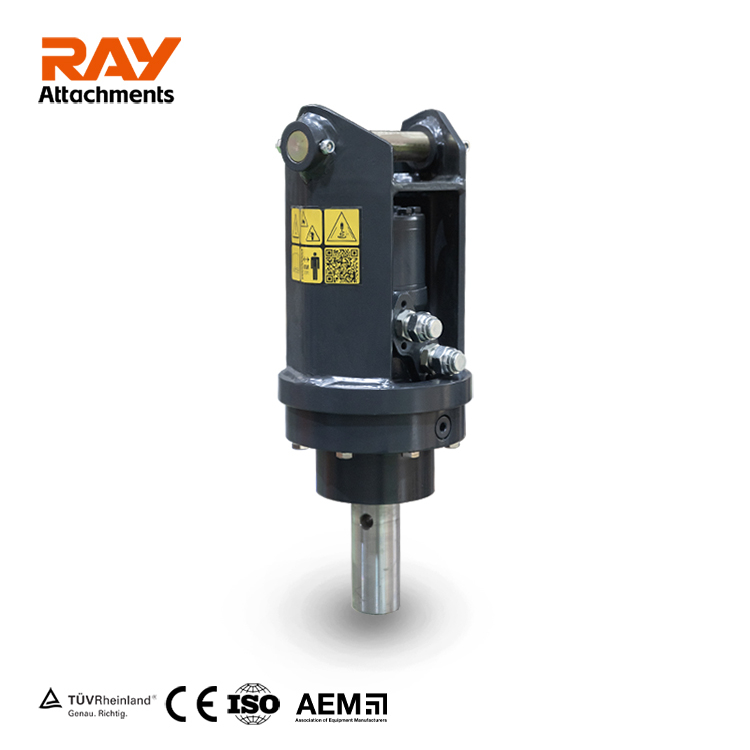

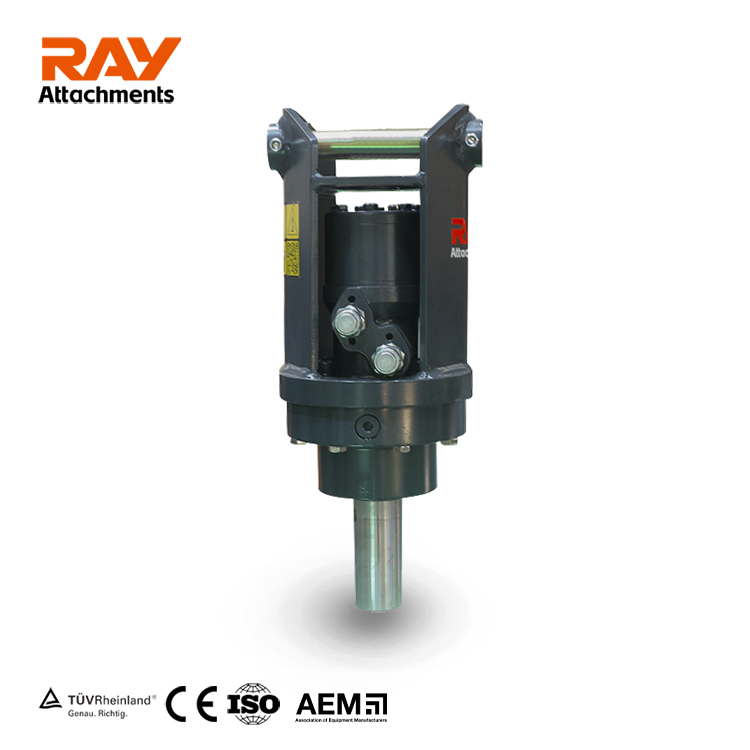

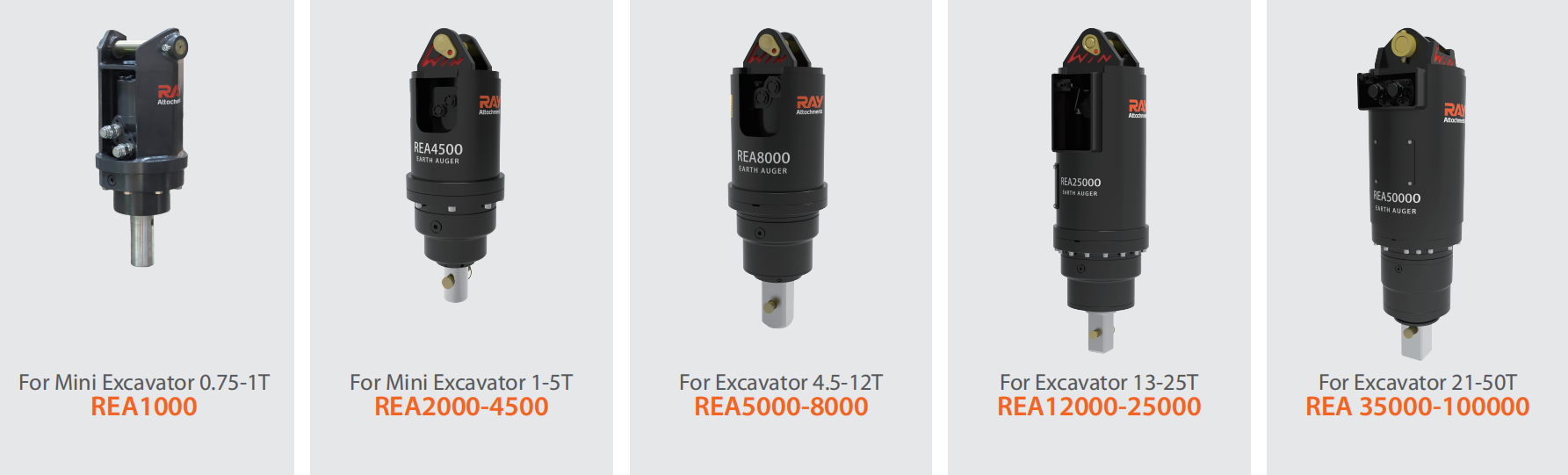

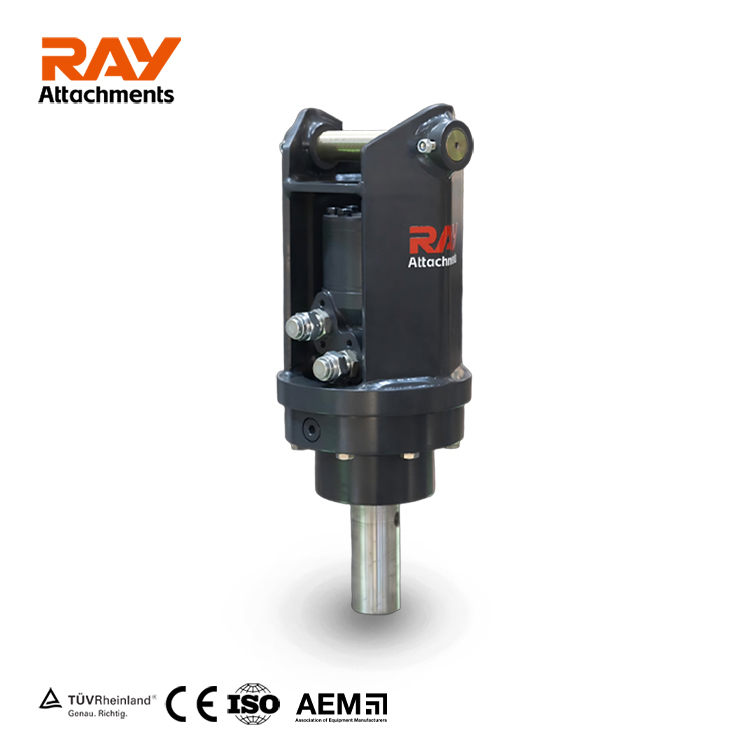

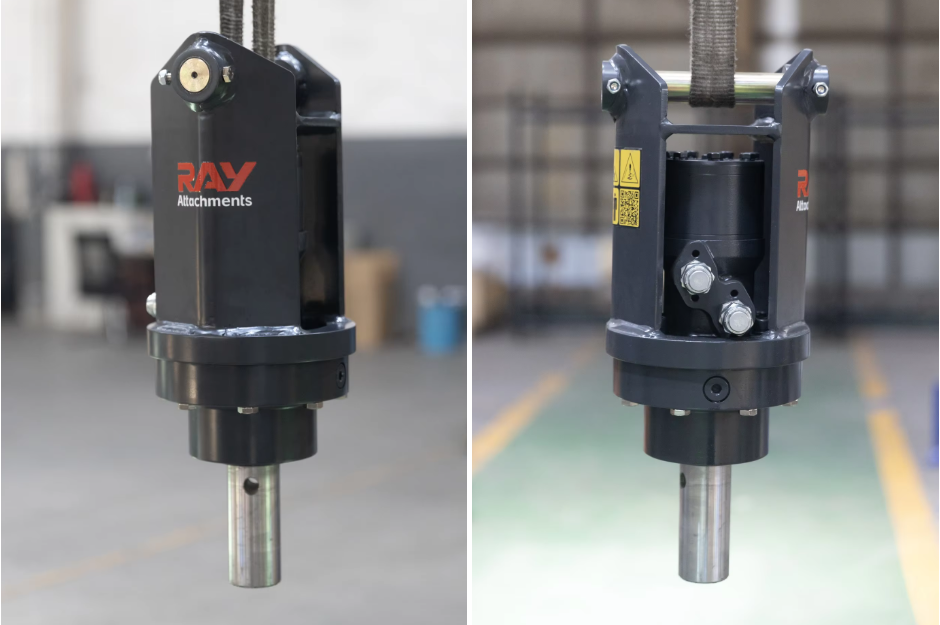

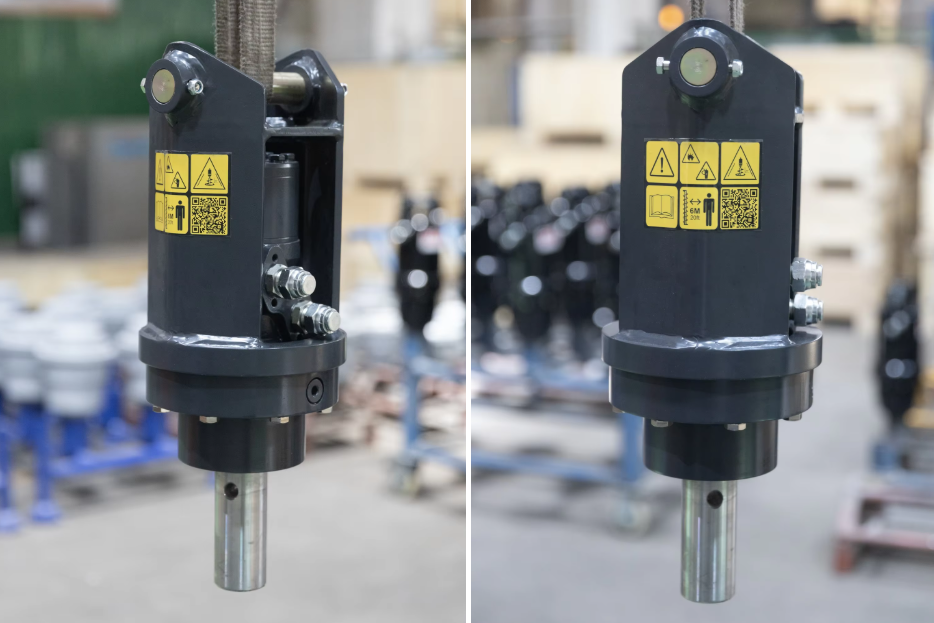

Auger Drives REA1000 up to REA4500 are the perfect choice for small excavators between 0.75T and 5T.
Even though these model Auger Drives are the smallest in our line-up they are over engineered and built to last, giving you the same versatility, peace of mind and product quality you’d expect from all our products. Developed to work with all makes and models of parent machine, and complemented with a range of attachments, you will find an earth auger and attachment for your every need. With the versatility to easily switch between attachments depending on the job at hand, you can be sure that your RAY Earth Auger will deliver, time and again.

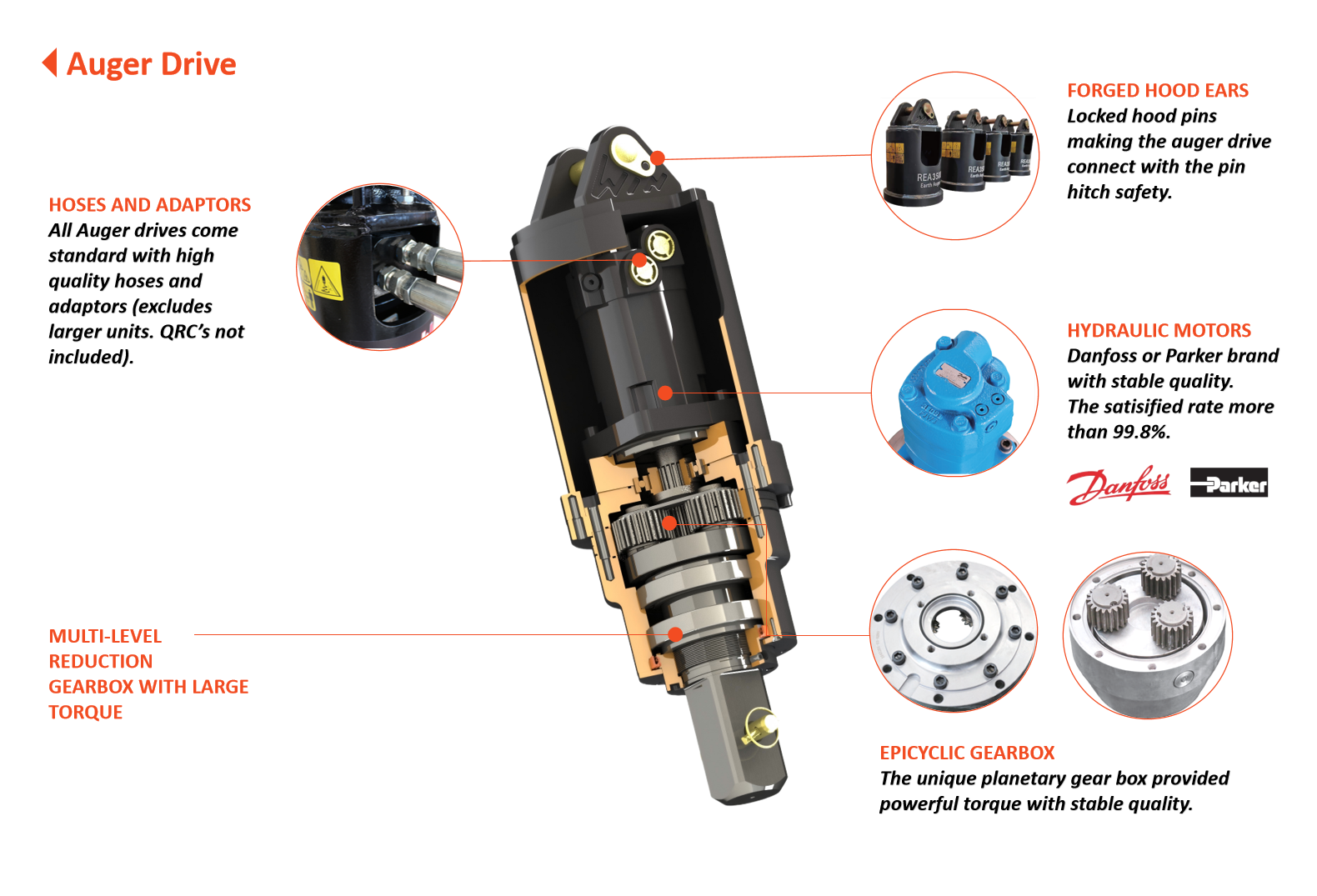

·FORGED HOOD EARS
Locked hood pins making the auger drive connect with the pin hitch safety.

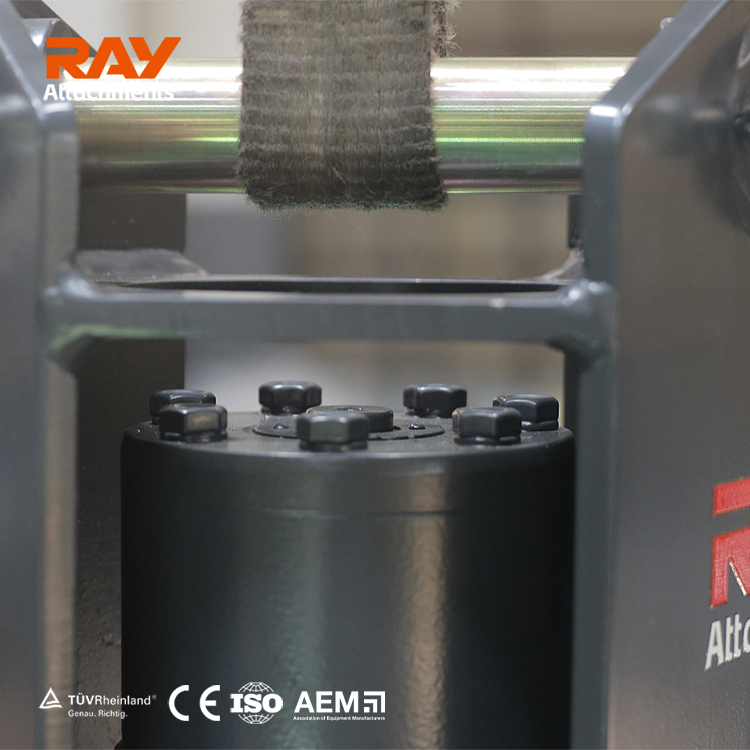

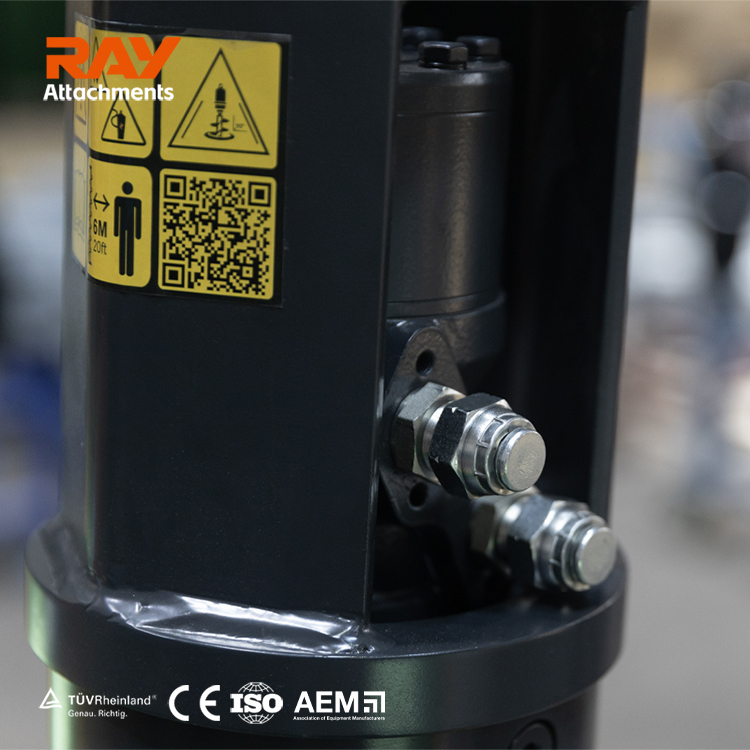

·HIGH QUALITY HYDRAULIC MOTORS
Danfoss or Parker brand with stable quality. The satisified rate more than 99.8%.
·EPICYCLIC GEARBOX
The unique planetary gear box provided powerful torque with stable quality.
·MULTI-LEVEL REDUCTION GEARBOX WITH LARGE TORQUE
·HOSES AND ADAPTORS
All Auger drives come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).

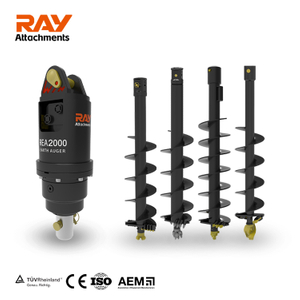

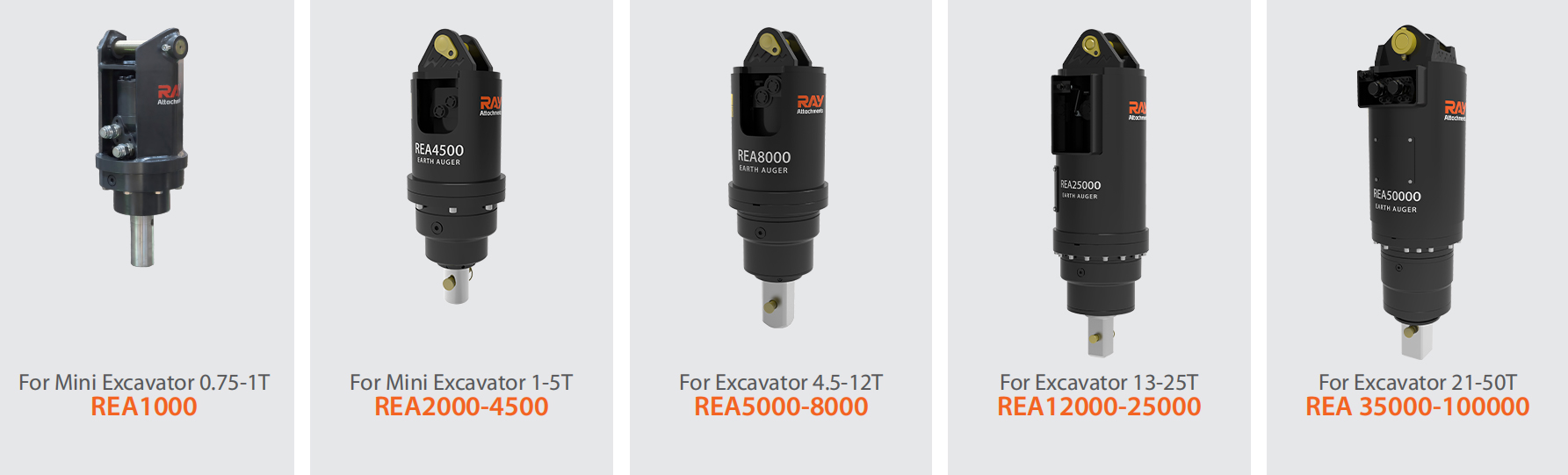

| Model | REA1000 | REA2000 | REA2500 | REA3500 | REA4500 |
| Adaptive Weight (T) | 0.75-1 | 1-2.5 | 1.5-3 | 2.5-4.5 | 3-5 |
| Oil Pressure Range (Bar） | 150 | 205 | 205 | 240 | 240 |
| Torque Range (N.m) | 950 | 1871 | 2432 | 3614 | 4499 |
| Oil Flow Range (L/min) | 15-32 | 23-53 | 30-61 | 30-68 | 38-76 |
| Speed Range (rpm) | 38-81 | 40-92 | 40-82 | 32-72 | 32-64 |

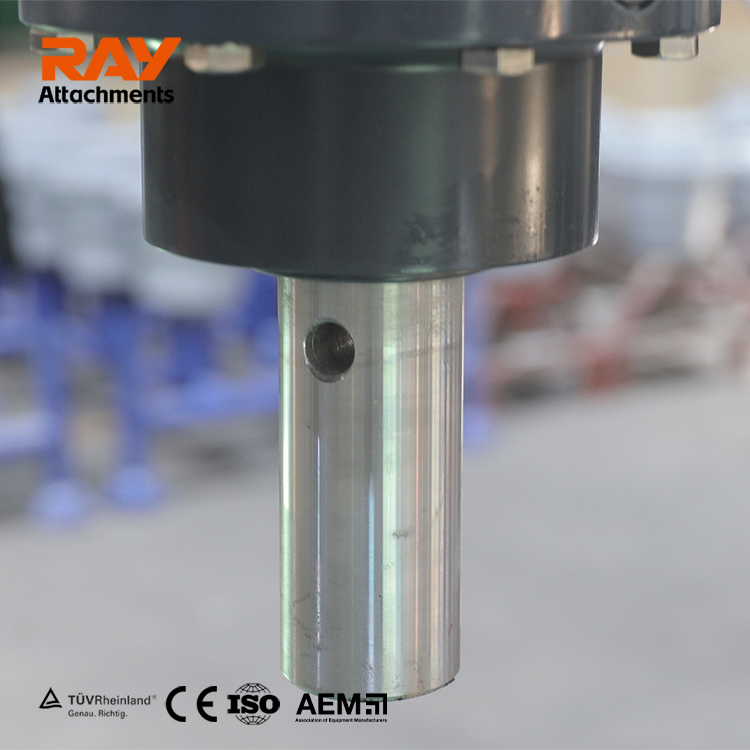

| Hub Option | 50mm round | 65mm round 2'' hex | 65mm round 2'' hex | 65mm round 2'' hex | 65mm round 2'' hex |
| Height (mm) | 507 | 595 | 595 | 700 | 700 |
| Hitch Options | Single Pin Hitch Double Pin Hitch Cradle Pin Hitch | ||||
| Auger Range | S2 | S4 | S4 | S4 | S4 |
| Auger Dia. Range (mm) | 100-300 | 100-400 | 100-500 | 100-750 | 100-900 |
RAY Earth Auger can be mounted on Excavator, Skid steer loader, Crane, Backhoe loader, Tractor, Telehandlers...

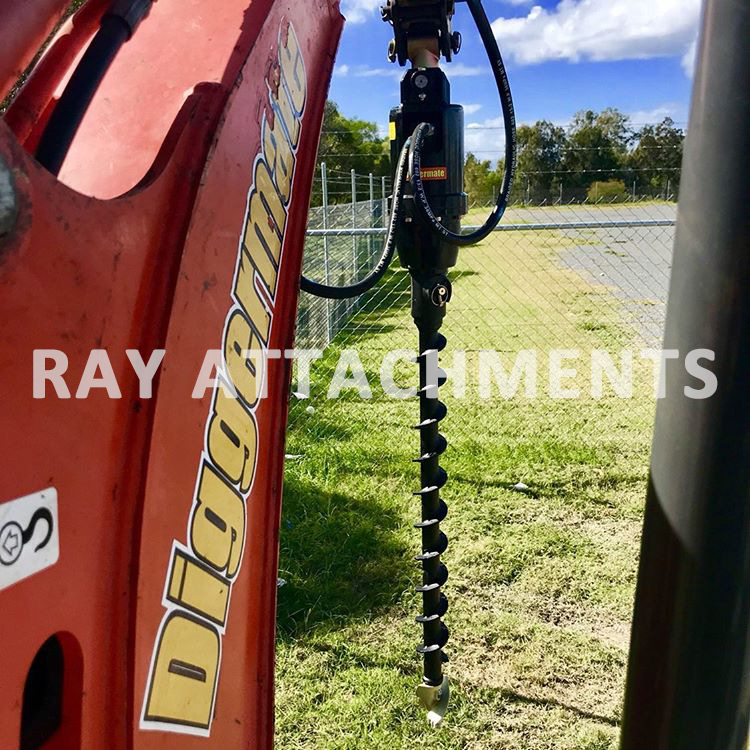

Mini Excavator, Australia

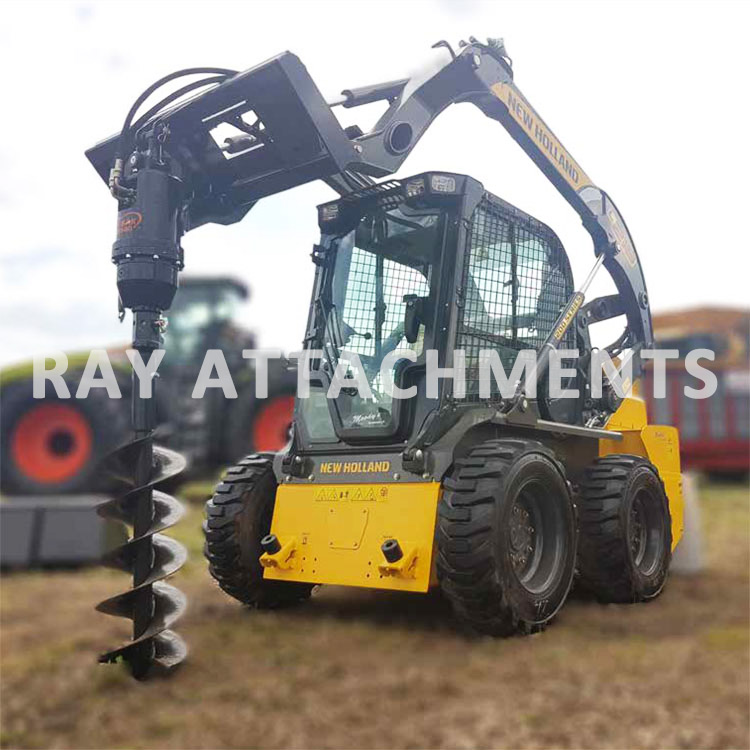

Skid Steer Loader, USA
Skid Steer Loader, Russia

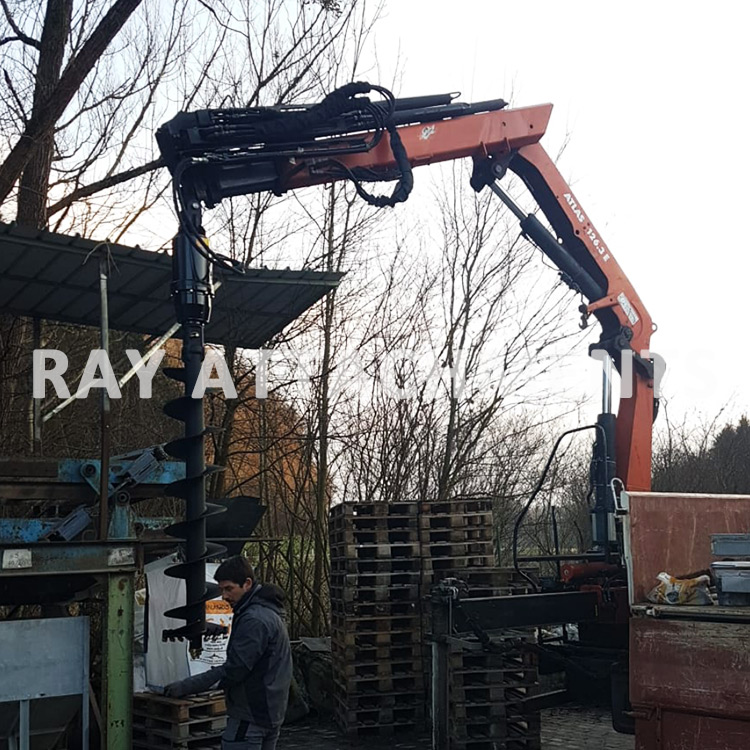

Crane Truck, Austria

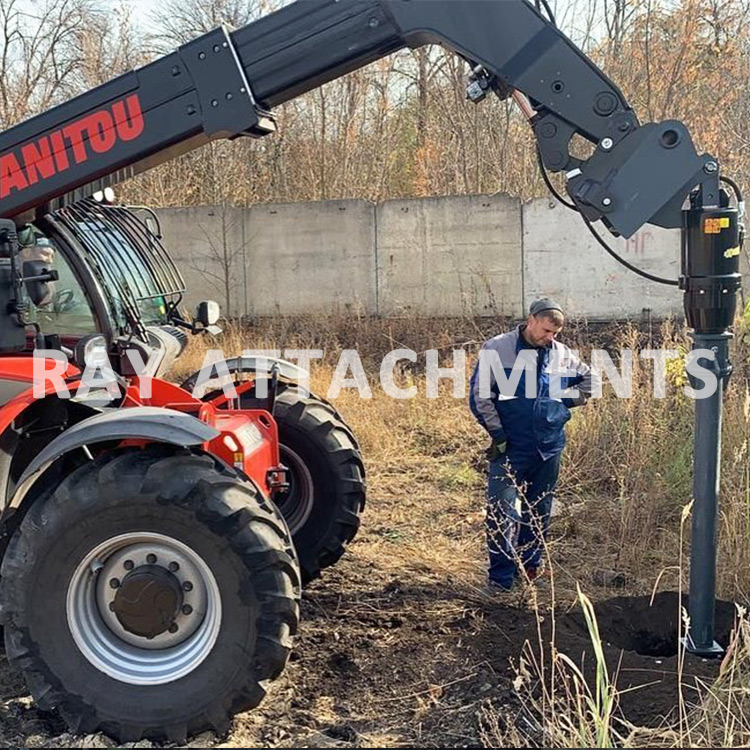

Telehandlers, Russia

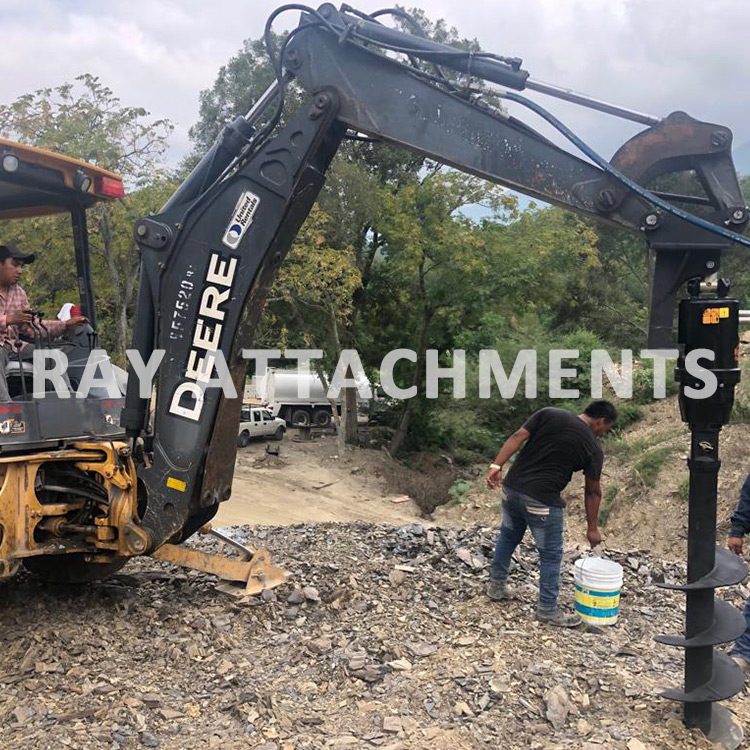

Backhoe Loader, Mexico

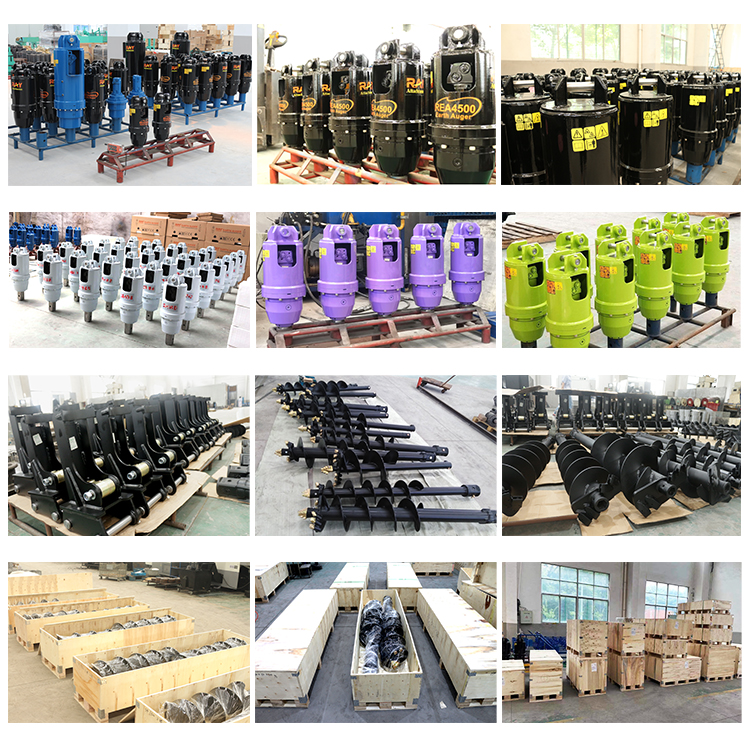

20+ years OEM ＆ ODM experience.
We can provide professional OEM and ODM service, such as customize your own colour, brand, package and so on.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. How to check before shipment?
Before delivery, measure the size, measure data, test the machine, inspect the package, and affix the qualified certificate.
2. How to package?
Auger Drive: Carton box or Wooden box, then packed in plastic film.
Auger Drill: We use woven bags and plastic film to reduce weight and help customers save more shipping costs.
3. Do you put in a carton box or a wooden box?
Generally, small models will be packed in cartons. Larger models will be packed in wooden boxes. If it ships by sea, we recommend using wooden boxes. This will prevent damage to the packaging during transportation.
4. When can you deliver? How to ship? How long can it take from our payment till deliver to the port?
Delivery time depends on your order quantity. If 1-3 sets, it takes about 7 working days. The 10 set needs about 15 working days. We can deliver by sea or air, and also by train. Depends on when you need it.
5. Can you deliver without your logo?
Yes, of course. If you have your own logo. We also can show it on the auger drives.
6. How much warranty do you give?
We provide 18 months for the auger drive.
7. What brand drives you?
We have our own RAY brand. But if you want to sell under your own brand, we can provide OEM service.
8. Are the hydraulic motors yours?
No, we don't produce motor. Our motor is a Danfoss or Parker brand with stable quality.
9. So what goes wrong when they are old?
As long as you maintain it normally and operate it correctly. You can use it for more than 3 years without any problems.
10. How many teeth are there?

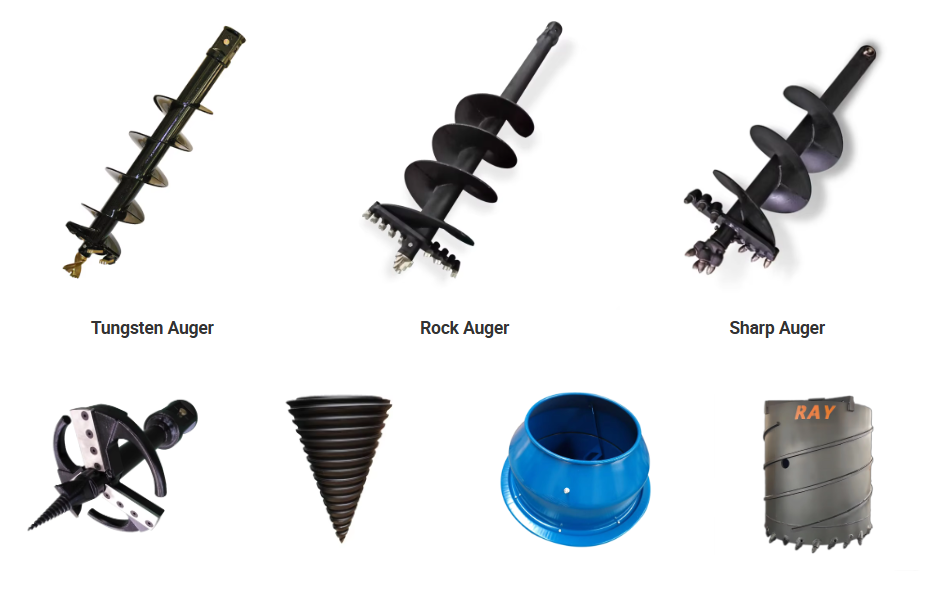

Different-sized tungsten or rock augers have different teeth. I will show you our specifications.
11. I don’t have an excavator. I want to install it with a truck?
Our auger can be installed on a truck. Please tell me your truck model or the oil flow of the hydraulic system.
12. How about payment terms? I don’t want to pay 100% in advance. Is there any other option?
You can pay by bank transfer or credit card. You can pay 30% in advance and pay the rest before delivery.
