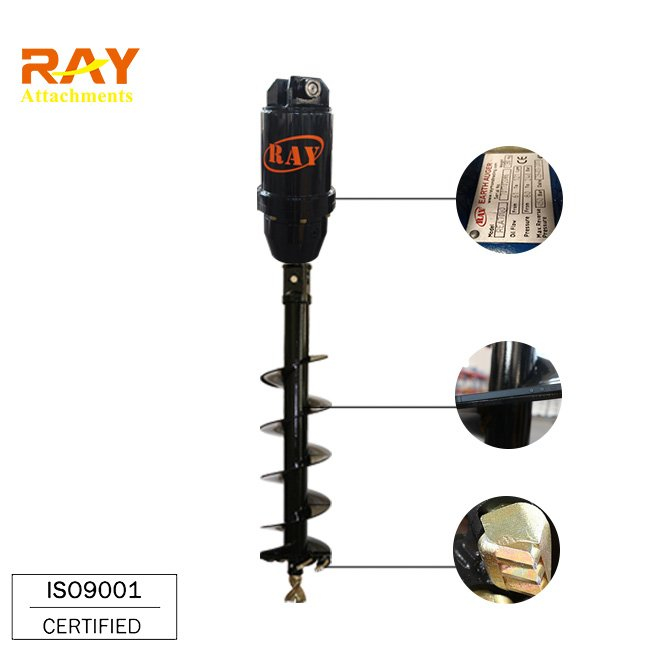

REA5000 model hydraulic Earth Auger

Suitable Excavator Weight: 4.5-7T.

  • REA5000
  • RAYATTACHMENTS

Features:

  1. Forged Hood Ears to cope with the heavy strain of daily use

  2. Hoses are absolutely high quality

  3. Top quality hydraulic motors, we adopt most reliable hydraulic motor available market in this market today.

  4. Planetary gear allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.


             洞3.jpg   洞.jpg   实景1.jpg   实景2.jpg


Applications:



Apply to:


apply to.jpg


View details:


earth auger spare parts.jpg


Earth Auger can be divided into four parts
1.Pin Hitch Connecting excavator arm to auger drive.
2.Oil Hose Connecting excavator hoses to auger drive oil connection.
3. Auger Drive The main part of earth auger,providing power.
4. Auger Drill The part for digging earth.


Pin Hitch:

photobank (14).jpg

Single Pin Hitch Double Pin Hitch Double Pin Crandle Hitch
1.Convenient connection
2. Cheaper price
3.To be used for Mini excavator and mini Auger drive

1.Stable performance

2.Carrying a heavy weight

1.Prevent the auger drill from swinging
2.Stable performance
3.Carrying a heavy weight



Auger Drive:

photobank (20).jpg

18 Month After-sales service for Aauger Drive

1. Hose&Couplers Option: All earth auger drills come standard with high quality hose and couplers.

2. Eaton Motor: Developing the most reliable attachments .

3. ERICYLIC Gearbox: Unique planetary gearbox.Multiplied output torque.Extreme efficiency

4. NON-dislodgement Shaft: Assembled top down locked into earth drill house.Never fall out.Provided a safer environment.


Specifications:

Name
Uuit
REA5000
Carrier
T
4.5-7
Max Torque
N.m
5056
Pressure
Bar
240
Oil Flow Rang
L/min
38-76
Rotary Speed
rpm
29-58
Hydraulic Hose
Inch
1/2
Output Shaft
mm
□75
Unit Weight
Kg
110
Unit Height
mm
780
Unit Max.Dia.
mm
269
Auger Series
mm
S5
Auger Length
mm
1500
Drill Dia.Range
mm
150-600

How to choose the model?

1.Model of your excavator,skid steer loader,backhoe,crane
2.Diameter of hole to be drilled
3.Depth of hole to be drilled
4.Land type


The suiatble model for excavator:

Excavator Brand
Model
CAT
304C-,305,307B,E70B,304.5
DOOSAN
S55-V,SDX55,S55W-V
HITACHI
UEO14,EX58/55/50/40/45/50U/6070/80U/75
IHI
IS40/45/65,40JX,40NX,45J,45N,
KOBLECO
SK40/042/45SR/50/050/60mk5/60/75/95
Komatsu
PC38UU/40-3/40/45/50/60/
KUBOTA
KX121/161, KO40, RX502, U45
THOMAS
T45S, T75S
YANMAR
VIO40/50/55/70/75, B50,


Auger Drill:


S5 Drill S5 Extension shaft:

The output shaft is 75mm Square

Length: 1.5m   Drilling Dia.: 150-900mm

Square 75mm

Length: 1000mm, 1500mm, 2000mm




Teeth and Pilot:



Tungsten Type: Rock Type:
1. It fit to clay, snady land or a little gravel.Digging the soil land very easily.
2. Teeth Locking system:Keep the teeth never fall down.(Patent Number:201520425163.4)

1. It fit to rock, pitch or a lot of gravel land.Harder than tungsten type.

2. Raymond Auger suit for Clay, Sand, Soil Land, Decomposed rock Type,Gravel Type, Asphalt and so on.

Contact us to know more about the parameter.



1.Q:In which condition, auger will craze?

A:Wrong operation will lead auger crazing. Auger should be vertical to the earth when operation. Big type auger drive has reinforcement measure to protect auger.

2.Q:Will the screw blade drop out?

A:No, we haven’t met this condition so far.

3.Q:What’s the gear box used for in the auger drive?

A:The planetary gear is used for transmission. Gear box is used for slowing down the speed of motor.

4.Q:In which condition, earth auger can work most efficient?

A:Efficiency depends on rotate speed. Rotate speed depends on oil flow. Oil flow depends on the excavator pump.

5.Q:In common earth condition, how many holes can be dig in 1 min?

A:Different earth condition has different answer. It depends on the oil flow and pressure, whether the earth loose. For example, it takes 30s to dig a dia 300, depth 1.5m hole in loose earth.

6.Q:How long should change the auger teeth?

A:It depends on the earth condition and working time. According to customers’ feedback, it would be 6 months in loose earth and 1-3 moths in soil with small stones.

7.Q:What’s the space between two screw blade?

A:It depends on the auger type and the outer diameter.

8.Q:What’s the material of screw blade?

A:Q345 alloy steel.

9.Q:Why the output shaft of REA2000-4500 is round, and REA5000-25000 is square?

A:Large type of auger drive has bigger torque. Square output shaft can increase the friction and hard to slide.

10.Q:In which condition, the auger drive won’s work.

A:The hose was not connected correctly. The excavator problem. The motor problem.

11.Q:How about the warranty?

A:We provide 18 month warranty for our auger drive.(Under the correct operation)

12.Q:How many teeth does S4,S5,S6 auger have?  According to diameter of the auger?

A:Yes, according to the auger’s diameter.

13.Q:Why don’t fully weld between screw blade and auger?

A:Because fully weld will make the auger deformation.

14.Q:Will the teeth holder be deformed.

A:It will be worn but won’t be deformed.

15.Q:What’s the material of the teeth and what’s the technology?

A:The material is tungsten and the technology is forged.

16.Q:How many oil seal does a auger drive have. How long should change the oil seal?

A:4 oil seal. It don’t need to change in general.

17.Q:Oil seal must be changed by manufacture? Or customers can change it by themselves?

A:All the oil seal are normal. You can change it by yourself.

18.Q:Why do the auger drive leak oil?

A:There may be some problems of oil seal.

19.Q:What kind of machine can auger drive be installed?

A:Excavator, crane and skip steer loader.

20.Q:What’s the material of the pin hitch?

A:Q345.

21.Q:Why the thickness of screw blade is different? What’s the thickness of central pole? Why the thickness of central pole is different?

A:Because of different type, big torque will make the auger broker.

The thickness of central pole: S4 6mm, S5 8mm, S6 12mm.

22.Q:Why don’t make auger longer, a 2-3m long?

A:We can do this, but it may not be lift up.
