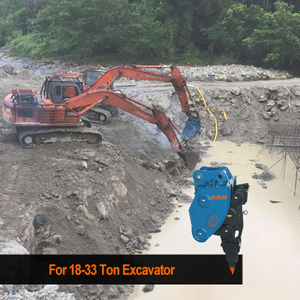

It's a new generation attachment recently developed and manufactured to effectively excavator, crush and destroy the soft rock mass such as rocks weathered by wind and water, hard soil, slate, quartz, concrete and Asphalt.
Vibro ripper makes light work of ripping the soil to make excavation productive and easier. Practically no modification is required to switch from working on land to water. Also, inexpensive easily replaceable wear tool is provided for economical operation, this can be changed according to the strata to be ripped.
Model | RVR-30 | RVR-40 | RVR-50 | RVR-60 | RVR-E7 | RVR-D8 | RVR-D10 | |
Power(KW) | 75 | 75 | 85 | 102 | 170-210 | 204-255 | 255-320 | |
Motor (CC) | 90 | 90 | 110 | 125 | 110*2 | 125*2 | 110*3 | |
Impact force(KN) | 295 | 315 | 385 | 450 | 550 | 750 | 860 | |
SIZE | Length | 2780mm | 2780mm | 3235mm | 3235mm | 3765mm | 4030mm | 4340mm |
Width | 960mm | 960mm | 1110mm | 1110mm | 1180mm | 1160mm | 1160mm | |
Height | 1400mm | 1400mm | 1565mm | 1565mm | 1775mm | 1900mm | 2360mm | |
Wroking flow(L/min) | 120-170 | 145-195 | 155-210 | 175-250 | 308-400 | 350-450 | 450-675 | |
Working power(Mpa) | 26-31 | 26-31 | 26-31 | 26-31 | 31.5 | 26-31 | 26-31 | |
Weight(Kg) | 4000 | 4300 | 5200 | 5500 | 7000 | 10000 | 14500 | |
Excavator(T) | 20-25 | 25-29 | 30-35 | 35-45 | 46-60 | 60-90 | 80-120 |
