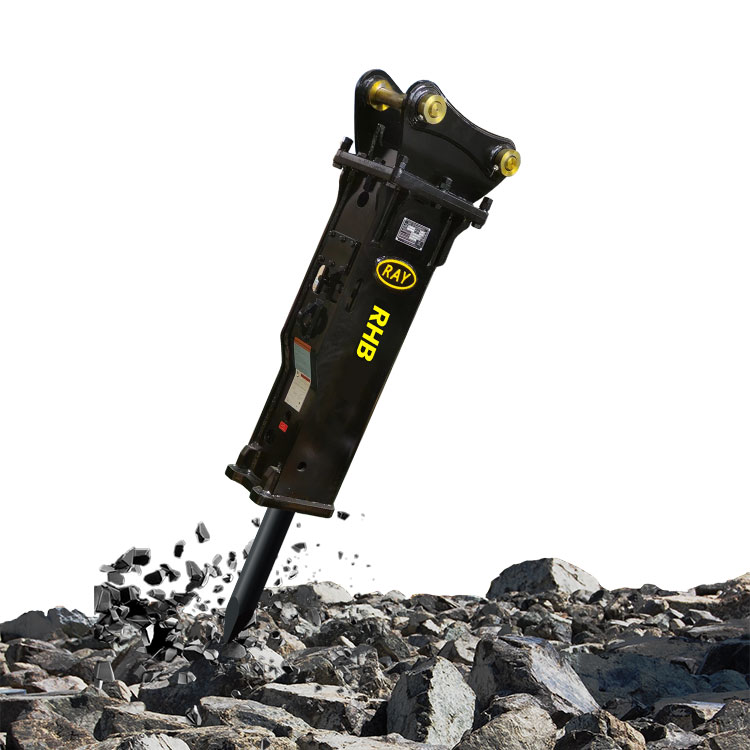

Rock breaker for sale RHB53

RHB53 is the mini type of the Hydraulic Breaker.Itcan be used for 2.5-4.5T.12 months warranty meetthe market requirement of high impact energy.
  • RHB53

  • RAY ATTACHMENTS

Availability:

hydraulic breaker

RAY Hydraulic breaker is a powerful percussion hammer fitted to an excavator for demolishing concrete structures or rocks.

RHB53 Hydraulic Breaker Application:

1. Mining---Mining, Second-time breaking;

2. Metallurgy---Clearing slag, Demolition of furnace and foundation;

3. Road---Repairing,Breaking,Foundation work;

4. Railway---Tunneling, Demolition of bridge;

5. Construction---Demolition of building and reinforced concrete;

6. Ship repairing---Clearing clam and rust from the hull;

7. Others---Breaking frozen mud.

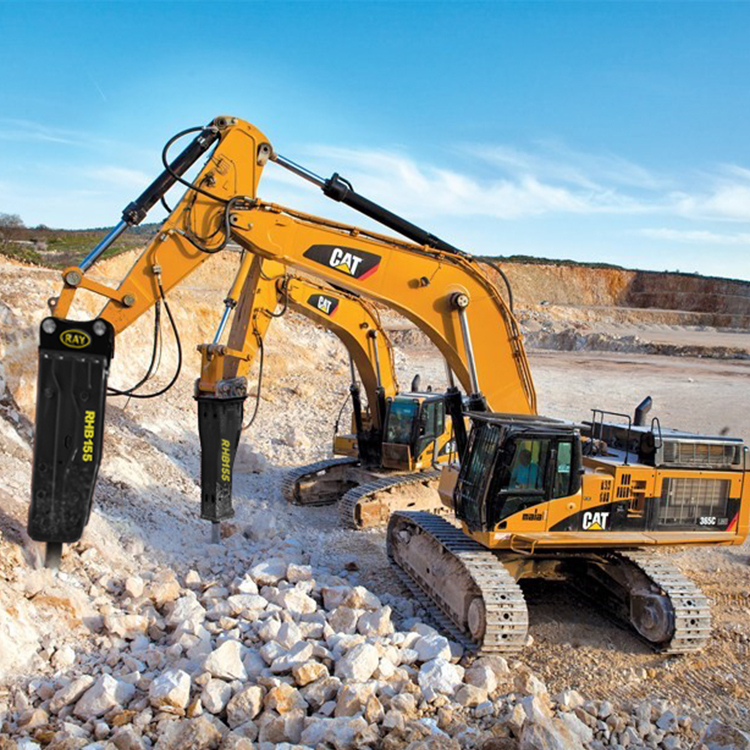

hydraulic breaker application

RAY hydraulic breaker box-silenced type Main features:

1.Reduce noise

2.Protect the enviroment

3. Selected raw material – high quality heavy duty wear resistant steel

4. Hydraulic-gas system, increase stability

5. High-quality and durable wear parts

hydraulic breaker hydraulic breaker

RHB53 Hydraulic Breaker  Detail Information:

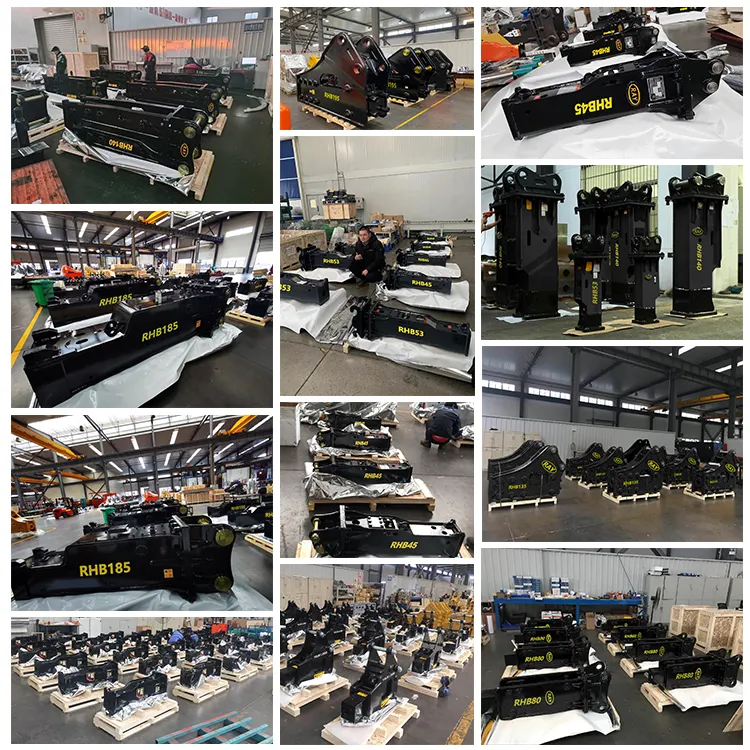

hydraulic breaker parts


RHB53 Hydraulic Breaker Deliver details:

1. Delivery time: Usually 5-7days (1-5sets) after down payment.

2. We can arrange ocean or air transportation according to your request from any port of China.

Hydraulic breaker specification


Item Model RHB40 RHB45 RHB53 RHB68* RHB75* RHB80 RHB85 RHB100* RHB125 RHB135* RHB135G*
Total Weight Side(Kg) 70 95 158 263 334 335 559 761 1277 1653 1680
Top(Kg) 72 95 158 343 409 410 637 866 1308 1847 1880
Box(Kg) 102 129 180 361 450 451 733 1007 1371 1893 1930
Operating
Preasure
kg/cm2 90-120 90-120 90-120 110-140 120-150 120-150 120-150 150-170 150-170 160-180 160-180
Psi 1280-1704 1280-1704 1280-1704 1562-1988 1562-1988 1704-2130 1704-2130 2130-2414 2130-2414 2272-2556 2272-2556
Oil Flow I/min 15-25 20-30 25-50 40-70 50-90 50-90 60-100 80-110 90-120 130-150 145-180
Gpm 4-7 5-8 6.6-13.2 10.5-18.5 10.5-18.5 13.1-23.6 15.8-26.3 21.1-29.1 23.7-31.7 34.3-39.6 38.3-47.6
Impact
Frequency
bpm 800-1400 700-1200 600-1100 500-900 400-800 400-800 400-800 350-700 350-650 400-600 350-500
Dia.of Hose mm 12.7 12.7 12.7 12.7 12.7 12.7 19.05 19.05 25.4 25.4 25.4
inch 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4 1 1 1
Chisel
Diameter
mm 40 45 53 68 75 75/80 85 100 125 135 135
inch 1.57 1077 2.08 2.68 2.68 2.95 3.35 3.94 4.92 5.31 5.31
Chisel
Length
mm 430 500 580 700 710 711 745 1055 1130 1200 1200
inch 16.93 19.69 22.83 27.56 27.95 27.99 29.33 41.54 44.49 47.24 47.24
Chisel
Weight
kg 4 8 9 18 22 26 29 57 94 115 115
Suitable
Excavator
m3 0.07 0.03-0.01 0.06-0.2 0.15-0.3 0.2-0.35 0.2-0.35 0.25-0.5 0.4-0.6 0.4-0.6 0.6-0.8 0.6-0.8
Ton 0.8-2.5 1.2-3.0 2.5-4.5 4.0-7.0 6.0-9.0 6.0-9.0 7.0-14 10.0-15.0 15-18 18-26 20-26


RHB53 Hydraulic Breaker Packing:

1. Inner is stretch film, outside is export wooden case or as customer’s request

2.The standard free spare parts: two pcs of Chisel, two pcs of oil tube, one pc of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge and a pair of gloves.
