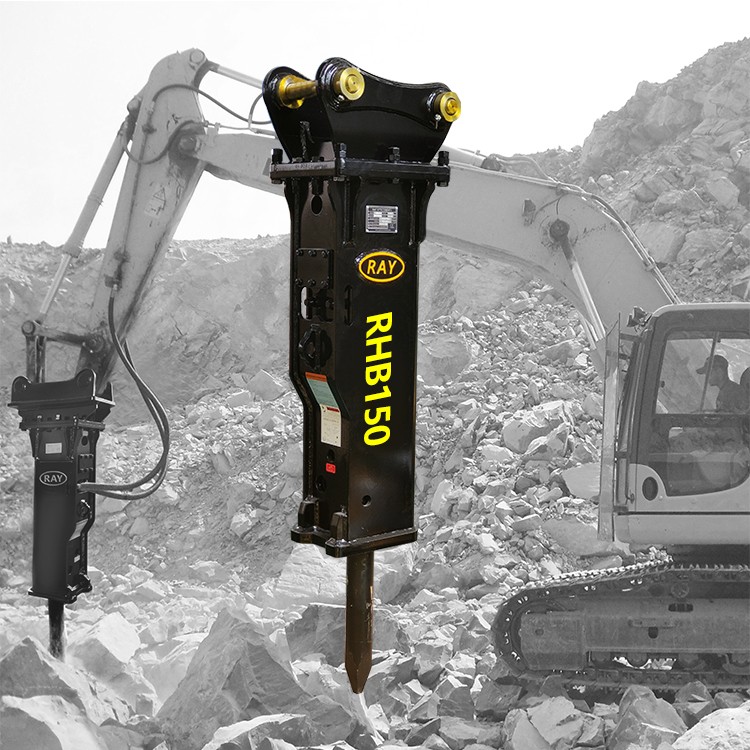

Box Type Hydraulic Breaker RHB150 For 27~35 T Excavator

Hydraulic Breaker For 22~35 T Excavator
  • RHB150
  • RAYATTACHMENTS
  • 0
Availability:

RAY ATTACHMENTS is one of the largest and most professional hydraulic breaker manufacturers with ten years experience.

Our products have been exported to many countries in the world including India, Saudi Arabia, Iran, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa etc.


Advantages of RAY hydraulic breaker box-silenced type RHB150:

(1) Easy control, friendly used and easy position make it more convenient to excavator work.

(2) Box type outside bracket can protect the cylinder from the dust during working

(3) It is friendly enviromental, the voice for it during working is quite low. This type usedly most in European countres.



Hydraulic Breaker RHB150 Spare parts detail information:

Piston

1.Special material:durable and longer service life.(20CrNiMoA)

2. For larger model, we use special technology, avoid crack. It will be as good as new after six months if you opearte correctly.

3.After heat treatment, we use subzero treatment in order to reduce the deformation and not easy  scratched ( below zero 130℃).

4.The piston's precision is 0.005mm and concentricity is 0.005-0.006mm. It ensures beating force.

5.The distance between cylinder and piston:

20T 0.05-0.06mm     30-40T 0.06-0.065       40T 0.065-0.07mm




Hydraulic Breaker RHB150 Warranty information


Hydraulic Breaker Specification


Item Model RHB140* RHB140A RHB150* RHB155* RHB165 RHB175 RHB185 RHB195 RHB200 RHB210
Total Weight Side(Kg) 1774 1809 2218 2577 3277 3905 4365 5329 5900 7050
Top(Kg) 2059 2094 2380 2745 3447 4057 4844 5623 6547
Box(Kg) 201 2046 2457 2968 2975 3902 4800 5330 6210
Operating
Preasure
kg/cm2 160-180 160-180 160-180 160-180 160-190 160-190 220-270 250-300 250-300 270-300
Psi 2272-2556 2272-2556 2272-2556 2272-2556 2272-2699 2272-2699 3132-3843 3552-4260 3552-4260 3834-4260
Oil Flow I/min 120-180 120-180 150-190 180-240 200-250 200-260 220-270 240-310 260-330 270-330
Gpm 31.7-47.6 31.7-47.6 39.6-50.2 47.6-63.36 52.8-65.79 52.8-68.42 58.08-71.28 63.36-81.84 68.64-87.12 70.35-87.12
Impact
Frequency
bpm 350-500 350-500 350-700 300-450 250-380 200-350 120-200 100-150 100-150 100-150
Dia.of Hose mm 25.4 25.4 25.4 31.75 31.75 31.75 31.75 31.75 31.75 31.75
inch 1 1 1 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4
Chisel
Diameter
mm 140 140 150 155 165 175 185 195 200 210
inch 5.51  5.51  5.91  6.10  6.50  6.89  7.28  7.68  7.87  8.27
Chisel
Length
mm 1300 1300 1300 1500 1500 1600 1600 1650 1650 1750
inch 51.18 51.18  51.18  59.06  59.06  62.99  62.99  64.96  64.96  68.90
Chisel
Weight
kg 126 135 157 190 215 255 260 304 315 366
Suitable
Excavator
m3 0.7-0.9 0.7-0.9 0.9-1.2 1.1-1.4 1.2-1.6 1.4-1.8 1.4-2.0 1.6-2.2 1.8-2.5 2.4-3.2
Ton 18-26 18-26 27-35 28-35 30-40 35-45 40-55 45-55 50-60 60-70








ItemUnitRHB140RHB150GRHB150RHB155
Operation WeightKg(Box Type)1728254024902505
Operation Pressurekgf/cm²160-180160-180160-180160-180
psi2275-25592275-25592275-25592275-2559
Oil Flowl/min120-150150-190150-190170-240
gpm31.7-39.639.6-50.239.6-50.244.9-63.4
Impact Ratebpm250-400350-700200-350320-450
Chisel Diametermm140150150155
inch5.515.895.896.11
Chisel Lengthmm1300130014501500
inch51.1151.1857.0157.01
Chisel Weightkg137137160193
Hose Sizemm25252532
inchPF1"PF1"PF1"PF1-1/4"
Suitable Excavatorton22-2727-3525-3226-35
mm³0.8-11-1.61-1.11.1-1.6
