RHB100
RAYATTACHMENTS
0

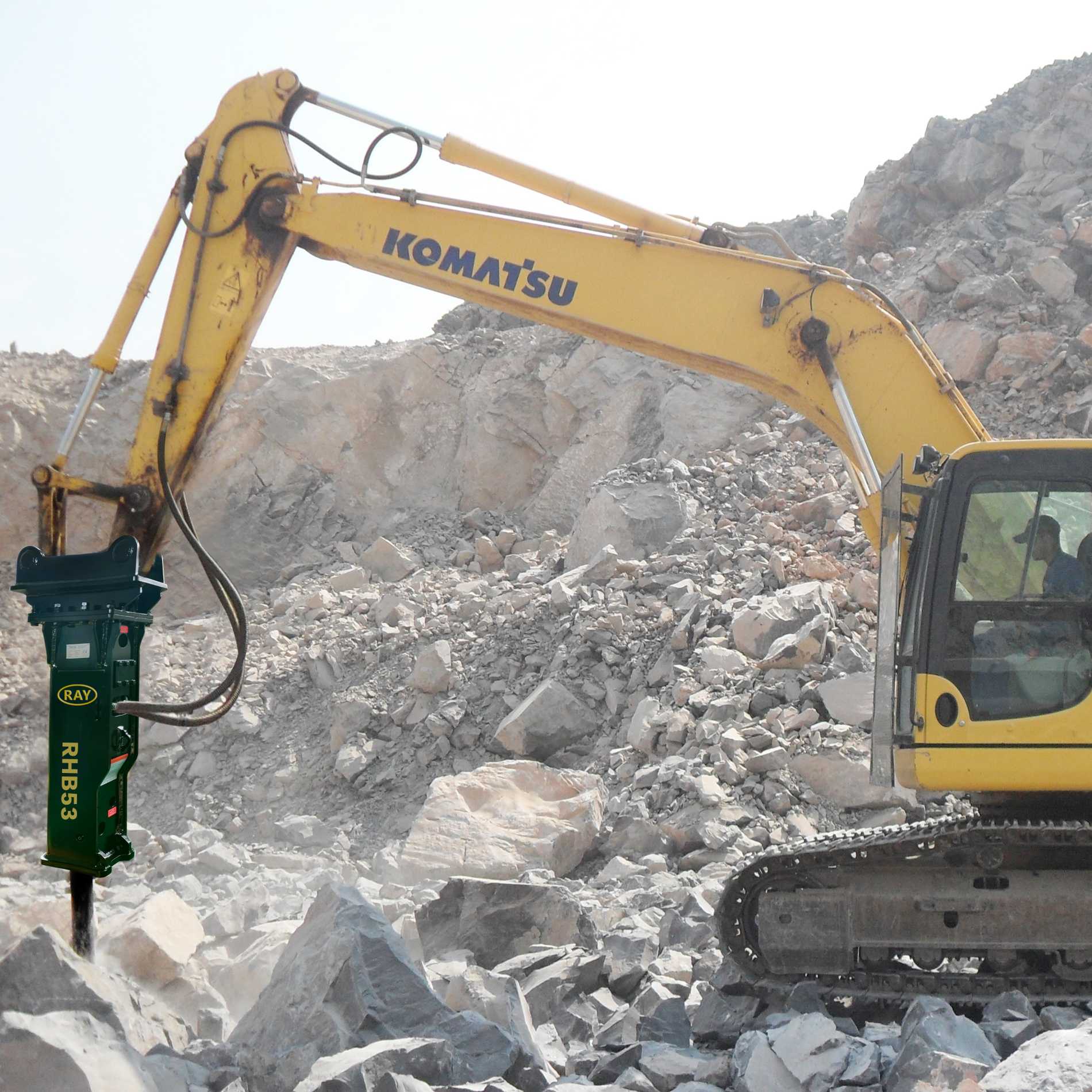

RAY Hydraulic breaker is a powerful percussion hammer fitted to an excavator for demolishing concrete structures or rocks.
1. Mining---Mining, Second-time breaking;
2. Metallurgy---Clearing slag, Demolition of furnace and foundation;
3. Road---Repairing,Breaking,Foundation work;
4. Railway---Tunneling, Demolition of bridge;
5. Construction---Demolition of building and reinforced concrete;
6. Ship repairing---Clearing clam and rust from the hull;
7. Others---Breaking frozen mud.
1.Reduce noise
2.Protect the enviroment
3. Selected raw material – high quality heavy duty wear resistant steel
4. Hydraulic-gas system, increase stability
5. High-quality and durable wear parts
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
| Item | Model | RHB40 | RHB45 | RHB53 | RHB68* | RHB75* | RHB80 | RHB85 | RHB100* | RHB125 | RHB135* | RHB135G* |
| Total Weight | Side(Kg) | 70 | 95 | 158 | 263 | 334 | 335 | 559 | 761 | 1277 | 1653 | 1680 |
| Top(Kg) | 72 | 95 | 158 | 343 | 409 | 410 | 637 | 866 | 1308 | 1847 | 1880 | |
| Box(Kg) | 102 | 129 | 180 | 361 | 450 | 451 | 733 | 1007 | 1371 | 1893 | 1930 | |
| Operating Preasure | kg/cm2 | 90-120 | 90-120 | 90-120 | 110-140 | 120-150 | 120-150 | 120-150 | 150-170 | 150-170 | 160-180 | 160-180 |
| Psi | 1280-1704 | 1280-1704 | 1280-1704 | 1562-1988 | 1562-1988 | 1704-2130 | 1704-2130 | 2130-2414 | 2130-2414 | 2272-2556 | 2272-2556 | |
| Oil Flow | I/min | 15-25 | 20-30 | 25-50 | 40-70 | 50-90 | 50-90 | 60-100 | 80-110 | 90-120 | 130-150 | 145-180 |
| Gpm | 4-7 | 5-8 | 6.6-13.2 | 10.5-18.5 | 10.5-18.5 | 13.1-23.6 | 15.8-26.3 | 21.1-29.1 | 23.7-31.7 | 34.3-39.6 | 38.3-47.6 | |
| Impact Frequency | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 400-800 | 400-800 | 400-800 | 350-700 | 350-650 | 400-600 | 350-500 |
| Dia.of Hose | mm | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 19.05 | 19.05 | 25.4 | 25.4 | 25.4 |
| inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1 | 1 | |
| Chisel Diameter | mm | 40 | 45 | 53 | 68 | 75 | 75/80 | 85 | 100 | 125 | 135 | 135 |
| inch | 1.57 | 1077 | 2.08 | 2.68 | 2.68 | 2.95 | 3.35 | 3.94 | 4.92 | 5.31 | 5.31 | |
| Chisel Length | mm | 430 | 500 | 580 | 700 | 710 | 711 | 745 | 1055 | 1130 | 1200 | 1200 |
| inch | 16.93 | 19.69 | 22.83 | 27.56 | 27.95 | 27.99 | 29.33 | 41.54 | 44.49 | 47.24 | 47.24 | |
| Chisel Weight | kg | 4 | 8 | 9 | 18 | 22 | 26 | 29 | 57 | 94 | 115 | 115 |
| Suitable Excavator | m3 | 0.07 | 0.03-0.01 | 0.06-0.2 | 0.15-0.3 | 0.2-0.35 | 0.2-0.35 | 0.25-0.5 | 0.4-0.6 | 0.4-0.6 | 0.6-0.8 | 0.6-0.8 |
| Ton | 0.8-2.5 | 1.2-3.0 | 2.5-4.5 | 4.0-7.0 | 6.0-9.0 | 6.0-9.0 | 7.0-14 | 10.0-15.0 | 15-18 | 18-26 | 20-26 |
1. Inner is stretch film, outside is export wooden case or as customer’s request
2.The standard free spare parts: two pcs of Chisel, two pcs of oil tube, one pc of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge and a pair of gloves.
