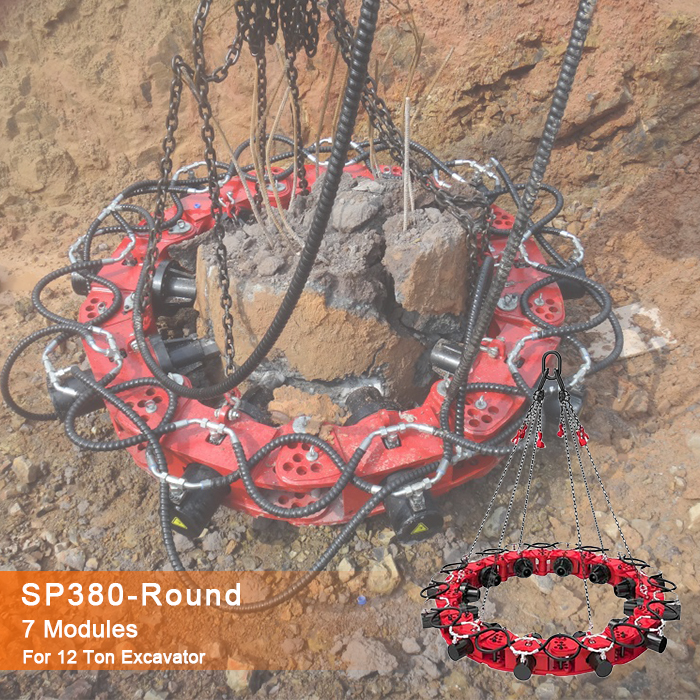

SP380-7 Hydraulic Concrete Pile Breaker Cut Pile Head for Piling Construction

Pile breaker Pile Dia:350~900mm
Do you tired to break the piles by manpower? Dangerous , Slowly , Noisy , Expensive salary and so on? Choose RAY pile breaker, deal with you any worry.
  • SP380-7

  • RAY Attachments

Availability:

The effect-of-the-pile-breaker

The efficiency of our pile breaker is really high, for example, to cut 1000mm diameter & 1m length pile, concrete label C30, with 25T excavator, you can use our SP800 model with 8 modules, continuous work 8 hours can cut 30 piles in a day, but a worker can only cut 2-3 piles within 8 hours.

pile breaker machine for sale

SP380-7 Excavator Pile Breaker Machine Product Description

  1.  The efficiency of RAY pile breaker is really high.

  2.  Cylinder position: We make a cylinder in front position, the force point is on the flange and the module, balance the force, protect the cylinder, and have a longer service life.

  3.  Chisels: stronger penetration and low noise.

  4.  Chain: our chain uses a lifting chain (level 80).

  5.  Tubing: tubing arrangement is more reasonable to prevent damage.

pill-breaker-components

Your problems How can we solve it?
Dangerous 1. Contact-free operation is enabled.
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.
Slowly 1.Replaceable and changeable module combination makes its applicable for piles with various diameters.
2.The modules can be assembled and disassembled easily and conveniently.
Noisy Its full hydraulic drive causes little noises during operation and no influence on the
surrounding environments
Expensive
salary
1.Fewer operating workers are required to save cost for labor and machines maintenance during construction.
2.Suitable for different kinds of carrier.
3.Module generalization is realized with our SP380 and SP400 square pile machine. It can be used for both circular
piles and  square piles by changing the module combination
Durable? 1. It is made of military material by first-class suppliers with reliable quality, extending its service life.
2.The mainboard used Q345B and the chisel used the 20CrNiMo3.
3.12 month free after-sales service.
4.Provide 3 sets wear parts for chisel.
5.Professional small tools for free.

Excavator Pile Breaker/Pile Cutting Machine Specification

RAY pile breaker (SP380-Round)

Model Unit SP380 SP380 SP380 SP380 SP380 SP380
Moduld number modules 7 8 9 10 11 12
Range of pile breaker mm 300-400 450-500 550-625 650-750 800-900 900-1050
Max force for single rod KN 350 350 350 350 350 350
Max stroke of hydraulic cylinder mm 150 150 150 150 150 150
Pressure of hydraulic cylinder Mpa 32-35 32-35 32-35 32-35 32-35 32-35
Max flow for single cylinder L/min 25 25 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300 ≤300 ≤300
Suitable carrier T 12 13 15 21 21 21
Single moulde weight kg 110 110 110 110 110 110
Total pile breaker weight kg 920 1030 1500 1250 1360 1470

RAY pile breaker (SP800-Round)

Model Unit SP800 SP800 SP800 SP800 SP800 SP800 SP800 SP800
Moduld number modules 6 7 8 9 10 11 12 13
Range of pile breaker mm 500-600 650-800 850-1000 1050-1200 1250-1400 1450-1600 1650-1800 1850-2000
Max force for single rod KN 650 650 650 650 650 650 790 650
Max stroke of hydraulic cylinder mm 215 215 215 215 215 215 215 215
Pressure of hydraulic cylinder Mpa 32-35 32-35 32-35 32-35 32-35 32-35 32-35 32-35
Max flow for single cylinder L/min 25 25 25 25 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300 ≤300 ≤300 ≤300 ≤300
Suitable carrier T 20 22 26 27 30 32 35 36
Single moulde weight kg 380 380 380 380 380 380 380 380
Total pile breaker weight kg 2335 2720 3100 3480 3860 4240 4620 5000

SP380-7 Excavator Pile Breaker Machine Application

In construction project involving pile foundations, one of the most cumbersome and time consuming activity is the crushing of top portion of the Castin-Situ Piles /Precast Piles as required to remove the weak top concrete and expose the reinforcement to be used for further construction. Pile breakers solve the problem by crushing such overhangs in a speedy and precise way. Thereinforcement bars are left intact facilitating the rebuilding work. The breaking down of concrete piles is an essential part of the construction process and a subject that is often not given sufficient early thought in the planning of the piling works.The adoption of a suitable pile breaking method can result in financial savings for the project and most importantly will address and reduce potential health and safety issues in relation to this phase of the works.

pile-breaker

For round pile, the cutting diameter is 300-2000mm. And RAY pile breaker light model, the diameter range is 300-1050mm, at least 7 modules but most 12 modules; heavy model, the diameter range is 500-2000mm, at least 6 modules  and most 13 modules.

Well, square pile diameter range is 300-500mm;

Except that the SP500 is a module with 2 cylinders, the others are one module and one cylinder.

pile-cutting
