SP800-8 Adjustable Chain Hydraulic Round Pile Breaker with Hydraulic Cylinder

SP800-8 hydraulic pile breaker is an advanced, efficient and time-saving system for trimming concrete outcrops and foundation piles.
  • SP800-8

  • RAY ATTACHMENTS

Availability:

SP800-8 Adjustable Chain Hydraulic Round Pile Breaker Video




Why Choose Us?

RAY pile breaker

Are you tired to break the piles by manpower?

Dangerous , Slowly , Noisy , Expensive salary and so on.
Don’t worry. Ray pile breaker for sale will help you!


Your problems
How can we solve it?

Dangerous
1. Contact-free operation is enabled.
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.

Slowly
1.Replaceable and changeable module combination makes its applicable for piles with various diameters.
2.The modules can be assembled and disassembled easily and conveniently.

Noisy
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments



Expensive salary
1.Fewer operating workers are required to save cost for labor and machines maintenance during construction.
2.Suitable for different kinds of carrier.
3.Module generalization is realized with our SP380 and SP400-Bsquare pile machine. It can be used for both circular piles and
square piles by changing the module combination



Nondurable
1. It is made of military material by first-class suppliers with reliable quality, extending its service life.
2.The mainboard used Q345B and the chisel used the 42Crmo.
3.12 month after-sales service.
4.Provide 50 spring pins for free.
5.Professional small tools for free.

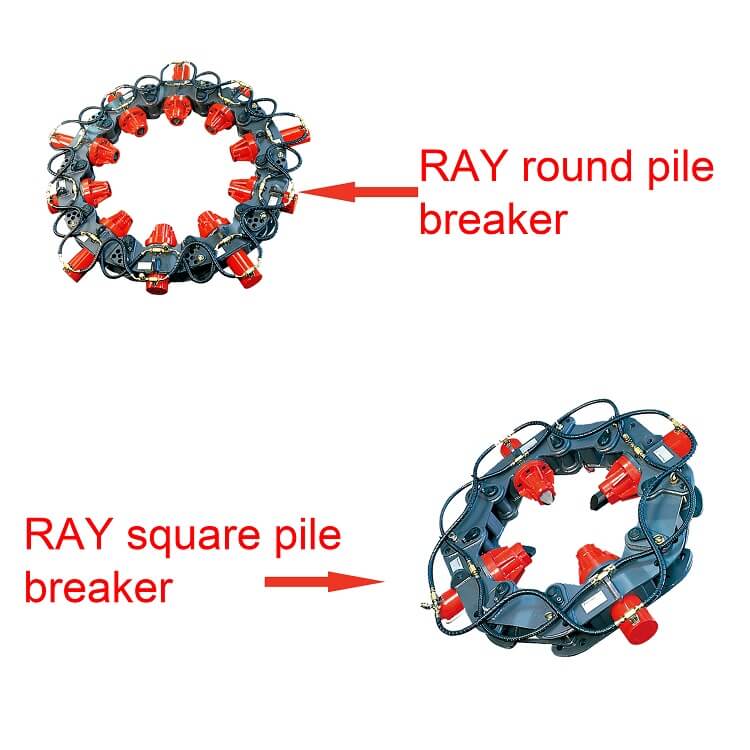

Types

RAY pile breaker type

RAY pile breaker (Square)

Model Unit SP400
(Light)
SP500
(Light)
SP600
(Heavy)
SP600-8
(Heavy)
Range of pile breaker mm 300-400 400-500 300-550 600-800
Max force for single rod KN 320 320 790 790
Max stroke of hydraulic cylinder mm 150 150 205 205
Pressure of hydraulic cylinder Mpa 34.3 34.3 34.3 34.3
Max flow for single cylinder L/min 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300
Suitable carrier T ≥8 ≥15 ≥20 ≥26
Single moulde weight kg 110 220 400 700
Single module size mm 604*594*286 595*980*275 910*780*400 908×780×400
Dimensions at working mm 1600*1600*2000 1710*1710*2500 2050*2050*2000 2400*2400*2500
Total pile breaker weight kg 650 950 2000 3200

RAY pile breaker (SP380-Round)

Model Unit SP380 SP380 SP380 SP380 SP380 SP380
Moduld number modules 7 8 9 10 11 12
Range of pile breaker mm 300-400 450-500 550-625 650-750 800-900 900-1050
Max force for single rod KN 350 350 350 350 350 350
Max stroke of hydraulic cylinder mm 150 150 150 150 150 150
Pressure of hydraulic cylinder Mpa 32-35 32-35 32-35 32-35 32-35 32-35
Max flow for single cylinder L/min 25 25 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300 ≤300 ≤300
Suitable carrier T 12 13 15 21 21 21
Single moulde weight kg 110 110 110 110 110 110
Total pile breaker weight kg 920 1030 1500 1250 1360 1470

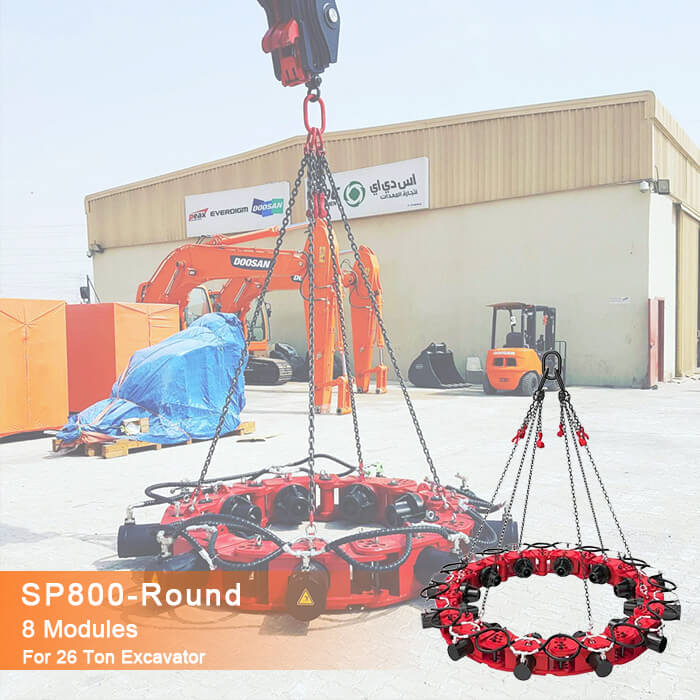

RAY pile breaker (SP800-Round)

Model Unit SP800 SP800 SP800 SP800 SP800 SP800 SP800 SP800
Moduld number modules 6 7 8 9 10 11 12 13
Range of pile breaker mm 500-600 650-800 850-1000 1050-1200 1250-1400 1450-1600 1650-1800 1850-2000
Max force for single rod KN 650 650 650 650 650 650 790 650
Max stroke of hydraulic cylinder mm 215 215 215 215 215 215 215 215
Pressure of hydraulic cylinder Mpa 32-35 32-35 32-35 32-35 32-35 32-35 32-35 32-35
Max flow for single cylinder L/min 25 25 25 25 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300 ≤300 ≤300 ≤300 ≤300
Suitable carrier T 20 22 26 27 30 32 35 36
Single moulde weight kg 380 380 380 380 380 380 380 380
Total pile breaker weight kg 2335 2720 3100 3480 3860 4240 4620 5000

If you are interested in our hydraulic pile breaker, please tell us pile diameter which you will break, the grade of concrete,
round pile or square pile, the concrete reinforcement arrangement. We will introduce suitable model to you.
Welcome to visit our factory, If you have any questions, please feel free to contact me.

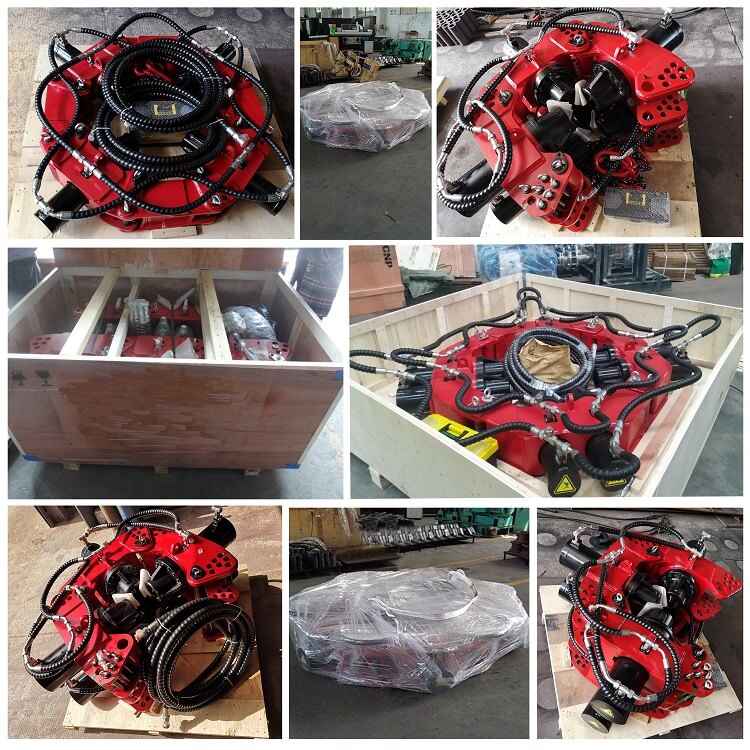

SP800-8 Adjustable Chain Hydraulic Round Pile Breaker Details Images

RAY PILE BREAKER DETAILS

RAY PILE BREAKER DETAILS-1
RAY PILE BREAKER DETAILS-2
RAY PILE BREAKER DETAILS-3
RAY PILE BREAKER DETAILS-4
RAY PILE BREAKER DETAILS-5
RAY PILE BREAKER DETAILS-6
RAY PILE BREAKER DETAILS-7
