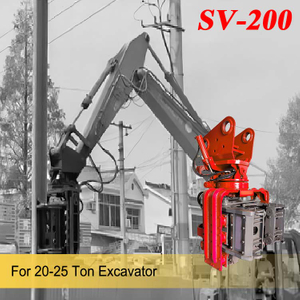

SV-300
RAY Attachments
Can be applied for a wide range of working environments because of their small size and simple operation procedure, such as drainage maintenance, river-bank maintenance, and marshland working wherever onshore and offshore piling jobs.
| Model | Unit | SV-150 | SV-200 | SV-300 | SV-400 |
| Eccentric Moment | kgm | 4.5 | 5.5 | 6.5 | 7.5 |
| Centrifugal Force | kn | 405 | 495 | 585 | 675 |
| Frequency | rpm | 2400-3000 | 2400-3000 | 2400-3000 | 2400-3000 |
| Side Clamp Force | kn | 468 | 764 | 912 | 1116 |
| Bottom Clamp Force | Kn | 540 | 540 | 650 | 650 |
| Operation Pressure | Mpa | 35 | 35 | 35 | 35 |
| Operation Flow | I/min | 130-180 | 170-230 | 220-280 | 280-360 |
| Rotate/Tilt Degree | ° | 360/±30 | 360/±30 | 360/±30 | 360/±30 |
| Max Pile Length(soft soil) | m | 15 | 18 | 18 | 18 |
| Max Pile Length(common soil) | m | 12 | 12 | 15 | 18 |
| Size(LxWxH) | mm | 1241*1222*2239 | 1320*1450*2550 | 1350*1490*2650 | 1350*1490*2650 |
| Minimum Excavator engine power | kw | 118 | 147 | 180 | 212 |
| Weight(Include Connector and Clamp) | kg | 2322 | 2600 | 3200 | 3500 |
| Applicable Excavator | ton | 15-25 | 25-32 | 32-40 | 40-50 |
| Applicable steel pipe dia scope | mm | 180-630 | |||
1. Elastomer: Imported and customized, ensures its service life.
2. Gearbox: High precision gearbox ensures long-term and stable operation.
3. Main Clamp: The clamp is made of a solid block, with a solid structure and small size.
4. Rototilt: Smart Rototilt with tilt function, easy for picking up and setting the piles.
5. Side grip: Easily changeable jaws, depending on the working condition.
6. Jaws: CNC one-time forming, vacuum heat treatment, high-temperature quenching and hardening, excellent material, strong and wear-resistant.
