Product Description

Products Description

 Lifting electromagnetic chuck, also known as lifting electromagnet, electromagnetic jack, is mainly used for lifting and transporting magnetic conductive materials such as steel in metallurgy, mining, machinery, transportation and other industries. It is also used as an electromagnetic manipulator to hold magnetic materials such as steel, and is suitable for handling cast iron ingots, steel balls and various scrap steels. The excitation mode can be adopted: constant voltage mode, strong excitation mode and over-excitation mode.

Specification

Model	Current （A）	Cold Power (KW)	Lifting capacity (Cold/Hot)(KG)			Weight (KG)	Excavator (T)
Model	Current （A）	Cold Power (KW)	Steel ball	Steel block	Iron filings	Weight (KG)	Excavator (T)
REM-60L	11	2.3	2000	280/170	280/100	400	2-4
REM-70L	15	3.3	2500	380/200	380/200	500	3-5
REM -80L	18	3.96	3000	480/250	480/250	600	5-8
REM -90L	26.6	5.9	4500	650/400	650/400	760	10-12
REM-100L	30	7	6500	1000/800	1000/800	900	12-15
REM-110L	35	6.1	6500	1050/800	1050/800	1200	15-18
REM-120L	45.5	7.4	7500	1300/100	1300/100	1500	18-20
REM-130L	54	9	8500	1450/1100	1450/1100	1700	20-25
REM- 150L	71.2	11.3	11000	1980/1500	1980/1500	2400	25-35
REM-165L	75	12.2	12500	2300/1800	2300/1800	2700	30-35
REM- -180L	102	16.3	14500	2850/2200	2850/2200	3500	/
REM-210L	129	21.7	21000	2300/1900	2300/1900	4800	/
REM- -240L	154	25.9	26000	4850/3900	4850/3900	9000	/

Details Images

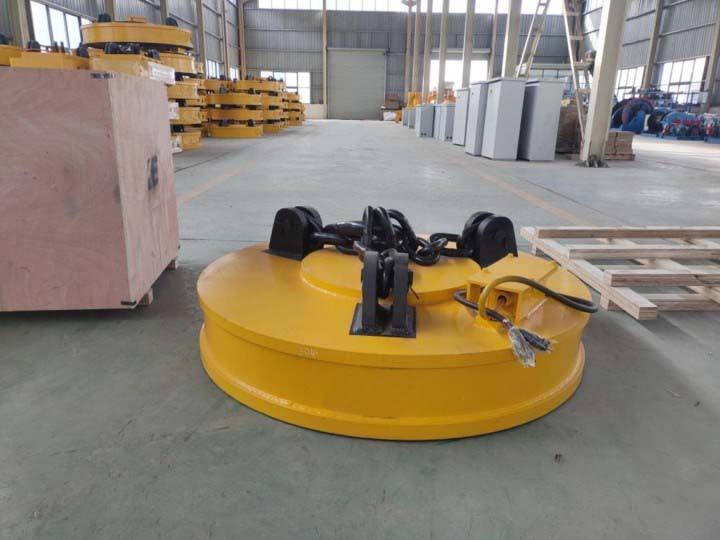

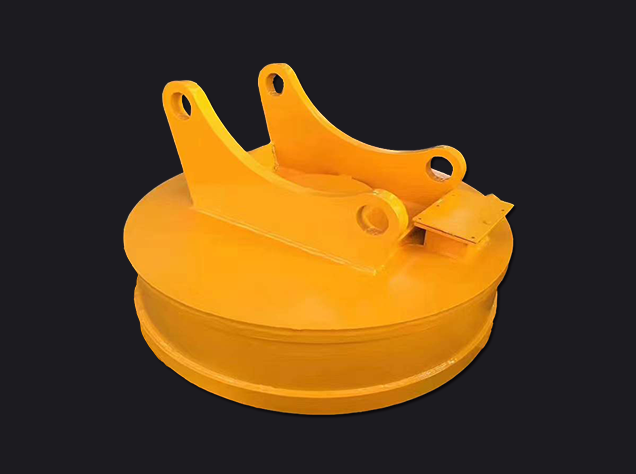

 Scrap Magnet

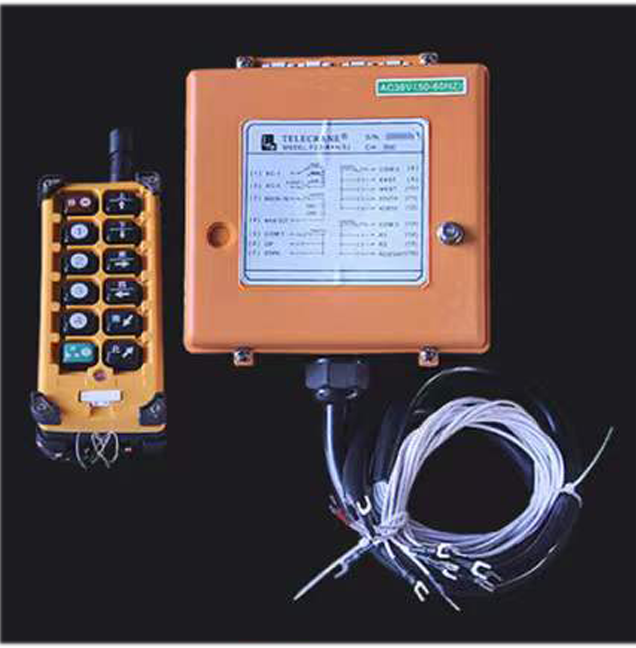

 Remote Controller

 Cable Drum

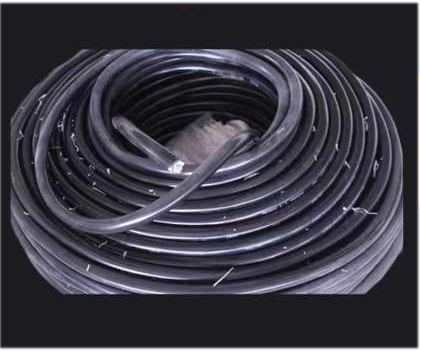

 Cable Line

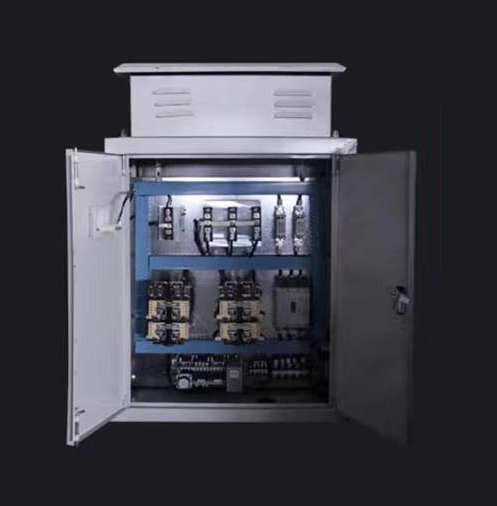

 Power Distribtion Cabinet

Strong power, strong suction, can carry 1-5 tons of weight.
The operation is simple, the mobility is good, and the transfer site does not need to be disassembled.

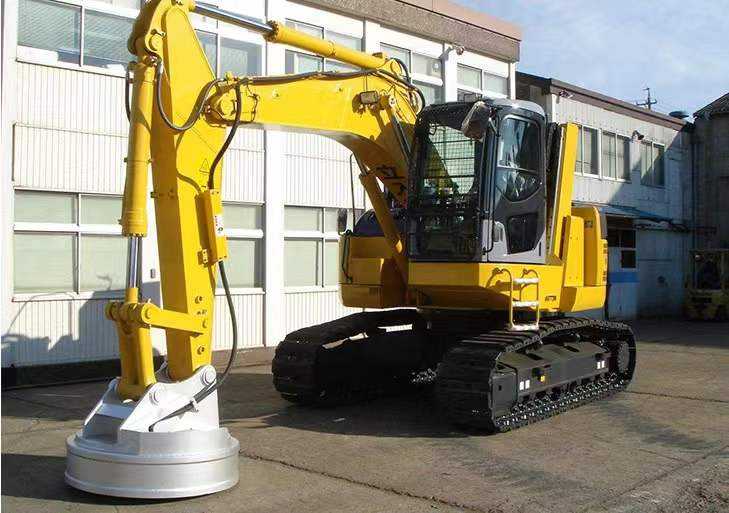

It is not limited by the site and can be directly installed on the excavator for use.
It can be matched with the excavator and will not damage the original pipeline.
One year warranty.
