Rock Hammer Hydraulic Breaker for 0.7-86T Excavator

Hydraulic Breaker For 0.7~86 T Excavator
  • RHB
  • RAY ATTACHMENTS
  • 0
Availability:

1

"broken hammer" or ''breaker".Hydraulic breaker's power source is excavators,loaders or pumping stations' pressure.It can break stones and rocks more effectively in the engineering construction.Selection of hydraulic breaker principle is according to the operation environment and excavator type.

破碎锤20191128_03 - 副本


Specification

No. ITEMS Model  EDT100  EDT200  EDT300  EDT400  EDT430  EDT435 EDT450  EDT800  EDT1600  EDT2000  EDT2000F  EDT2200  EDT2200A  EDT3000  EDT3200  EDT3500F EDT4500  EDT4500F EDT6000F EDT8000 EDT10000

Similar as  unit  SB10  SB20  SB30  SB40  SB43  SB43 SB45  SB50  SB60  20G  F22  SB81  SB81A  30G  SB121
SB151
F70


RAYMOND               Model


RHB40 RHB45 RHB53 RHB68 RHB75 RHB80 RHB85 RHB100 RHB125 RHB135 RHB135 RHB140 RHB140A RHB150 RHB155 RHB165 RHB175 RHB175F RHB185 RHB195 RHB210
1 Body Weight  kg  53 65.5 86 152 212 215 280 473 623 845 858 921 956 1095 1303 1590 1935 1920 2295 2525 3400

Total weight (Kg) Side  70 90 120 250 380 335 510 765 1255 1653 1680 1770 1803 2530 2440 3013 3910 3907 4227 4572
2 Top  73 100 150 298 386 410 515 890 1250 1847 1880 1997 2030 2420 2700
4100
4351 4792 7100

Box  102 126 152 295 375 451 571 861 1296 1893 1930 1825 1858 2540 3150
3990



3 Length (mm)  Top  972 1000 1140 1373 1699 1770 1767 2251 2089 2327 2688 2823 2823 3047 3119
3617

4021 4290
4 Width (mm)  Top  162 176 177 350 353 390 357 438 508 580 560 620 620 700 710
760

764 1010
5 Operating pressure  kg/cm2  90-120  90-120  90-120  110-140  120-150  120-160  130-160  150-170  150-170  160-180  160-180  160-180  160-180  160-180  170-200  180-210 180-210 180-210 180-210 180-210 180-210
6 Oil Flow l/min  15-30  20-40  20-50  40-70  50-90  50-100  60-100  80-110  90-120  130-150  145-180  120-180  120-180  150-190  180-240  210-280 210-290 220-270 220-270 220-290 350-400
7 Impact frequency  bpm  800-1400  700-1200  600-1100  500-900  400-800  400-800 400-800  350-700  400-530  400-800  360-460  350-500  350-500  350-700  300-450  250-380 200-350  200-300 250-320 180-200 150-200
8 Dia. of hose  mm inch  12.7                  1/2  12.7                1/2  12.7                 1/2  12.7               1/2  12.7                     1/2  12.7                     1/2 19.05                  3/4  19.05                 3/4  25.4                     1  25.4                     1  25.4                  1  25.4                      1  25.4                     1  25.4              1  31.75 11/4  31.75   11/4  31.75    11/4  31.75    11/4  31.75         11/4  31.75         11/4  31.75         11/4
9 Dia. of Tool (M/W/B/C)  mm  40 45 53 68 75 80 85 100 125 135 135 140 140 150 155 165 175 175 185 195 210
10 Length of Tool  mm  430 500 580 700 710 711 745 1055 1130 1200 1200 1300 1300 1300 1500 1600 1600 1600 1600 1600 1600
11 Weight of Tool  kg  4 8 9 18 22 26 29 57 97 119 119 136 136 160 190 222 238 234 263 326 357
12 Suitable Carrier bucket Volume  m3  <0.07  0.03-0.01  0.06-0.2  0.15-0.3  0.2-0.35  0.2-0.35  0.25-0.5  0.4-0.6  0.4-0.6  0.6-0.8  0.6-0.8  0.7-0.9  0.7-0.9  0.9-1.2  1.1-1.4  1.2-1.8 1.4-2.0  1.4-2.0 1.4-2.5 1.6-2.5 2.4-3.0
13 Suiteable Carrier Weight  ton  0.8-2.5  1.2-3.0  2.5-4.5  4.0-7.0  6.0-9.0  6.0-9.0  7.0-14  10.0-16.0  15-21  18-26  20-26  18-26  18-26  27-35  28-36 35-45  38-50 38-50 45-65 60-85 70-100
14 Impact Energy Class  ft-lbs Joules  150    203  200     271  300       407  590     800  1000 1356  1069 1450 1135    1540  1926    2612  2000    2712  3150 4270  3379    4580 3960     5372  3960     5372  4520 6128  6580 8925  8482   11500 10480 14210  11800 16000 12170 16500 13645 18500 16964 23000
15 Valve Type
Inward  Inward  Inward  Inward  Inward  Inward  Inward  Inward  Inward  Outward  Outward  Inward  Inward  Outward  Inward  Inward Inward  Outward  Outward  Outward  Outward
16 Accumulator exists
No  No  No  No  No  No  No  No  No  Yes  Yes  No  Yes  Yes  Yes  Yes  Yes  Yes  Yes  Yes  Yes
17 Accumulator Pressure  kg/cm2  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A  60±0.5  60±0.5  N/A  60±0.5  60±0.5  60±0.5  60±0.5  60±0.5  60±0.5  60±0.5  60±0.5  60±0.5
18 N2 pressure  kg/cm2  16.5 16.5 16.5 16.5 16.5 16.5 16.5 16.5 16.5 6±0.5  9.5 16.5 16.5 6±0.5  16.5 16.5 16±0.5  16 16±0.5  16 16


Details Images

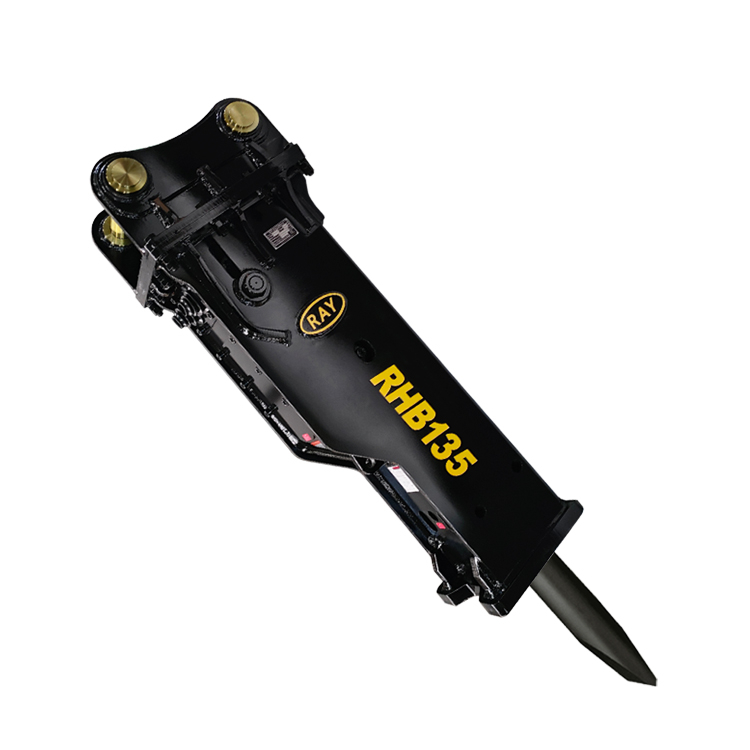

RHB135 box type - 副本

IMG_5882 - 副本

QQ图片20181022170157

IMG_3248

IMG_3246


Product Advantage

1.Long warranty period -- 12 months warranty
2.Special material:durable and longer service life.-- 40CrNiMo, 42CrMo, 20CrMo, 20CrNiMoA etc
3.High precision accessories and reduce wear and tear
4.heat treatment and subzero treatment to reduce the deformation and not easy scratched

2

3

4

Through bolt: The front head, the cylinder and the back head of the main body are tightly fixed with four through bolts.
Valve: The cylindrical compensates for pressure in the hydraulic circuit piston reciprocation.
Piston: Kinetic energy of the piston is converted into hammering energy after hitting the chisel.

The raw material: 20CrNiMoA(best),35CrNiMoA, 40CrNiMoA,and other suppliers use the only GCr15 to decrease the cost.
Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt, Flat, Conical Point. The material is 42Crmo.
Ring Bush & Front Cover: Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacturer; forging again and again to make forming, to make internal organization more tight, and increase products’ wear-resistance.
Seal Kit: We can supply seal kit which are most famous brand in the bussines line.


Customer Photos

5

6


Packing & Shipping

7

Deliver Details:

1. Delivery time: Usually 5-7days (1-5sets) after down payment.

2. We can arrange ocean or air transportation according to your request from any port of China.

Packing:

1. Inner is stretch film, outside is export wooden case or as customer’s request

2.The standard free spare parts: two pcs of Chisel, two pcs of oil tube, one pc of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge and a pair of gloves.

8
